Subaru Legacy III (2000-2003 year). Manual - part 45





EC(H4SO)-8

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

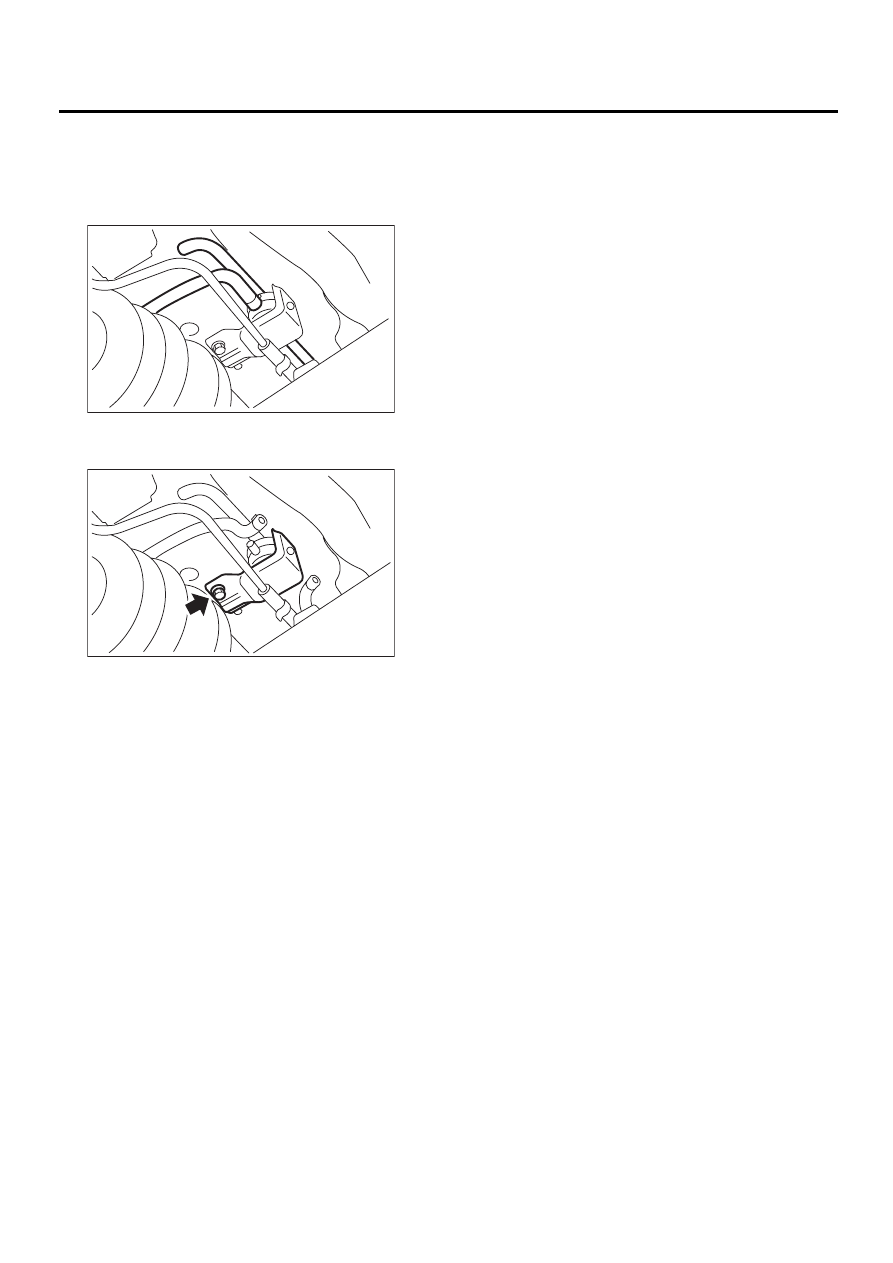

TWO-WAY VALVE

7. Two-way Valve

A: REMOVAL

1) LIft-up the vehicle.
2) Disconnect hoses from two-way valve.

3) Remove two-way valve with bracket as a single
unit from body.

4) Remove two-way valve from bracket.

B: INSTALLATION

1) Install in the reverse order of removal.

C: INSPECTION

1) Make sure that hoses are not cracked or loose.

EC-00153

EC-00154

IN(H4SO)-2

INTAKE (INDUCTION)

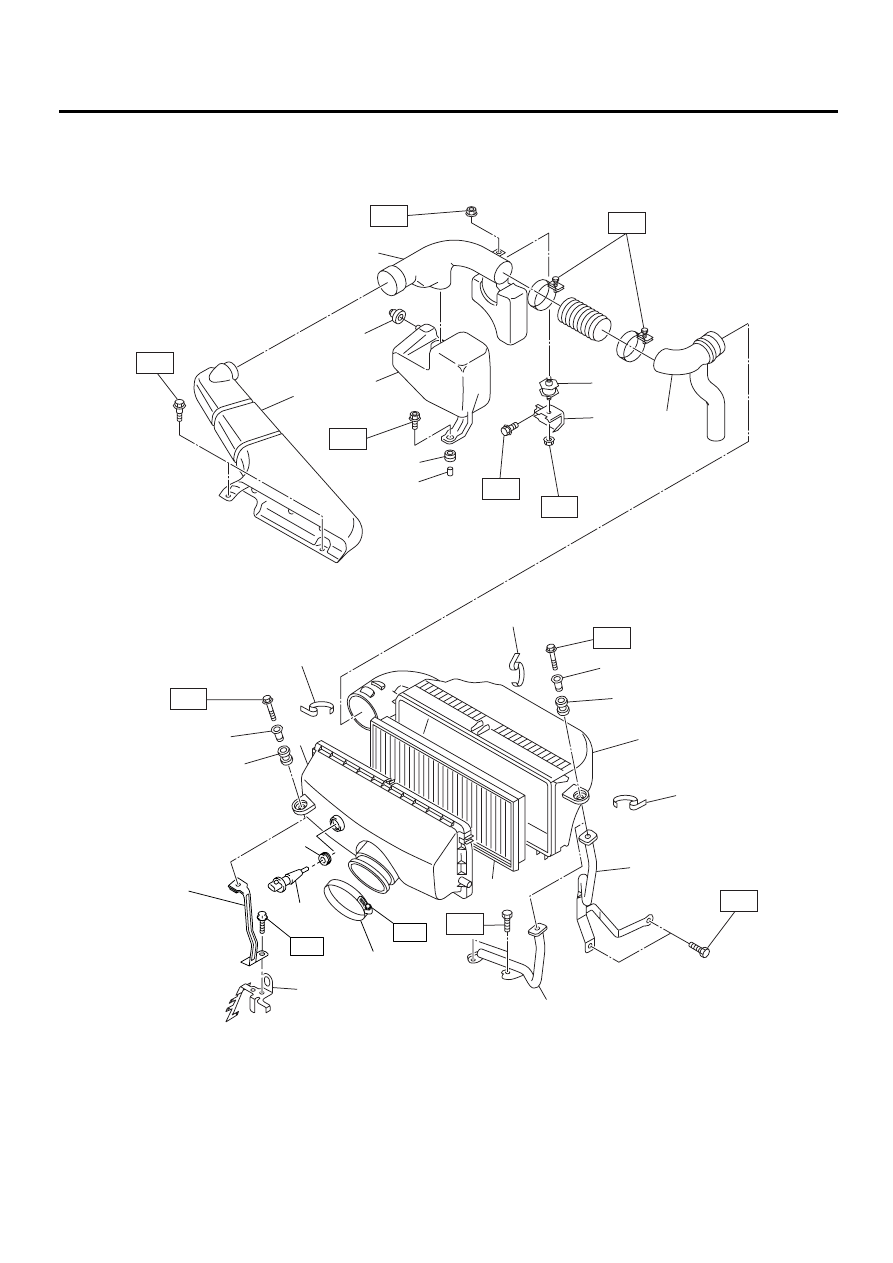

GENERAL DESCRIPTION

1. General Description

A: COMPONENT

IN-00124

( 9 )

(10)

(10)

(10)

(11)

(12)

(13)

(14)

(16)

(18)

(19)

(18)

(19)

(20)

(21)

T4

T4

T2

T2

T4

(15)

( 1 )

( 2 )

( 3 )

( 4 )

( 6 )

( 6 )

( 8 )

( 7 )

T3

T6

T3

T3

T1

( 5 )

T3

T5

(17)

IN(H4SO)-3

INTAKE (INDUCTION)

GENERAL DESCRIPTION

(1) Spacer

(11) Air cleaner element

(19) Spacer

(2) Bushing

(12) Air cleaner case B

(20) Grommet

(3) Resonator chamber

(13) Air cleaner case stay LH (MT vehi-

cles)

(21) Intake air temperature sensor

(4) Cushion rubber

(5) Air intake duct A

(14) Air cleaner case stay LH (AT vehi-

cles)

Tightening torque: N·m (kgf-m, ft-lb)

(6) Air intake duct B

T1: 33 (3.4, 24.6)

(7) Cushion

(15) Air cleaner case stay RH

T2: 6.5 (0.66, 4.8)

(8) Bracket

(16) Engine harness bracket

T3: 7.5 (0.76, 5.5)

(9) Air cleaner case A

(17) Clamp

T4: 16 (1.6, 11.6)

(10) Clip

(18) Bushing

T5: 3 (0.3, 2.2)

T6: 2.5(0.25, 1.8)
