Subaru Legacy III (2000-2003 year). Manual - part 41

FU(H4SO)-66

FUEL INJECTION (FUEL SYSTEMS)

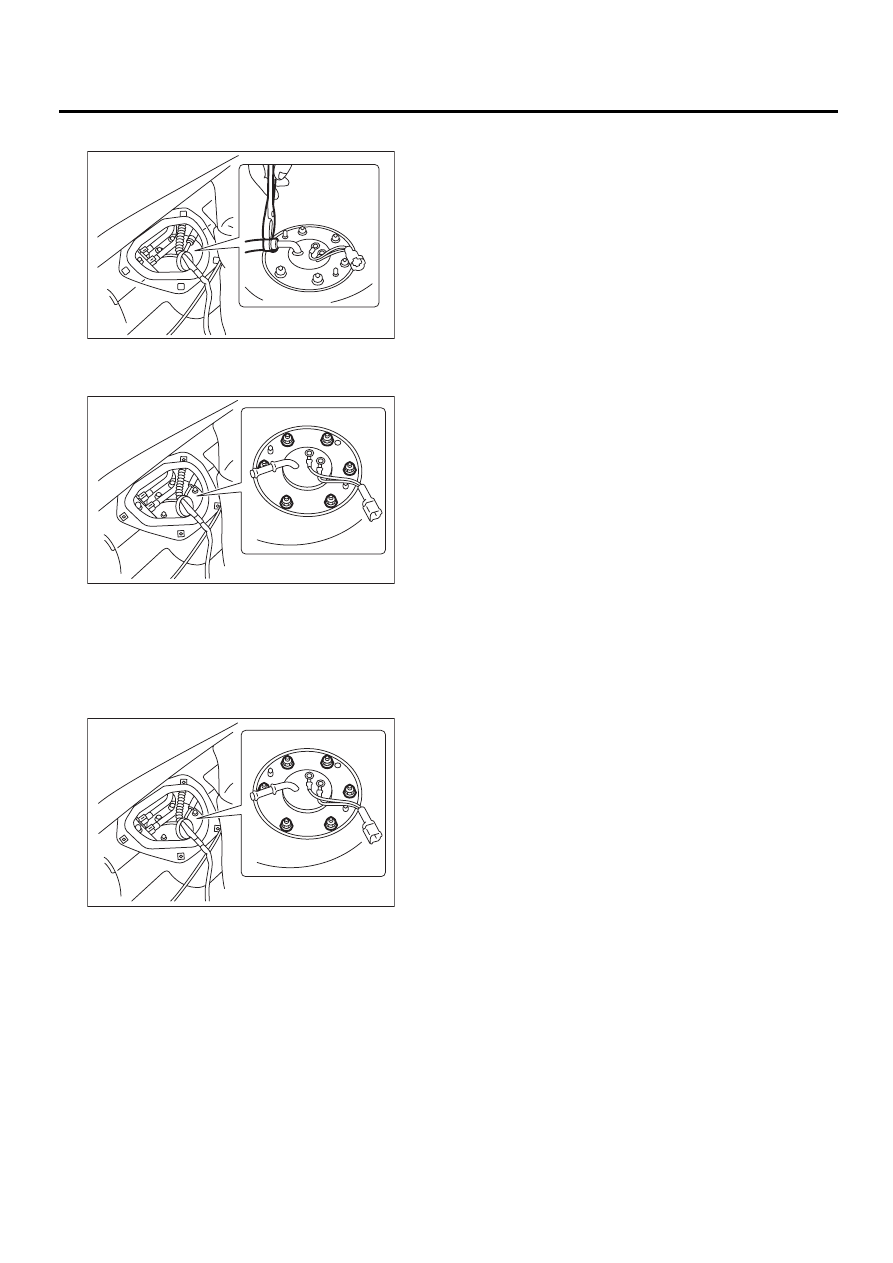

FUEL SUB LEVEL SENSOR

9) Disconnect the fuel jet pump hose.

10) Remove the bolts which install fuel sub level
sensor on fuel tank.

11) Remove the fuel sub level sensor.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

4.4 N·m (0.45 kgf-m, 3.3 ft-lb)

FU-00447

FU-00448

FU-00448

FU(H4SO)-67

FUEL INJECTION (FUEL SYSTEMS)

FUEL FILTER

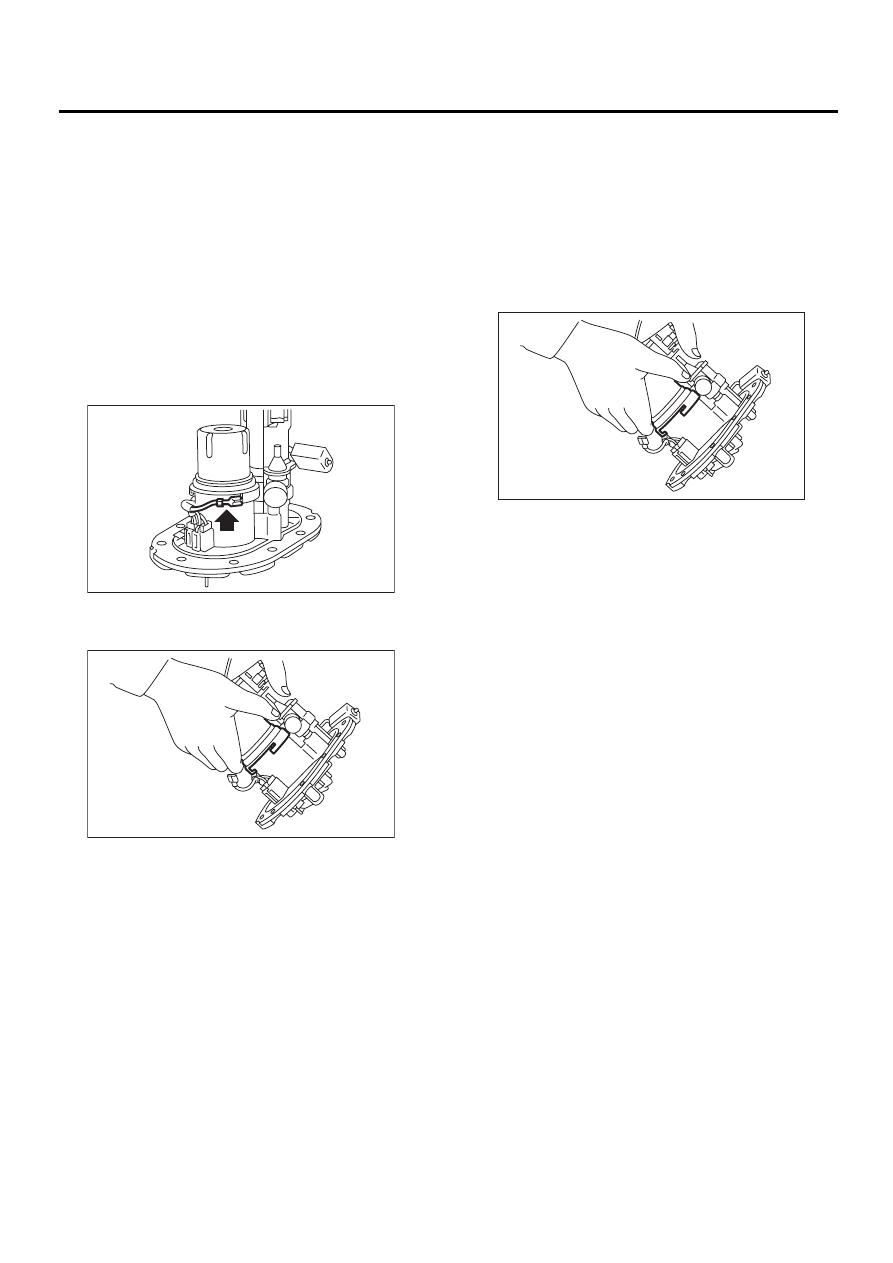

25.Fuel Filter

A: REMOVAL

WARNING:
• Place “NO FIRE” signs near the working area.
• Be careful not to spill fuel on the floor.

NOTE:
The fuel filter is built in fuel pump assembly.
1) Release the fuel pressure. <Ref. to FU(H4SO)-
48, RELEASING OF FUEL PRESSURE, OPERA-
TION, Fuel.>
2) Remove the fuel pump assembly. <Ref. to
FU(H4SO)-62, REMOVAL, Fuel Pump.>
3) Disconnect the ground cable from filter holder.

4) Remove the filter holder by turning it to the left
from the body pawls, and then take out the filter.

B: INSTALLATION

NOTE:
• If the fuel hoses are damaged at the connecting
portion, replace it with a new one.
• If the clamps are badly damaged, replace with
new ones.
• Replace the o-ring with new ones.
1) Set the O-ring on the filter holder, and then in-
stall by turning to the right.

2) Install the fuel pump assembly. <Ref. to
FU(H4SO)-63, INSTALLATION, Fuel Pump.>

C: INSPECTION

1) Check the inside of fuel filter for dirt and water
sediment.
2) If it is clogged, or if replacement interval has
been reached, replace it.

FU-00682

FU-00683

FU-00683

FU(H4SO)-68

FUEL INJECTION (FUEL SYSTEMS)

FUEL CUT VALVE

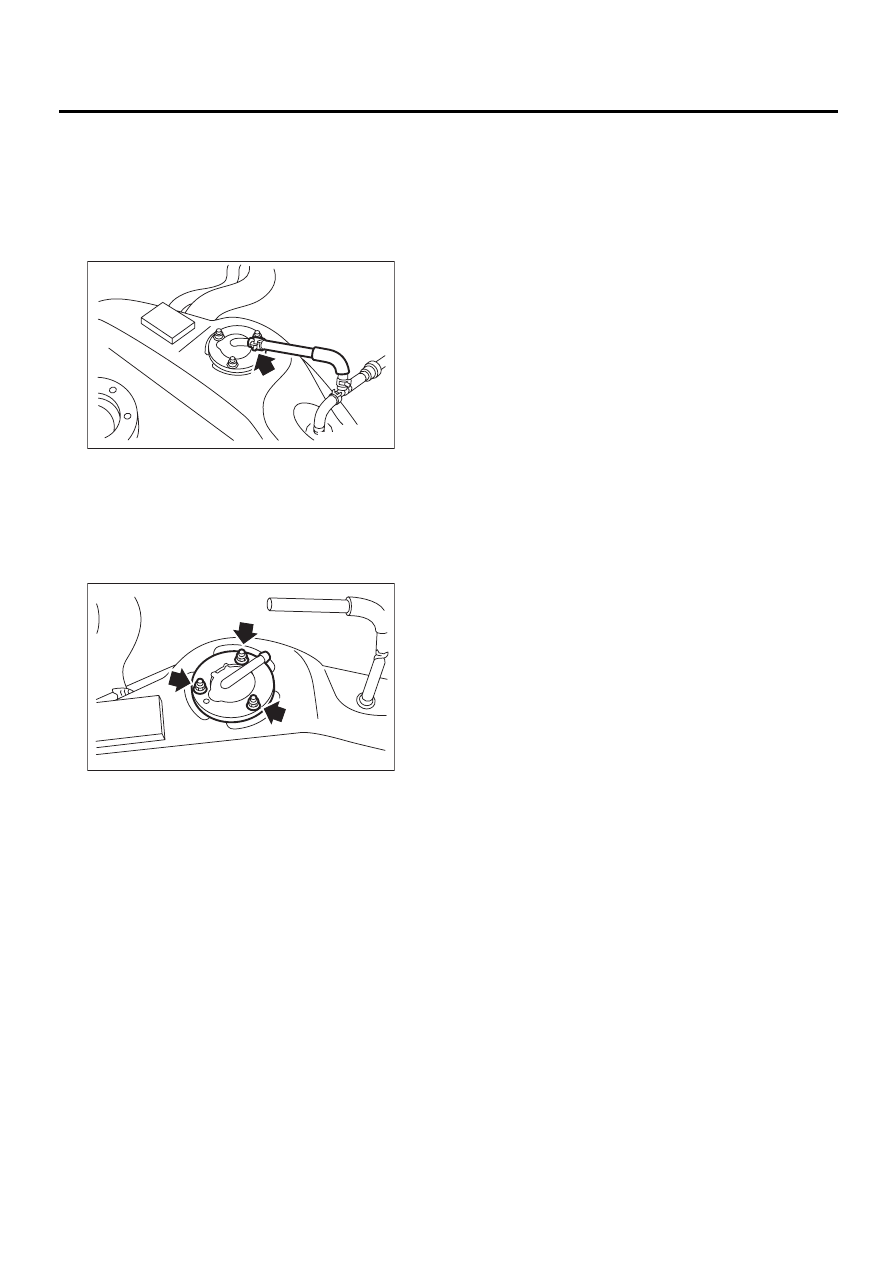

26.Fuel Cut Valve

A: REMOVAL

1) Remove the fuel tank. <Ref. to FU(H4SO)-51,
REMOVAL, Fuel Tank.>
2) Move the clip, and then disconnect the evapora-
tion hose from fuel cut valve.

3) Remove the bolts which install fuel cut valve.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

4.4 N·m (0.45 kgf-m, 3.3 ft-lb)

FU-00684

FU-00685

FU(H4SO)-69

FUEL INJECTION (FUEL SYSTEMS)

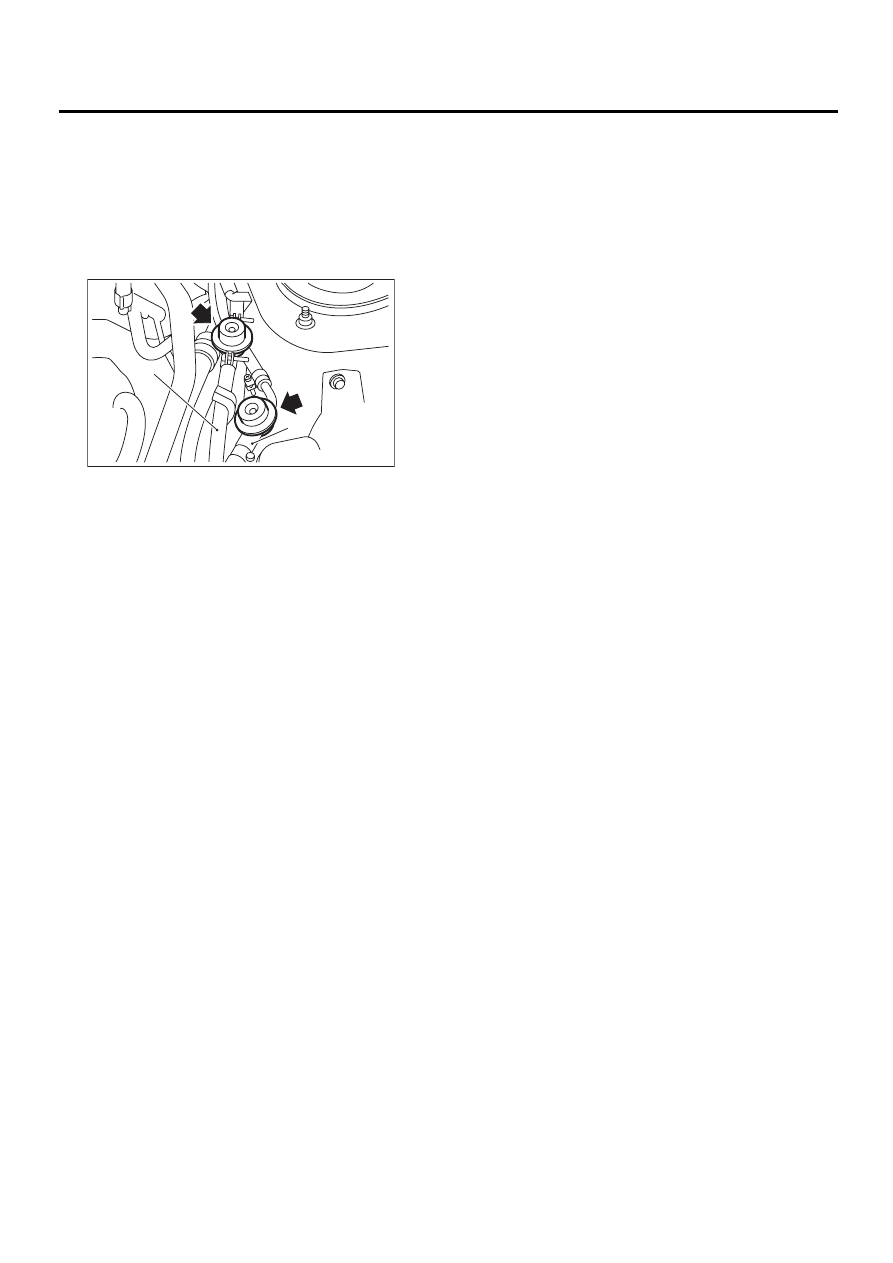

FUEL DAMPER VALVE

27.Fuel Damper Valve

A: REMOVAL

1) Release the fuel pressure. <Ref. to FU(H4SO)-
48, RELEASING OF FUEL PRESSURE, OPERA-
TION, Fuel.>
2) Remove the fuel damper valve from fuel delivery
line (A) and return line (B).

B: INSTALLATION

Install in the reverse order of removal.

FU-00686

( A )

( B )
