FU(H4SO)-34

FUEL INJECTION (FUEL SYSTEMS)

IDLE AIR CONTROL SOLENOID VALVE

11.Idle Air Control Solenoid

Valve

A: REMOVAL

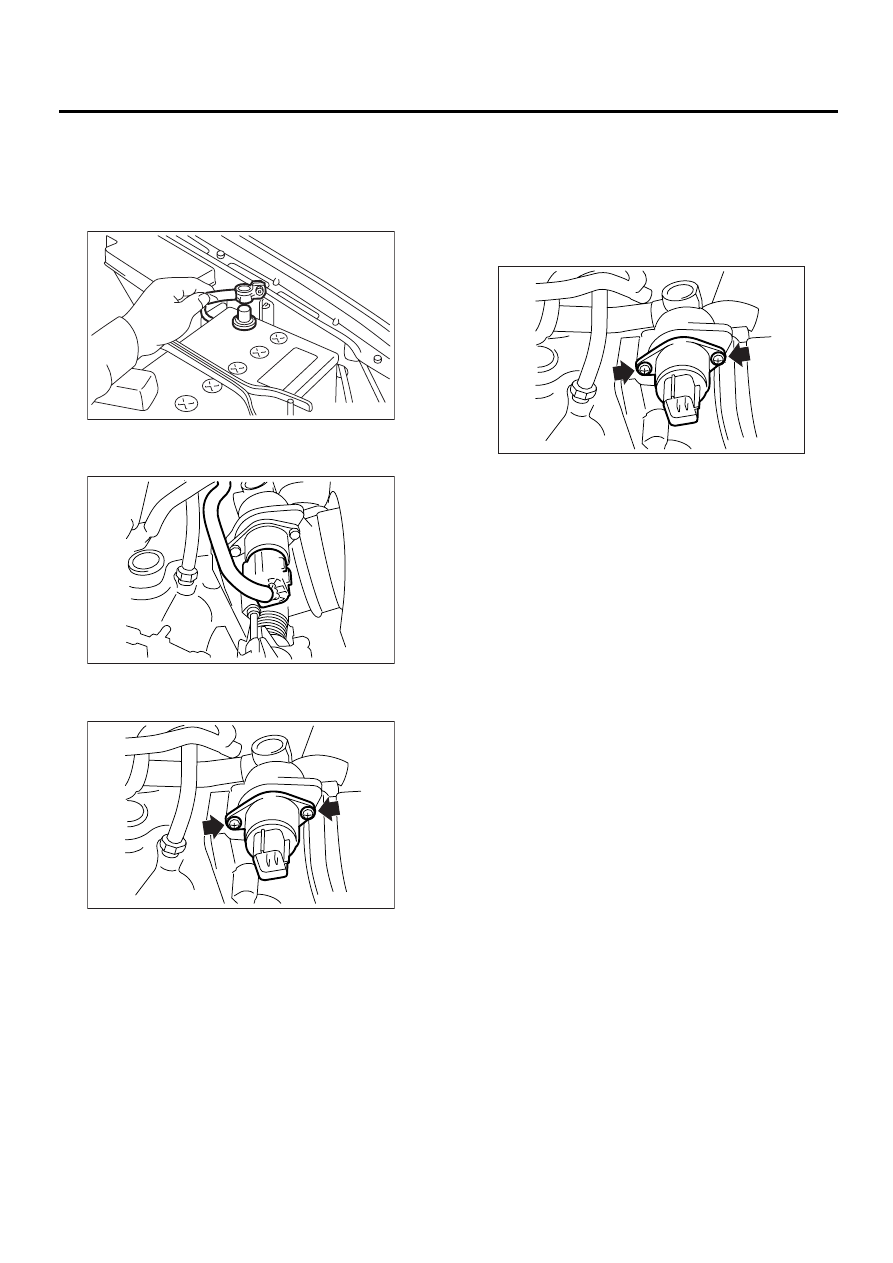

1) Disconnect the ground cable from battery.

2) Disconnect the connector from the idle air con-
trol solenoid valve.

3) Remove the idle air control solenoid valve from
the throttle body.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Always use new gasket.

Tightening torque:

1.6 N·m (0.16 kgf-m, 1.2 ft-lb)

FU-00009

FU-00298

FU-00299

FU-00299

FU(H4SO)-35

FUEL INJECTION (FUEL SYSTEMS)

EGR VALVE

12.EGR Valve

A: REMOVAL

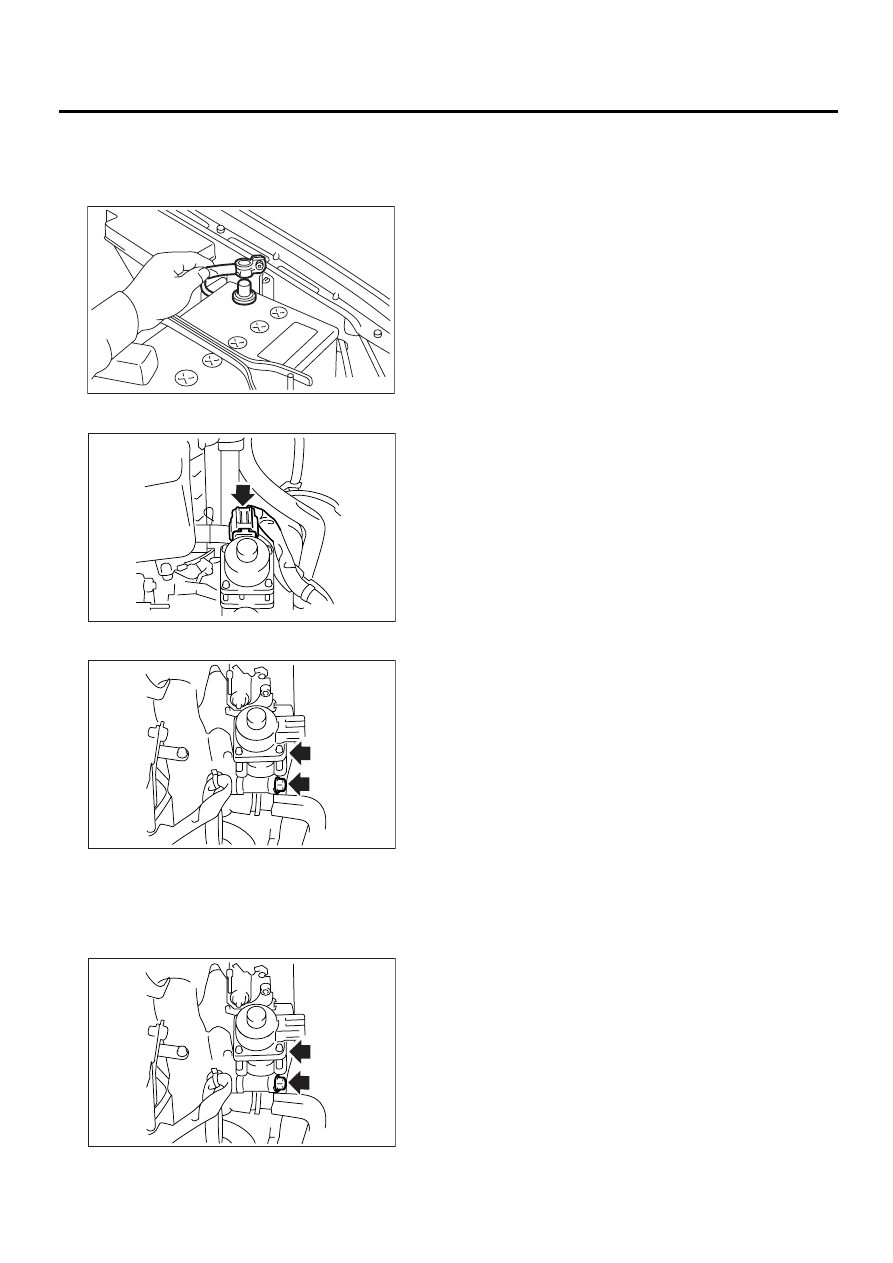

1) Disconnect the ground cable from battery.

2) Disconnect the connector from EGR valve.

3) Remove the EGR valve from intake manifold.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

19 N·m (1.9 kgf-m, 13.7 ft-lb)

FU-00009

FU-00210

FU-00211

FU-00211

FU(H4SO)-36

FUEL INJECTION (FUEL SYSTEMS)

FUEL INJECTOR

13.Fuel Injector

A: REMOVAL

1. RH SIDE

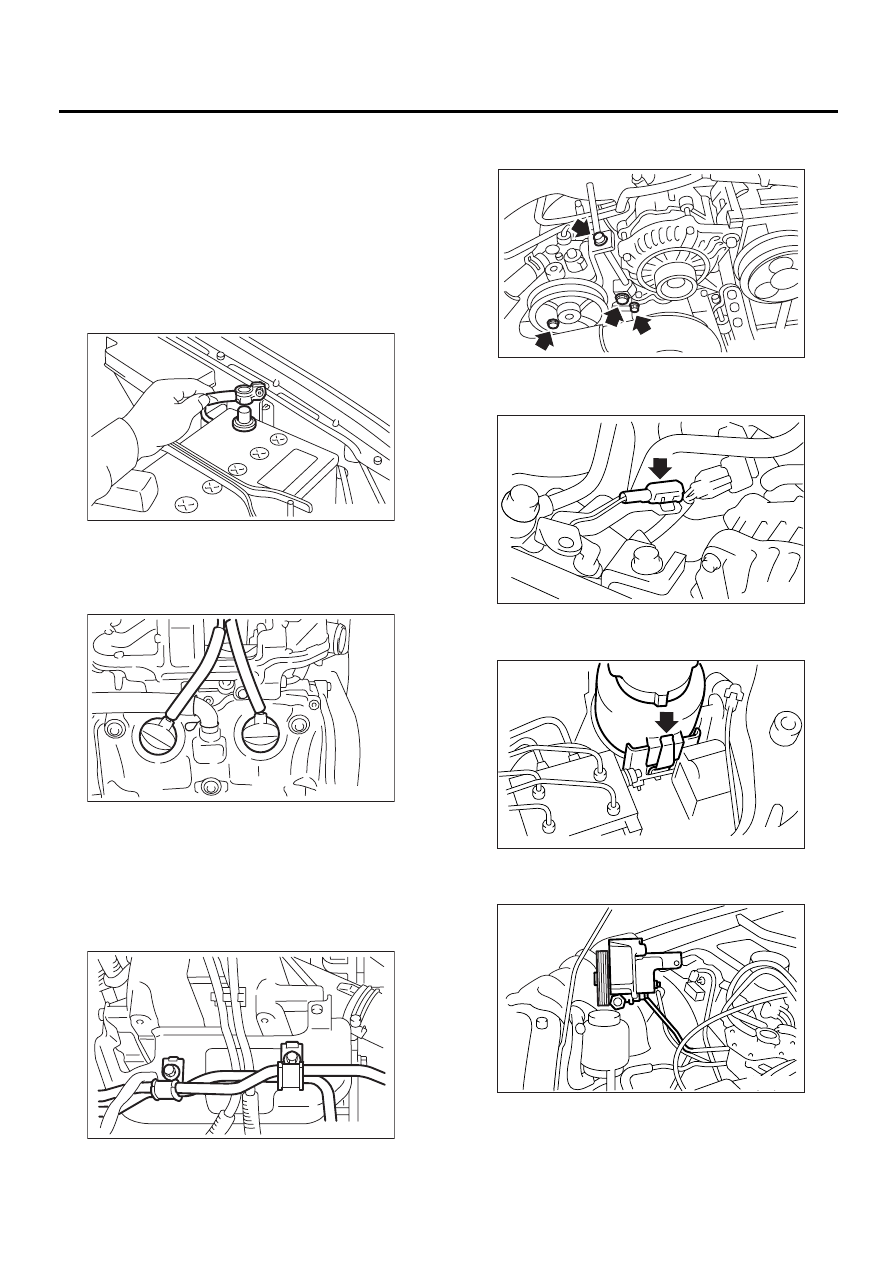

1) Release the fuel pressure. <Ref. to FU(H4SO)-
48, RELEASING OF FUEL PRESSURE, OPERA-
TION, Fuel.>
2) Open the fuel flap lid, and remove the fuel filler
cap.
3) Disconnect the ground cable from battery.

4) Remove the resonator chamber. <Ref. to
IN(H4SO)-8, REMOVAL, Resonator Chamber.>
5) Remove the spark plug cords from the spark
plugs (#1 and #3 cylinders).

6) Remove the power steering pump and tank from
the brackets.

(1) Remove the front side V-belt. <Ref. to
ME(H4SO)-41, REMOVAL, V-belt.>
(2) Remove the bolts which hold the power
steering pipes onto the intake manifold protec-
tor.

(3) Remove the bolts which install the power
steering pump to the bracket.

(4) Disconnect the connector from the power
steering pump switch.

(5) Remove the power steering tank from the
bracket by pulling it upwards.

(6) Place the power steering pump and tank on
the right side wheel apron.

FU-00009

FU-00302

FU-00255

FU-00139

FU-00017

FU-00020

FU-00021

FU(H4SO)-37

FUEL INJECTION (FUEL SYSTEMS)

FUEL INJECTOR

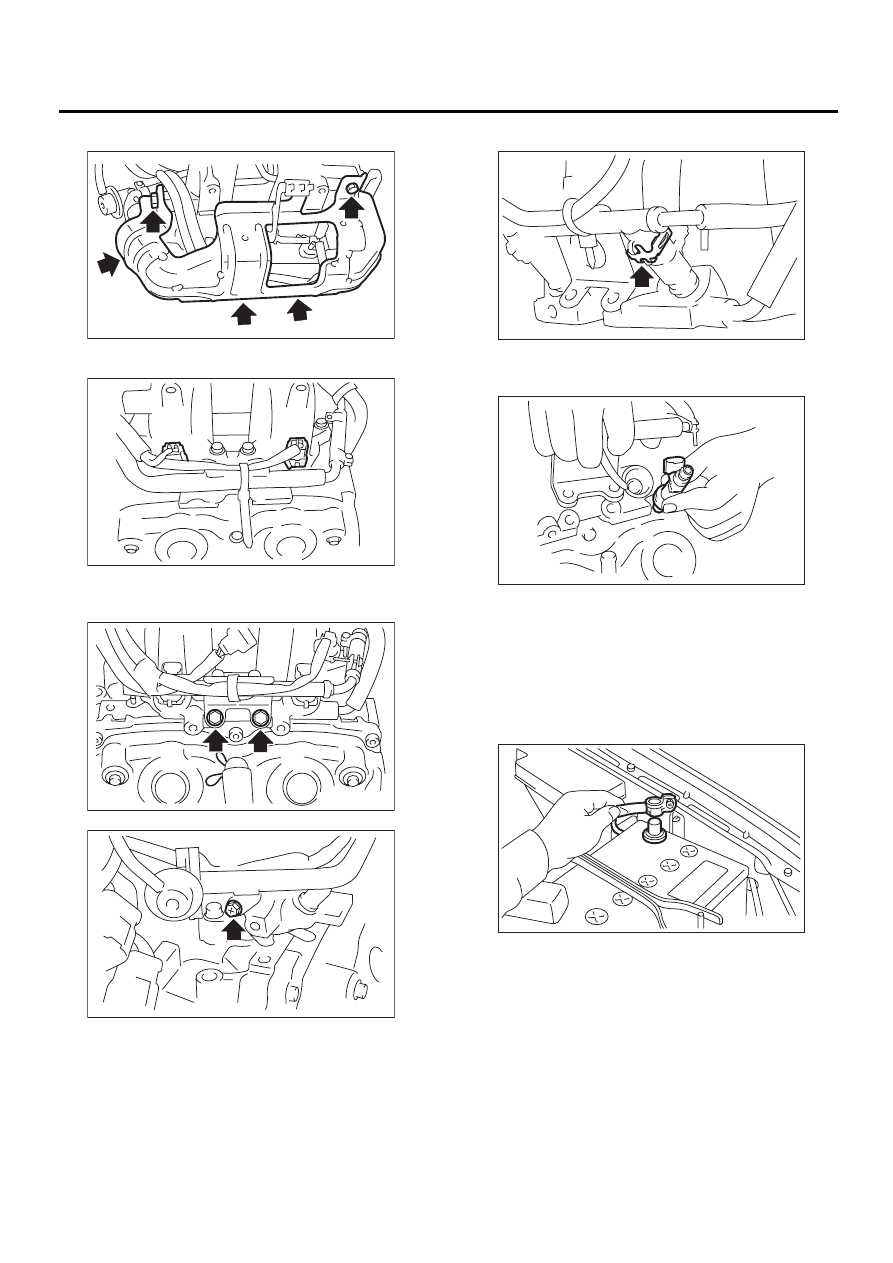

7) Remove the fuel pipe protector RH.

8) Disconnect the connector from fuel injector.

9) Remove the bolt which holds the injector pipe to
the intake manifold.

10) Remove the fuel injector from the intake mani-
fold.

(1) Remove the fuel injector securing clip.

(2) Remove the fuel injector while lifting up the
fuel injector pipe.

2. LH SIDE

1) Release the fuel pressure. <Ref. to FU(H4SO)-
48, RELEASING OF FUEL PRESSURE, OPERA-
TION, Fuel.>
2) Open the fuel flap lid, and remove the fuel filler
cap.
3) Disconnect the ground cable from battery.

FU-00267

FU-00303

FU-00284

FU-00304

FU-00305

FU-00306

FU-00009
