NT-6

NOTE

NOTE

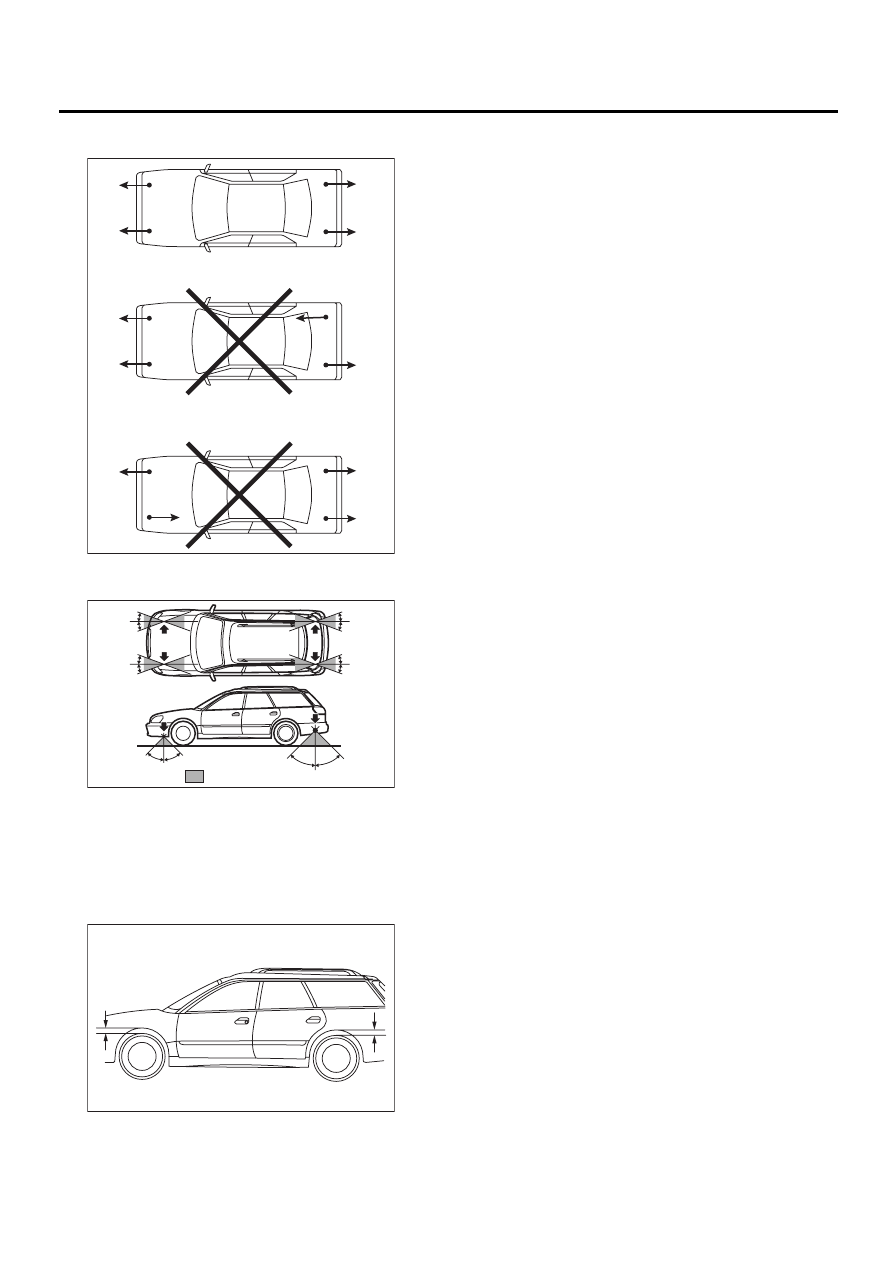

• Chain direction at tie-down condition

• Chain pulling range at tie-down condition

• Vehicle sinking volume at tie-down condition

Measure distance L between tire highest point to
arch highest point before tie-down and after tie-
down. Difference of measurement value (drop
height) shall be within 50.8 mm (1.97 in). Make
sure to fix a vehicle securely.

7. TOWING

Avoid towing vehicles except when the vehicle can-
not be driven. For vehicles with AWD, AT or VTD,
use a loader instead of towing. When towing other
vehicles, to prevent excessive weight from damag-
ing the hook or vehicle:
• Do not tow other vehicles with a front towing
hook.
• Make sure the vehicle towing is heavier that the
vehicle being towed.

NT-00038

20˚
20˚

45˚

: Tie-down range

45˚

20˚
20˚

NT-00039

NT-00040

NT-7

NOTE

NOTE

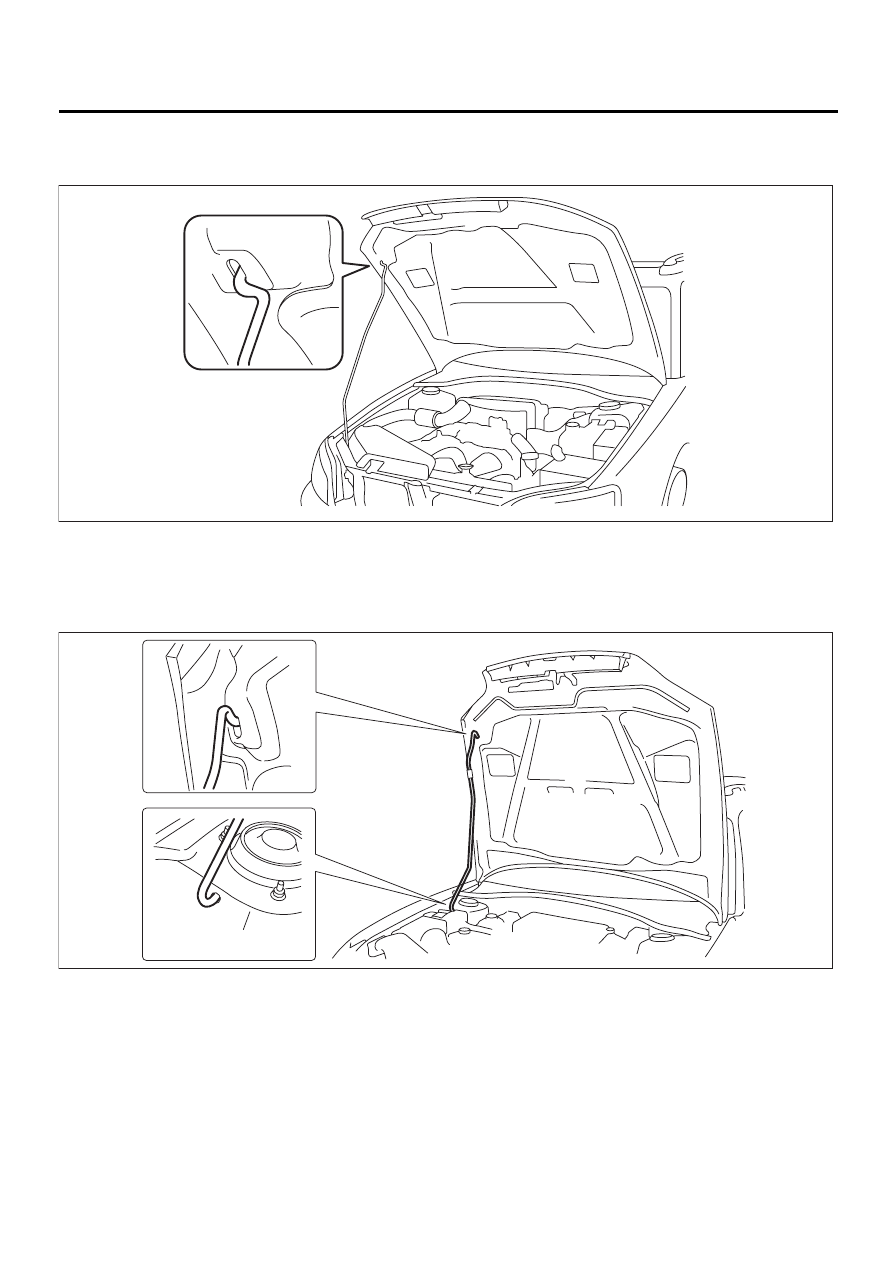

8. FRONT HOOD STAY INSTALLATION

• At the check and general maintenance

• When wider hood opening is necessary

Set stay into the hole of hood inner as shown in the figure below.

NOTE:
Before setting the hood in this position, remove the windshield washer hose attaching clip from the hood.

9. TRAINING

For information about training, contact a dealer or
agent.

10.GENERAL SCAN TOOL

Using general scan tools will greatly improve effi-
ciency of repairing engine electronic controls. The
Subaru Select Monitor can be used to diagnose the
engine and also the ABS, the air conditioner, and
other parts.

NT-00041

NT-00042

NT-8

NOTE

NOTE

MEMO:
