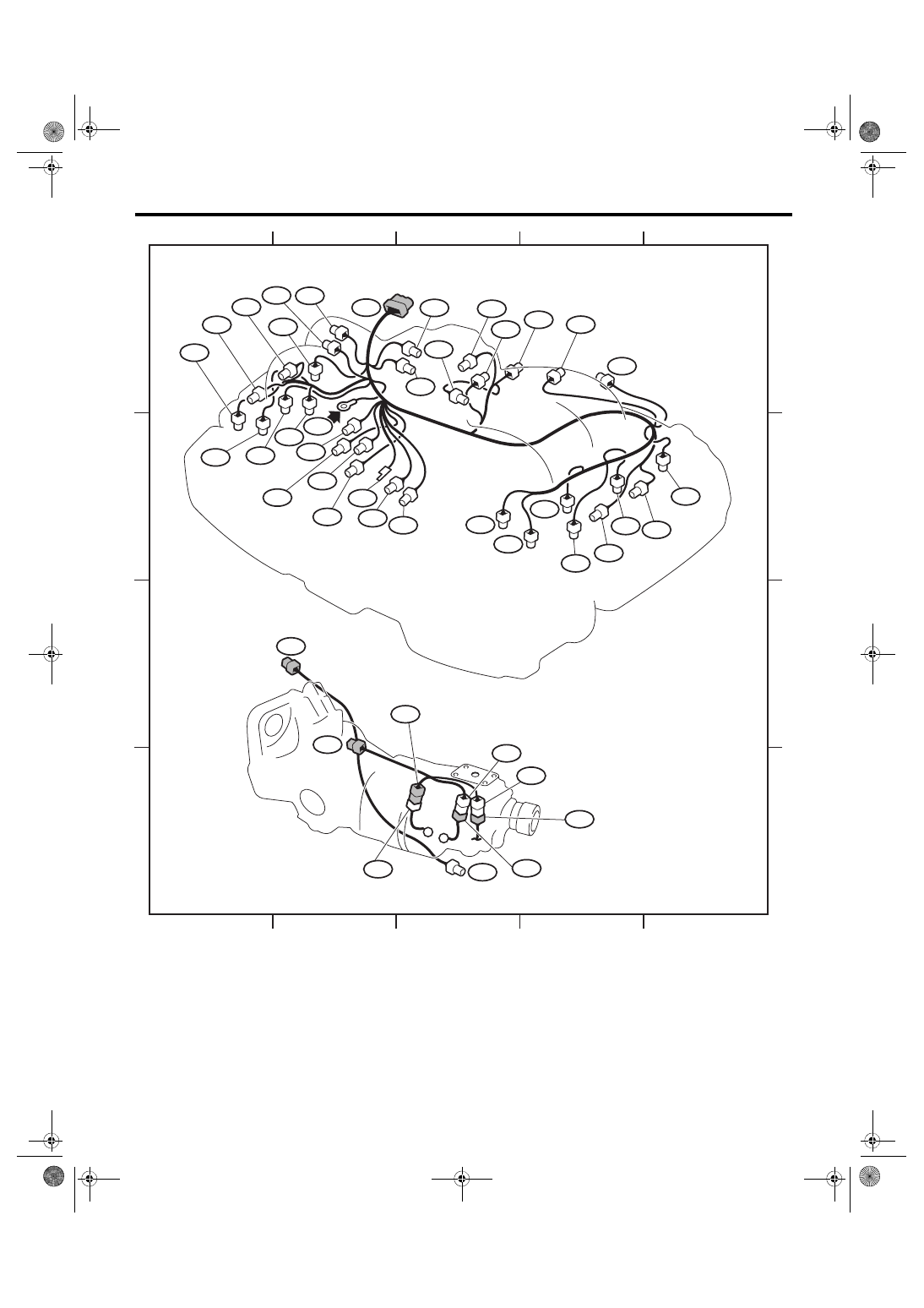

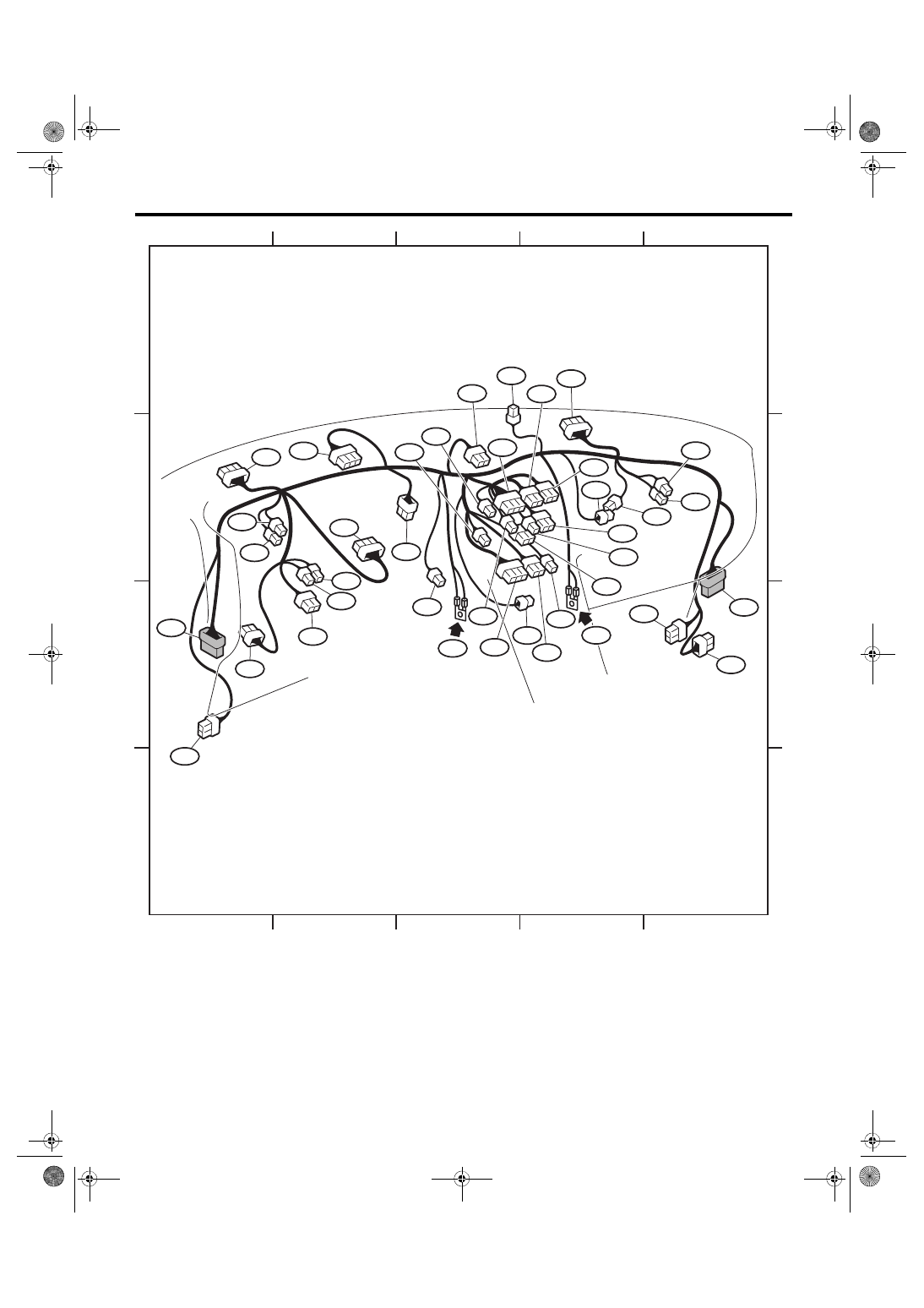

WI-185 Engine Wiring Harness and Transmission Cord WIRING SYSTEM 2. WITH SI-DRIVE Connector Connecting to No. Pole Color Area No. Description E2 54 Black A-2 B21 Bulkhead wiring harness E4 2 Black B-2
Purge control solenoid valve 1 E5 2 Dark gray A-1
Fuel injector No. 1 E6 2 Dark gray A-2
Fuel injector No. 3 E8 2 Black B-2
Engine coolant temperature sensor E10 2 Light gray B-3
Crankshaft position sensor E11 1 — B-2
Oil pressure switch E14 2 Light gray A-3
Knock sensor E16 2 Dark gray B-4
Fuel injector No. 2 E17 2 Dark gray B-4
Fuel injector No. 4 E19 1 B-2
Power steering oil pressure switch E21 3 Black A-3
Manifold absolute pressure sensor E31 3 Gray A-1
Ignition coil No. 1 E32 3 Gray B-4
Ignition coil No. 2 E33 3 Gray A-2
Ignition coil No. 3 E34 3 Gray B-5
Ignition coil No. 4 E35 3 Light gray A-4
Intake camshaft position sensor LH E36 3 Light gray A-2
Intake camshaft position sensor RH E37 2 Blue B-4
Intake oil flow control solenoid valve LH E38 2 Blue A-2
Intake oil flow control solenoid valve RH E40 6 Black A-4
Secondary air combination valve LH E41 2 Black A-3
Secondary air combination valve RH E51 5 Light gray B-5
Tumble generator valve assembly LH E52 2 Black B-2
Purge control solenoid valve 2 E55 5 Light gray A-2
Tumble generator valve assembly RH E57 6 Black A-3
Electronic throttle control E62 3 Light gray B-1
Exhaust camshaft position sensor RH E63 2 Blue B-1
Exhaust oil flow control solenoid valve RH E64 2 Blue A-3
Wastegate control solenoid valve E65 3 Light gray B-4
Exhaust camshaft position sensor LH E66 2 Blue B-3
Exhaust oil flow control solenoid valve LH E80 2 Dark gray A-3
Leak diagnosis connector 1 E87 2 Dark gray B-3
Leak diagnosis connector 2 : White or natural color Connector Connecting to No. Pole Color Area No. Description T1 2 Gray D-3 T13 Transmission cord T2 2 Brown D-3 T12 T5 4 Dark gray C-2 B19 Bulkhead wiring harness T6 4 Dark gray D-3
Rear oxygen sensor T9 6 Gray C-2 B128 Bulkhead wiring harness T12 2 Brown D-3 T2 Neutral position switch T13 2 Gray D-3 T1 Back-up light switch T16 2 D-3 T17 Center differential wiring harness T17 2 D-3 T16 Transmission cord : White or natural color |
