EI-63

Trunk Room Trim

EXTERIOR/INTERIOR TRIM

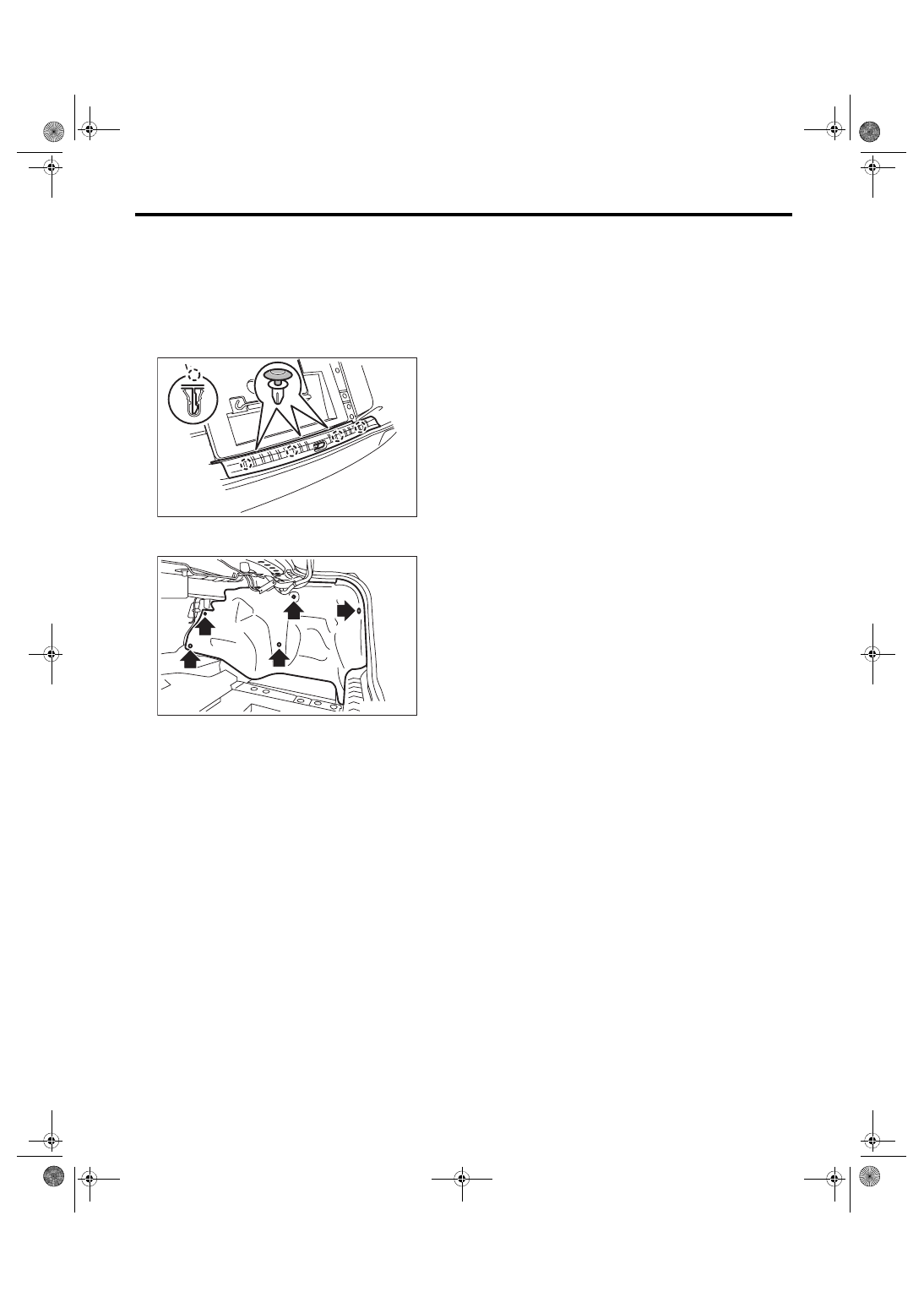

24.Trunk Room Trim

A: REMOVAL

1) Remove the rear seat backrest. <Ref. to SE-13,

REMOVAL, Rear Seat.>

2) Remove the trunk room mat.

3) Remove  the  clips,  and  then  remove  the  trunk

room rear trim.

4) Remove  the  clips,  and  remove  the  trunk  side

trim.

B: INSTALLATION

Install each part in the reverse order of removal.

EI-02389

EI-01901

EI-64

Sun Visor

EXTERIOR/INTERIOR TRIM

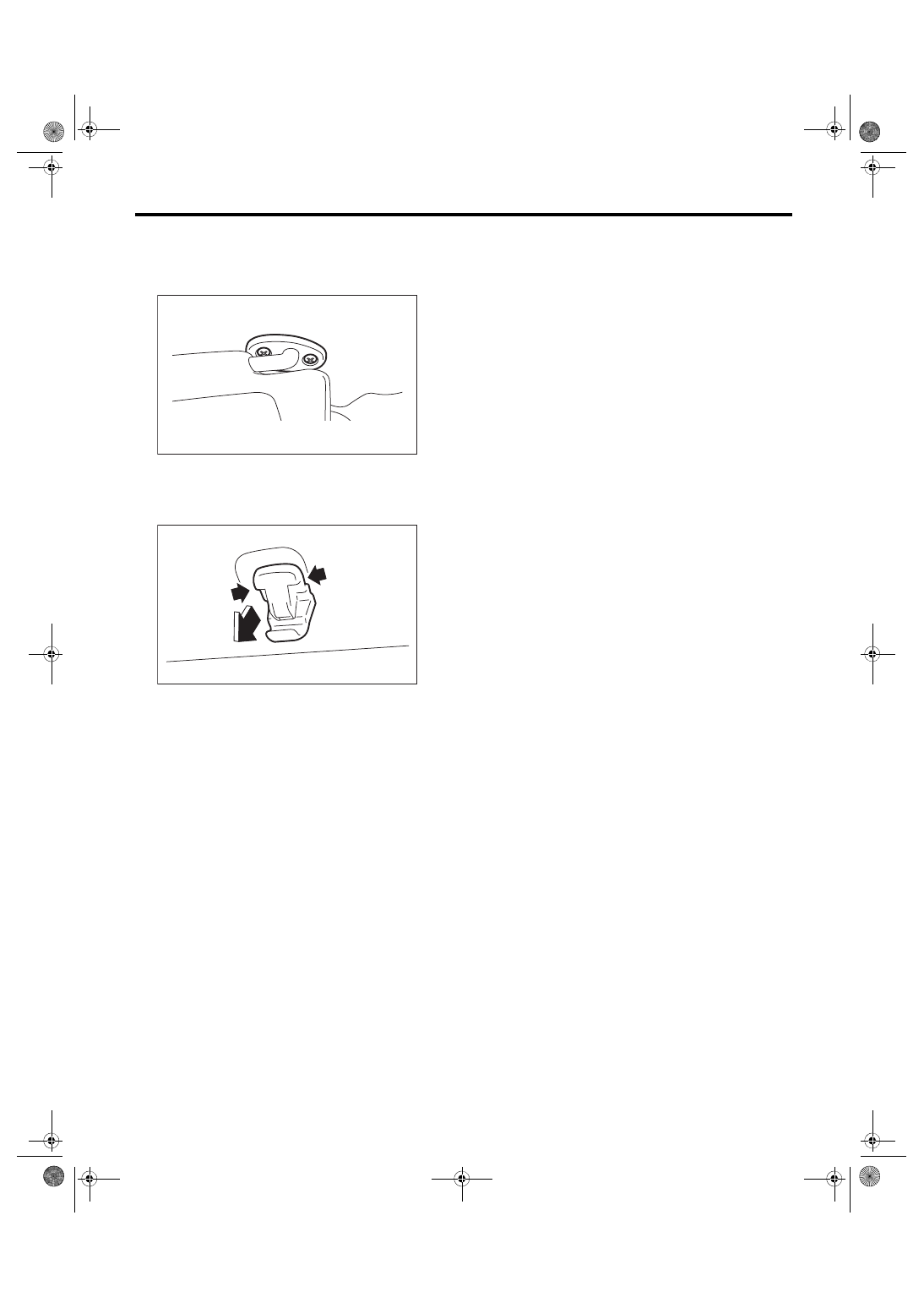

25.Sun Visor

A: REMOVAL

1) Remove the screws and detach the sun visor.

2) Disconnect  the  connector.  (Model  with  vanity

mirror light)

3) While pressing the (A) on the both side using flat

tip screwdriver, pull the sun visor hook to remove it.

B: INSTALLATION

Install each part in the reverse order of removal.

EI-00932

EI-00662

(A)

(A)

EI-65

Assist Grip

EXTERIOR/INTERIOR TRIM

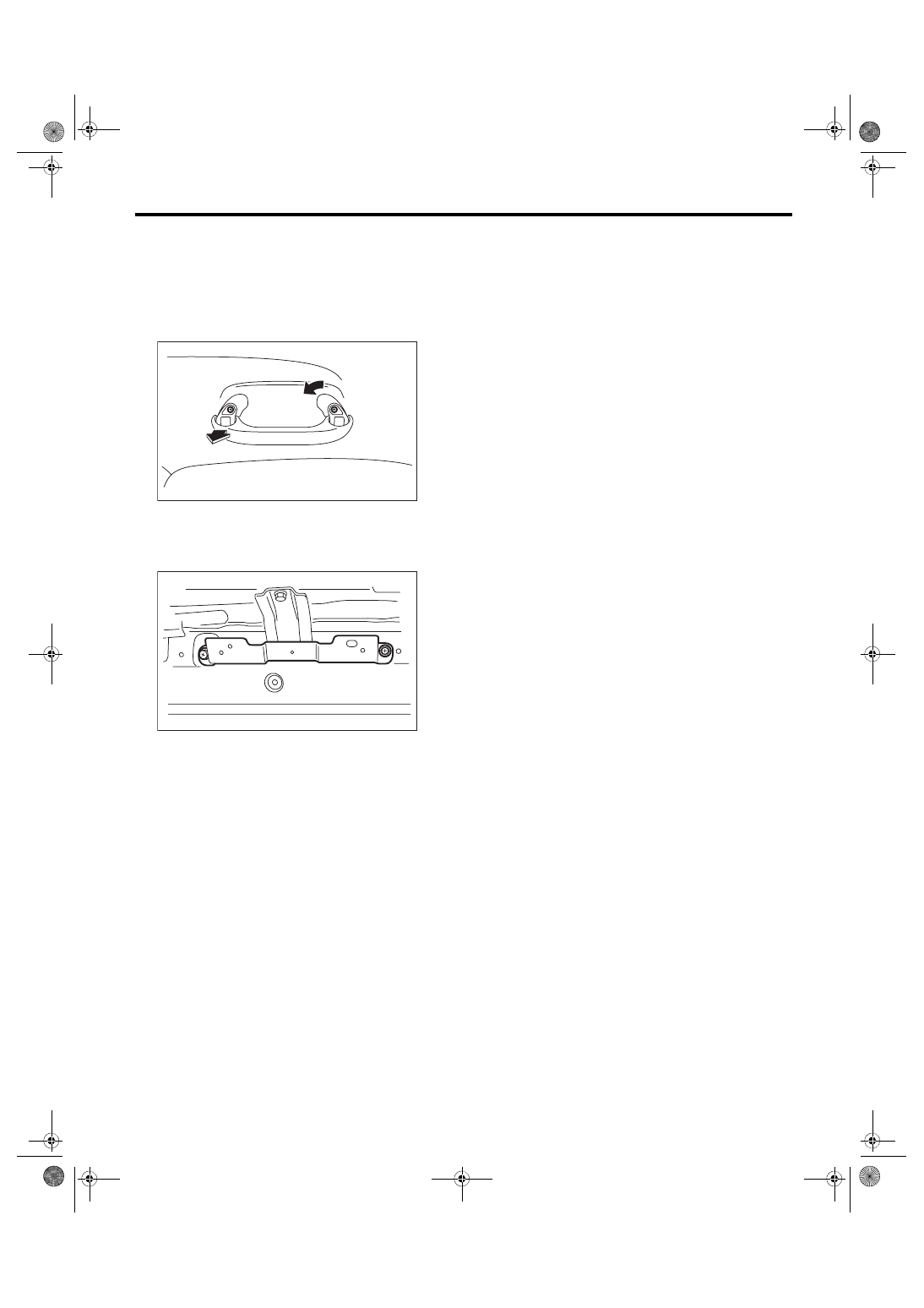

26.Assist Grip

A: REMOVAL

1) Remove the screw cover, and remove the screw

inside.

2) Pull  the  left  side  of  assist  grip,  and  rotate  the

right side of it counterclockwise to remove.

3) Remove the roof trim. <Ref. to EI-66, REMOV-

AL, Roof Trim.>

4) Remove  the  bolts,  and  remove  the  assist  grip

bracket.

B: INSTALLATION

Install each part in the reverse order of removal.
Tightening torque

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

EI-00809

EI-01916

EI-66

Roof Trim

EXTERIOR/INTERIOR TRIM

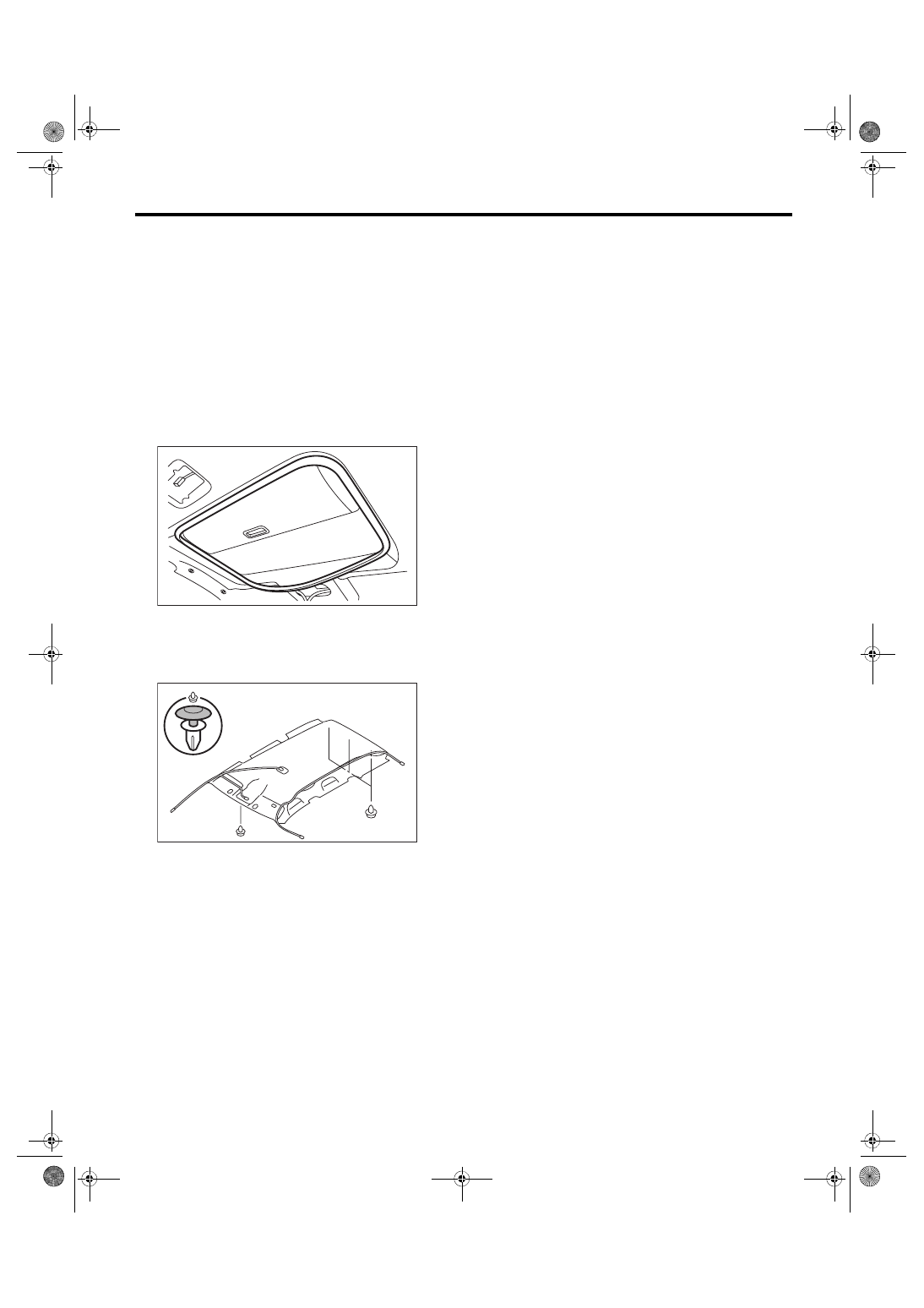

27.Roof Trim

A: REMOVAL

1. 5 DOOR MODEL

1) Disconnect the ground cable from battery.

2) Remove the spot map light. <Ref. to LI-33, REMOVAL, Spot Map Light.>

3) Remove the room light. <Ref. to LI-34, REMOVAL, Room Light.>

4) Remove the sun visor. <Ref. to EI-64, REMOVAL, Sun Visor.>

5) Remove the assist grip. <Ref. to EI-65, REMOVAL, Assist Grip.>

6) Remove the upper inner trim. <Ref. to EI-59, REMOVAL, Upper Inner Trim.>

7) Remove the rear quarter trim. <Ref. to EI-60, REMOVAL, Rear Quarter Trim.>

8) Disconnect the harness connectors of the right and left front pillars, and the rear quarter (LH).

9) Remove the sunroof opening trim. (Model with sunroof)

10) Remove the clips, and then remove the roof trim.
CAUTION:

Do not remove the roof end trim with excessive force. Otherwise the roof trim may become damaged.

Roof trim and roof end trim are fastened by tapping screws.

2. 4 DOOR MODEL

CAUTION:

When taking the roof trim out of the vehicle, be careful not to damage the room inner trim. Perform

this work with 3 persons.

1) Disconnect the ground cable from battery.

2) Apply protective tape, etc. to prevent damage to the face of the instrument panel.

3) Remove the spot map light. <Ref. to LI-33, REMOVAL, Spot Map Light.>

4) Remove the room light. <Ref. to LI-34, REMOVAL, Room Light.>

5) Remove the sun visor. <Ref. to EI-64, REMOVAL, Sun Visor.>

6) Remove the assist grip. <Ref. to EI-65, REMOVAL, Assist Grip.>

7) Remove the upper inner trim. <Ref. to EI-59, REMOVAL, Upper Inner Trim.>

8) Remove the rear quarter trim. <Ref. to EI-60, REMOVAL, Rear Quarter Trim.>

9) Disconnect the harness connectors of the right and left front pillars, and the rear quarter (LH).

10) Remove the console front panel. <Ref. to EI-52, CONSOLE FRONT PANEL, REMOVAL, Center Con-

sole.>
