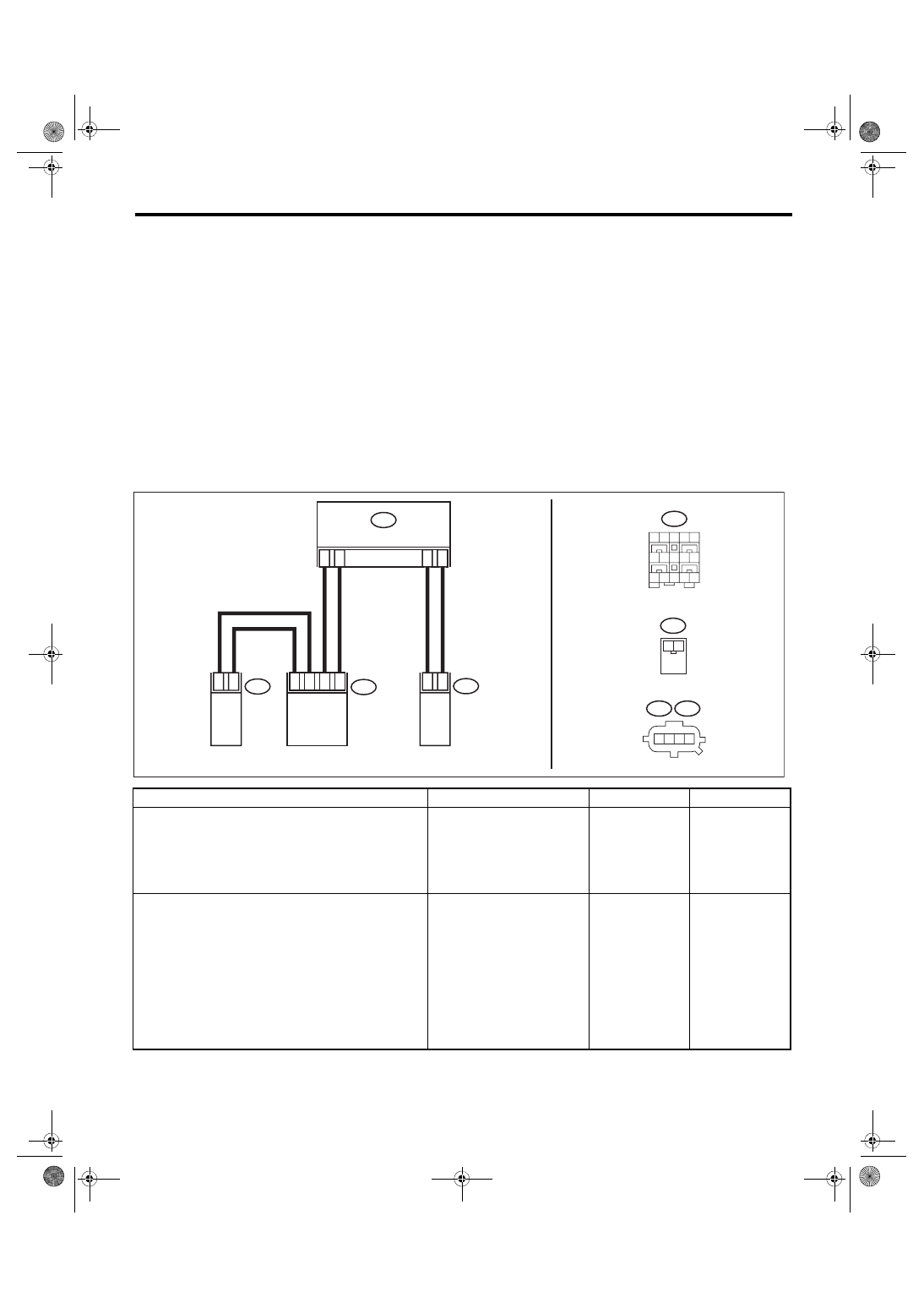

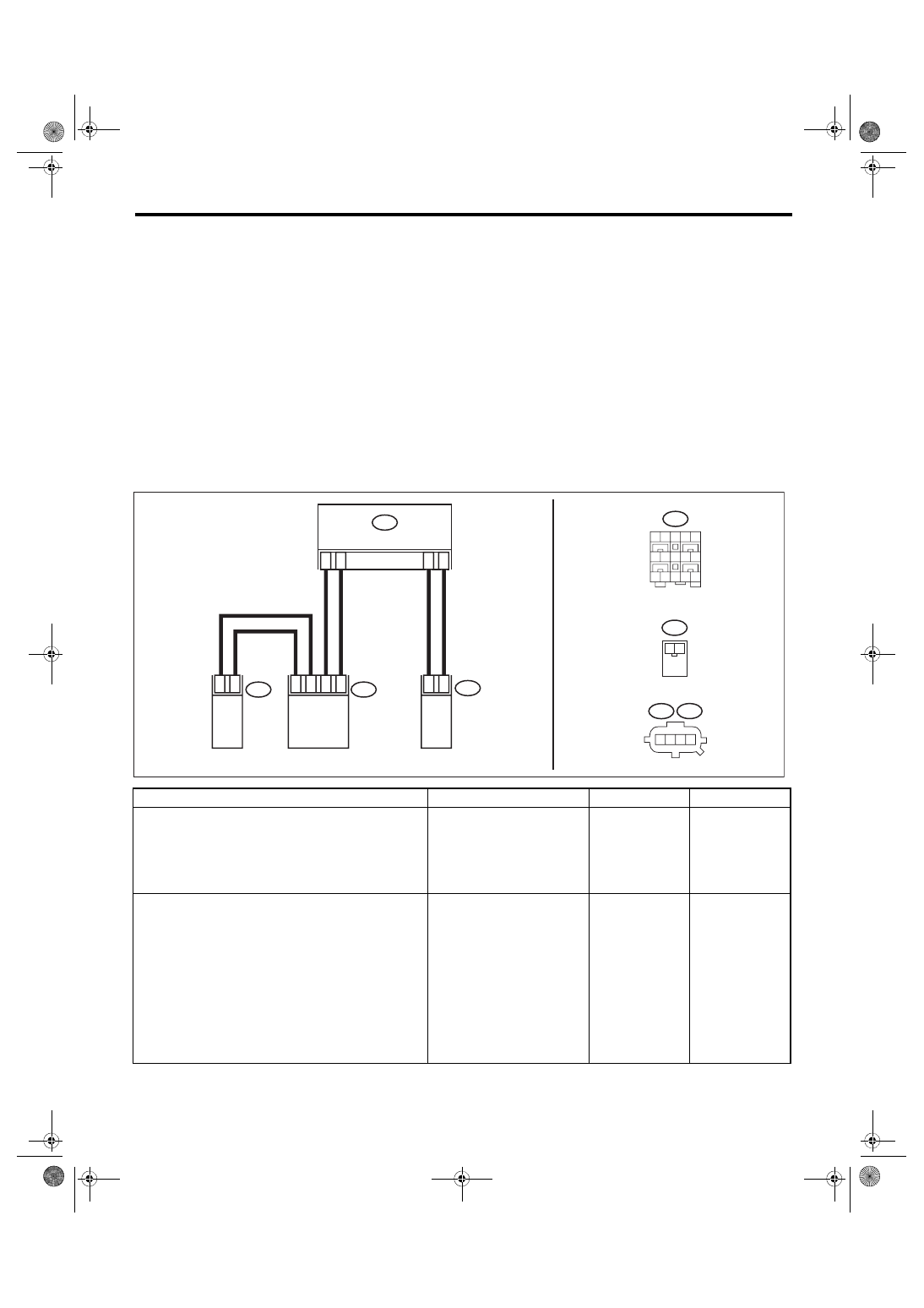

AB(diag)-135 Diagnostic Chart with Trouble Code AIRBAG SYSTEM (DIAGNOSTICS) BJ:DTC 96 CURTAIN AIRBAG MODULE LH FAILURE DTC DETECTING CONDITION: • Curtain airbag harness (LH) is shorted to power supply. • Curtain airbag module (LH) is faulty. • Airbag control module is faulty. • Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the ground cable from battery, and wait 60 seconds or more before starting to work. • When replacing the airbag module, seat belt pretensioner, roll connector, control module and sen- sor, reconnect each part and check that the warning light operates properly. • When inspecting the airbag main harness, disconnect the airbag module connectors of the driver’s and passenger’s seats for safety. • When inspecting the airbag rear harness, disconnect the side airbag module connector, curtain airbag module connector and seat belt pretensioner connector for safety reasons. WIRING DIAGRAM: Airbag system <Ref. to WI-82, WIRING DIAGRAM, Airbag System.> Step Check Yes No 1 CHECK POOR CONTACT OF CONNEC- Is there poor contact? Replace the airbag 2 CHECK CURTAIN AIRBAG MODULE. Does the airbag warning light Replace the cur- AB-02464 AB17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 AB31 1 2 AB23 AB32 1 2 3 4 7 6 15 AB31 AB32 AB23 8 AB17 4 3 2 1 4 3 2 1 AIRBAG CM CURTAIN AIRBAG SENSOR LH CURTAIN AIRBAG MODULE LH SIDE AIRBAG SENSOR LH |
