Subaru Impreza 3 / Impreza WRX / Impreza WRX STI. Manual - part 521





VDC-13

VDC Control Module and Hydraulic Control Unit (VDCCM&H/U)

VEHICLE DYNAMICS CONTROL (VDC)

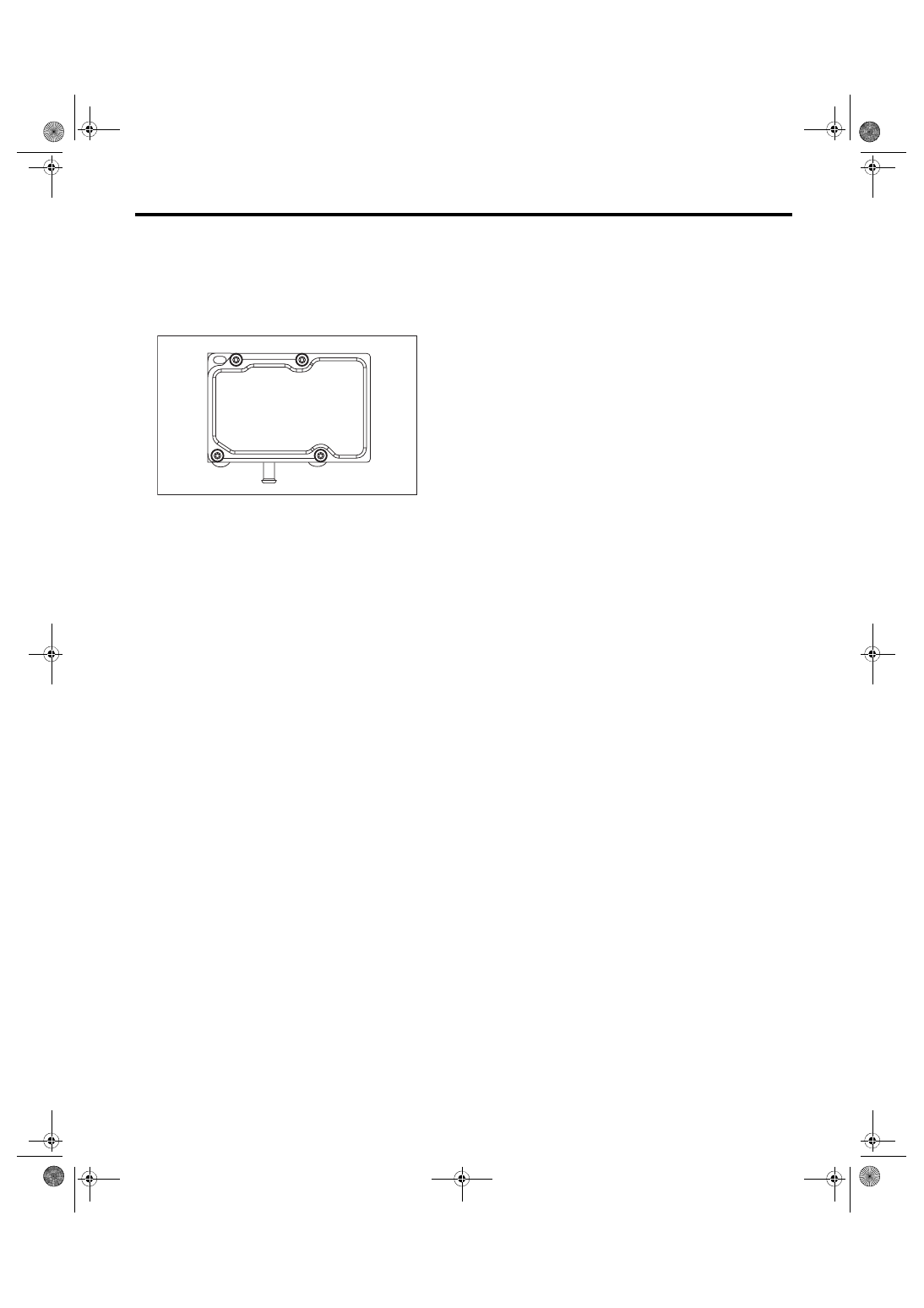

9) Using  a  TORX

®

  bit  E5,  attach/tighten  new

screws in the order of (1) through (4).
CAUTION:

Always use new screws.
Tightening torque:

1.5 N·m (0.15 kgf-m, 1.1 ft-lb)

10) Check that there is no foreign matter in mating

surface between the VDCCM&H/U.

11) Using a TORX

®

 bit E5, tighten the screws in the

order of (1) through (4) again.
Tightening torque:

3 N·m (0.31 kgf-m, 2.2 ft-lb)

12) Check that there is no gap in the mating sur-

face between VDCCM&H/U.

13) Install the VDCCM&H/U to the vehicle.

14) Bleed air from the brake system. <Ref. to BR-

41, PROCEDURE, Air Bleeding.>

15) Perform the selection · registration operation of

parameter.  <Ref.  to  VDC(diag)-21,  PARAMETER

SELECTION,  OPERATION,  Subaru  Select  Moni-

tor.>
NOTE:

• After replacing the VDCCM, be sure to perform

the selection · registration operation of parameter.

• For the selection and registration of parameter,

the Subaru Select Monitor is required.

• When the registration has not been performed,

the DTC code “Parameter selection error” is detect-

ed together with the ABS/EBD/VDC warning light il-

lumination.

16) Check  the  parameter  to  confirm  that  the  ap-

plied models and grades of the relevant vehicle are

included.  <Ref.  to  VDC(diag)-21,  PARAMETER

CHECK, OPERATION, Subaru Select Monitor.>

17) If the applied models and grades of the relevant

vehicle  are  not  included,  perform  the  selection  ·

registration operation of parameter with the {Con-

firm on parameter} screen again. <Ref. to VDC(di-

ag)-21, PARAMETER SELECTION, OPERATION,

Subaru Select Monitor.>

18) Execute Clear Memory after parameter selec-

tion and registration operations because the DTC

for “Parameter selection error” is memorized.

E: ADJUSTMENT

When the following replacement, removal and in-

stallation  are  performed,  be  sure  to  perform  the

centering  of  the  steering  angle  sensor  and  zero

point setting of yaw rate & G sensor.

• VDCCM&H/U

• Steering angle sensor

• Yaw rate & G sensor

• Steering wheel parts (Including airbag)

• Suspension parts

• Wheel alignment adjustment

1) Park the vehicle straight on a level surface. (With

engine operating in the “Neutral” range)

2) Check  that  steering  wheel  is  positioned  at  the

center. (When the center position is not correct, ad-

just the wheel alignment.)

3) Set  the  Subaru  Select  Monitor  to  the  vehicle,

and  select  the  {Set  mode  Str.A.Sen.N&Lat.GS-

en.0p} in the «Function Check Sequence» screen.

(Follow the steps on the display.)

4) On «Brake Control System» display, select {Cur-

rent  Data  Display  &  Save},  and  check  that  the

steering angle sensor shows “0 deg”.

5) When  the  “0  deg”  is  not  displayed,  repeat  the

above  steps  and  check  that  the  “0  deg”  is  dis-

played.

6) Drive the vehicle for 10 minutes, and check that

the ABS and VDC warning light is not illuminated.

7) Check that there is no unnecessary VDC opera-

tion or steering control loss. If there is a malfunc-

tion, repeat the steps above.

ABS00432

(4)

(2)

(1)

(3)

VDC-14

ABS Sequence Control

VEHICLE DYNAMICS CONTROL (VDC)

4. ABS Sequence Control

A: OPERATION

1) While the ABS sequence control is being performed, the operation of the hydraulic unit can be checked us-

ing the brake tester or pressure gauge after the hydraulic unit solenoid valve operation.

2) ABS sequence control can be started by the Subaru Select Monitor.

1. ABS SEQUENCE CONTROL WITH SUBARU SELECT MONITOR

NOTE:

In the event of any trouble, the ABS sequence control will not operate.

1) Connect the Subaru Select Monitor to data link connector under the driver’s side instrument panel lower

cover.

2) Turn the ignition switch to ON.

3) Run the “PC application for Subaru Select Monitor”.

4) Set the Subaru Select Monitor to “Brake Control System” mode.

5) When the “Function Check Sequence” is selected, the “ABS sequence control” will start.

6) Execute the following operations when the message “Press Brake Pedal Firmly” is displayed.

(1) When using a brake tester, press the brake pedal pad with a force of 1,000 N (102 kgf, 225 lbf).

(2) When using a pressure gauge, press the brake pedal so that the pressure gauge indicates 3,500 kPa

(36 kgf/cm

2

, 511 psi).

7) Press the “OK” after “Press “OK”” is displayed.

8) The brake system being operated is displayed on the Subaru Select Monitor.

VDC-15

ABS Sequence Control

VEHICLE DYNAMICS CONTROL (VDC)

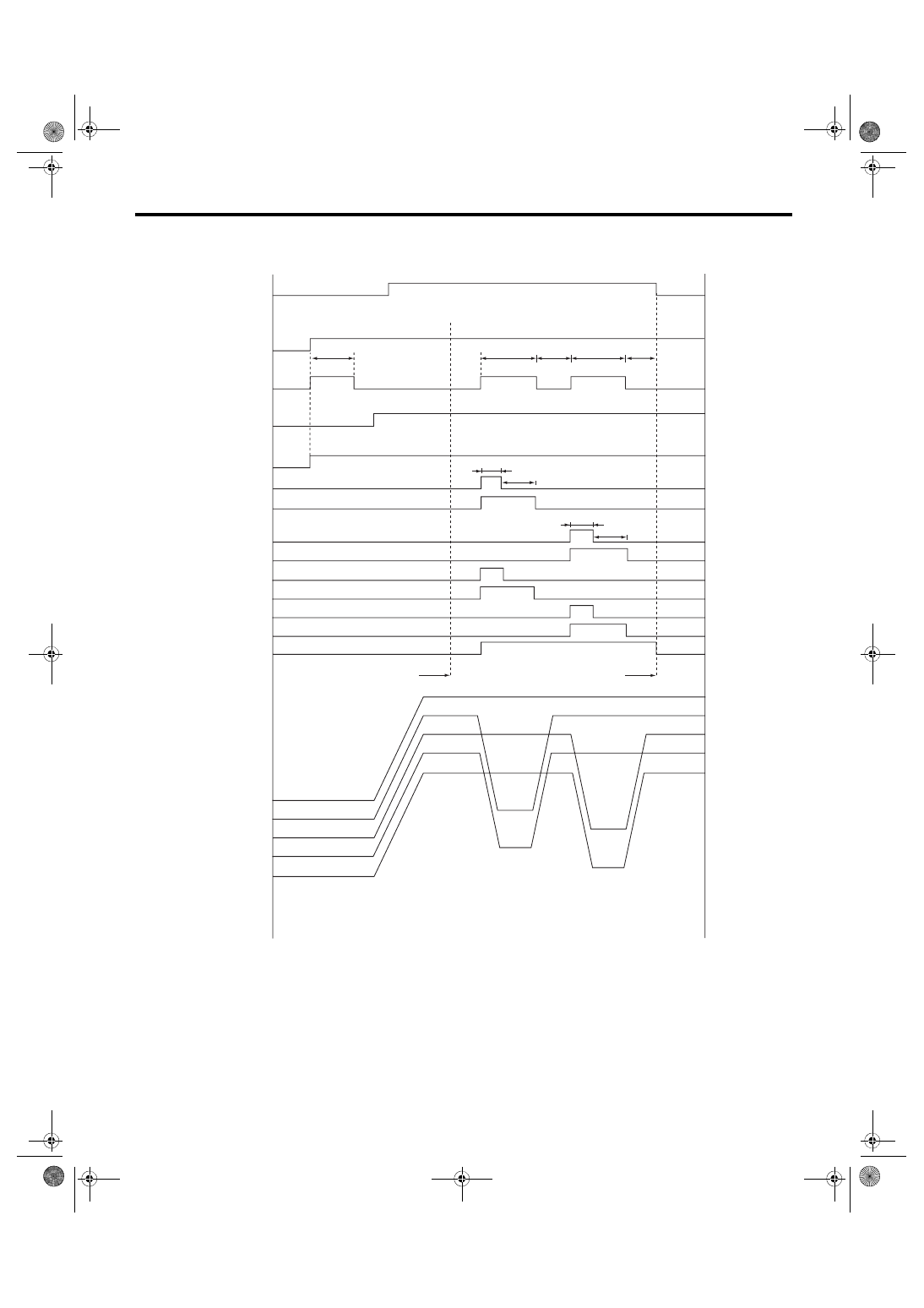

2. CONDITIONS FOR ABS SEQUENCE CONTROL

ABS00943

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

(14)

(24)

(25)

(28)

(27)

(26)

V max < 4 km/h (2.5 MPH)

OFF

(16)

(17)

OFF

ON

OFF

ON

OFF

ON

(21)

(18)

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

ON

(15)

(19)

(18)

(19)

V max < 10 km/h (6 MPH)

(16)

(17)

(17)

(16)

(16)

(21)

(18)

(22)

(23)

(20)

VDC-16

ABS Sequence Control

VEHICLE DYNAMICS CONTROL (VDC)

NOTE:

The control operation starts at point A.

B: SPECIFICATION

1. CONDITIONS FOR COMPLETION OF ABS SEQUENCE CONTROL

When the following conditions develop, the ABS sequence control stops and ABS operation is returned to the

normal control mode.

• When the speed of at least one wheel reaches 10 km/h (6 MPH).

• When the brake pedal is released during ABS sequence control and the stop light switch is becomes OFF.

• After completion of ABS sequence control.

• When a malfunction is detected.

(1)

All wheel speed

(11) RR compression valve

(20) 0.6 sec.

(2)

Ignition key

(12) RL decompression valve

(21) 0.4 sec.

(3)

ABS warning light

(13) RL compression valve

(22) Point A

(4)

Stop light switch

(14) Pump motor

(23) Reset

(5)

Valve relay

(15) 1.5 sec.

(24) Master cylinder pressure

(6)

FL decompression valve

(16) Light OFF

(25) FL wheel cylinder pressure

(7)

FL compression valve

(17) Light ON

(26) FR wheel cylinder pressure

(8)

FR decompression valve

(18) 1.0 sec.

(27) RR wheel cylinder pressure

(9)

FR compression valve

(19) 1.4 sec.

(28) RL wheel cylinder pressure

(10) RR decompression valve
