6MT-5

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

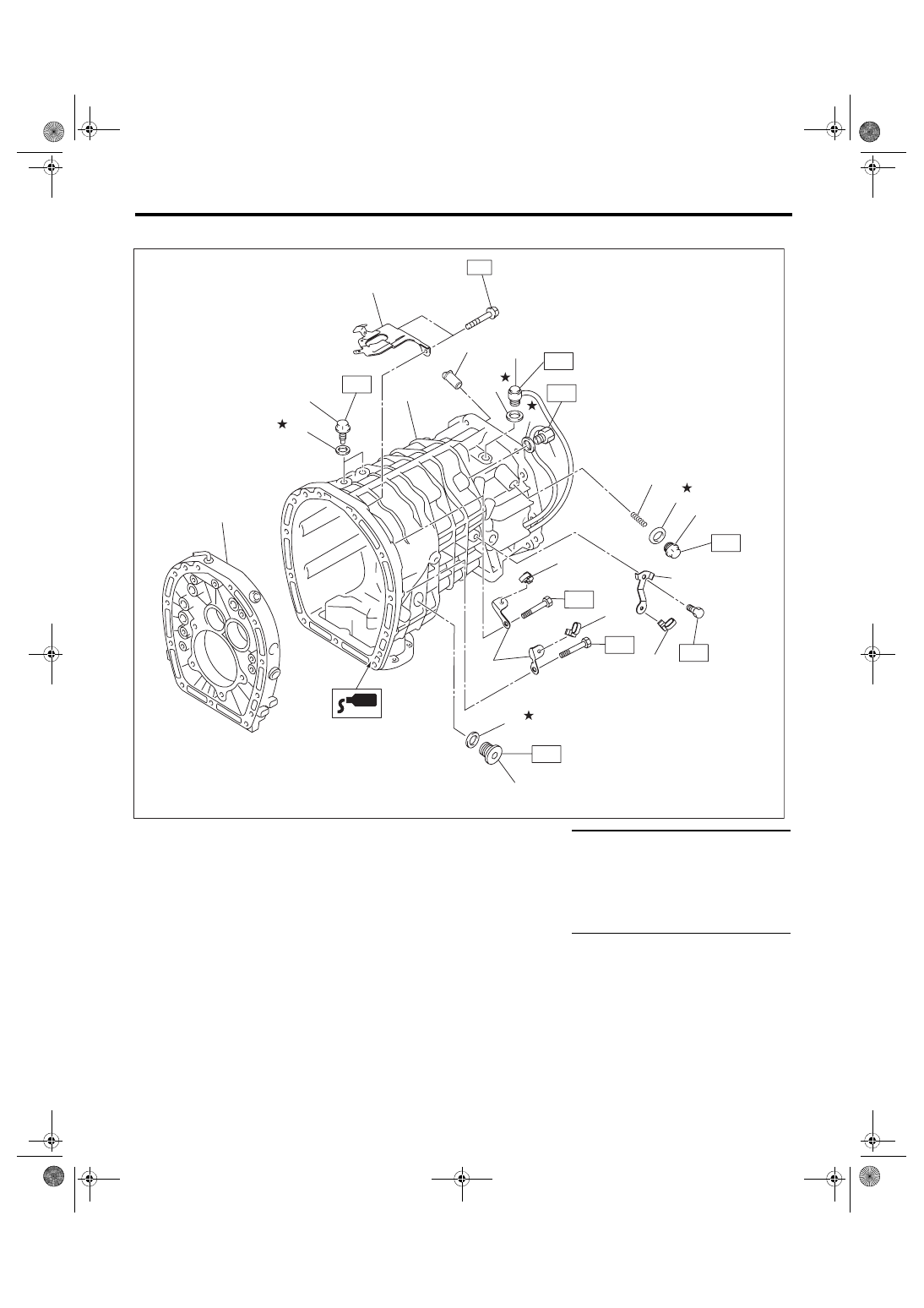

3. TRANSMISSION CASE

(1)

Pilot bolt

(8)

Spring

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Neutral switch

(9)

Plug

T1: 16 (1.6, 11.8)

(3)

Back-up light switch

(10) Gasket

T2: 32 (3.3, 23.6)

(4)

Adapter plate

(11) Filler plug

T3: 34 (3.5, 25.1)

(5)

Transmission case

(12) Band clip

T4: 41 (4.2, 30.2)

(6)

Harness bracket

(13) Transmission harness stay

T5: 50 (5.1, 36.9)

(7)

Selector plunger









(2)

(3)

(1)

(10)

(10)

(10)

(4)

(5)

T2

T3

T2

T1

(6)

(9)

(10)

(8)

(7)

T4

T5

(11)

(10)

T5

T5

MT-02710

(12)

(12)

(6)

(12)

(13)

T5

6MT-6

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

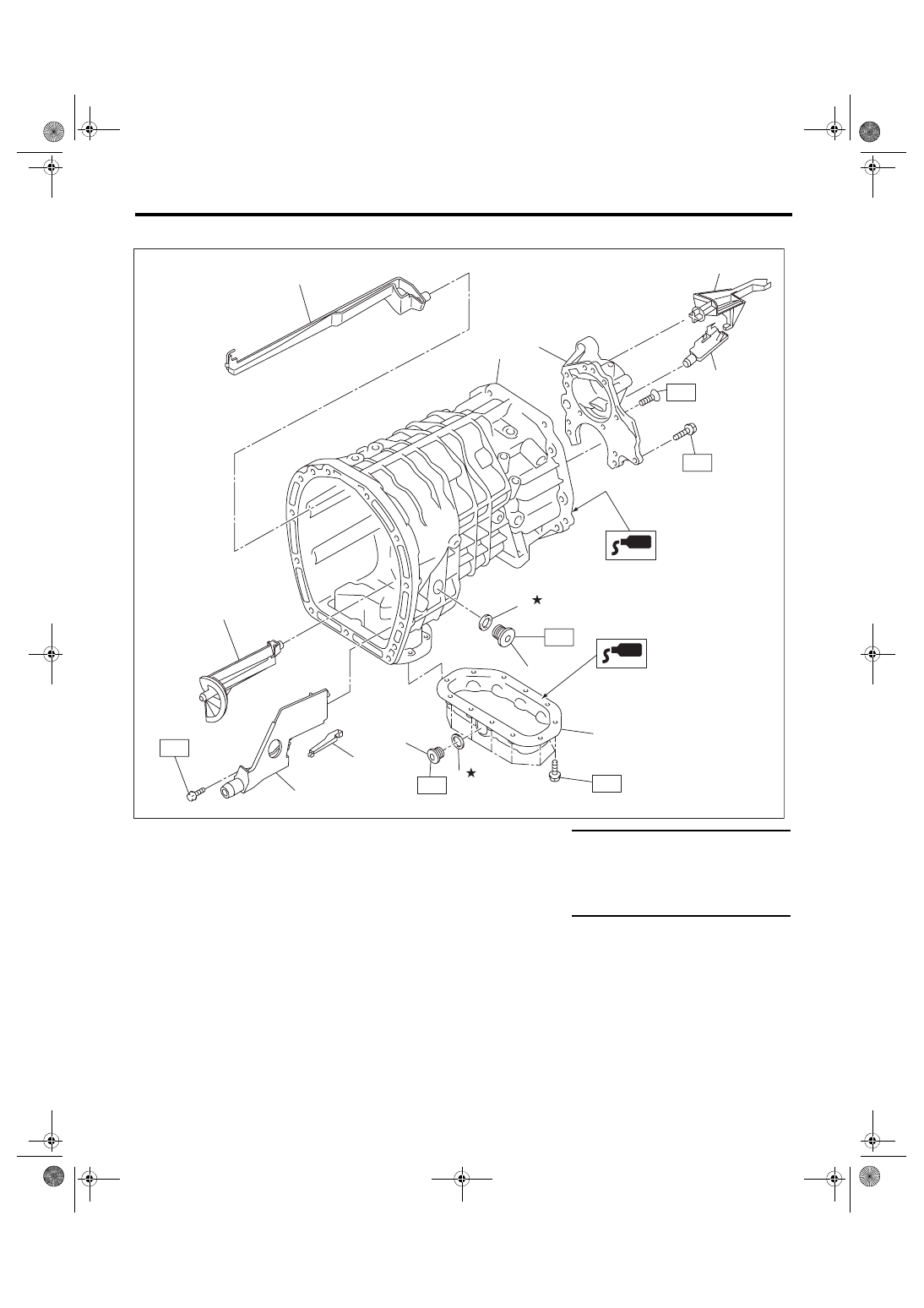

4. OIL PAN & OIL GUIDE

(1)

Transmission case

(7)

Oil guide F

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Transfer bearing holder

(8)

Oil guide D

T1: 6.4 (0.7, 4.7)

(3)

Oil guide G

(9)

Oil guide E

T2: 18 (1.8, 13.3)

(4)

Oil guide H

(10) Oil guide C

T3: 25 (2.5, 18.4)

(5)

Oil pan

(11) Filler plug

T4: 50 (5.1, 36.9)

(6)

Gasket

(12) Drain plug





MT-02305

(2)

(3)

(4)

T3

T3

(1)

T2

(10)

(7)

(8)

(9)

(5)

(6)

T1

T4

T4

(11)

(6)

(12)

6MT-7

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

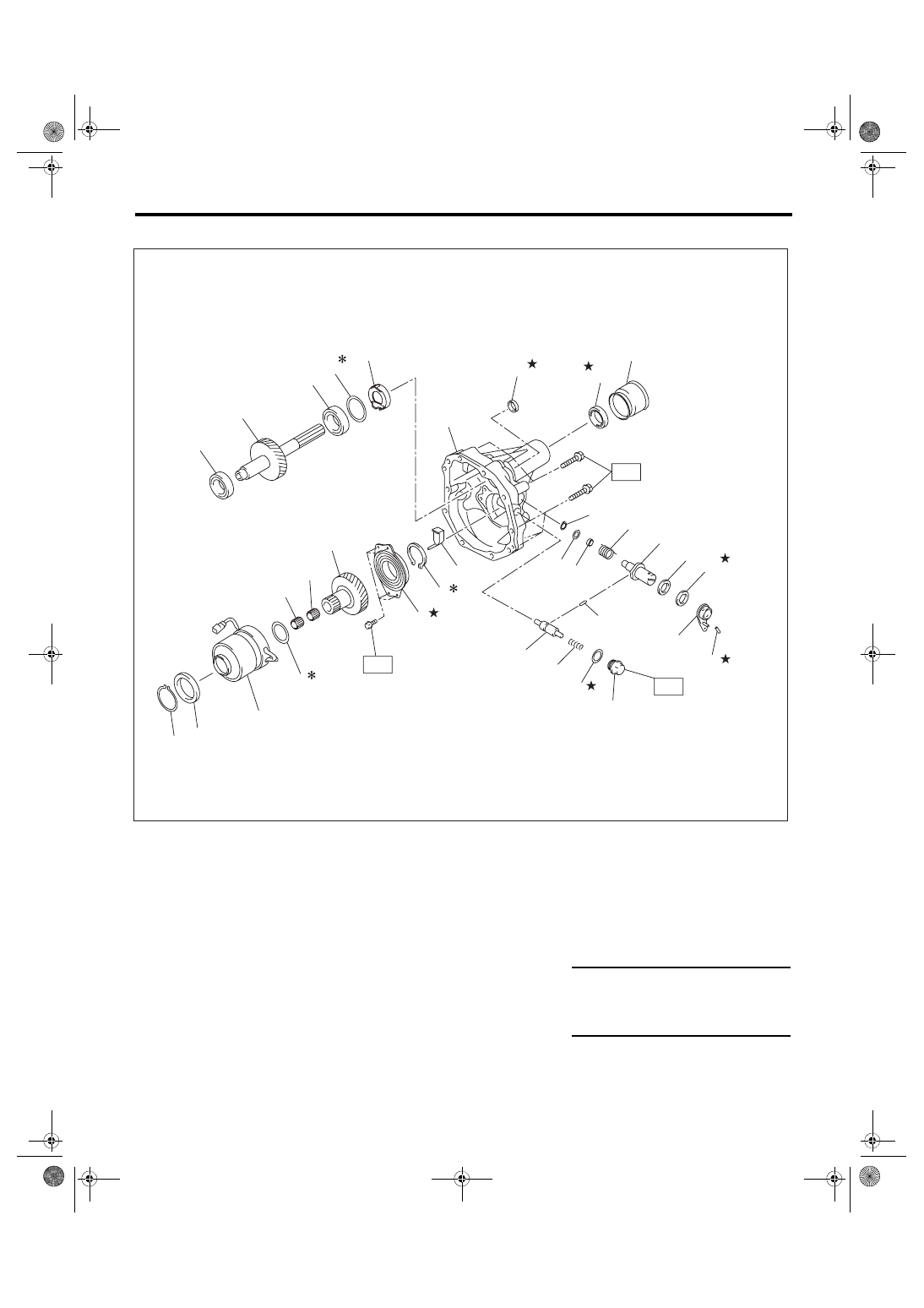

5. EXTENSION CASE AND CENTER DIFFERENTIAL

(1)

Taper roller bearing

(14) Snap ring

(27) Reverse check lever COMPL

(2)

Transfer driven gear

(15) Oil guide

(28) Straight pin

(3)

Taper roller bearing

(16) Extension case

(29) Reverse check plug

(4)

Adjusting washer

(17) Oil seal

(30) Spring

(5)

Oil plate

(18) Oil seal

(31) Gasket

(6)

Snap ring

(19) Dust cover

(32) Plug

(7)

Collar

(20) Snap ring

(33) Plunger

(8)

Center differential

(21) Washer





(9)

Adjusting washer

(22) Bushing

Tightening torque: N·m (kgf-m, ft-lb)

(10) Needle bearing

(23) Spring

T1: 25 (2.5, 18.4)

(11) Needle bearing

(24) Reverse check shaft

T2: 41 (4.2, 30.2)

(12) Transfer drive gear

(25) Ball bearing

T3: 48 (4.9, 35.4)

(13) Ball bearing (with flange)

(26) Oil seal





(32)

(31)

(30)

(33)

(27)

(26)

(25)

(24)

(23)

(22)

(21)

(20)

(19)

(18)

(17)

(16)

(15)

(14)

(13)

(12)

(11)

(10)

(5)

(4)

(3)

(2)

(9)

(1)

(28)

(29)

T3

T1

T2

(8)

MT-02934

(6)

(7)

6MT-8

General Description

MANUAL TRANSMISSION AND DIFFERENTIAL

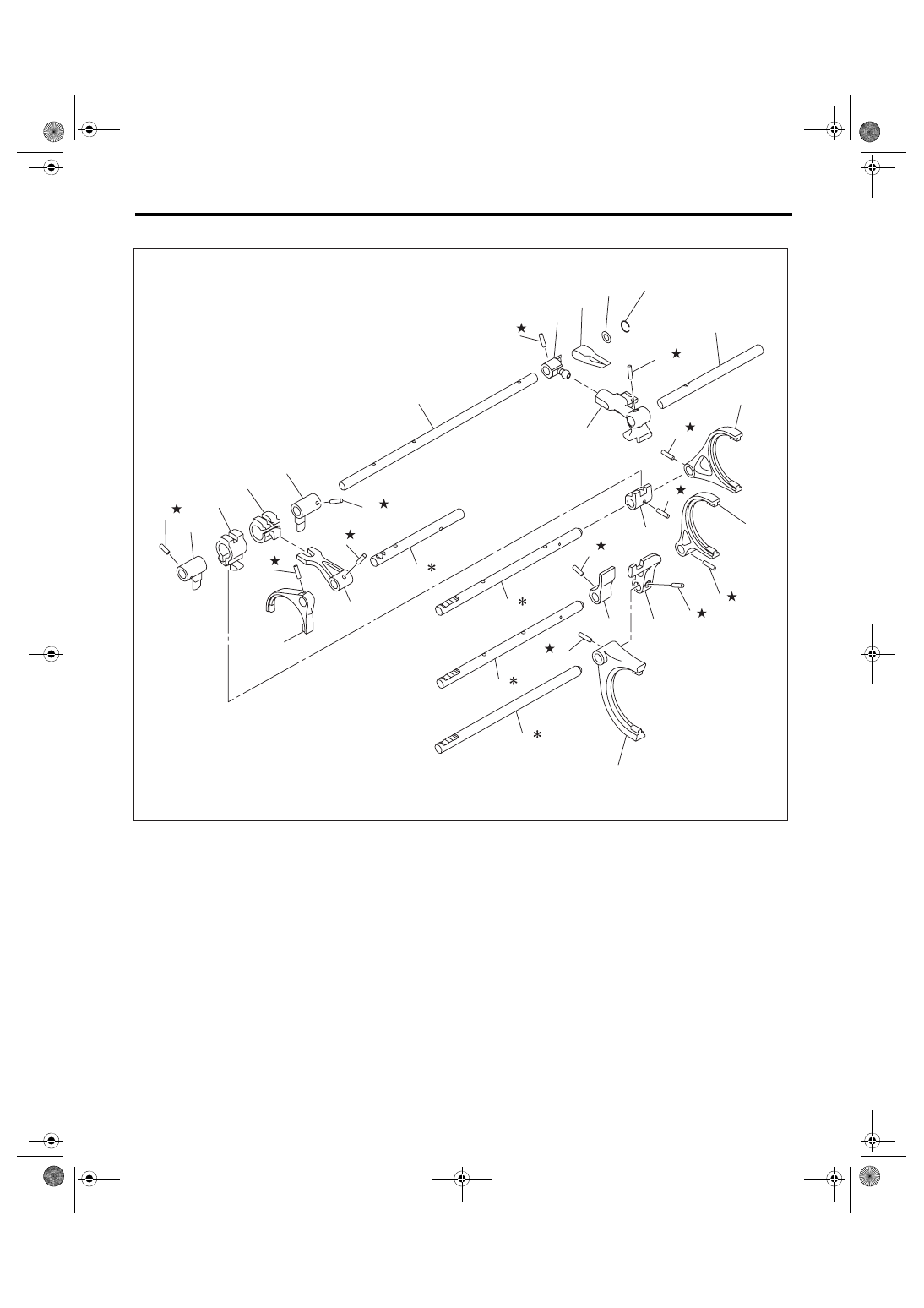

6. SHIFTER FORK AND FORK ROD

(1)

Straight pin

(9)

Washer

(17) 5th-6th shifter arm

(2)

Interlock arm

(10) Snap ring

(18) 5th-6th fork COMPL

(3)

Interlock block

(11) Reverse fork COMPL

(19) 3rd-4th fork rod

(4)

Reverse interlock block

(12) Reverse shifter arm

(20) 3rd-4th shifter arm

(5)

Interlock arm

(13) Reverse fork rod

(21) 1st-2nd shifter arm

(6)

Striking rod

(14) Selector arm

(22) 3rd-4th fork COMPL

(7)

Selector arm No. 2

(15) Shifter arm shaft

(23) 1st-2nd fork rod

(8)

Neutral set spring

(16) 5th-6th fork rod

(24) 1st-2nd fork COMPL

(7)

(8)

(9)

(10)

(15)

(14)

(18)

(17)

(22)

(1)

(1)

(20)

(1)

(1)

(1)

(1)

(1)

(21)

(24)

(1)

(19)

(16)

(13)

(12)

(11)

(23)

(1)

(1)

(1)

(1)

(5)

(6)

(4)

(3)

(2)

MT-01735
