Subaru Impreza 3 / Impreza WRX / Impreza WRX STI. Manual - part 184





CO(w/o STI)-5

General Description

COOLING

C: CAUTION

• Prior to starting work, pay special attention to the following:

1. Always wear work clothes, a work cap, and protective shoes. Additionally, wear a helmet, protective

goggles, etc. if necessary.
2. Protect the vehicle using a seat cover, fender cover, etc.
3. Prepare the service tools, clean cloth, containers to catch grease and oil, etc.

• Prepare a container and cloth to prevent scattering of engine coolant when performing work where engine

coolant can be spilled. If the oil spills, wipe it off immediately to prevent from penetrating into floor or flowing

out for environmental protection.

• Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated

parts.

• When performing a repair, identify the cause of trouble and avoid unnecessary removal, disassembly and

replacement.

• Before disconnecting connectors of sensors or units, be sure to disconnect the ground cable from battery.

• Always use the jack-up point when the shop jacks or rigid racks are used to support the vehicle.

• Remove contamination including dirt and corrosion before removal, installation, disassembly or assembly.

• Keep the removed parts in order and protect them from dust and dirt.

• All removed parts, if to be reused, should be reinstalled in the original positions with attention to the correct

directions, etc.

• Bolts, nuts and washers should be replaced with new parts as required.

• Be sure to tighten the fasteners including bolts and nuts to the specified torque.

• Follow all government and local regulations concerning disposal of refuse when disposing engine coolant.

CO(w/o STI)-6

General Description

COOLING

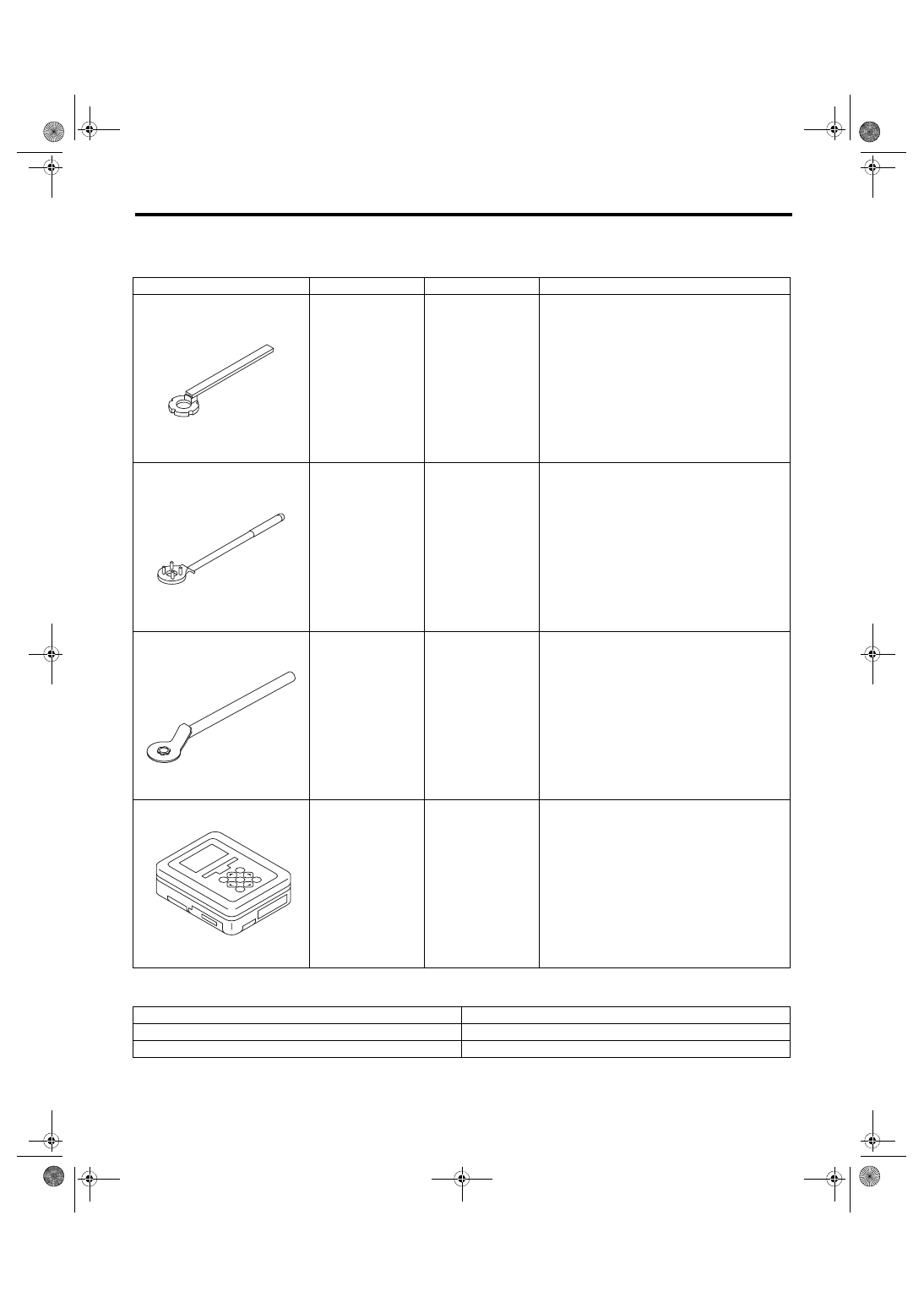

D: PREPARATION TOOL

1. SPECIAL TOOL

2. GENERAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

499207400

CAM SPROCKET
WRENCH

Used for removing and installing exhaust cam
sprocket.

499977100

CRANK PULLEY
WRENCH

Used for removing and installing the crank pul-
ley.

499977500

CAM SPROCKET
WRENCH

Used for removing and installing intake cam
sprocket.

1B022XU0

SUBARU SELECT
MONITOR III KIT

Used for troubleshooting the electrical system.

TOOL NAME

REMARKS

Circuit tester

Used for measuring resistance and voltage.

Radiator cap tester

Used for checking radiator and radiator cap.

ST-499207400

ST-499977100

ST-499977500

ST1B022XU0

CO(w/o STI)-7

Radiator Fan System

COOLING

2. Radiator Fan System

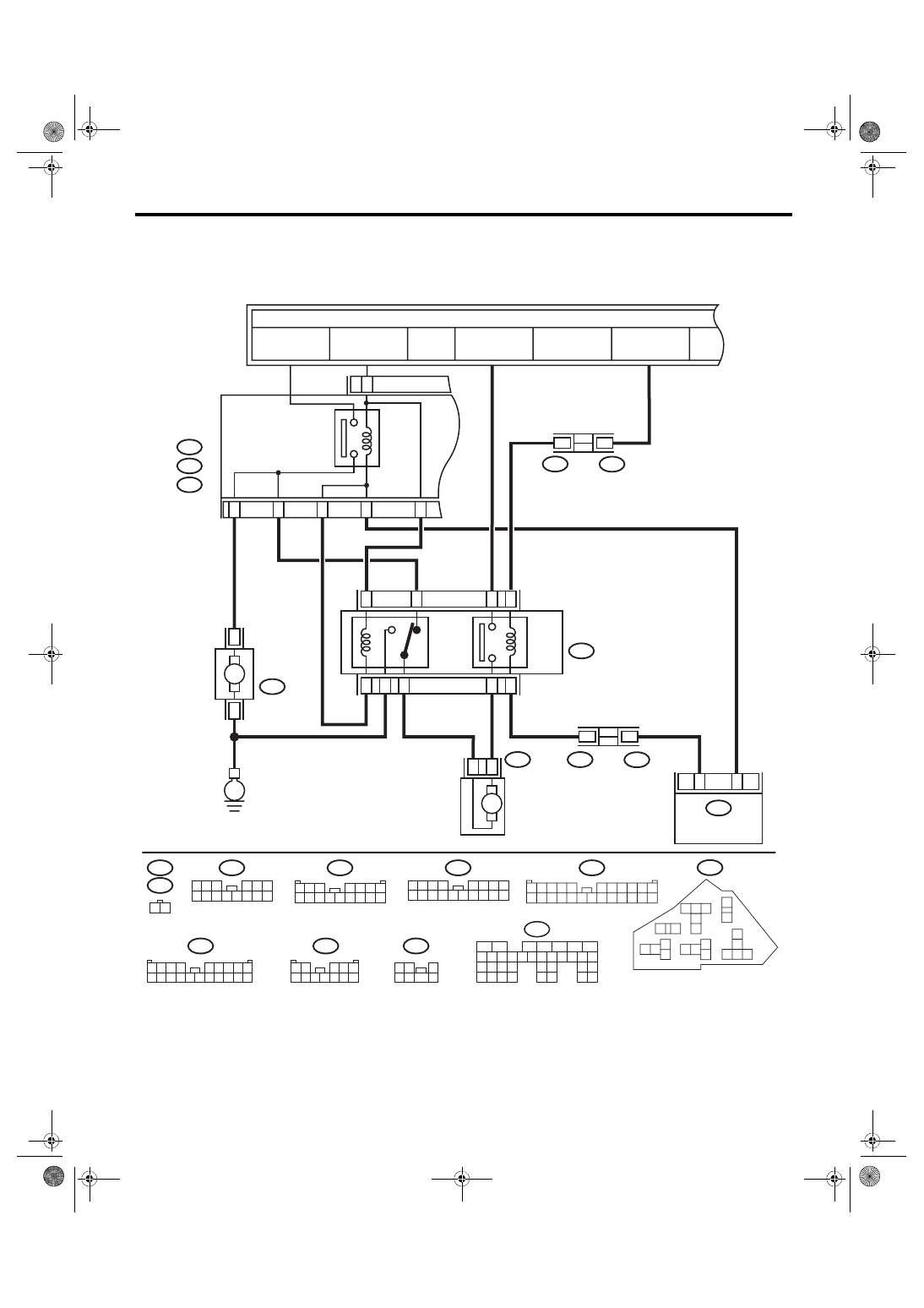

A: WIRING DIAGRAM

Radiator Fan System <Ref. to WI-64, WIRING DIAGRAM, Radiator Fan System.>

ECM

19

18

21

20

23

22

24 25

26

17

1

2

3

4

5

6

7

27

28 29 30 31

32 33

34 35

9

8

15

14

13

12

11

10

16

B135

B19

C11

CO-02773

20 21 22

19

18

3 4 5

7

6

10 11

12
13

15

16
17

14

2

1

9

8

E:

C:

B:

12

11

F36

E:

F35

C:

B143

B:

1

10

B360

F109

21

13

10

21

20

B7

C10

E5

E6

12

11

1

8

19

22

1

2

7

16

3

1 2

7

4 5 6

1 2

3 4 5

6 7 8 9 10 11 12

1 2 3 4

5 6 7 8 9

10 11 12 13 14 15 16 17 18 19 20

F27

3 4

1 2

8 9 10 11

12 13 14 15 16 17 18 19 20 21 22 23 24

5

6 7

F109

2 3

4 5 6

8 9 10 11 12 13 14

7

1

B361

F17

B143

F35

F36

F27

2 3

8

10

1
9

4

11 12 13 14 15 16

5 6 7

17 18

F108

1 2 3

4 5 6 7

8 9 10 11 12 13 14 15 16

B360

1 2

F16

F17

B361

F16

F108

B135

E

M

M

THROUGH JOINT

CONNECTOR

SUB FAN MOTOR

MAIN F

AN

MO

TOR

RELAY HOLDER

SUB   FAN



RELA

Y

MAIN  FAN  RELA

Y 2

THROUGH JOINT

CONNECTOR

MAIN  FAN  RELA

Y 1

TO POWER SUPPLY CIRCUIT

F/B FUSE NO. 26

(IG)

M/B FUSE NO. 2

(B)

MB-4

M/B FUSE NO. 3

(B)

FB-46

M/B FUSE NO. 22

(IG)

MAIN FUSE

 BOX (M/B)

CO(w/o STI)-8

Radiator Fan System

COOLING

B: INSPECTION

OPERATING CONDITION:

Vehicle speed

A/C com-

pressor load

Engine coolant temperature

Increase: 94°C (201°F)

or less

Decrease: 91°C

(196°F) or less

Increase: 95 — 96°C

(203 — 205°F)

Decrease: 92 — 94°C

(198 — 201°F)

Increase: 97°C (207°F)

or more

Decrease: 95°C
(203°F) or more

Radiator fan operation

Radiator fan operation

Radiator fan operation

During acceleration: 19 km/h

(12 MPH) or less

During deceleration: 10 km/h

(6 MPH) or less

OFF

OFF

Low-Speed

High-Speed

Low

Low-Speed

Low-Speed

High-Speed

High

High-Speed

High-Speed

High-Speed

During acceleration: 20 — 69 km/h

(12 — 43 MPH)

During deceleration: 11 — 64 km/h

(7 — 40 MPH)

OFF

OFF

Low-Speed

High-Speed

Low

High-Speed

High-Speed

High-Speed

High

High-Speed

High-Speed

High-Speed

During acceleration: 70 — 105 km/h

(43 — 65 MPH)

During deceleration: 65 — 103 km/h

(40 — 64 MPH)

OFF

OFF

Low-Speed

High-Speed

Low

High-Speed

High-Speed

High-Speed

High

High-Speed

High-Speed

High-Speed

During acceleration: 106 km/h

(66 MPH) or more

During deceleration: 104 km/h

(65 MPH) or more

OFF

OFF

High-Speed

High-Speed

Low

High-Speed

High-Speed

High-Speed

High

High-Speed

High-Speed

High-Speed
