SEAT BELT SYSTEM

Disposal of Pretensioner

20) Wrap the deployed pretensioner in airtight vinyl
bag to discard.

2. DEPLOYING OF PRETENSIONER AF-
TER REMOVAL FROM VEHICLE

1) Fold the backrest all the way forward, and then
move the front seat all the way forward.
2) Turn the ignition switch to OFF, disconnect the
battery ground terminal, and wait more than 20
seconds.
3) Remove the front outer belt. <Ref. to SB-14, RE-
MOVAL, Front Seat Belt.>
4) Cut off the seat belt as close to seat belt retractor
as possible.

5) Short the terminal to alligator clip of deployment
tool.

6) Connect the deployment tool (A) and deploy-
ment adapter D (B).

CAUTION:
The terminals of deployment tool should be
kept shorted until just before deploying the pre-
tensioner.

7) Connect the deployment adapter D connector
and pretensioner connector.
8) Install the pretensioner on a wheel with tire.
Then, bundle three automotive wire harness [each
with a sectional area of 1.25 mm

(0.00194 sq in) or

more], and bind them twofold around the preten-
sioner bracket and wheel.

9) Put three tires without wheel on the tire installed
with pretensioner. Put on an additional tire with a
wheel on top, and then fasten them tight with a
rope.

SB-00131

SB-00130

(A) Deployment tool:

(Tool number 98299PA030)

(B) Deployment adapter D:

(Tool number 98299SA010)

SB-00021

(A)

(B)

SB-00024

SB-00025

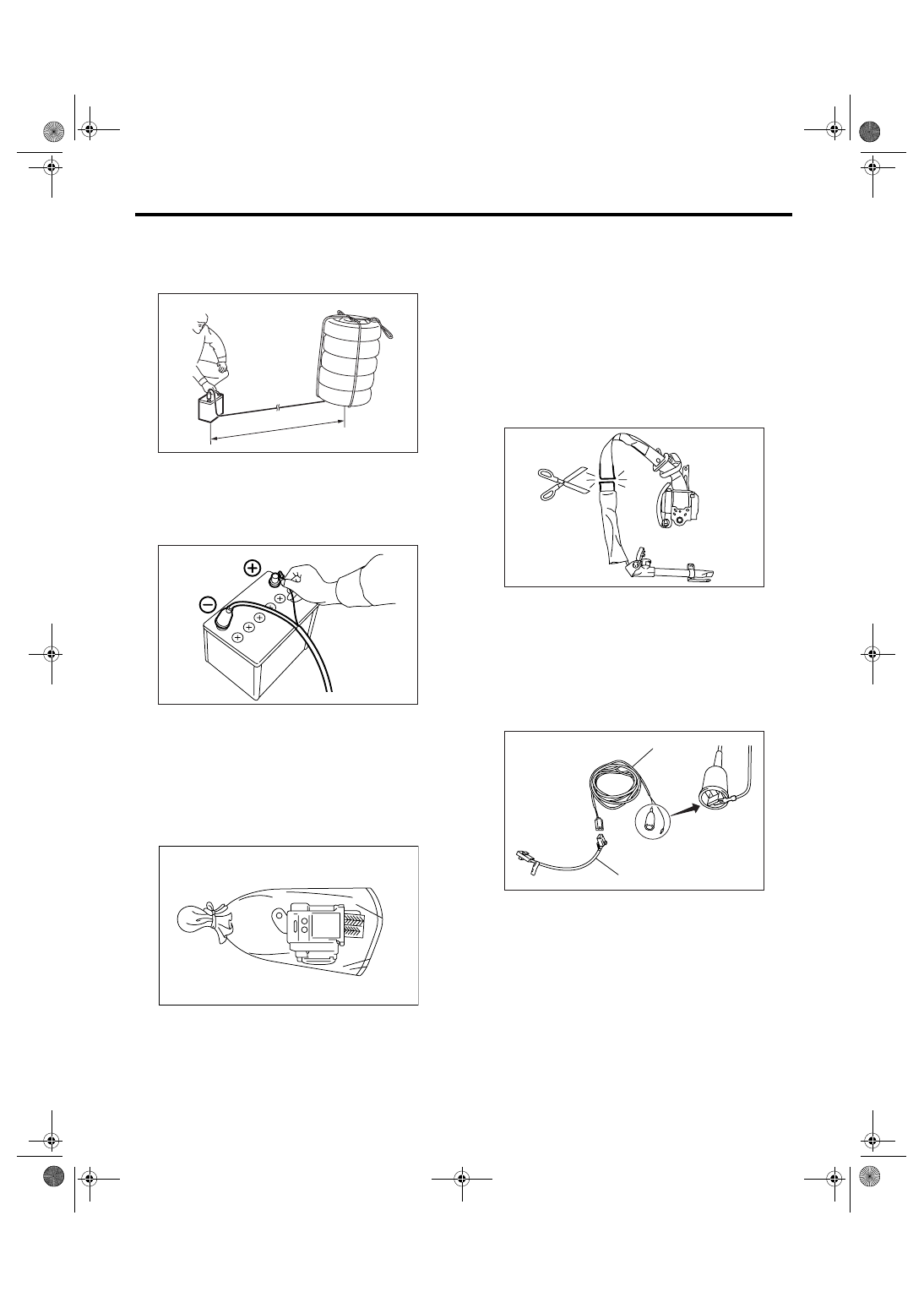

SB-22

SEAT BELT SYSTEM

Disposal of Pretensioner

10) Move the battery at least 5 m (16 ft) from tires,
and secure the nearby area. Connect the deploy-
ment tool alligator clip to the battery negative (

−)

terminal.

11) Connect the other cable of deployment tool to
the battery positive (+) terminal, and deploy the
pretensioner.

CAUTION:
• After deployment, the pretensioner is espe-
cially hot, leave it unattended for 40 minutes or
longer.
• Do not let water get in the deployed preten-
sioner.
12) Wrap the deployed pretensioner in airtight vinyl
bag to discard.

3. DEPLOYING OF LAP SEAT BELT PRE-
TENSIONER AFTER REMOVAL FROM VE-
HICLE

1) Fold the backrest all the way forward, and then
move the front seat all the way forward.
2) Before starting service, turn the ignition switch to
OFF, disconnect the battery ground cable and wait
for 20 seconds or more.
3) Remove the front outer belt. <Ref. to SB-14, RE-
MOVAL, Front Seat Belt.>
4) Cut off the seat belt as close to lap seat belt pre-
tensioner as possible.

5) Short the terminal to alligator clip of deployment
tool (A).
6) Connect the deployment tool and deployment
adapter F (B).

CAUTION:
The terminals of deployment tool should be
kept shorted until just before deploying the pre-
tensioner.

7) Connect the deployment adapter F connector
and orange connector of lap seat belt pretensioner.

(1) 5 m (16 ft) or more

SB-00065

(1)

SB-00018

SB-00131

(A) Deployment tool:

(Tool number 98299PA030)

(B) Deployment adapter F:

(Tool number 98299SA050)

SB-00027

SB-00021

(A)

(B)

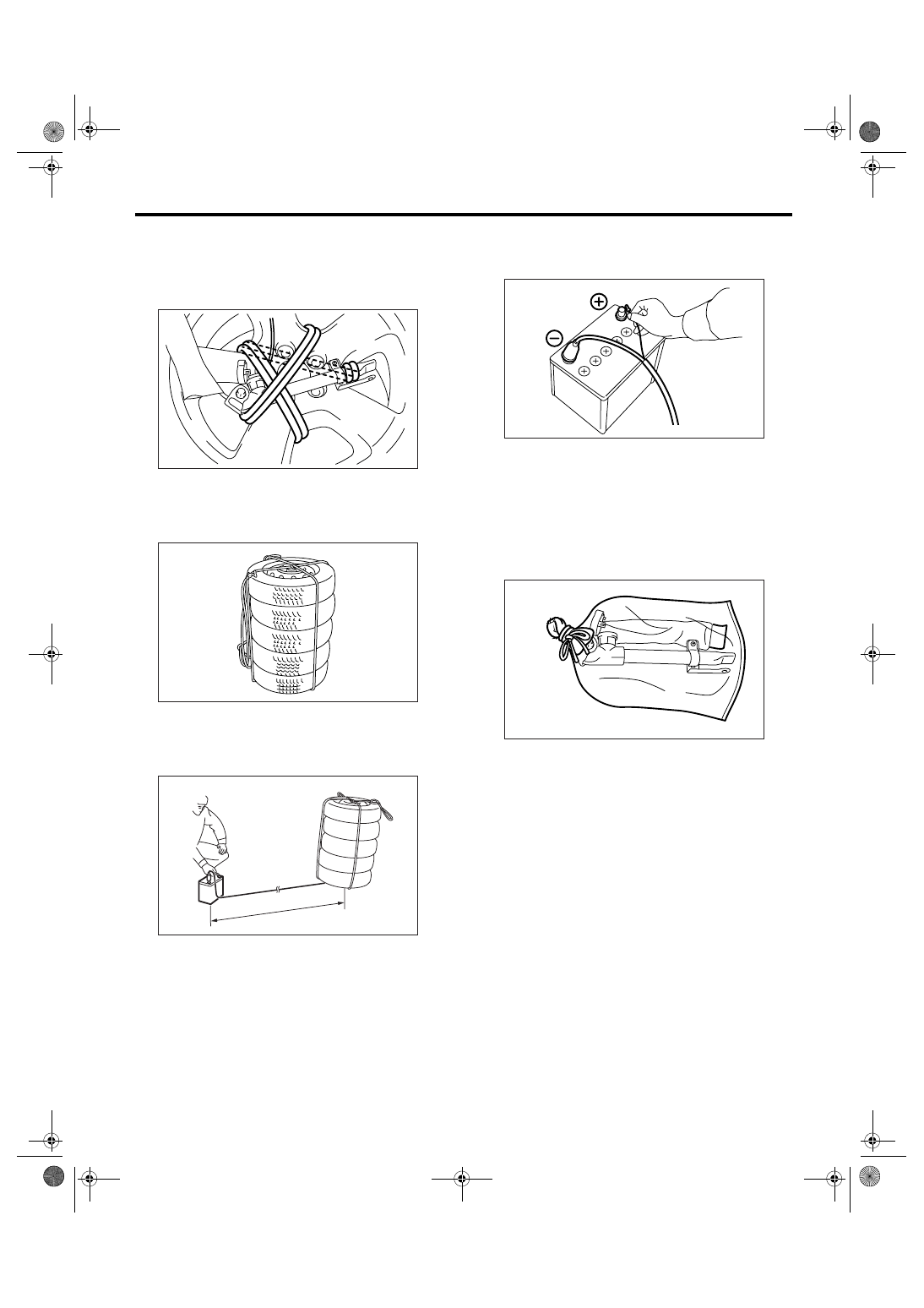

SB-23

SEAT BELT SYSTEM

Disposal of Pretensioner

8) Install the pretensioner on a wheel with tire.
Then, bundle three automotive wire harness [each
with a sectional area of 1.25 mm

(0.00194 sq in) or

more], and bind them twofold around the preten-
sioner bracket and wheel.

9) Put three tires without wheel on the tire installed
with pretensioner. Put on an additional tire with a
wheel on top, and then fasten them tight with a
rope.

10) Move the battery at least 5 m (16 ft) from vehi-
cle, and secure the nearby area. Connect the de-
ployment tool alligator clip to the battery negative (

−

) terminal.

11) Connect the other cable of deployment tool to
the battery positive (+) terminal, and deploy the
pretensioner.

(1) 5 m (16 ft) or more

SB-00028

SB-00025

SB-00065

(1)

SB-00018

SB-00022

SB-24

SEAT BELT SYSTEM

Disposal of Pretensioner
