AC-41

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

Pressure Switch (Triple Pressure Switch)

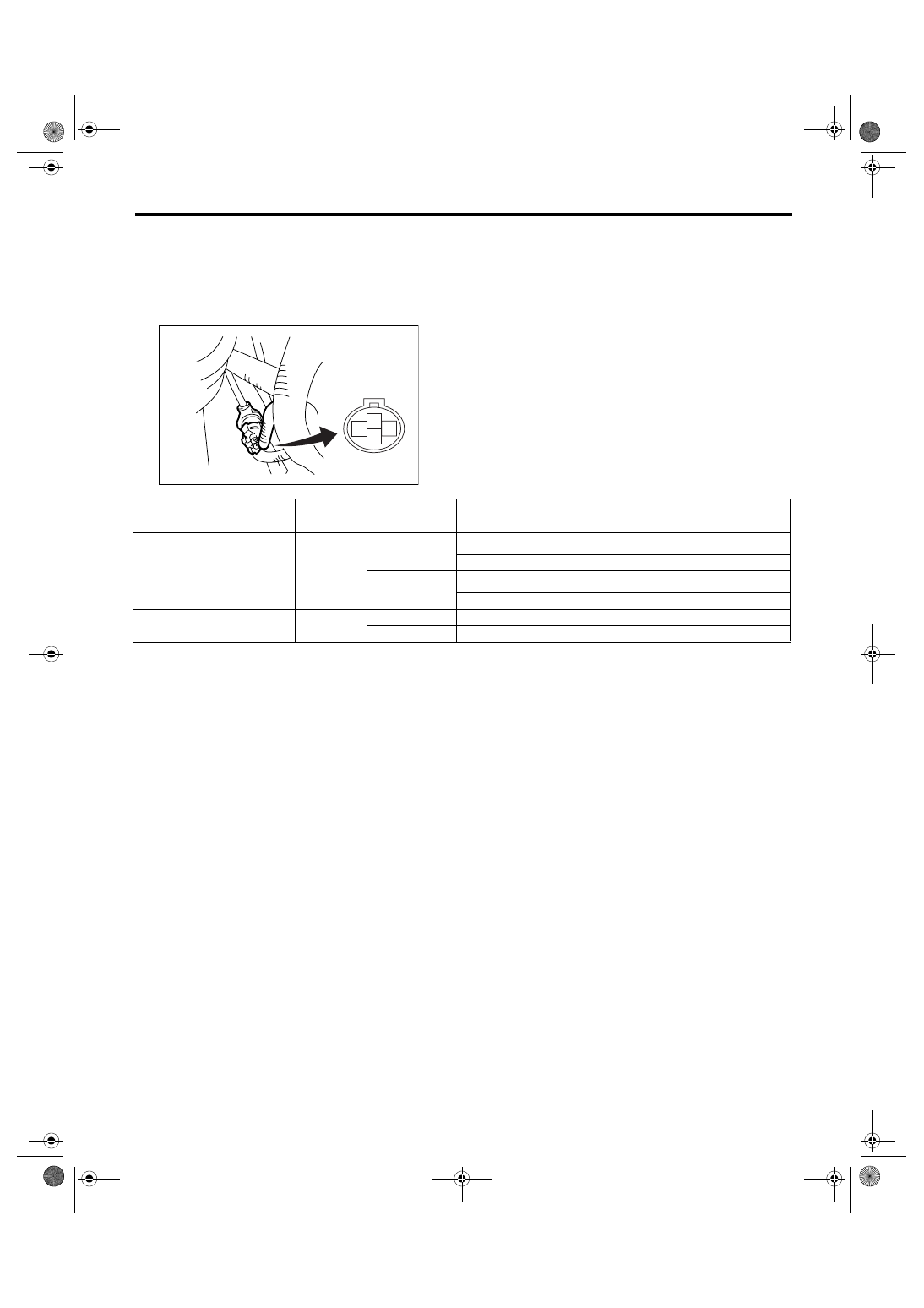

21.Pressure Switch (Triple Pressure Switch)

A: INSPECTION

1) Connect the manifold gauge to the service valve on the high-pressure side.
2) Remove the pressure switch harness connector. Using a circuit tester, inspect the ON-OFF operation of
pressure switch.

AC-00788

1
2

Terminal

No.

Operation

Standard

kPa (kgf/cm

, psi)

High and low pressure switch

1 and 2

Turns OFF.

Increasing to 3,140

+50

−200

(32.02

+0.51

−2.04

, 455.4

+7.25

−29.0

)

Decreasing to 196

±20 (2.00±0.20, 28.4±2.9)

Turns ON.

Increasing to 225

+25

−29

(2.29

+0.25

−0.30

, 32.6

+3.6

−4.2

)

Decreasing to 2,550

±200 (26.00±2.04, 369.8±29.0)

Middle pressure switch

3 and 4

Turns OFF.

Decreasing to 1,370

±120 (14±1, 199±14)

Turns ON.

Increasing to 1,770

±100 (18±1, 256±14)

AC-42

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

Actuator

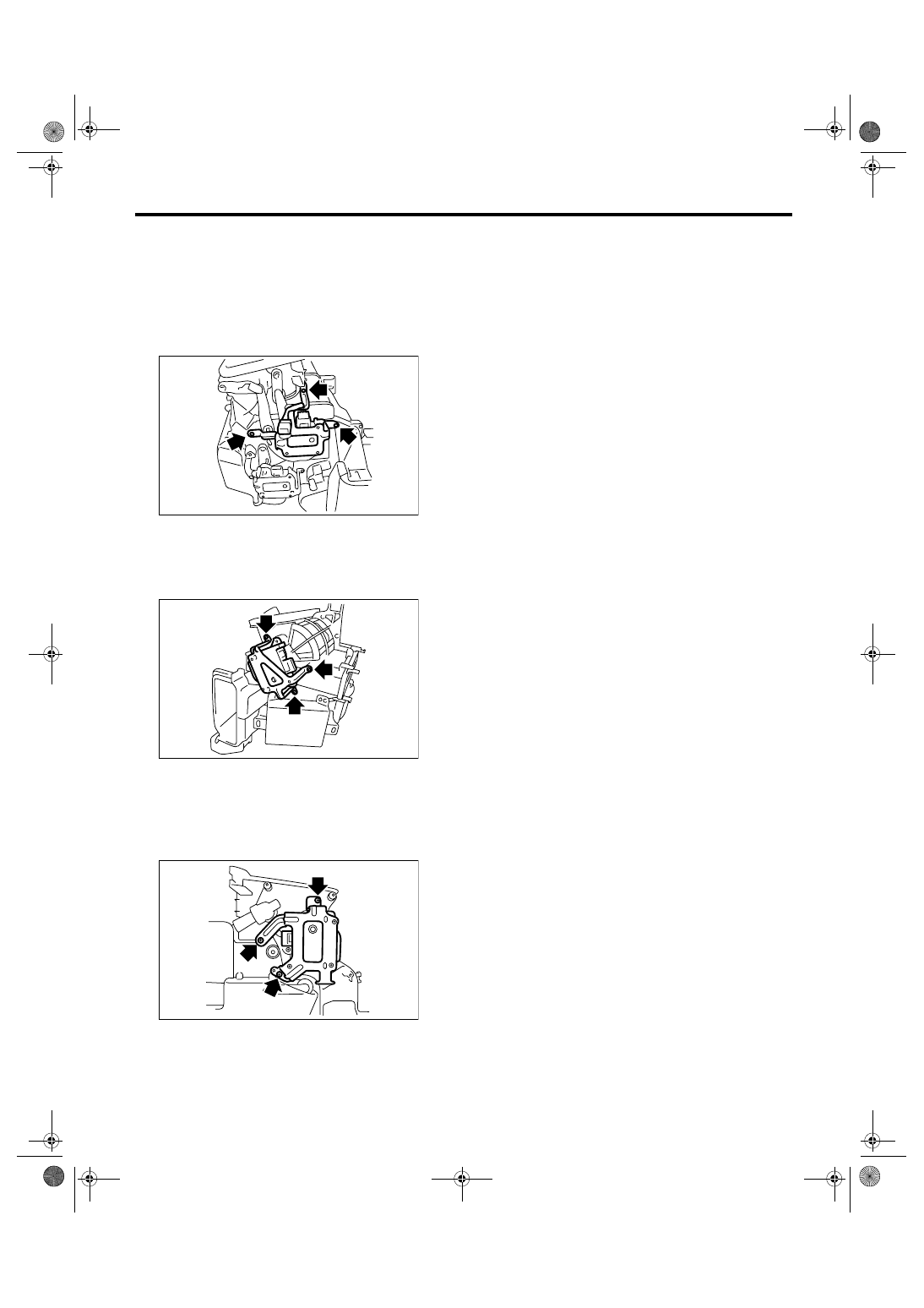

22.Actuator

A: REMOVAL

1. MODE DOOR ACTUATOR

Disconnect the connector, remove the screw, and
then remove the mode door actuator from heater
and cooling unit.

2. INTAKE DOOR ACTUATOR

Disconnect the connector, remove the screw, and
then remove the intake door actuator from blower
motor unit.

3. AIR MIX DOOR ACTUATOR (AUTO A/C
MODEL)

Disconnect the connector, remove the screw, and
then remove the air mix door actuator from heater
and cooling unit.

B: INSTALLATION

Install in the reverse order of removal.

AC-01137

AC-01138

AC-01139

AC-43

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

Ambient Sensor (Auto A/C Model)

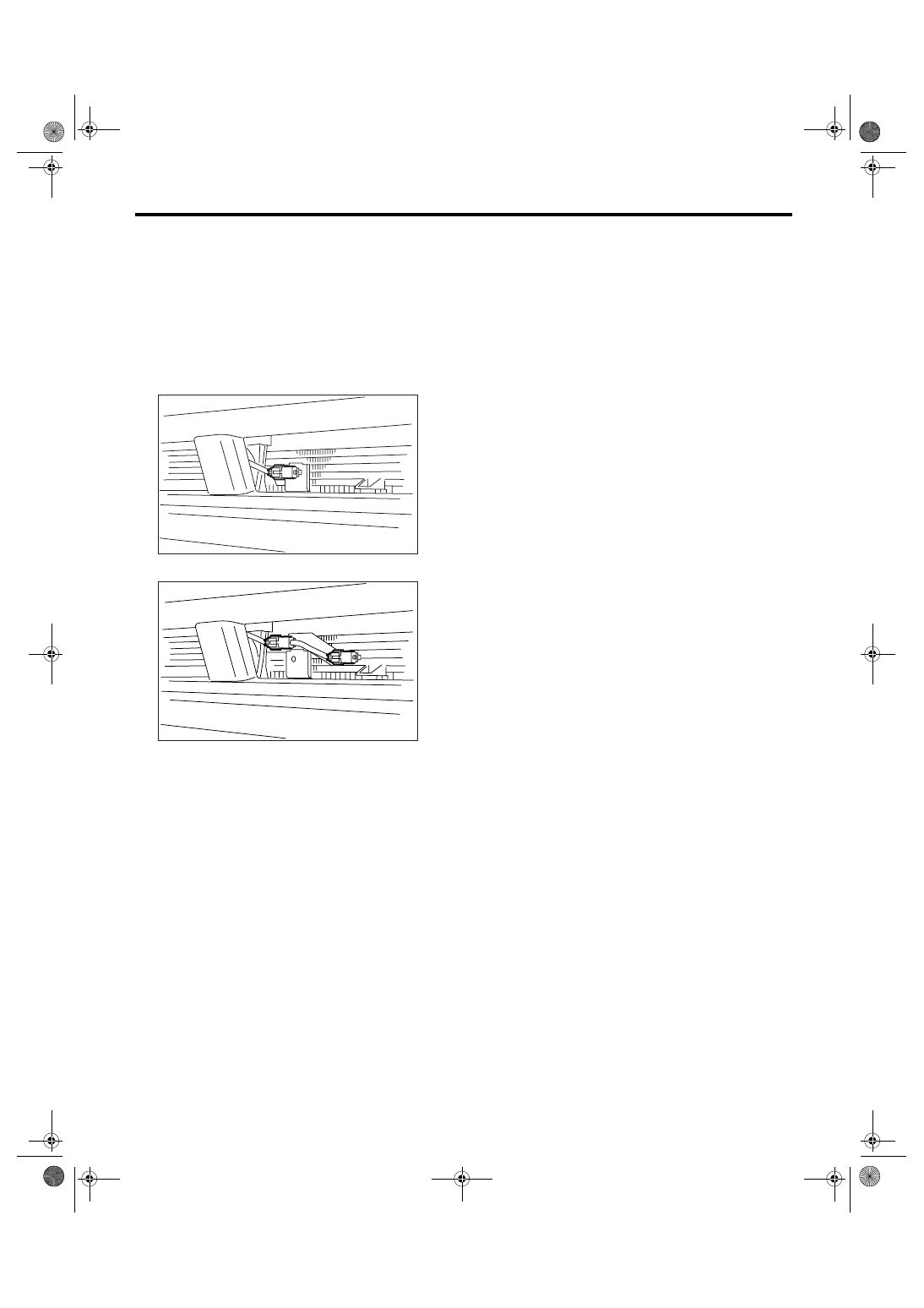

23.Ambient Sensor (Auto A/C

Model)

A: REMOVAL

1) Open the front hood.
2) Disconnect the ground cable from battery.
3) Disconnect the ambient sensor connector.
4) Remove the ambient sensor from the radiator
lower panel.
• H4 model

• H6 model

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

<Ref. to AC(diag)-30, AMBIENT SENSOR, Diag-
nostic Procedure for Sensors.>

AC-00125

AC-01218
