Subaru Legacy (2005 year). Manual - part 820
BR-9
BRAKE
General Description

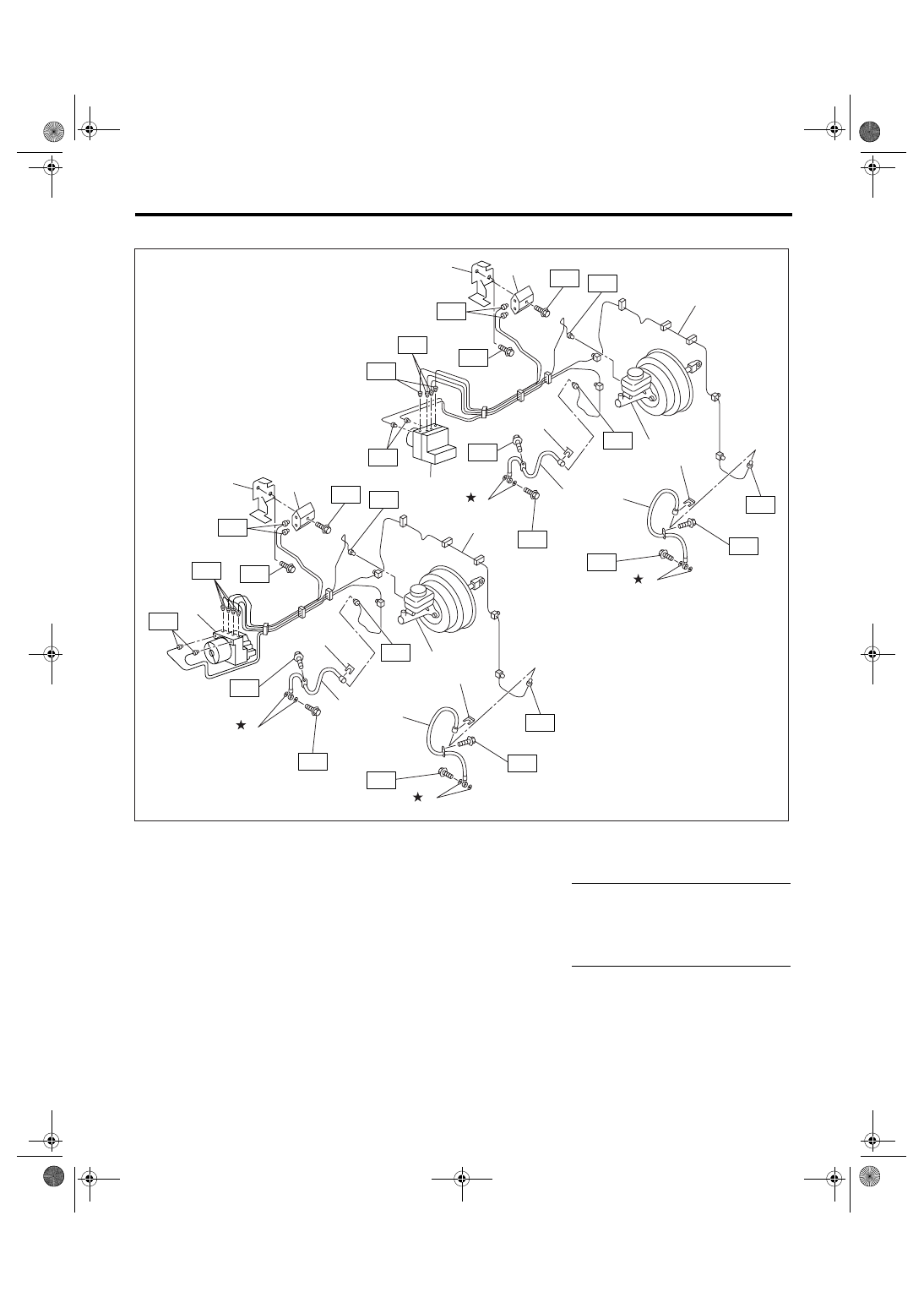

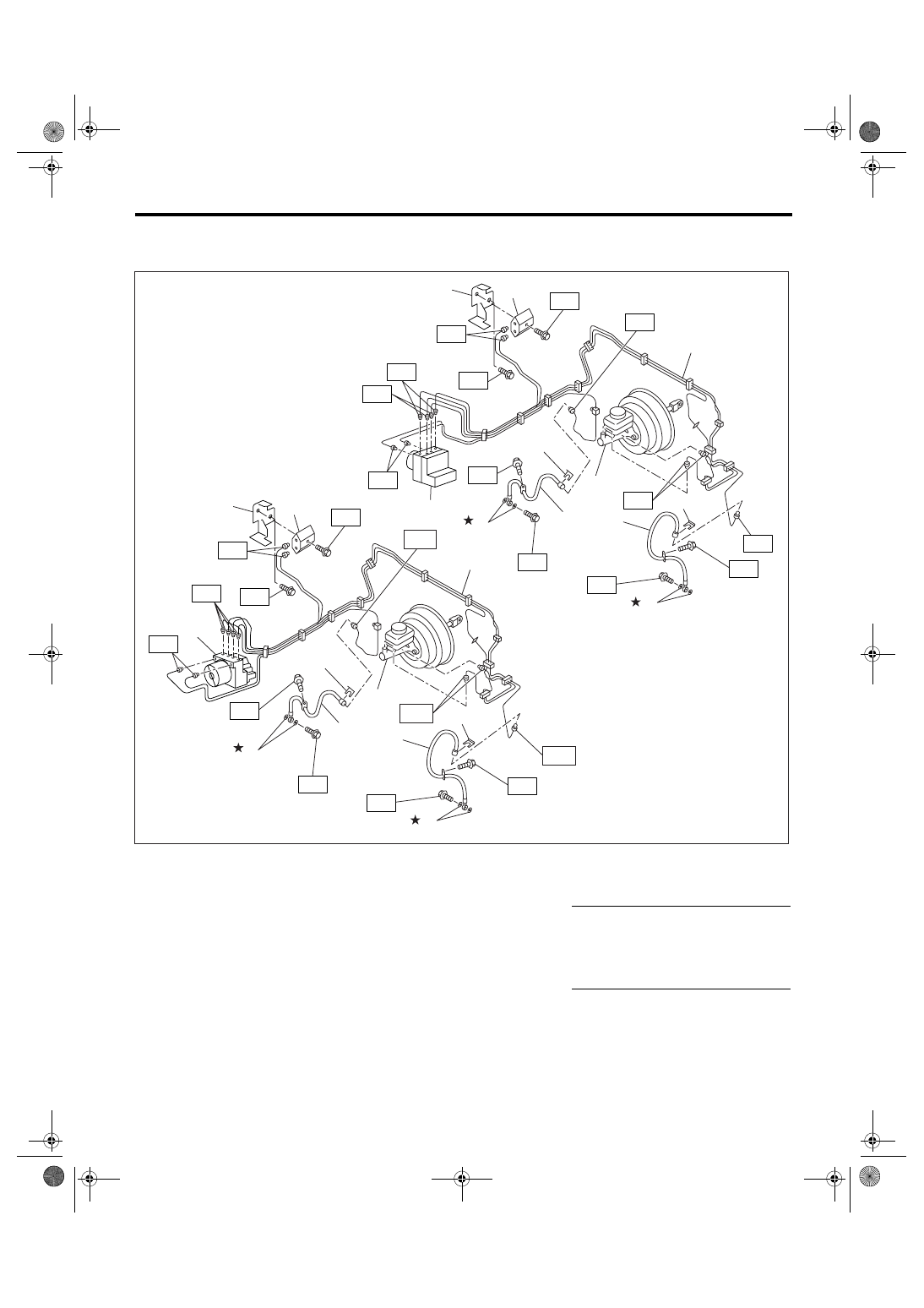

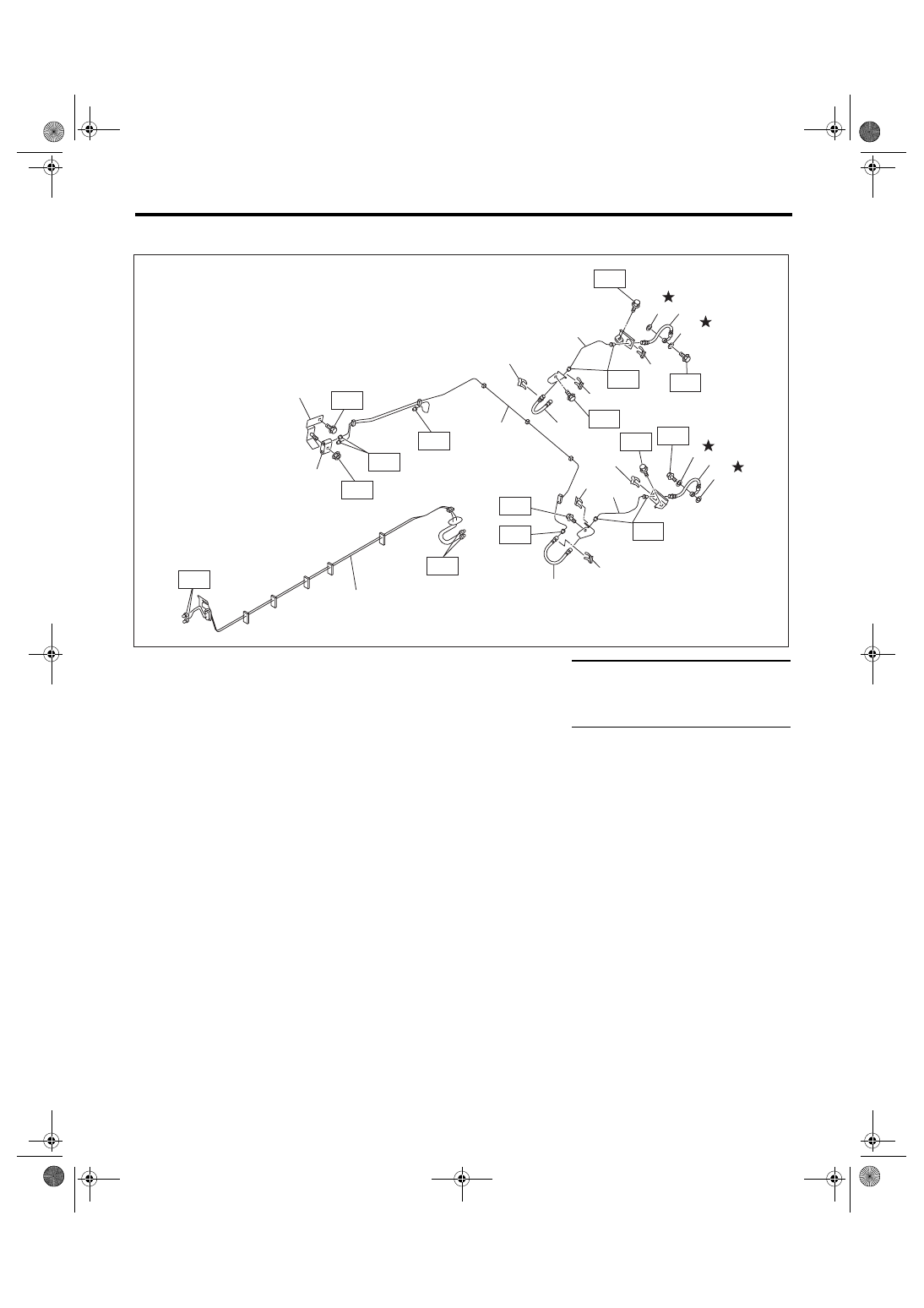

4. FRONT BRAKE PIPES AND HOSE
• LHD model
(A)
Model with ABS
(B)
Model with vehicle dynamics con-
trol (VDC)
(1)
Front brake pipe ASSY
(7)
ABS control module and hydraulic
control unit (ABSCM&H/U)
Tightening torque: N
⋅
m (kgf-m, ft-lb)
(2)
Two-way connector
T1: 15 (1.5, 10.8)
(3)
Front brake hose RH
(8)
Bracket
T2: 18 (1.8, 13.0)
(4)
Front brake hose LH
(9)
Master cylinder
T3: 19 (1.9, 14.0)
(5)
Clamp
(10)
VDC control module & hydraulic
control unit (VDCCM&H/U)
T4: 33 (3.4, 24.3)
(6)
Gasket
T1
T2
T4
T2
T2
T2
T4
T1
T1
(8)
(2)
(3)
(5)
(6)
(4)
(7)
(6)
(5)
T1
T2
T4
T2
T2
T2
T4
T3
T1
(8)
(2)
(3)
(5)
(6)
(4)
(10)
(6)
(5)
(A)
(B)
T1
T1
T1
(1)
(9)
T3
T1
T1
(1)
(9)
T1
BR-00549
