5MT-71

MANUAL TRANSMISSION AND DIFFERENTIAL

Main Shaft Assembly for Dual-Range

E: INSPECTION

Disassembled parts should be washed with un-
leaded gasoline first and then inspected carefully.
1) Bearings
Replace the bearings in following cases:
• Bearings balls, outer races and inner races are
broken or rusty.
• Worn bearings
• Bearings fail to turn smoothly or emit noise in ro-
tation after gear oil lubrication.
• Bearings having other defects
2) Bushing (each gear)
Replace the bushing in following cases:
• When the sliding surface is damaged or abnor-
mally worn.
• When the inner wall is abnormally worn.
3) Gears
• Replace the gears with new ones if their tooth
surfaces are broken, damaged or excessively
worn.
• Correct or replace if the cone that contacts the
baulk ring is rough or damaged.
• Correct or replace if the inner surface or end face
is damaged.
4) Baulk ring
Replace the ring in following cases:
• When the inner surface and end face are dam-
aged.
• When the ring inner surface is abnormally or par-
tially worn down.
• When the contact surface of the synchronizer
ring insert is scored or abnormally worn down.
5) Shifting insert key
Replace the insert key if deformed, excessively
worn or defective in any way.
6) Oil seal
Replace the oil seal if the lip is deformed, hard-
ened, worn or defective in any way.
7) O-ring
Replace the O-ring if the sealing face is deformed,
hardened, damaged, worn or defective in any way.
8) Gearshift mechanism
Repair or replace the gearshift mechanism if ex-
cessively worn, bent or defective in any way.

F: ADJUSTMENT

Select a suitable main shaft rear plate. <Ref. to
5MT-65, ADJUSTMENT, Main Shaft Assembly for
Single-Range.>

5MT-72

MANUAL TRANSMISSION AND DIFFERENTIAL

Input Shaft Assembly

17.Input Shaft Assembly

A: REMOVAL

1) Remove the manual transmission assembly
from vehicle. <Ref. to 5MT-30, REMOVAL, Manual
Transmission Assembly.>
2) Remove the transfer case with extension case
assembly. <Ref. to 5MT-43, REMOVAL, Transfer
Case and Extension Case Assembly.>
3) Remove the transmission case. <Ref. to 5MT-
55, REMOVAL, Transmission Case.>
4) Remove the drive pinion shaft assembly. <Ref.
to 5MT-76, REMOVAL, Drive Pinion Shaft Assem-
bly.>
5) Remove the main shaft assembly and input shaft
assembly.

B: INSTALLATION

1) Install the needle bearing onto the front of trans-
mission main shaft assembly.
2) Connect the main shaft assembly and input shaft
assembly.
3) Install the transmission case knock pin into nee-
dle bearing outer race knock pin hole.
4) Install the drive pinion assembly. <Ref. to 5MT-
76, INSTALLATION, Drive Pinion Shaft Assem-
bly.>
5) Install the transmission case. <Ref. to 5MT-57,
INSTALLATION, Transmission Case.>
6) Install the transfer case with extension case as-
sembly. <Ref. to 5MT-43, INSTALLATION, Trans-
fer Case and Extension Case Assembly.>
7) Install the manual transmission assembly on the
vehicle. <Ref. to 5MT-32, INSTALLATION, Manual
Transmission Assembly.>

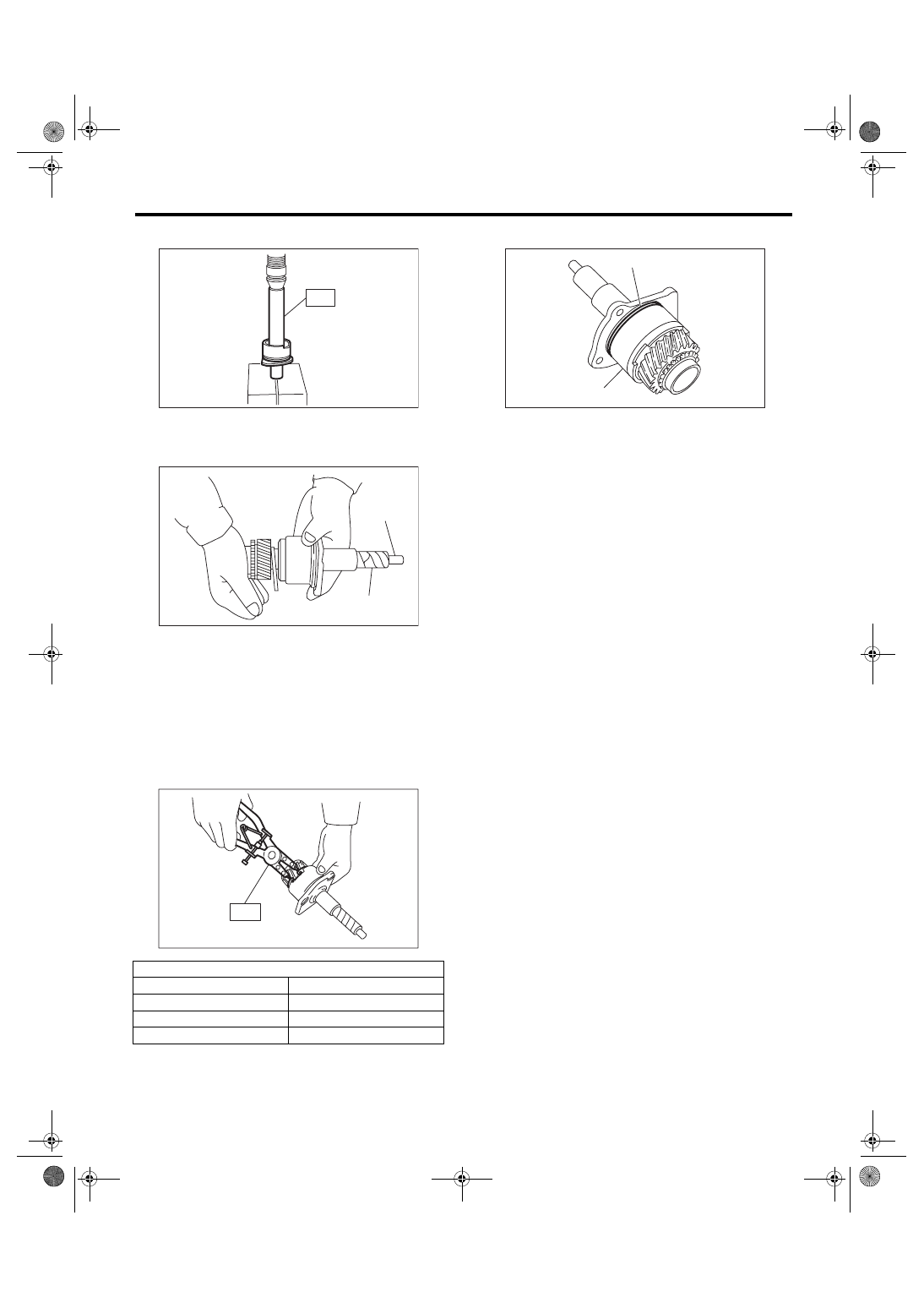

C: DISASSEMBLY

1) Remove the O-ring from input shaft holder. Also,
remove the input shaft holder shim.

NOTE:
• Use a new O-ring.
• Number of shims used varies from zero to two.

2) Put a vinyl tape around the input shaft splines to
protect oil seal from damage.
3) Remove the inner snap ring.
ST

398663600

PLIERS

4) Hold the input shaft holder stationary and re-
move the input shaft by tapping its end with a plas-
tic hammer.

(A) Input shaft holder

(B) O-ring

(C) Input shaft holder shim

(A) Input shaft holder

(B) Input shaft

MT-00226

( A )

( B )

( C )

MT-00227

S T

MT-00228

( A )

( B )

5MT-73

MANUAL TRANSMISSION AND DIFFERENTIAL

Input Shaft Assembly

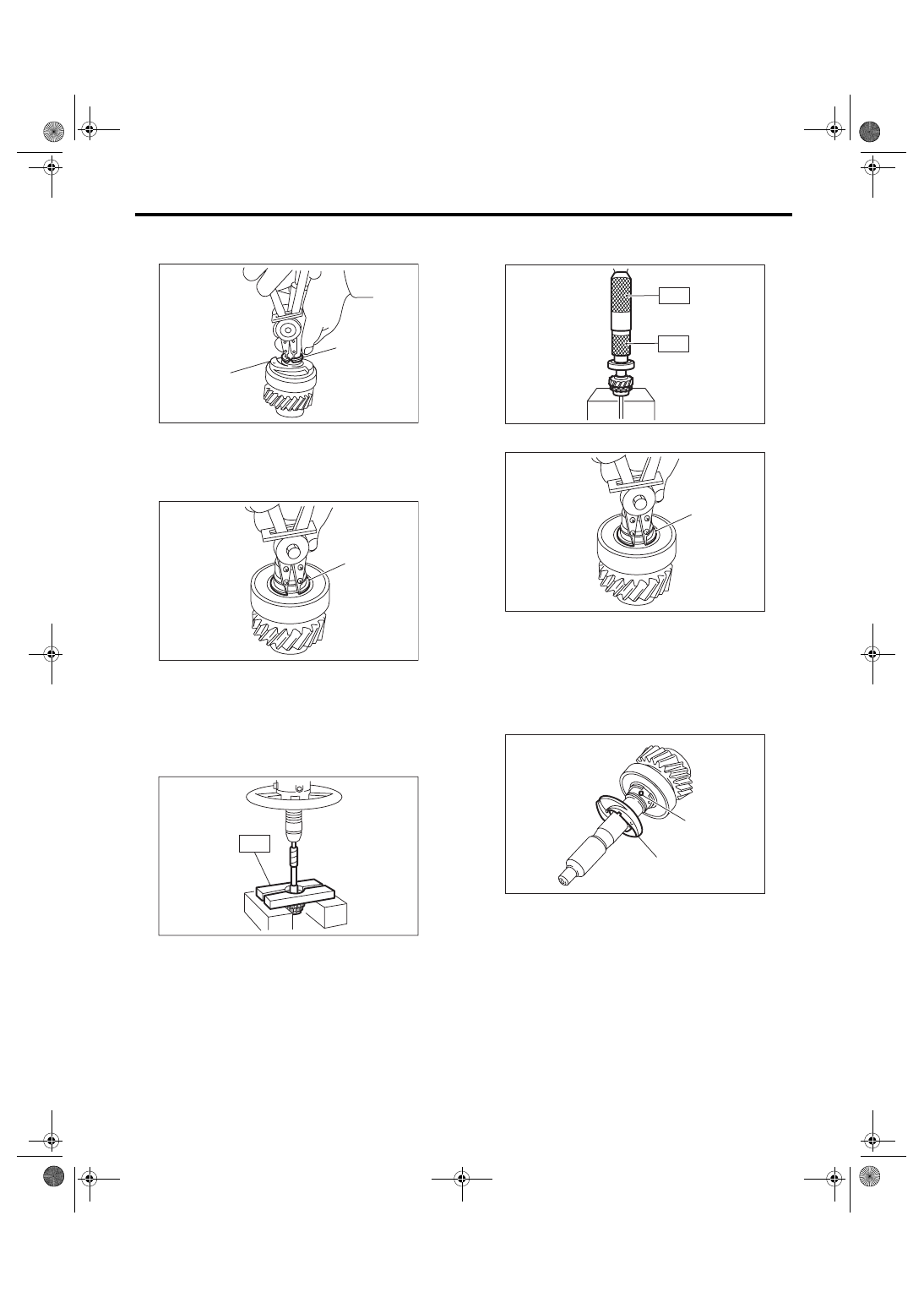

5) Remove the outer snap ring. Then remove the
oil squeeze plate and straight pin.

6) Remove the snap ring.

7) Using a press and ST, remove the ball bearing.

NOTE:
Remove the inner snap ring before pressing.
ST

498077000

REMOVER

8) Remove the oil seal from input shaft holder.

D: ASSEMBLY

1) Install the ball bearing onto input shaft.

NOTE:
Place the snap ring between input shaft gear and
ball bearing beforehand. Use the table at 8) as a
guide in selecting a suitable snap ring.

ST1

899580100

INSTALLER

ST2

399513600

INSTALLER

2) Install the snap ring on input shaft.

3) Inspect the clearance between ball bearing and
snap ring. <Ref. to 5MT-74, INSPECTION, Input
Shaft Assembly.>
4) Install the straight pin and oil squeeze plate to in-
put shaft.

5) Install the snap ring.
6) Install the oil seal into input shaft holder.

NOTE:
Apply a coat of grease to sealing lips before install-
ing oil seal.

(A) Snap ring

(B) Oil squeeze plate

(A) Snap ring

MT-00229

( A )

( B )

MT-00230

( A )

MT-00231

S T

(A) Snap ring

(A) Straight pin

(B) Oil squeeze plate

MT-00232

ST1

ST2

MT-00230

( A )

MT-00234

(A)

(B)

5MT-74

MANUAL TRANSMISSION AND DIFFERENTIAL

Input Shaft Assembly

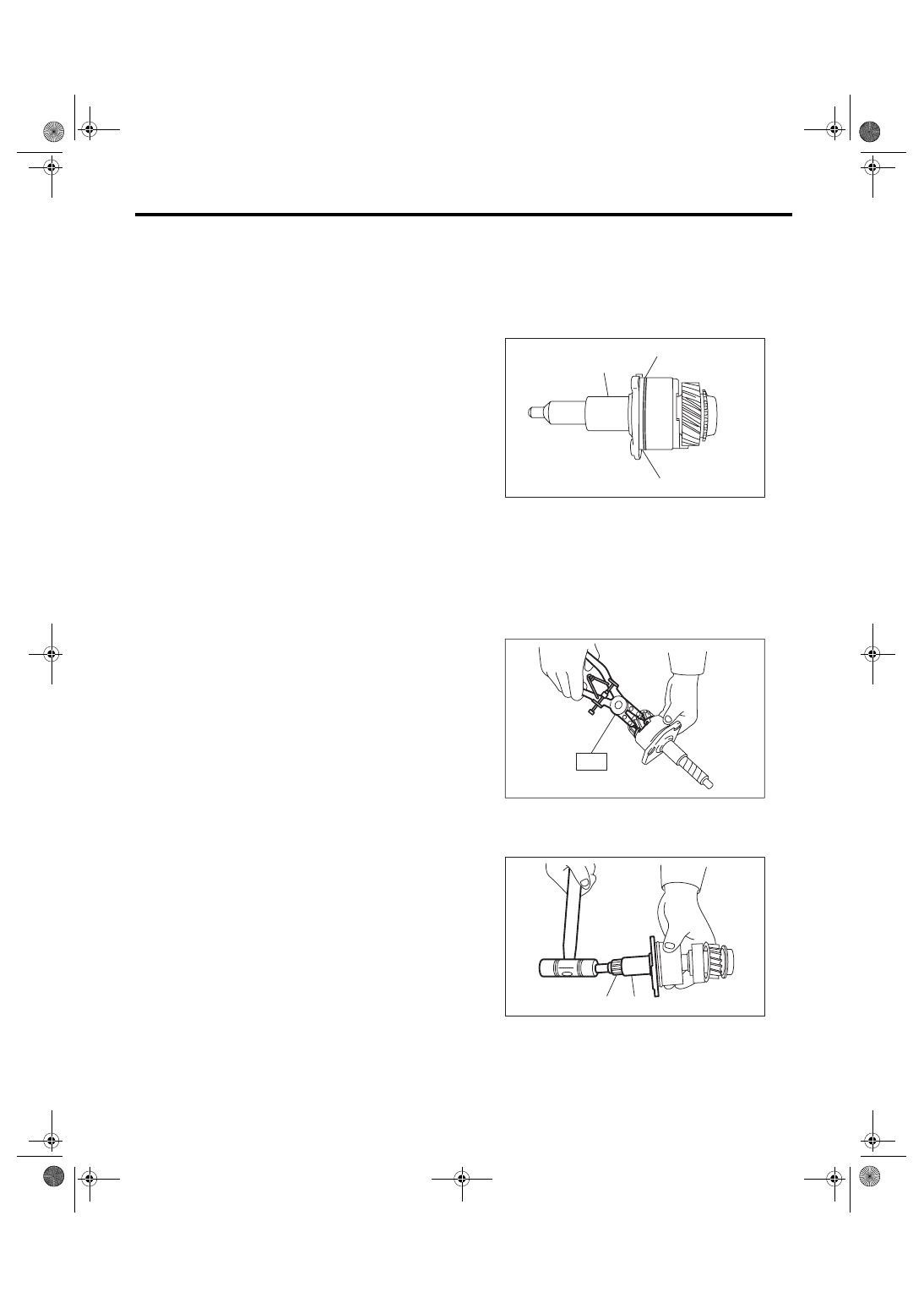

ST

398507703

DUMMY COLLAR

7) Wind a vinyl tape around the shaft splines and
insert the input shaft into holder by lightly tapping it
by hand.

8) Install the snap ring to input shaft holder.

NOTE:
Select a suitable snap ring so that clearance be-
tween snap ring and bearing is held within 0 to 0.12
mm (0 to 0.0047 in).
ST

398663600

PLIERS

9) Install the O-ring to input shaft holder.

E: INSPECTION

Disassembled parts should be washed clean first
with unleaded gasoline and then inspected careful-
ly.
1) Bearings
Replace the bearings in following cases:
• Bearing balls, outer races and inner races are
broken or rusty.
• Worn bearings
• Bearings fail to turn smoothly or emit noise in ro-
tation after gear oil lubrication.
• Bearings having other defects
2) Bushing (each gear)
Replace the bushing in following cases:
• When the sliding surface is damaged or abnor-
mally worn.
• When the inner wall is abnormally worn.
3) Gears
• Replace the gears with new ones if their tooth
surfaces are broken, damaged or excessively
worn.
• Correct or replace if the cone that contacts the
baulk ring is rough or damaged.
• Correct or replace if the inner surface or end face
is damaged.
4) Baulk ring
Replace the ring in following cases:
• When the inner surface and end face are dam-
aged.
• When the ring inner surface is abnormally or par-
tially worn down.
• When the contact surface of the synchronizer
ring insert is scored or abnormally worn down.
5) Shifting insert key
Replace the insert key if deformed, excessively
worn or defective in any way.
6) Oil seal
Replace the oil seal if the lip is deformed, hard-
ened, worn or defective in any way.

(A) Vinyl tape

(B) Input shaft

Snap ring

Part No.

Thickness mm (in)

805168020

1.84 (0.0724)

805168030

1.92 (0.0756)

805168040

2.00 (0.0787)

MT-00235

ST

MT-00236

(A)

(B)

MT-00227

S T

(A) O-ring

(B) Input shaft holder

MT-00238

(A)

(B)
