5AT(diag)-7

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

Electrical Component Location

4. Electrical Component Location

A: LOCATION

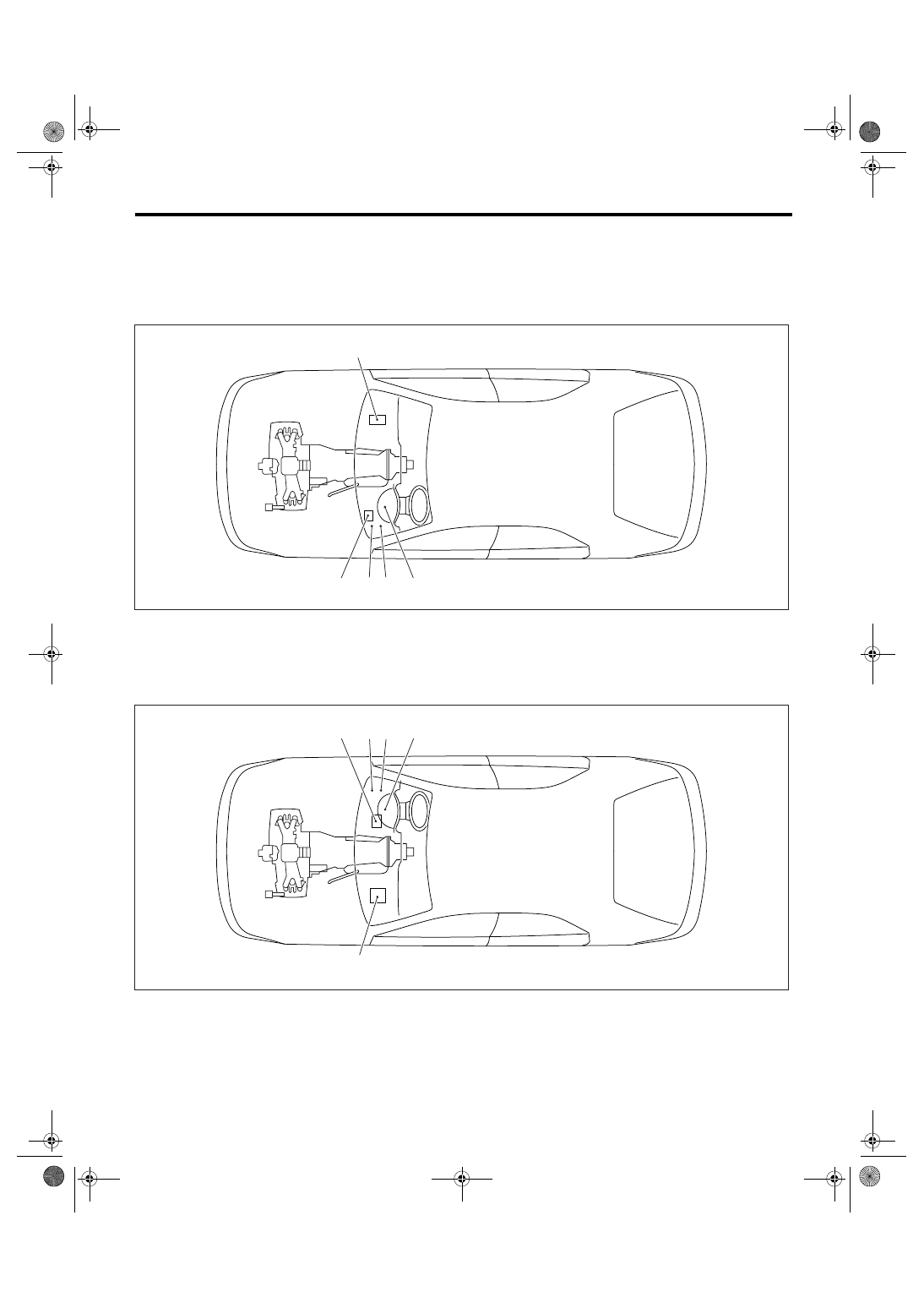

1. CONTROL MODULE

• LHD model

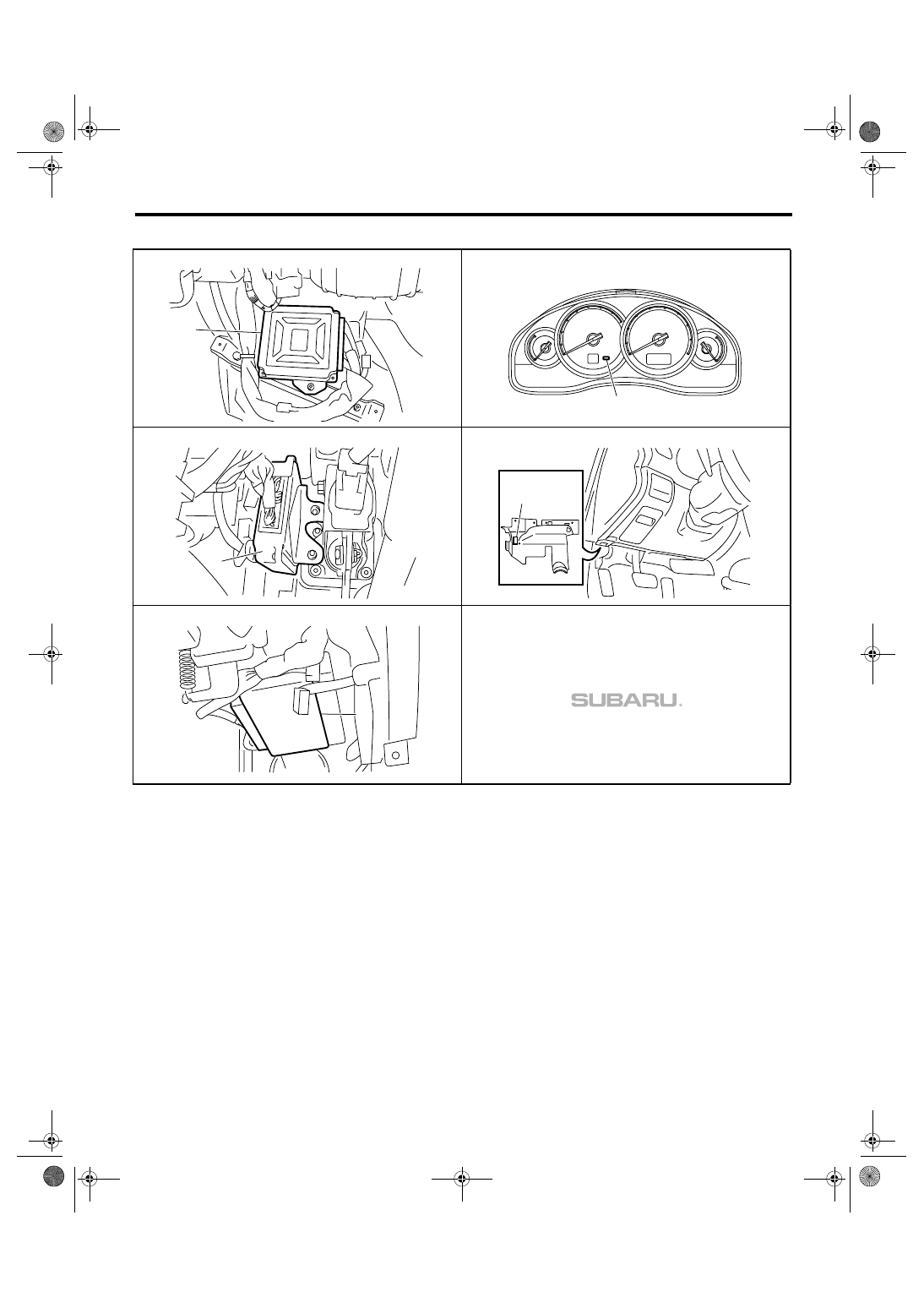

• RHD model

(1)

Engine control module (ECM)

(3)

Transmission control module
(TCM)

(4)

Data link connector

(2)

SPORT indicator light (AT warning
light)

(5)

Body integrated module

(1)

Engine control module (ECM)

(3)

Transmission control module
(TCM)

(4)

Data link connector

(2)

SPORT indicator light (AT warning
light)

(5)

Body integrated module

AT-02049

(1)

(3)

(4) (2)

(5)

(2)

(3)

(5)

(1)

AT-01467

(4)

5AT(diag)-8

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

Electrical Component Location

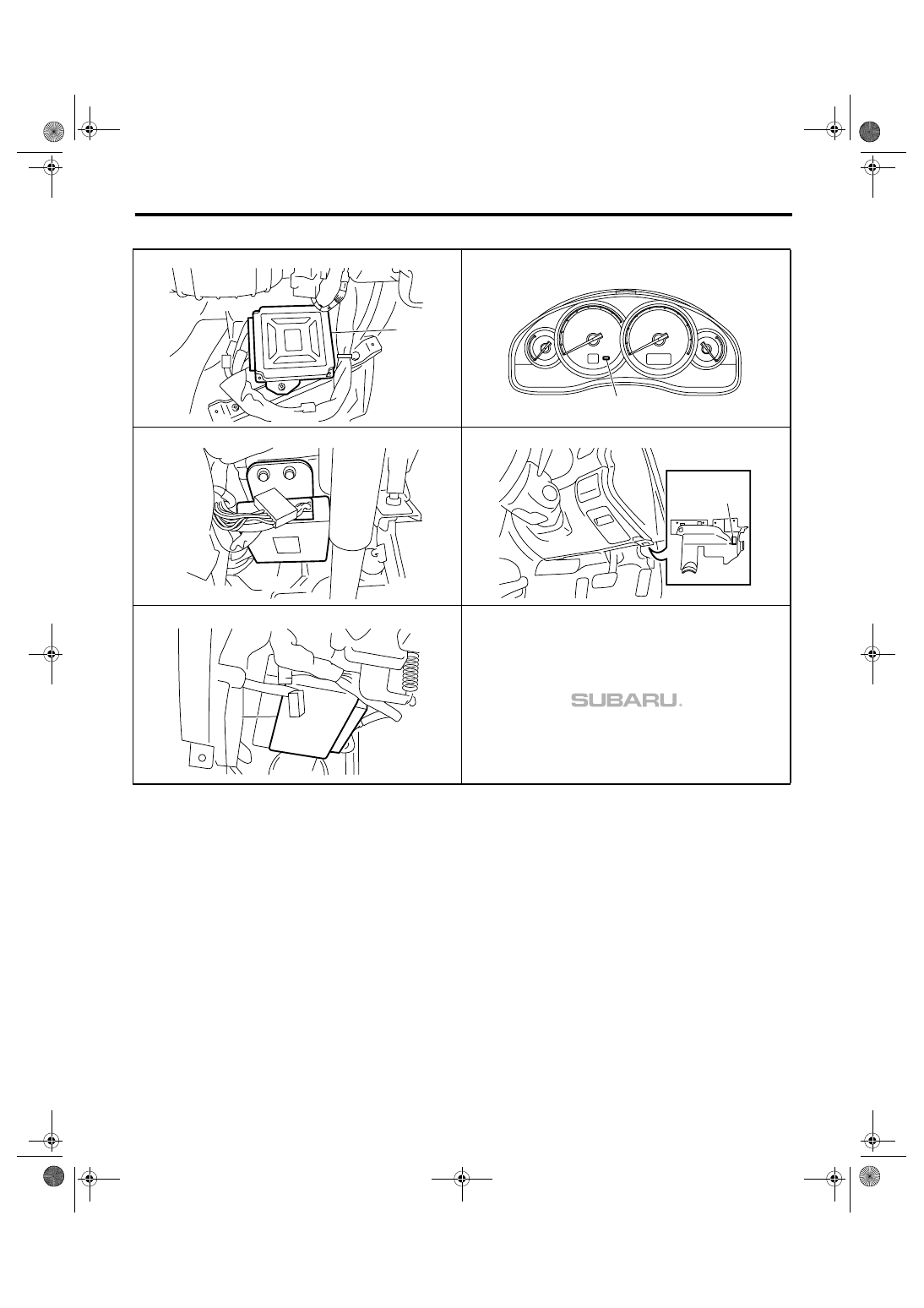

• LHD model

(1)

AT-02051

AT-01470

(2)

AT-02053

(3)

(4)

AT-02052

(5)

AT-02054

5AT(diag)-9

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

Electrical Component Location

• RHD model

(1)

AT-01468

AT-01470

(2)

AT-01469

(3)

AT-01471

(4)

(5)

AT-01472

5AT(diag)-10

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

Electrical Component Location

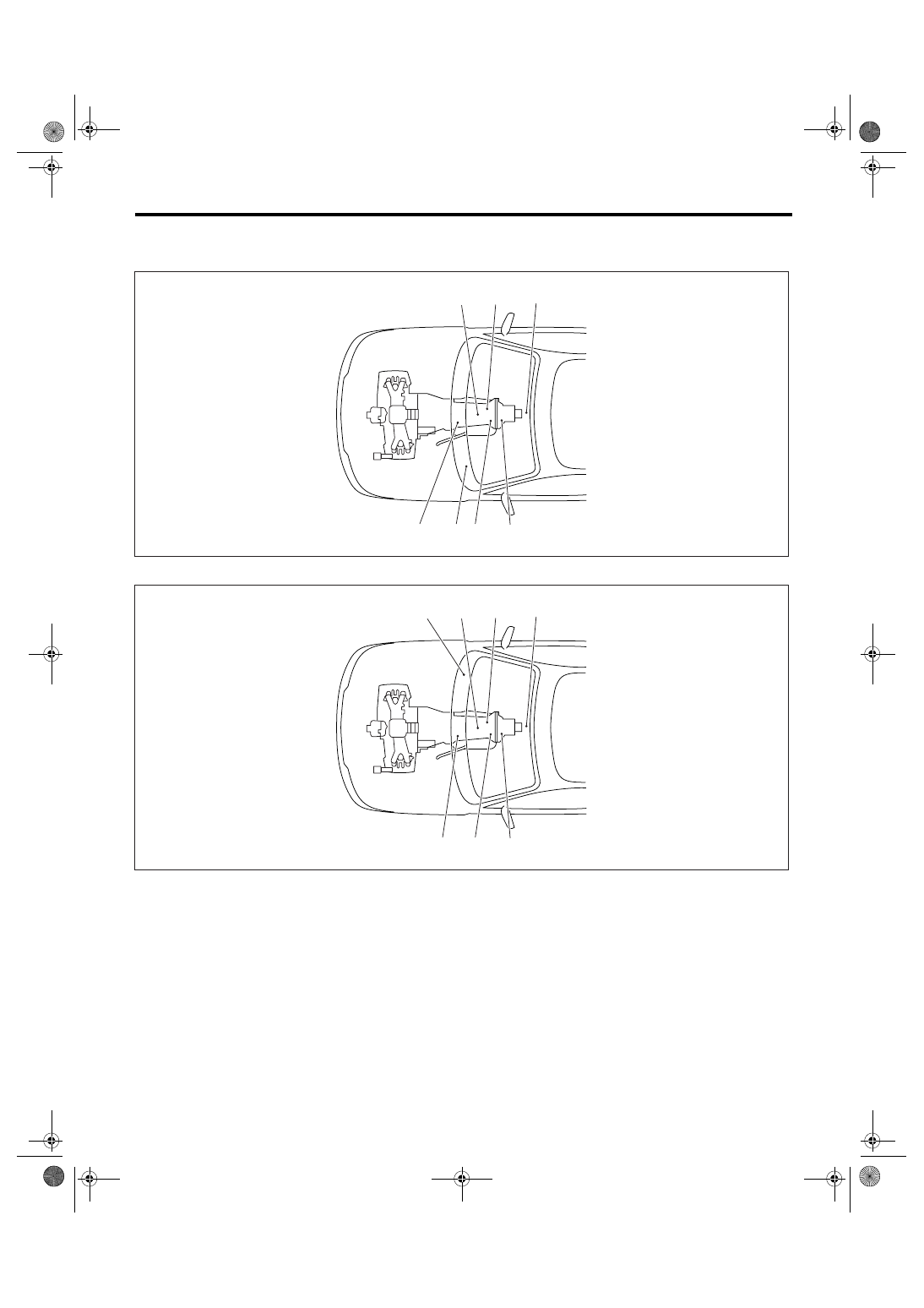

2. SENSOR

• LHD model

• RHD model

(1)

Accelerator pedal position sensor

(4)

Rear vehicle speed sensor

(7)

Lateral G sensor

(2)

Front vehicle speed sensor

(5)

Turbine speed sensor 1

(8)

Turbine speed sensor 2

(3)

Inhibitor switch

(6)

ATF temperature sensor 1

(9)

ATF temperature sensor 2

(3)

(6),(9)

(5),(8)

(2)

(4)

AT-02050

(7)

(1)

(3)

(6),(9)

(5),(8)

(2)

(4)

AT-01443

(7)

(1)
