5AT-67
AUTOMATIC TRANSMISSION
ATF Cooler Pipe and Hose

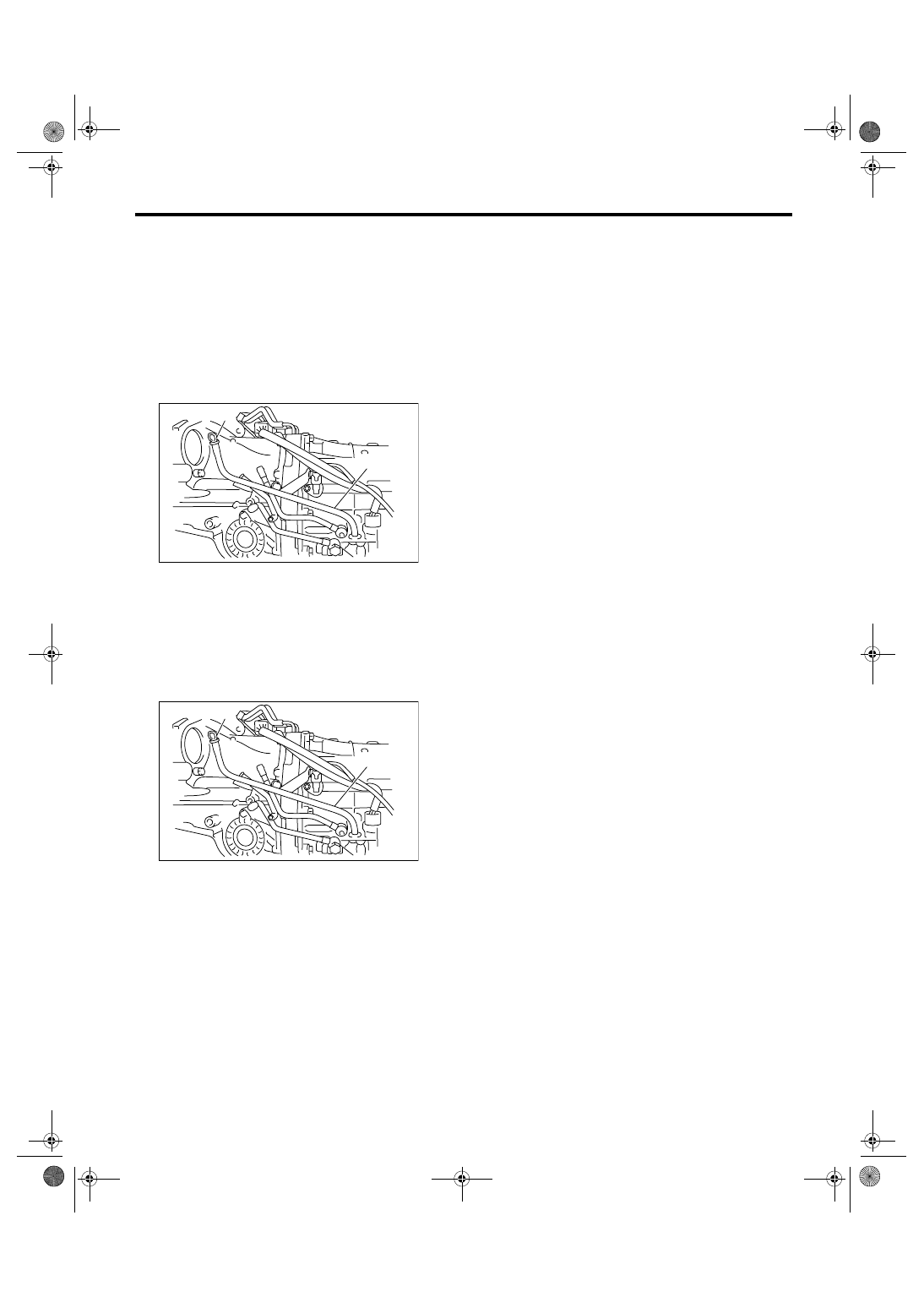

10) Install the pipe securing bolts on the side of
transmission.
Tightening torque:
25 N
⋅
m (2.5 kgf-m, 18.4 ft-lb)

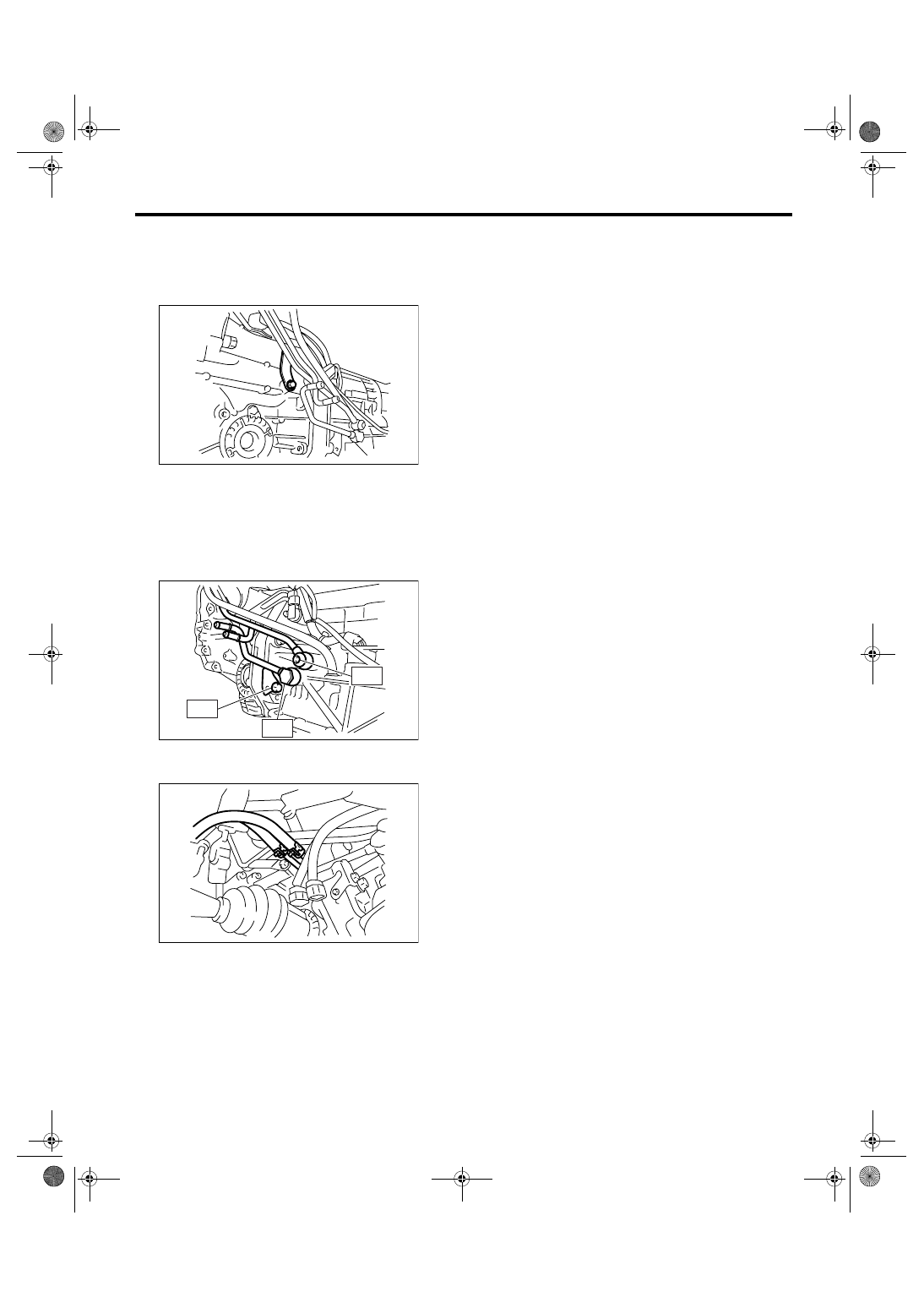

11) Install the union screw of oil cooler inlet and
outlet pipes.
Tightening torque:
T1: 25 N
⋅
m (2.5 kgf-m, 18.4 ft-lb)
T2: 41 N
⋅
m (4.2 kgf-m, 30.2 ft-lb)
T3: 45 N
⋅
m (4.6 kgf-m, 33.2 ft-lb)
12) Install the inlet and outlet pipes of ATF oil cool-
er hose to oil cooler pipe.
13) Install the front exhaust pipe.
<Ref. to EX(H6DO)-5, INSTALLATION, Front Ex-
haust Pipe.>
C: INSPECTION
Repair or replace any defective hoses, pipes,
clamps, and washers found during the inspection
below.
1) Check for ATF leaks in connections of the trans-
mission, radiator, pipes and hoses.
2) Check for deformed clamps.
3) Lightly bend the hose and check for cracks in the
surface or other damages.
4) Pinch the hose with your fingers and check for
poor elasticity. Also check for poor elasticity in the
parts where the clamp was installed by pressing
with your fingernail.
5) Check for peeling, cracks, and deformation at
the tip of the hose.
6) Check the ATF cooler for cracks or deformation.
(ATF cooler model with warmer function)
AT-02028
AT-03134
T2
T1
T3
AT-02027
