EN(H6DO)(diag)-249

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

CY:DTC P2122 THROTTLE/PEDAL POSITION SENSOR/SWITCH “D” CIRCUIT

LOW INPUT

DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
• Erroneous idling
• Poor driving performance

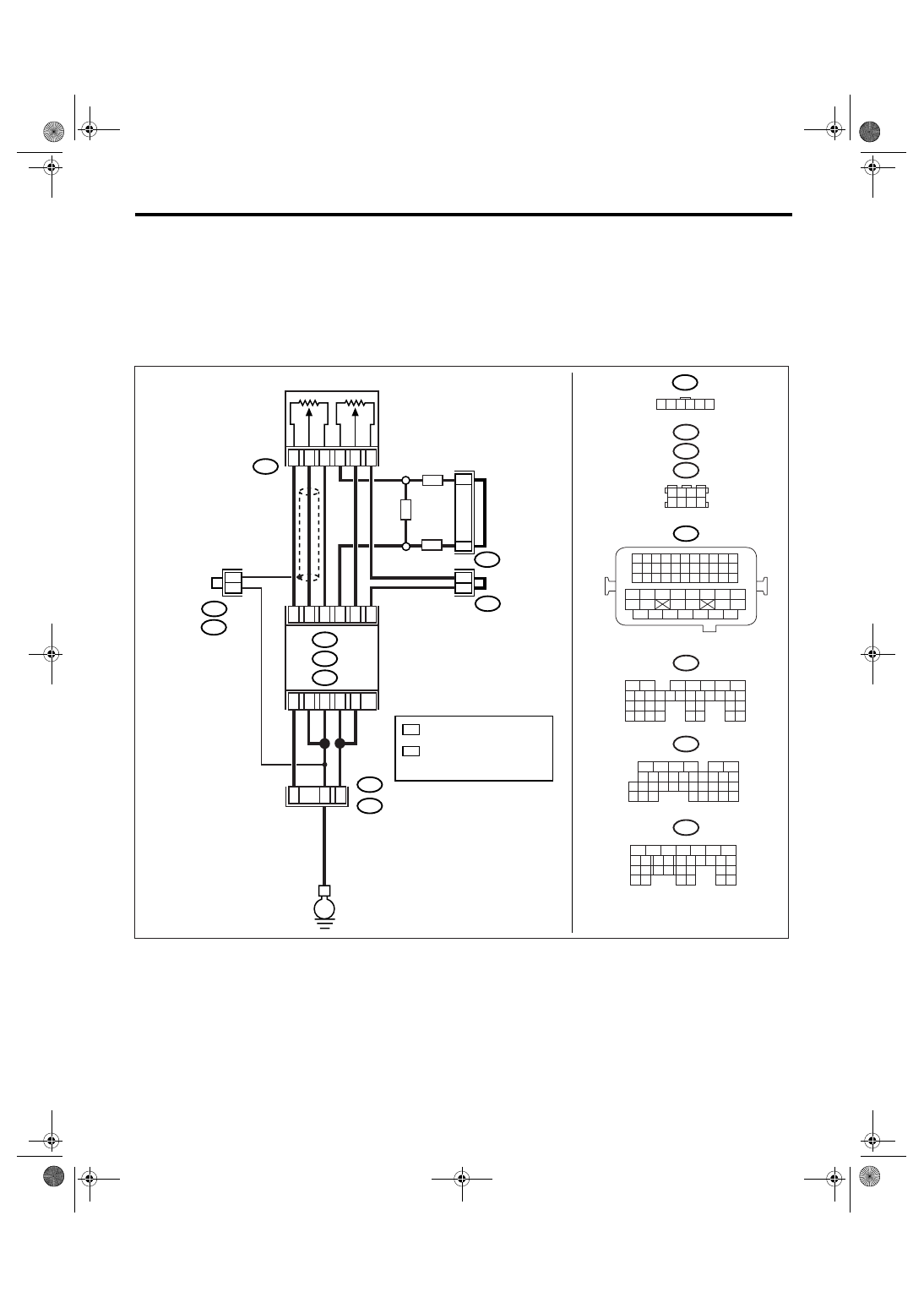

WIRING DIAGRAM:

EN-03506

B315

E

C:

ECM

B136

B137

D:

B83

B315

ACCELERATOR

PEDAL POSITION

SENSOR

*

*

3

5

4

1

2

6

C15

C17

C34

C16

C28

C35

D1

D2

B21

E2

B1

B138

1 2 3 4
5 6 7 8

MAIN

SUB

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

B137

5

6

7

8

2

1

9

4

3

10

22 23

11 12 13 14 15

24 25

26

16 17

18 19 20 21

27

28 29

30 31

B136

5

6

7 8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16

17 18 19 20 21

33 34

29

32

30

31

35

B135

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17 18 19

20 21

29 30 31

32 33

34 35

B:

C:

D:

B122

B83

B122

D3

B: B135

B4

37

36

35

1 2 3 4 5 6

*

*

1
1

1

*

2

*

2

1

 : TERMINAL No.
   RANDOM ARRANGEMENT

*

1

LHD

RHD

RHD

*

: TERMINAL No.
  RANDOM ARRANGEMENT
  AMONG 3,4,7, AND 8

2

B122

B138

: LHD

: RHD

EN(H6DO)(diag)-250

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK ACCELERATOR PEDAL POSITION
SENSOR OUTPUT.
1) Turn the ignition switch to ON.
2) Read the data of main accelerator pedal
position sensor signal using Subaru Select
Monitor.

NOTE:

For detailed operation procedure, refer to
“READ CURRENT DATA FOR ENGINE”. <Ref.
to EN(H6DO)(diag)-26, Subaru Select Moni-
tor.>

Is the voltage more than 0.4 V? Go to step 2.

Go to step 3.

2

CHECK POOR CONTACT.
Check poor contact in connector between
ECM and accelerator pedal position sensor.

Is there poor contact?

Repair the poor
contact.

Temporary poor
contact occurred,
but it is normal at
present.

3

CHECK HARNESS BETWEEN ECM AND AC-
CELERATOR PEDAL POSITION SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Disconnect the connectors from accelerator
pedal position sensor.
4) Measure the resistance between ECM con-
nector and accelerator pedal position sensor
connector.

Connector & terminal

(B136) No. 17 — (B315) No. 5:
(B136) No. 15 — (B315) No. 3:

Is the resistance less than 1
Ω?

Go to step 4.

Repair the open
circuit of harness
connector.

4

CHECK HARNESS BETWEEN ECM AND AC-
CELERATOR PEDAL POSITION SENSOR.
Measure the resistance between ECM connec-
tor and chassis ground.

Connector & terminal

(B136) No. 17 — Chassis ground:
(B136) No. 15 — Chassis ground:

Is the resistance more than 1
M

Ω?

Go to step 5.

Repair the chas-
sis short circuit of
harness.

5

CHECK POWER SUPPLY OF ACCELERA-
TOR PEDAL POSITION SENSOR.
1) Connect the ECM connector.
2) Turn the ignition switch to ON.
3) Measure the voltage between accelerator
pedal position sensor connector and engine
ground.

Connector & terminal

(B315) No. 3 (+) — Engine ground (

−

):

Is the voltage 4.5 — 5.5 V?

Go to step 6.

Repair the poor
contact in ECM
connector.
Replace the ECM
if defective. <Ref.
to FU(H6DO)-34,
Engine Control
Module (ECM).>

6

CHECK ACCELERATOR PEDAL POSITION
SENSOR.
Measure the resistance of accelerator pedal
position sensor.

Terminal

No. 3 — No. 4:

Is the resistance 1.2 — 4.8
k

Ω?

Go to step 7.

Replace the accel-
erator pedal posi-
tion sensor.

7

CHECK ACCELERATOR PEDAL POSITION
SENSOR.
Measure the resistance of accelerator pedal
position sensor.

Terminal

No. 5 — No. 4:

Check the measured value is within the specifi-
cation without depressing the accelerator
pedal.

Is the resistance 0.2 — 1.0
k

Ω?

Go to step 8.

Replace the accel-
erator pedal posi-
tion sensor.

EN(H6DO)(diag)-251

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

8

CHECK ACCELERATOR PEDAL POSITION
SENSOR.
Measure the resistance of accelerator pedal
position sensor.

Terminal

No. 5 — No. 4:

Check the measured value is within the specifi-
cation with the accelerator pedal depressed.

Is the resistance 0.5 — 2.5
k

Ω?

Repair the poor
contact in ECM
connector.
Replace the ECM
if defective. <Ref.
to FU(H6DO)-34,
Engine Control
Module (ECM).>

Replace the accel-
erator pedal posi-
tion sensor.

Step

Check

Yes

No

EN(H6DO)(diag)-252

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

CZ:DTC P2123 THROTTLE/PEDAL POSITION SENSOR/SWITCH “D” CIRCUIT

HIGH INPUT

DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
• Erroneous idling
• Poor driving performance
WIRING DIAGRAM:

EN-03506

B315

E

C:

ECM

B136

B137

D:

B83

B315

ACCELERATOR

PEDAL POSITION

SENSOR

*

*

3

5

4

1

2

6

C15

C17

C34

C16

C28

C35

D1

D2

B21

E2

B1

B138

1 2 3 4
5 6 7 8

MAIN

SUB

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

B137

5

6

7

8

2

1

9

4

3

10

22 23

11 12 13 14 15

24 25

26

16 17

18 19 20 21

27

28 29

30 31

B136

5

6

7 8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16

17 18 19 20 21

33 34

29

32

30

31

35

B135

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17 18 19

20 21

29 30 31

32 33

34 35

B:

C:

D:

B122

B83

B122

D3

B: B135

B4

37

36

35

1 2 3 4 5 6

*

*

1
1

1

*

2

*

2

1

 : TERMINAL No.
   RANDOM ARRANGEMENT

*

1

LHD

RHD

RHD

*

: TERMINAL No.
  RANDOM ARRANGEMENT
  AMONG 3,4,7, AND 8

2

B122

B138

: LHD

: RHD
