EN(H6DO)(diag)-141

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK HARNESS BETWEEN ECM AND
FRONT OXYGEN (A/F) SENSOR CONNEC-
TOR.
1) Turn the ignition switch to ON.
2) Disconnect the connector from front oxygen
(A/F) sensor.
3) Measure the voltage of harness between
ECM connector and chassis ground.

Connector & terminal

(B134) No. 26 (+) — Chassis ground (

−

):

(B134) No. 33 (+) — Chassis ground (

−

):

Is the voltage more than 8 V?

Replace the front
oxygen (A/F) sen-
sor. <Ref. to
FU(H6DO)-30,
Front Oxygen (A/
F) Sensor.>

Repair the battery
short circuit of har-
ness between
ECM and front
oxygen (A/F) sen-
sor connector.

EN(H6DO)(diag)-142

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

AG:DTC P0133 O2 SENSOR CIRCUIT SLOW RESPONSE (BANK 1 SENSOR 1)

DTC DETECTING CONDITION:
Detects when malfunction occurs in 2 continuous driving cycles.

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H6DO)(diag)-41,
OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H6DO)(diag)-34, PROCEDURE,
Inspection Mode.>.

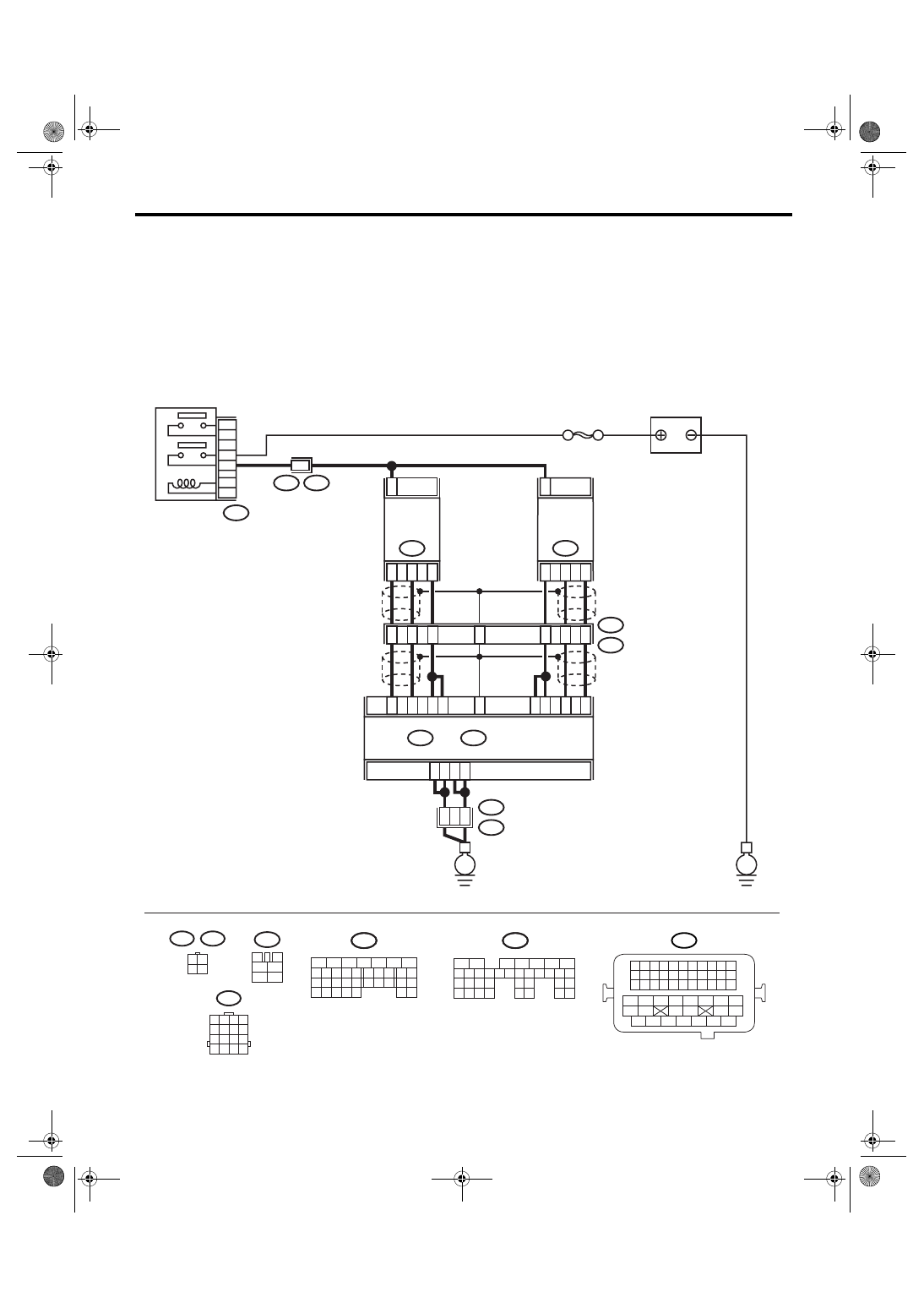

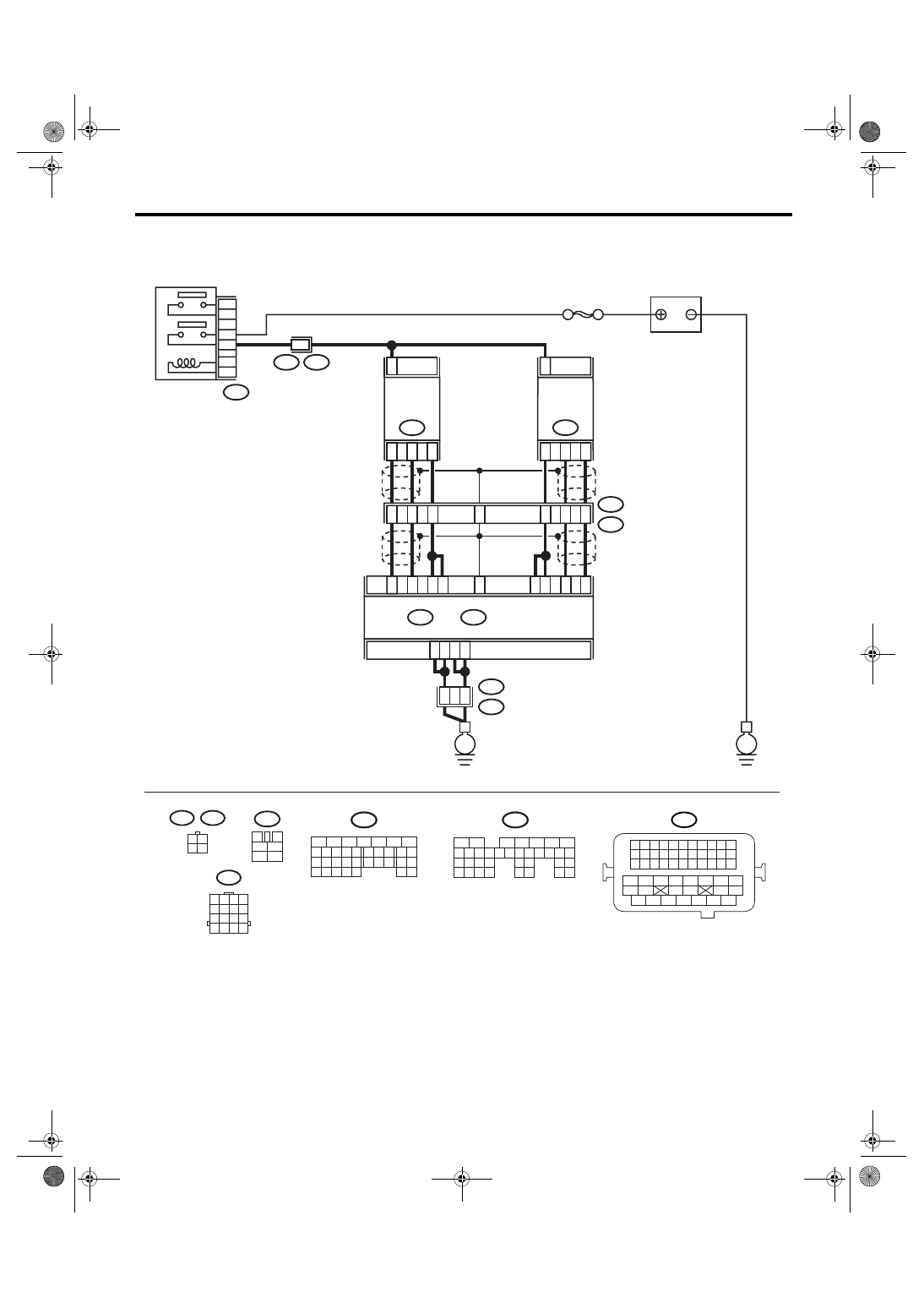

WIRING DIAGRAM:

BATTERY

SBF-5

B47

MAIN RELAY

A4

A5

A6

A7

2

52

54

B21

E2

ECM

A34

A27

B7

A1

A2

A3

A26

A33

4

1

3

FRONT

OXYGEN

(A/F)

SENSOR LH

E24

2

B135

B:

B134

A:

4

3

1

FRONT

OXYGEN

(A/F)

SENSOR RH

E47

E3

B22

8

5

6

E3

B22

2

1

3

4

B47

3

4

5

6

1

2

A25

B22

1 2 3 4
5 6 7 8
9 10 11 12

13 14 15 16

3 4

1 2

E47

E24

B135

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17 18 19

20 21

29 30 31

32 33

34 35

B:

B134

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

A:

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

E

E

EN-03494

B135

B:

B134

A:

7

5
3

EN(H6DO)(diag)-143

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

AH:DTC P0134 O2 SENSOR CIRCUIT NO ACTIVITY DETECTED (BANK 1 SEN-

SOR 1)

DTC DETECTING CONDITION:
Immediately at fault recognition

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H6DO)(diag)-41,
OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H6DO)(diag)-34, PROCEDURE,
Inspection Mode.>.

Step

Check

Yes

No

1

CHECK ANY OTHER DTC ON DISPLAY.

Is any other DTC displayed?

Check DTC using
the List of Diag-
nostic Trouble
Code (DTC).
<Ref. to
EN(H6DO)(diag)-
66, List of Diag-
nostic Trouble
Code (DTC).>

NOTE:
In this case, it is
not necessary to
inspect DTC
P0133.

Go to step 2.

2

CHECK EXHAUST SYSTEM.

NOTE:

Check the following items.
• Loose installation of front portion of exhaust
pipe onto cylinder heads
• Loose connection between front exhaust
pipe and front catalytic converter
• Damage of exhaust pipe resulting in a hole

Is there any fault in exhaust
system?

Repair the exhaust
system.

Replace the front
oxygen (A/F) sen-
sor. <Ref. to
FU(H6DO)-30,
Front Oxygen (A/
F) Sensor.>

EN(H6DO)(diag)-144

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

WIRING DIAGRAM:

BATTERY

SBF-5

B47

MAIN RELAY

A4

A5

A6

A7

2

52

54

B21

E2

ECM

A34

A27

B7

A1

A2

A3

A26

A33

4

1

3

FRONT

OXYGEN

(A/F)

SENSOR LH

E24

2

B135

B:

B134

A:

4

3

1

FRONT

OXYGEN

(A/F)

SENSOR RH

E47

E3

B22

8

5

6

E3

B22

2

1

3

4

B47

3

4

5

6

1

2

A25

B22

1 2 3 4
5 6 7 8
9 10 11 12

13 14 15 16

3 4

1 2

E47

E24

B135

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17 18 19

20 21

29 30 31

32 33

34 35

B:

B134

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

A:

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

E

E

EN-03494

B135

B:

B134

A:

7

5
3
