EN(H6DO)(diag)-105

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK HARNESS BETWEEN ECM AND OIL
SWITCHING SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
switching solenoid valve.
3) Measure the resistance between oil switch-
ing solenoid valve and engine ground.

Connector & terminal

(E69) No. 1 — Engine ground:
(E69) No. 2 — Engine ground:

Is the resistance more than 1
M

Ω?

Go to step 2.

Repair the short
circuit between
ECM and oil
switching solenoid
valve connector.

2

CHECK OIL SWITCHING SOLENOID VALVE.
1) Remove the oil switching solenoid valve
connector.
2) Measure the resistance between oil switch-
ing solenoid valve terminals.

Terminal

No. 1 — No. 2:

Is the resistance 6 — 12

Ω

Repair the poor
contact in ECM
and oil switching
solenoid valve.

Replace the oil
switching solenoid
valve. <Ref. to
ME(H6DO)-80, Oil
Switching Sole-
noid Valve.>

EN(H6DO)(diag)-106

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Q: DTC P0082 INTAKE VALVE CONTROL SOLENOID CIRCUIT LOW (BANK 2)

DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
Erroneous idling

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H6DO)(diag)-41,
OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H6DO)(diag)-34, PROCEDURE,
Inspection Mode.>.

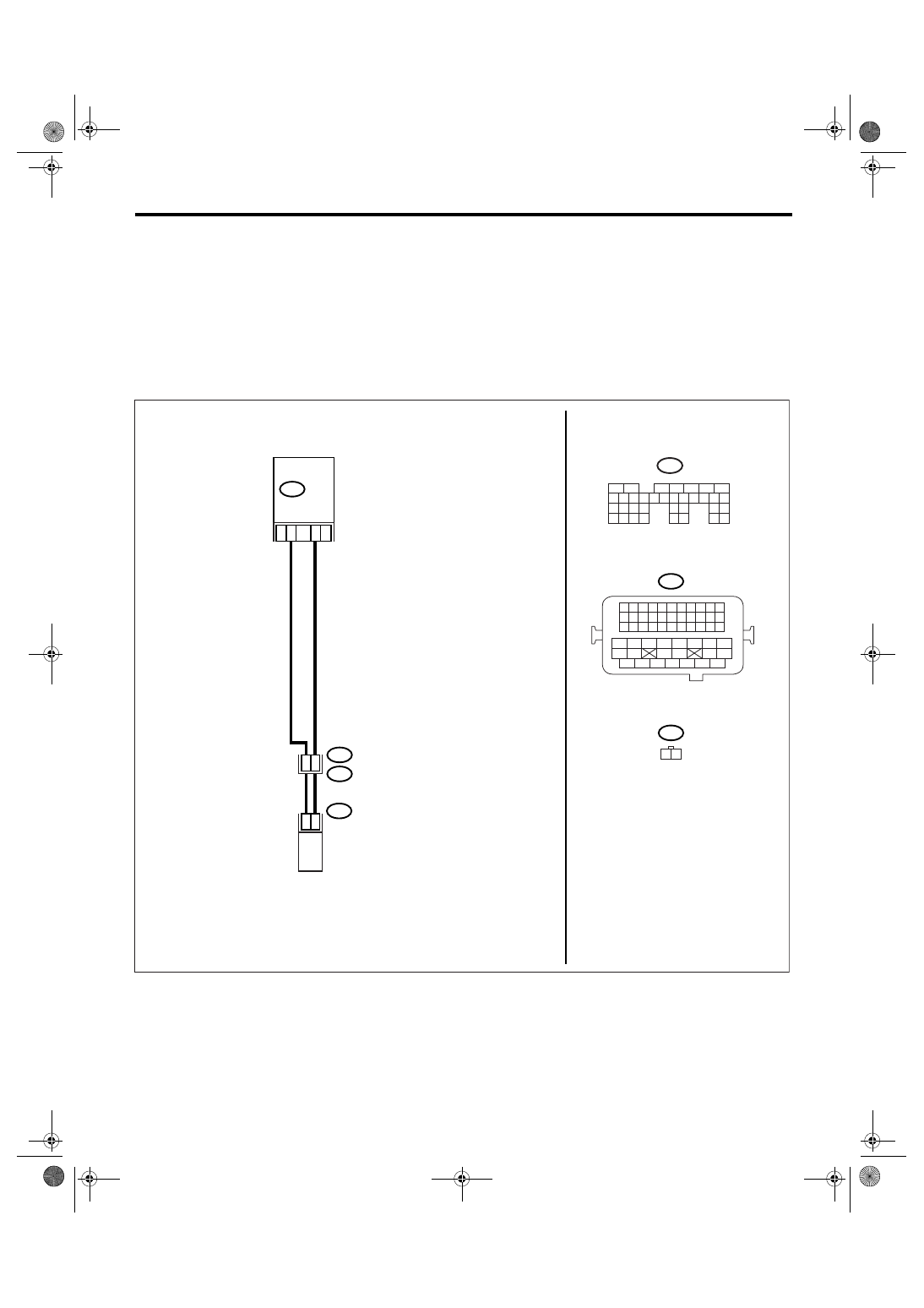

WIRING DIAGRAM:

EN-02498

B21

E2

B135

E70

24

2

1

30

29

E70

B21

1 2

25

ECM

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

OIL SWITCHING

SOLENOID VALVE LH

B135

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17 18 19

20 21

29 30 31

32 33

34 35

EN(H6DO)(diag)-107

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK HARNESS BETWEEN ECM AND OIL
SWITCHING SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
switching solenoid valve.
3) Measure the resistance between ECM and
oil switching solenoid valve.

Connector & terminal

(B135) No. 25 — (E70) No. 1:
(B135) No. 24 — (E70) No. 2:

Is the resistance less than 1
Ω?

Go to step 2.

Repair the open
circuit of harness
between ECM and
oil switching sole-
noid valve connec-
tor.

NOTE:
In this case, repair
the following:
• Open circuit of
harness between
ECM and oil
switching solenoid
valve connector
• Poor contact in
coupling connector

2

CHECK OIL SWITCHING SOLENOID VALVE.
1) Remove the oil switching solenoid valve
connector.
2) Measure the resistance between oil switch-
ing solenoid valve terminals.

Terminal

No. 1 — No. 2:

Is the resistance 6 — 12

Ω

Repair the poor
contact in ECM
and oil switching
solenoid valve.

Replace the oil
switching solenoid
valve. <Ref. to
ME(H6DO)-80, Oil
Switching Sole-
noid Valve.>

EN(H6DO)(diag)-108

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

R: DTC P0083 INTAKE VALVE CONTROL SOLENOID CIRCUIT HIGH (BANK 2)

DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
Erroneous idling

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H6DO)(diag)-41,
OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H6DO)(diag)-34, PROCEDURE,
Inspection Mode.>.
WIRING DIAGRAM:

EN-02498

B21

E2

B135

E70

24

2

1

30

29

E70

B21

1 2

25

ECM

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

OIL SWITCHING

SOLENOID VALVE LH

B135

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17 18 19

20 21

29 30 31

32 33

34 35
