EN(H6DO)(diag)-25

ENGINE (DIAGNOSTICS)

General Scan Tool

3. MODE $02 (POWERTRAIN FREEZE FRAME DATA)

Refer to data denoting the operating condition when trouble is detected by on-board diagnosis system.
A list of the support data and PID (Parameter Identification) codes are shown in the following table.

NOTE:
Refer to general scan tool manufacturer’s operation manual to access freeze frame data (MODE $02).

4. MODE $03 (EMISSION-RELATED POWERTRAIN DIAGNOSTIC TROUBLE CODE (DTC))

Refer to “Read Diagnostic Trouble Code” for information about data denoting emission-related powertrain
DTC. <Ref. to EN(H6DO)(diag)-33, Read Diagnostic Trouble Code (DTC).>

5. MODE $04 (CLEAR/RESET EMISSION-RELATED DIAGNOSTIC INFORMATION)

Refer to the mode used to clear or reset emission-related diagnostic information.

NOTE:
Refer to general scan tool manufacturer’s operation manual to clear or reset emission-related diagnostic in-
formation (MODE $04).

PID

Data

Unit of measure

DTC of freeze frame data

—

Fuel system control status

—

Calculated engine load value

Engine coolant temperature

°C or °F

Short term fuel trim (bank 1)

Long term fuel trim (bank 1)

Short term fuel trim (bank 2)

Long term fuel trim (bank 2)

Intake manifold absolute pressure

mmHg, kPa, inHg or

psig

Engine revolution

rpm

Vehicle speed

km/h or MPH

Ignition timing advance

Intake air temperature

°C or °F

Air flow rate from manifold absolute pressure sensor

g/s or lb/m

Throttle valve opening angle

EN(H6DO)(diag)-26

ENGINE (DIAGNOSTICS)

Subaru Select Monitor

9. Subaru Select Monitor

A: OPERATION

1. HOW TO USE SUBARU SELECT MONI-
TOR

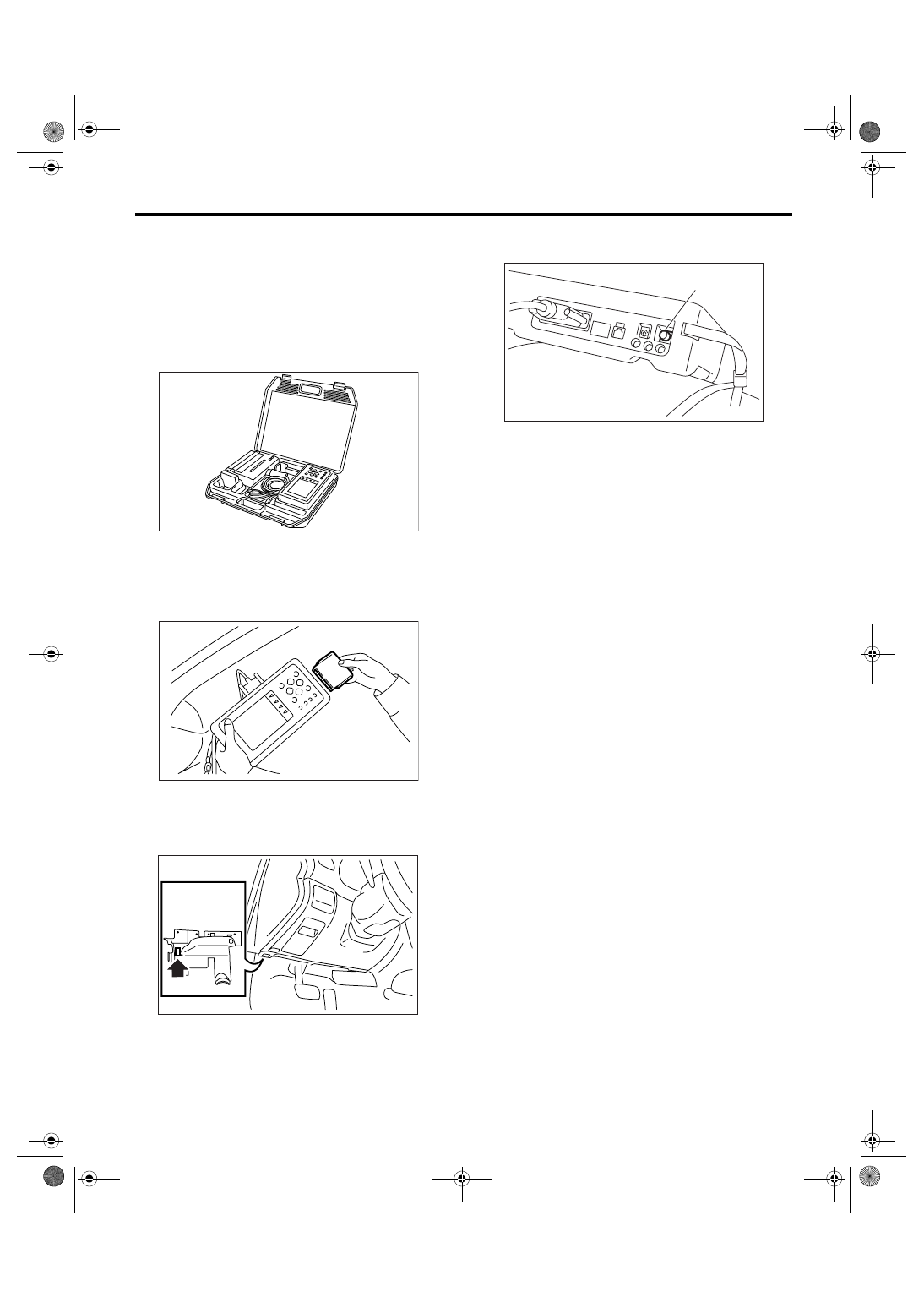

1) Prepare the Subaru Select Monitor kit. <Ref. to
EN(H6DO)(diag)-7, PREPARATION TOOL, Gen-
eral Description.>

2) Connect the diagnosis cable to Subaru Select
Monitor.
3) Insert the cartridge to Subaru Select Monitor.
<Ref. to EN(H6DO)(diag)-7, PREPARATION
TOOL, General Description.>

4) Connect the Subaru Select Monitor to data link
connector.

(1) Data link connector is located in the lower
portion of instrument panel (on the driver’s side).

(2) Connect the diagnosis cable to data link
connector.

CAUTION:
Do not connect any scan tools except Subaru
Select Monitor or general scan tool.

5) Turn the ignition switch to ON (engine OFF), and
the Subaru Select Monitor power switch to ON.

6) Using the Subaru Select Monitor, call up DTC
and data, then record them.

2. READ DIAGNOSTIC TROUBLE CODE
(DTC) FOR ENGINE (NORMAL MODE)

Refer to “Read Diagnostic Trouble Code (DTC)” for
information about how to indicate DTC. <Ref. to
EN(H6DO)(diag)-33, Read Diagnostic Trouble
Code (DTC).>

3. READ DIAGNOSTIC TROUBLE CODE
(DTC) FOR ENGINE (OBD MODE)

Refer to “Read Diagnostic Trouble Code (DTC)” for
information about how to indicate DTC. <Ref. to
EN(H6DO)(diag)-33, Read Diagnostic Trouble
Code (DTC).>

EN-00038

EN-00039

EN-02533

(A) Power switch

(A)

EN-00040

EN(H6DO)(diag)-27

ENGINE (DIAGNOSTICS)

Subaru Select Monitor

4. READ CURRENT DATA FOR ENGINE. (NORMAL MODE)

1) On the «Main Menu» display screen, select the {Each System Check} and press the [YES] key.
2) On the «System Selection Menu» display screen, select the {Engine} and press the [YES] key.
3) Press the [YES] key after the information of engine type has been displayed.
4) On the «Engine Diagnosis» display screen, select the {Current Data Display/Save}, and then press the
[YES] key.
5) On the «Data Display Menu» screen, select the {Data Display} and press the [YES] key.
6) Using the scroll key, move the display screen up or down until the desired data is shown.
• A list of the support data is shown in the following table.

Remarks

Display

Unit of mea-

sure

Note (at idling)

Engine load

2.4%

Engine coolant temperature signal

Engine coolant tempera-
ture

°C or °F

≥ 75°C or 167°F (After
engine is warmed-up.)

A/F compensation 1

A/F Compensation 1

−5.5%

A/F learning 1

0.0%

A/F compensation 2

A/F Compensation 2

−7.8%

A/F learning 2

0.0%

Intake manifold absolute pressure

Intake manifold absolute
pressure

mmHg, kPa,

inHg or psig

200 — 300 mmHg, 26.7

— 40 kPa, 7.8 — 11.8

inHg or 3.8 — 5.8 psig

Engine speed signal

Engine speed

rpm

600 — 800 rpm

Meter vehicle speed signal

Meter vehicle Speed

km/h or

MPH

0 km/h or 0 MPH

Ignition timing signal

Ignition timing

deg

13 — 15 deg

Intake air temperature signal

Intake air temperature

°C or °F

(Ambient air temperature)

Amount of intake air

g/s or lb/m

4.8 g/s or 0.63 lb/m

Throttle opening angle signal

Throttle valve angle

2.4%

Front oxygen sensor voltage value 1

Front oxygen sensor
voltage value 1

0.85 V

Front oxygen sensor voltage value 2

Front oxygen sensor
voltage value 2

0.87 V

Battery voltage

Battery Voltage

12 — 14 V

Mass air flow voltage

1.1 — 1.2 V

Injection 1 pulse width

2.82 ms

Injection 2 pulse width

2.82 ms

Knock sensor compensation

Knock correction

deg

0 deg

Atmospheric pressure signal

Atmospheric pressure

mmHg, kPa,

inHg or psig

(Atmosphere pressure)

Intake manifold relative pressure

Intake manifold relative
pressure

mmHg, kPa,

inHg or psig

(Intake manifold absolute

pressure — Atmospheric

pressure)

Acceleration opening angle signal

Acceleration opening
angle

Radiator fan output

Purge control solenoid valve duty ratio

CPC Duty

0 — 3%

EGR step number

STEP

Generator duty

ALT Duty

Fuel pump duty

33%

Variable valve timing advance angle amount R

VVT advance angle
amount R

deg

0 deg

Variable valve timing advance angle amount L

VVT advance angle
amount L

deg

0 deg

Oil flow control solenoid valve duty R

OCV duty R

9.4%

EN(H6DO)(diag)-28

ENGINE (DIAGNOSTICS)

Subaru Select Monitor

Oil flow control solenoid valve duty L

OCV duty L

9.4%

Oil flow control solenoid valve current R

OCV current R

64 mA

Oil flow control solenoid valve current L

OCV current L

64 mA

Front oxygen (A/F) sensor current value 1

A/F sensor current value
1

0.0 mA

Front oxygen (A/F) sensor current value 2

A/F sensor current value
2

0.0 mA

Front oxygen (A/F) sensor resistance value 1

A/F sensor resistance
value 1

Ω

Front oxygen (A/F) sensor resistance value 2

A/F sensor resistance
value 2

Ω

Front oxygen (A/F) sensor output lambda 1

A/F sensor output
lambda 1

—

1.01

Front oxygen (A/F) sensor output lambda 2

A/F sensor output
lambda 2

—

1.01

A/F compensation 3

A/F Compensation 3

−10.47%

A/F learning 3

0.0%

Throttle motor duty

−13%

Throttle motor voltage

Throttle power supply
voltage

(Battery voltage)

Sub throttle sensor voltage

Sub throttle sensor volt-
age

1.56 V

Main throttle sensor voltage

Main throttle sensor volt-
age

0.70 V

Sub acceleration sensor voltage

Sub acceleration sensor
voltage

1.10 V

Main acceleration sensor voltage

Main acceleration sensor
voltage

1.0 V

Memory vehicle speed (AT model)

Memory vehicle speed

km/h or

MPH

0 km/h or 0 MPH

A/F compensation 4

0.7%

A/F learning 4

0.0%

Fuel level sensor resistance

Fuel level resistance

Ω

4 — 96

Ω

Engine oil temperature

Oil Temperature

°C or °F

≥ 85°C or 185°F (After
engine is warmed-up.)

Oil switching solenoid valve duty R

OSV duty R

16.9%

Oil switching solenoid valve duty L

OSV duty L

16.9%

Oil switching solenoid valve current R

OSV current R

192 mA

Oil switching solenoid valve current L

OSV current L

192 mA

Variable valve lift lift mode

VVL Lift Mode

—

1 (at LOW lift)

#1 cylinder roughness monitor

#1 cylinder roughness
monitor

—

#2 cylinder roughness monitor

#2 cylinder roughness
monitor

—

#3 cylinder roughness monitor

#3 cylinder roughness
monitor

—

#4 cylinder roughness monitor

#4 cylinder roughness
monitor

—

#5 cylinder roughness monitor

#5 cylinder roughness
monitor

—

#6 cylinder roughness monitor

#6 cylinder roughness
monitor

—

Test mode terminal

—

OFF

Neutral position switch signal

Neutral SW

—

Remarks

Display

Unit of mea-

sure

Note (at idling)
