ME(H6DO)-79

MECHANICAL

Oil Flow Control Solenoid Valve

22.Oil Flow Control Solenoid

Valve

A: REMOVAL

Oil flow control solenoid valve is a unit with cam-
shaft cap.
Refer to “Camshaft” for removal. <Ref. to
ME(H6DO)-56, REMOVAL, Camshaft.>

B: INSTALLATION

Install in the reverse order of removal.

ME(H6DO)-80

MECHANICAL

Oil Switching Solenoid Valve

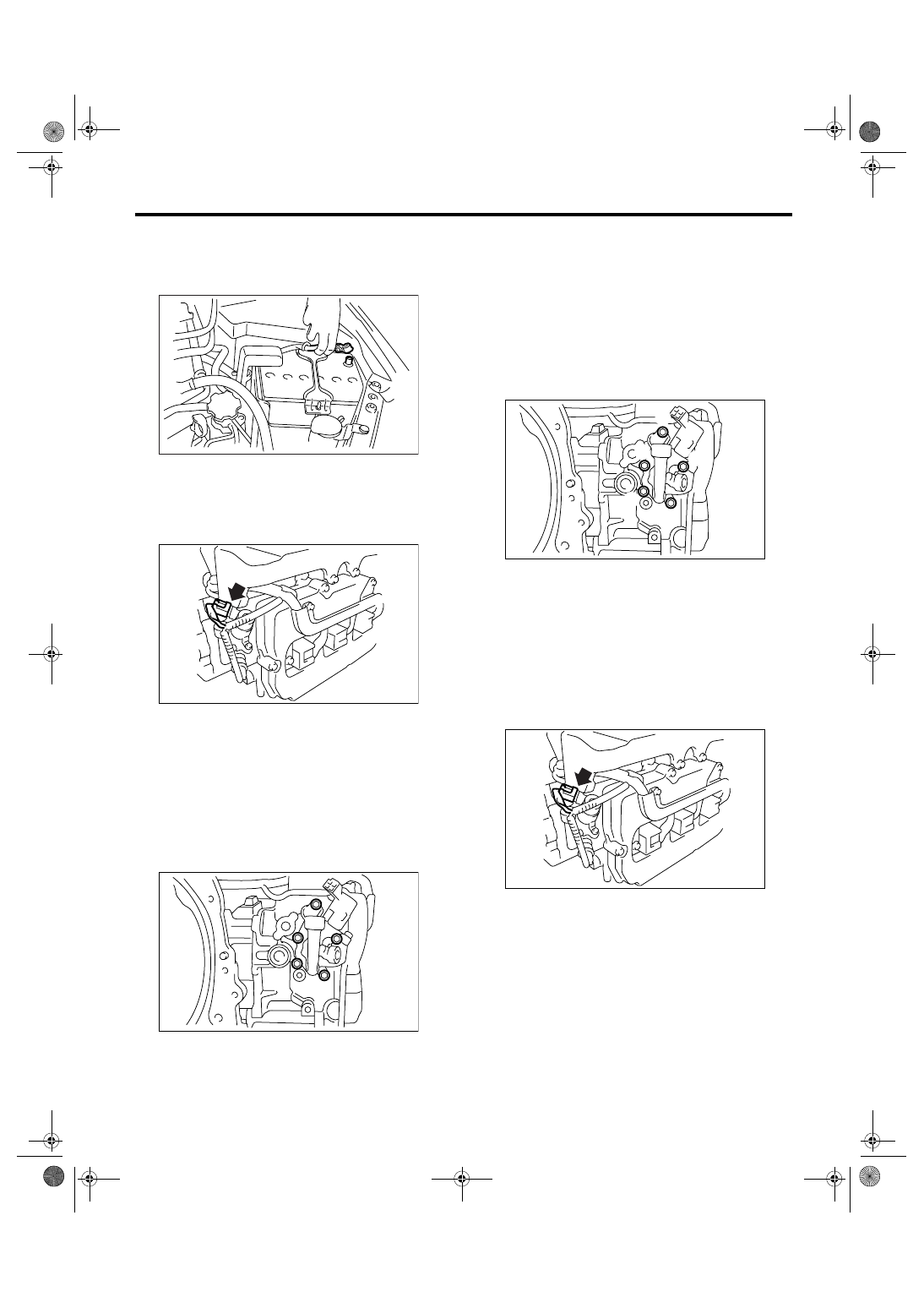

23.Oil Switching Solenoid Valve

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the air intake chamber.
<Ref. to IN(H6DO)-7, REMOVAL, Air Intake Cham-
ber.>
3) Disconnect the connector from oil switching so-
lenoid valve.

4) Remove the oil switching solenoid valve.
5) Remove the variable valve lift diagnosis oil pres-
sure switch.
<Ref. to FU(H6DO)-28, REMOVAL, Variable Valve
Lift Diagnosis Oil Pressure Switch.>
6) Remove the oil temperature sensor.
<Ref. to FU(H6DO)-29, REMOVAL, Oil Tempera-
ture Sensor.>
7) Remove the oil flow control solenoid valve hold-
er from cylinder head.

B: INSTALLATION

1) Install the oil switching solenoid valve holder.

NOTE:
Always use new gasket.

(1) Temporarily tighten the bolts by tightening
torque of 5 — 10 N

⋅m (0.5 — 1.0 kgf-m, 3.7 —

7.4 ft-lb) in order indicated in the figure.
(2) Tighten the bolts by tightening torque of
10

±0.5 N⋅m (1.0±0.05 kgf-m, 7.4±0.37 ft-lb) in

order indicated in the figure.

2) Install the oil temperature sensor.
<Ref. to FU(H6DO)-29, INSTALLATION, Oil Tem-
perature Sensor.>
3) Install the variable valve lift diagnosis oil pres-
sure switch.
<Ref. to FU(H6DO)-28, INSTALLATION, Variable
Valve Lift Diagnosis Oil Pressure Switch.>
4) Install the oil switching solenoid valve.
5) Connect the connector to oil switching solenoid
valve.

6) Install the air intake chamber.
<Ref. to IN(H6DO)-7, INSTALLATION, Air Intake
Chamber.>

IN-00203

ME-02071

ME-02072

ME-02073

(2)

(1)

(5)

(4)

(3)

ME-02071

ME(H6DO)-81

MECHANICAL

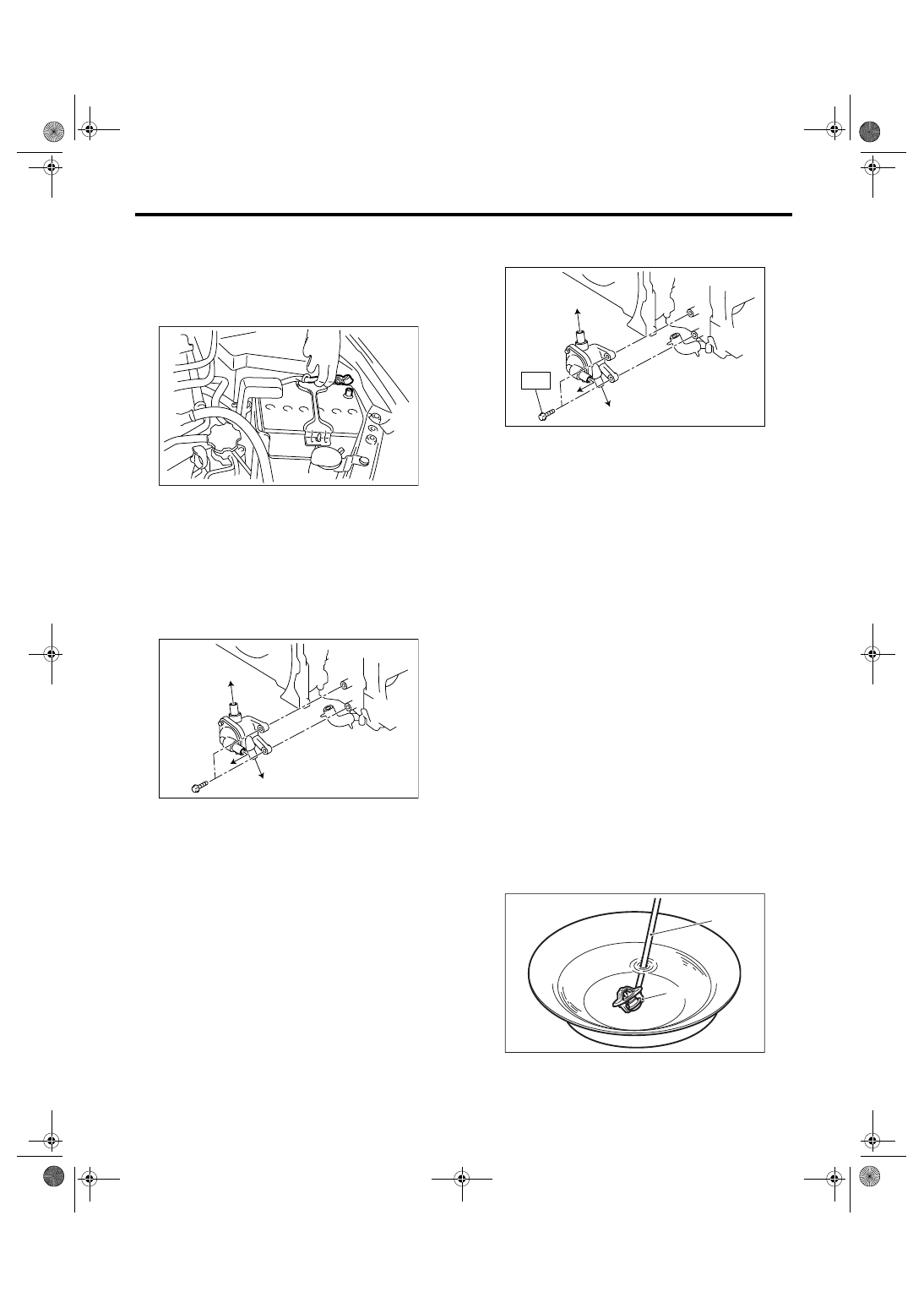

ATF Warmer Cock

24.ATF Warmer Cock

A: REMOVAL

1) Set the vehicle on a lift.
2) Remove the collector cover.
3) Disconnect the ground cable from battery.

4) Lift-up the vehicle.
5) Remove the under cover.
6) Remove the front exhaust pipe.
<Ref. to EX(H6DO)-4, REMOVAL, Front Exhaust
Pipe.>
7) Disconnect the water hose from ATF warmer
cock.
8) Remove the ATF warmer cock from cylinder
head.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

16 N

⋅

m (1.6 kgf-m, 11.8 ft-lb)

C: INSPECTION

Replace the thermostat if the valve does not close
completely at an ambient temperature or if the fol-
lowing test shows unsatisfactory results.
• Inspection method
Immerse the thermostat and a thermometer in wa-
ter. Raise water temperature gradually, and mea-
sure the temperature and valve lift when the valve
begins to open and when the valve is fully opened.
During the test, agitate the water for even temper-
ature distribution. The measured value should
meet the specification.

NOTE:
• Leave the thermostat in the boiling water for
more than five minutes before measuring the valve
lift.
• Hold the thermostat with a wire or the like to
avoid contacting with the bottom of container.

Starting temperature to open:

69 — 73

°

C (156 — 163

°

F)

Fully opens:

84

°

C (183

°

F)

Valve lift:

8.0 mm (0.315 in) or more

(A) Water pipe

(B) ATF warmer

IN-00203

(B)

(A)

(A)

ME-02074

(A) Water pipe

(B) ATF warmer

(A) Thermometer

(B) Thermostat

(B)

(A)

(A)

ME-02075

T

CO-00033

( A )

( B )

ME(H6DO)-82

MECHANICAL

Intake And Exhaust Valve

25.Intake And Exhaust Valve

A: SPECIFICATION

Refer to “Cylinder Head” for removal and installa-
tion procedures of intake and exhaust valves. <Ref.
to ME(H6DO)-60, REMOVAL, Cylinder Head.>
<Ref. to ME(H6DO)-60, INSTALLATION, Cylinder
Head.>
