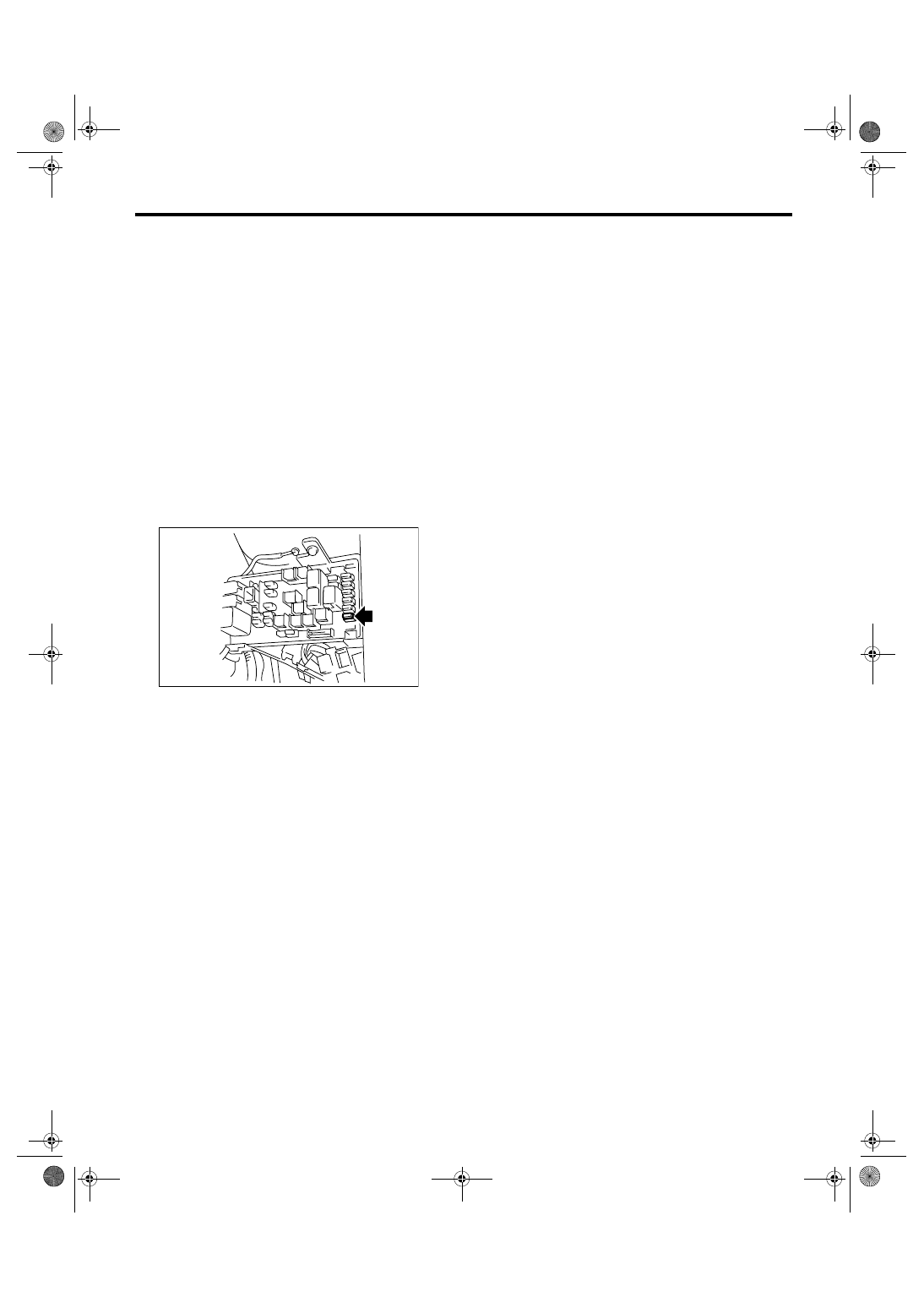

ME(H6DO)-27

MECHANICAL

Fuel Pressure

7. Fuel Pressure

A: INSPECTION

WARNING:
Before removing the fuel pressure gauge, re-
lease the fuel pressure.

NOTE:
When the fuel pressure is out of standard, check or
replace the pressure regulator and pressure regu-
lator vacuum hose.
1) Release the fuel pressure.
<Ref. to FU(H6DO)-39, RELEASING OF FUEL
PRESSURE, PROCEDURE, Fuel.>
2) Open the fuel filler flap lid, and remove the fuel
filler cap.
3) Disconnect the fuel delivery hose and connect
fuel pressure gauge.
4) Install the fuse of fuel pump to main fuse box.

5) Start the engine.
6) Measure the fuel pressure while disconnecting
pressure regulator vacuum hose from intake mani-
fold.

Fuel pressure:

Standard: 333 — 363 kPa (3.4 — 3.7 kgf/cm

48 — 53 psi)

7) After connecting the pressure regulator vacuum
hose, measure the fuel pressure.

Fuel pressure:

Standard: 279 — 309 kPa (2.85 — 3.15 kgf/
cm

, 40 — 45 psi)

NOTE:
The fuel pressure gauge indicates 10 to 20 kPa
(0.1 to 0.2 kgf/cm

, 1 to 3 psi) higher than standard

during high-altitude operations.

FU-01122

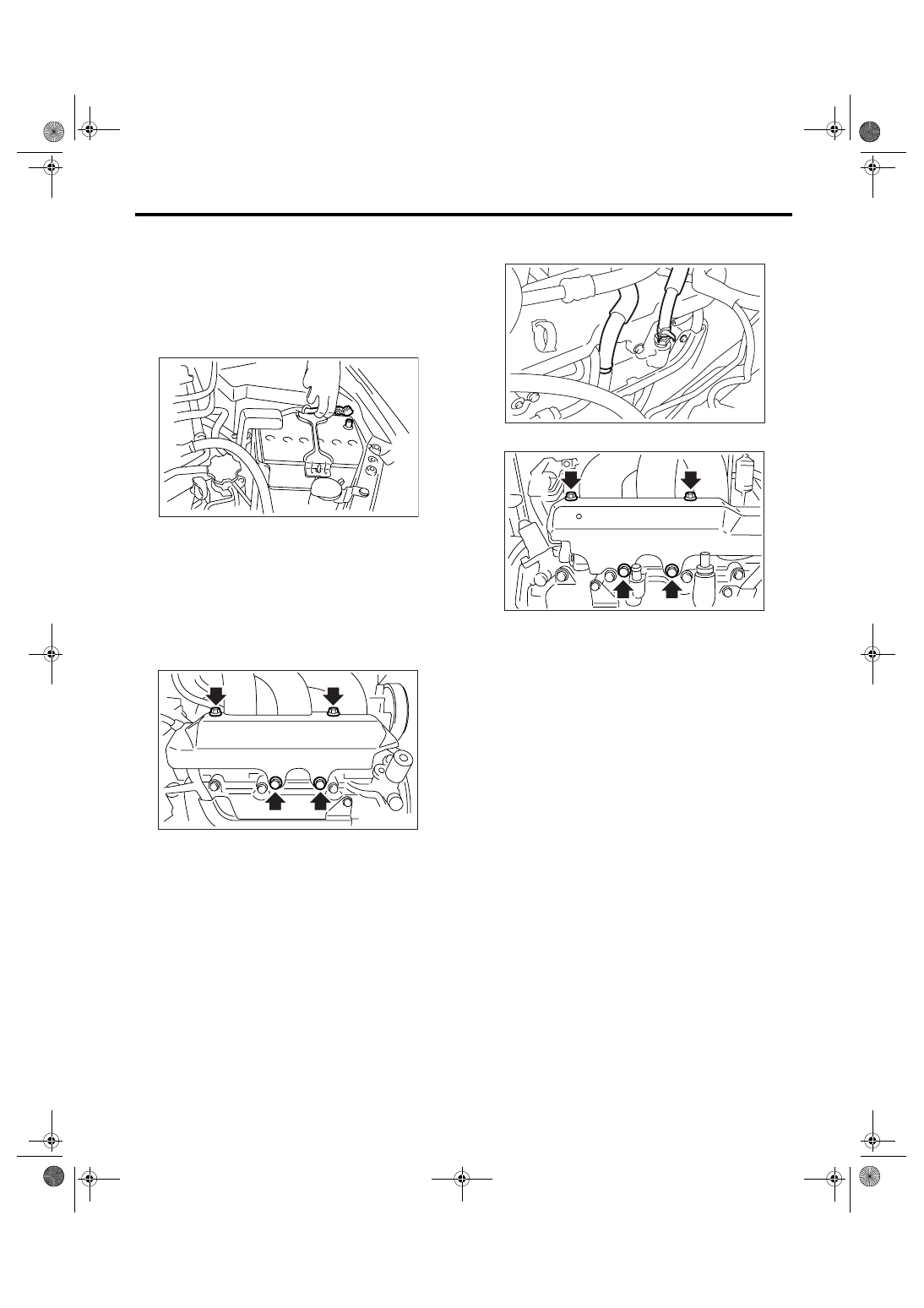

ME(H6DO)-28

MECHANICAL

Valve Clearance

8. Valve Clearance

A: INSPECTION

Inspection and adjustment of valve clearance
should be performed while engine is cold.
1) Set the vehicle on a lift.
2) Remove the collector cover.
3) Disconnect the ground cable from battery.

4) Lift-up the vehicle.
5) Remove the under cover.
6) Lower the vehicle.
7) When inspecting RH side cylinders:

(1) Remove the air intake duct and air cleaner
case. <Ref. to IN(H6DO)-8, REMOVAL, Air In-
take Duct.> <Ref. to IN(H6DO)-5, REMOVAL,
Air Cleaner Case.>
(2) Remove the fuel tank protector (RH).

(3) Disconnect the connector of oil pressure
switch.
(4) Remove the ignition coil. <Ref. to
IG(H6DO)-7, REMOVAL, Ignition Coil.>
(5) Remove the rocker cover (RH).

8) When inspecting LH side cylinders:

(1) Disconnect the battery cable, and then re-
move the battery and battery carrier.

(2) Disconnect the PCV hose and blow-by hose
from rocker cover (LH).

(3) Remove the fuel pipe protector (LH).

(4) Remove the ignition coil. <Ref. to
IG(H6DO)-7, REMOVAL, Ignition Coil.>
(5) Remove the rocker cover (LH).

IN-00203

FU-02119

ME-00460

FU-02117

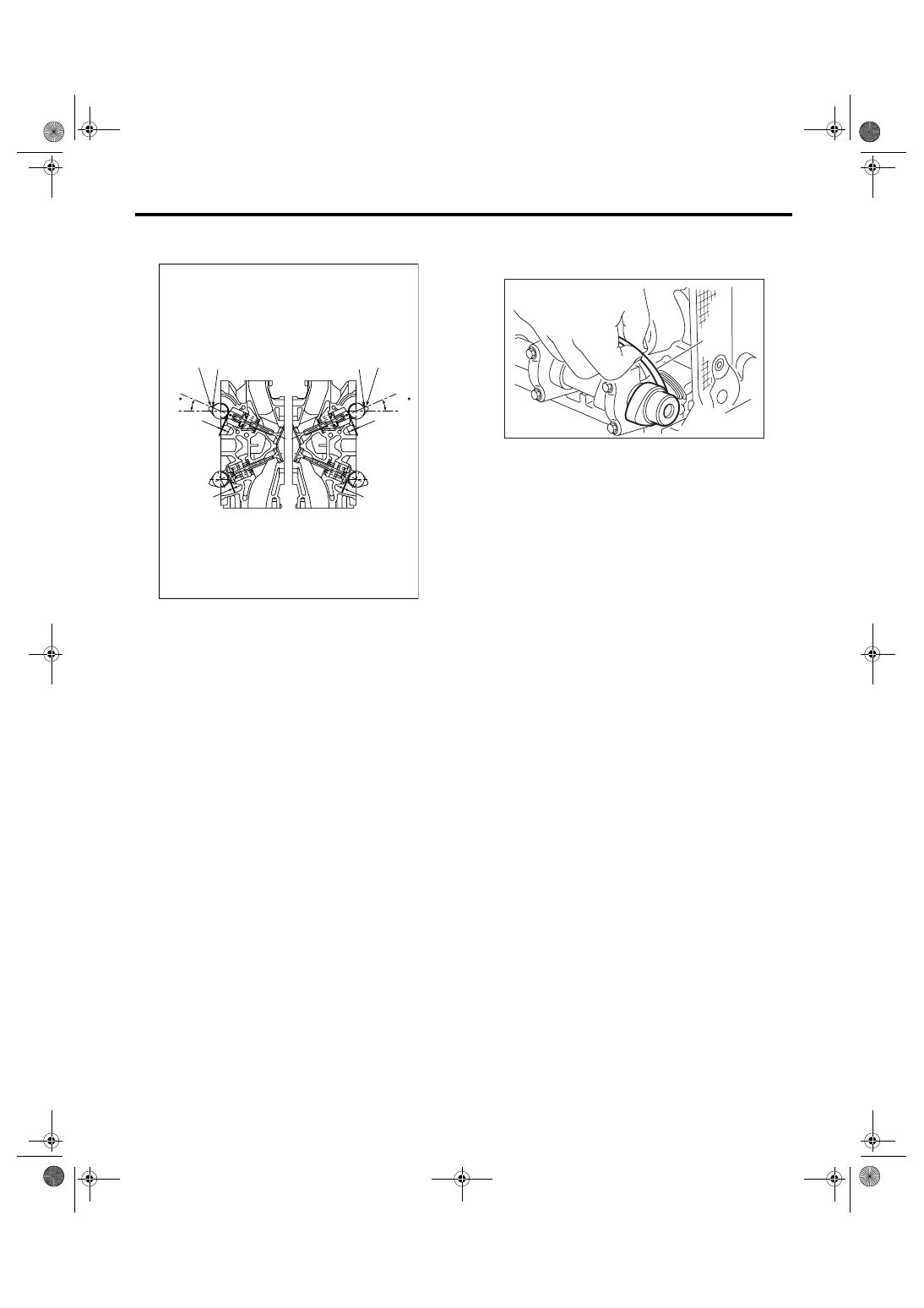

ME(H6DO)-29

MECHANICAL

Valve Clearance

9) Turn the crankshaft clockwise until the cam is
set to position shown in the figure.

10) Measure the clearance of intake valve and ex-
haust valve using thickness gauge (A).

NOTE:
• Measure it within the range of

±30° for specified

position that shown in the figure.
• Measure it in low lift cam for intake side.
• Insert the thickness gauge in direction as hori-
zontal as possible with respect to the valve lifter.

Valve clearance:

Intake

0.20

+0.04

−0.06

mm (0.0079

+0.0016

−0.0024

in)

Exhaust

0.35

0.05 mm (0.0138

0.0020 in)

• If the measured value is not within standard, take
notes of the value in order to adjust the valve clear-
ance later on.

11) If necessary, adjust the valve clearance. <Ref.
to ME(H6DO)-29, ADJUSTMENT, Valve Clear-
ance.>
12) Further turn the crank pulley clockwise and
then measure the valve clearances again.
13) After inspection, install the related parts in the
reverse order of removal.

B: ADJUSTMENT

1. INTAKE SIDE

CAUTION:
• Adjustment of valve clearance should be per-
formed while engine is cold.
• Do not wear gloves during removal and in-
stallation of valve lifter.
• Do not use the valve lifter which got high im-
pact due to drop, etc.
• When installing the valve lifter, align the anti-
rotation of valve lifter with groove on cylinder
head, and then insert the valve lifter.
1) Measure all valve clearances.
<Ref. to ME(H6DO)-28, INSPECTION, Valve
Clearance.>

NOTE:
Record each valve clearance after it has been
measured.
2) Remove the camshaft. <Ref. to ME(H6DO)-56,
REMOVAL, Camshaft.>
3) Remove the valve lifter.
4) Remove the shim from valve lifter.
5) Check the thickness of shim by stamped mark
on the side of shim which is removed.

(1) Valve clearance (Intake side)

(2) Valve clearance (Exhaust side)

(3) High lift cam

(4) Low lift cam

ME-02565

(4)

(3)

(4)

(1)

(2)

(1)

(2)

(23 )

(A)

ME-00464

ME(H6DO)-30

MECHANICAL

Valve Clearance

6) Select a shim of suitable thickness from the fol-
lowing table using the measured valve clearance
and shim thickness.

2. EXHAUST SIDE

NOTE:
Record each valve clearance after it has been
measured.
2) Remove the camshaft. <Ref. to ME(H6DO)-56,
REMOVAL, Camshaft.>
3) Remove the valve lifter.

Unit: (mm)

S = (V + T)

− 0.20

S: Required shim thickness
V: Measured valve clearance
T: Shim thickness to be used

Part No.

Thickness mm (in)

13218AK890

1.92 (0.0756)

13218AK900

1.94 (0.0764)

13218AK910

1.96 (0.0772)

13218AK920

1.98 (0.0780)

13218AK930

2.00 (0.0787)

13218AK940

2.02 (0.0795)

13218AK950

2.04 (0.0803)

13218AK960

2.06 (0.0811)

13218AK970

2.07 (0.0815)

13218AK980

2.08 (0.0819)

13218AK990

2.09 (0.0823)

13218AL000

2.10 (0.0827)

13218AL010

2.11 (0.0831)

13218AL020

2.12 (0.0835)

13218AL030

2.13 (0.0839)

13218AL040

2.14 (0.0843)

13218AL050

2.15 (0.0846)

13218AL060

2.16 (0.0850)

13218AL070

2.17 (0.0854)

13218AL080

2.18 (0.0858)

13218AL090

2.19 (0.0862)

13218AL100

2.20 (0.0866)

13218AL110

2.21 (0.0870)

13218AL120

2.22 (0.0874)

13218AL130

2.23 (0.0878)

13218AL140

2.24 (0.0882)

13218AL150

2.25 (0.0886)

13218AL160

2.26 (0.0890)

13218AL170

2.27 (0.0894)

13218AL180

2.28 (0.0898)

13218AL190

2.29 (0.0902)

13218AL200

2.30 (0.0906)

13218AL210

2.31 (0.0909)

13218AL220

2.32 (0.0913)

13218AL230

2.33 (0.0917)

13218AL240

2.34 (0.0921)

13218AL250

2.35 (0.0925)

13218AL260

2.36 (0.0929)

13218AL270

2.37 (0.0933)

13218AL280

2.38 (0.0937)

13218AL290

2.39 (0.0941)

13218AL300

2.40 (0.0945)

13218AL310

2.41 (0.0949)

13218AL320

2.42 (0.0953)

13218AL330

2.43 (0.0957)

13218AL340

2.44 (0.0961)

13218AL350

2.45 (0.0965)

13218AL360

2.46 (0.0969)

13218AL370

2.47 (0.0972)

13218AL380

2.48 (0.0976)

13218AL390

2.49 (0.0980)

13218AL400

2.50 (0.0984)

13218AL410

2.51 (0.0988)

13218AL420

2.52 (0.0992)

13218AL430

2.53 (0.0996)

13218AL440

2.54 (0.1000)

13218AL450

2.55 (0.1004)

13218AL460

2.56 (0.1008)

13218AL470

2.57 (0.1012)

13218AL480

2.58 (0.1016)

13218AL490

2.59 (0.1020)

13218AL500

2.60 (0.1024)

13218AL510

2.61 (0.1028)

13218AL520

2.62 (0.1032)

13218AL530

2.64 (0.1039)

13218AL540

2.66 (0.1047)

13218AL550

2.68 (0.1055)

13218AL560

2.70 (0.1063)

13218AL570

2.72 (0.1071)

13218AL580

2.74 (0.1079)

13218AL590

2.76 (0.1087)

Part No.

Thickness mm (in)
