EN(H4DOTC)(diag)-205

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK SENSOR OUTPUT.
1) Turn the ignition switch to ON.
2) Measure the voltage between ECM con-
nector terminals.

Connector & terminal

(B136) No. 18 (+) — (B136) No. 35 (

−

):

Is the voltage more than 0.4 V? Go to step 2.

Go to step 4.

2

CHECK SENSOR OUTPUT.
Measure the voltage between ECM connector
terminals.

Connector & terminal

(B136) No. 29 (+) — (B136) No. 35 (

−

):

Is the voltage more than 0.8 V? Go to step 3.

Go to step 4.

3

CHECK POOR CONTACT.
Check poor contact in connector between
ECM and electronic throttle control.

Is there poor contact?

Repair the poor
contact.

Go to step 14.

4

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Disconnect the connectors from electronic
throttle control.
4) Measure the resistance between ECM con-
nector and electronic throttle control connector.

Connector & terminal

(B136) No. 16 — (E57) No. 5:

Is the resistance less than 1
Ω?

Go to step 5.

Repair the open
circuit of harness
connector.

5

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
Measure the resistance between ECM connec-
tor and chassis ground.

Connector & terminal

(B136) No. 18 — Chassis ground:
(B136) No. 29 — Chassis ground:
(B136) No. 16 — Chassis ground:

Is the resistance more than 1
M

Ω?

Go to step 6.

Repair the ground
short circuit of har-
ness.

6

CHECK SENSOR POWER SUPPLY.
1) Connect the ECM connector.
2) Turn the ignition switch to ON.
3) Measure the voltage between electronic
throttle control connector and engine ground.

Connector & terminal

(E57) No. 5 (+) — Engine ground (

−

):

Is the voltage 4.5 — 5.5 V?

Go to step 7.

Repair the poor
contact in ECM
connector.
Replace the ECM
if defective. <Ref.
to FU(H4DOTC)-
34, Engine Con-
trol Module
(ECM).>

7

CHECK SHORT CIRCUIT INSIDE THE ECM.
1) Turn the ignition switch to OFF.
2) Measure the resistance between electronic
throttle control connector and engine ground.

Connector & terminal

(E57) No. 6 — Engine ground:
(E57) No. 4 — Engine ground:

Is the resistance more than 10
Ω?

Go to step 8.

Repair the poor
contact in ECM
connector.
Replace the ECM
if defective. <Ref.
to FU(H4DOTC)-
34, Engine Con-
trol Module
(ECM).>

EN(H4DOTC)(diag)-206

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

8

CHECK SENSOR OUTPUT.
1) Connect all the connectors.
2) Turn the ignition switch to ON.
3) Read the data of main throttle sensor signal
using Subaru Select Monitor.

NOTE:

• Subaru Select Monitor
For detailed operation procedure, refer to
“READ CURRENT DATA FOR ENGINE”. <Ref.
to EN(H4DOTC)(diag)-24, Subaru Select Mon-
itor.>

Is the voltage less than 4.63
V?

Go to step 9.

Go to step 11.

9

CHECK SENSOR OUTPUT.
Read the data of sub throttle sensor signal
using Subaru Select Monitor.

NOTE:

• Subaru Select Monitor
For detailed operation procedure, refer to
“READ CURRENT DATA FOR ENGINE”. <Ref.
to EN(H4DOTC)(diag)-24, Subaru Select Mon-
itor.>

Is the voltage less than 4.73
V?

Go to step 10.

Go to step 11.

10

CHECK POOR CONTACT.
Check poor contact in connector between
ECM and electronic throttle control.

Is there poor contact?

Repair the poor
contact.

Temporary poor
contact occurred,
but it is normal at
present.

11

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Disconnect the connectors from electronic
throttle control.
4) Measure the resistance between ECM con-
nector and electronic throttle control connector.

Connector & terminal

(B136) No. 35 — (E57) No. 3:
(B136) No. 18 — (E57) No. 6:
(B136) No. 29 — (E57) No. 4:

Is the resistance less than 1
Ω?

Go to step 12.

Repair the open
circuit of harness
connector.

12

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Connect the ECM connector.
2) Measure the resistance between electronic
throttle control connector and engine ground.

Connector & terminal

(E57) No. 3 — Engine ground:

Is the resistance less than 5
Ω?

Go to step 13.

Repair the poor
contact in ECM
connector.
Replace the ECM
if defective. <Ref.
to FU(H4DOTC)-
34, Engine Con-
trol Module
(ECM).>

13

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Connect the ECM connector.
2) Turn the ignition switch to ON.
3) Measure the voltage between electronic
throttle control connector and engine ground.

Connector & terminal

(E57) No. 5 (+) — Engine ground (

−

):

Is the voltage less than 10 V?

Go to step 14.

Repair the battery
short circuit of har-
ness between
ECM connector
and electronic
throttle control
connector.

14

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
Measure the voltage between electronic throt-
tle control connector and engine ground.

Connector & terminal

(E57) No. 6 (+) — Engine ground (

−

):

(E57) No. 4 (+) — Engine ground (

−

):

Is the voltage less than 10 V?

Go to step 15.

Repair the short
circuit of harness
between ECM
connector and
electronic throttle
control connector.

Step

Check

Yes

No

EN(H4DOTC)(diag)-207

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

15

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Turn the ignition switch to OFF.
2) Disconnect the ECM connector.
3) Measure the resistance between ECM con-
nectors.

Connector & terminal

(B136) No. 18 — (B136) No. 35:
(B136) No. 29 — (B136) No. 35:

Is the resistance more than 1
M

Ω?

Go to step 16.

Repair the short
circuit to sensor
power supply.

16

CHECK ELECTRONIC THROTTLE CON-
TROL HARNESS.
1) Disconnect the connector from ECM.
2) Disconnect the connectors from electronic
throttle control.
3) Measure the resistance between electronic
throttle control connector terminals.

Connector & terminal

(E57) No. 6 — (E57) No. 4:

Is the resistance more than 1
M

Ω?

Repair the poor
contact in ECM
connector.
Replace the ECM
if defective. <Ref.
to FU(H4DOTC)-
34, Engine Con-
trol Module
(ECM).>

Repair the short
circuit of harness.

Step

Check

Yes

No

EN(H4DOTC)(diag)-208

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

BV:DTC P2138 THROTTLE/PEDAL POSITION SENSOR/SWITCH “D” / “E”

VOLTAGE CORRELATION

DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
• Erroneous idling
• Poor driving performance

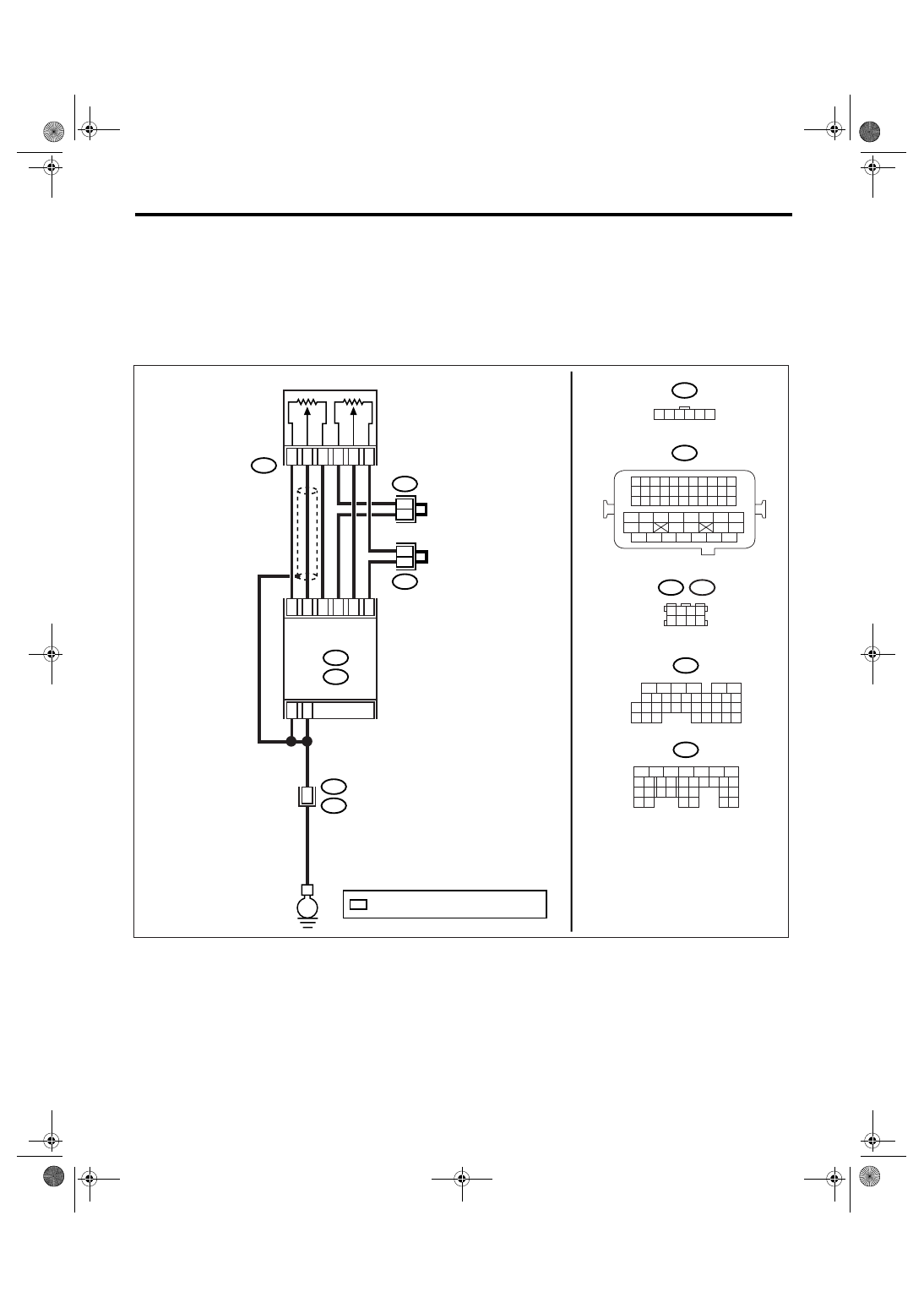

WIRING DIAGRAM:

EN-03546

B315

B21

E

C:

ECM

B136

B137

D:

C:

B136

B137

D:

B83

B315

*

*

3

5

4

1

2

6

C15

C17

C34

C16

C28

C35

D1

D2

1 2 3 4 5 6

B122

1 2 3 4
5 6 7 8

5

6

7 8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16

17 18 19 20 21

33 34

29

32

30

31

35

5

6

7

8

2

1

9

4

3

10

22 23

11 12 13 14 15

24 25

26

16 17

18 19 20 21

27

28 29

30 31

MAIN

SUB

ACCELERATOR

PEDAL POSITION

SENSOR

B122

7

4

36

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

B21

E2

B83

*

: TERMINAL No. RANDOM ARRANGEMENT
