ME(H4DOTC)-11

MECHANICAL

General Description

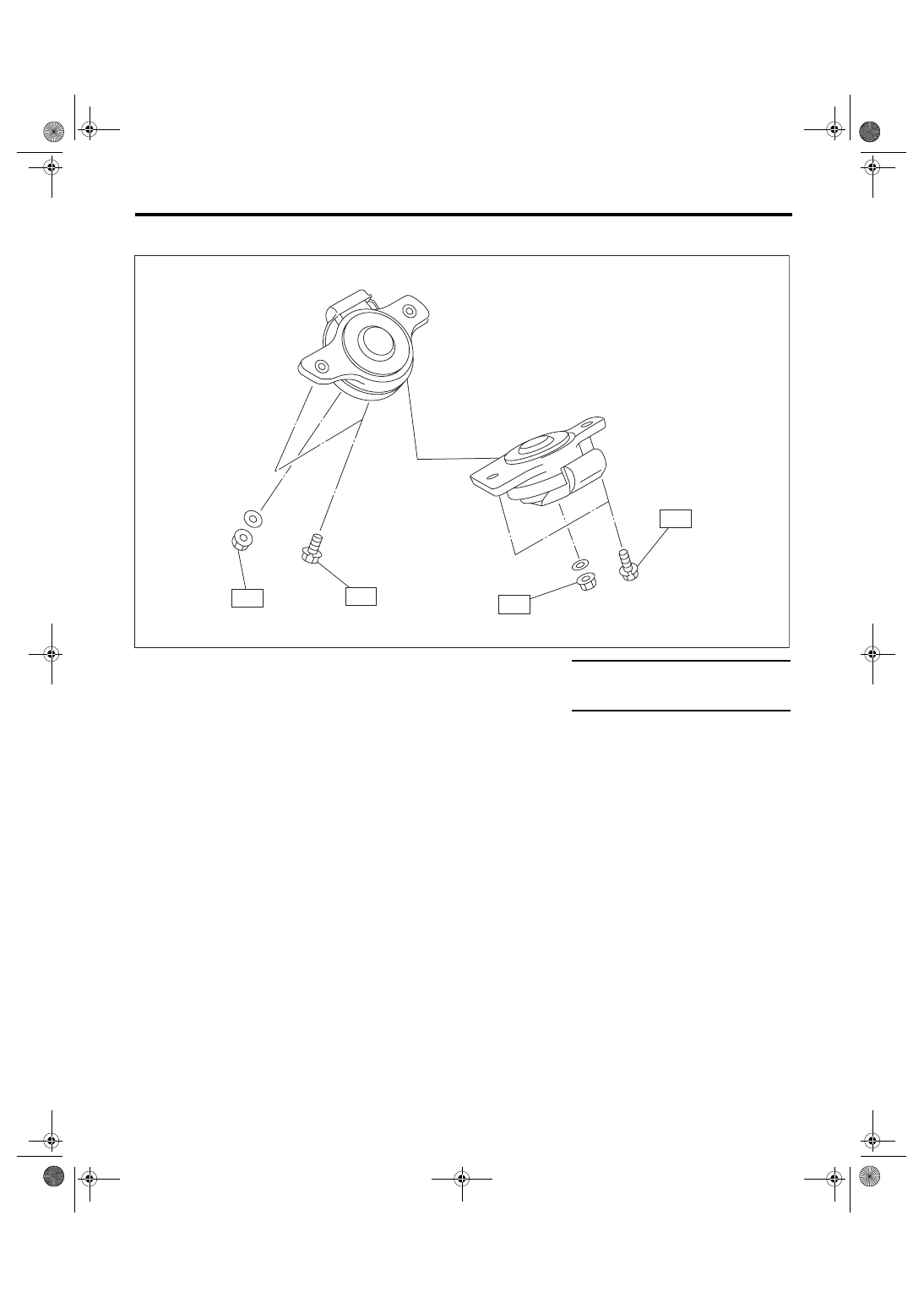

6. ENGINE MOUNTING

(1)

Front cushion rubber

Tightening torque: N

⋅

m (kgf-m, ft-lb)

T1: 35 (3.6, 25.8)

T2: 85 (8.7, 62.7)

(1)

T2

T1

T1

T2

ME-02090

ME(H4DOTC)-12

MECHANICAL

General Description

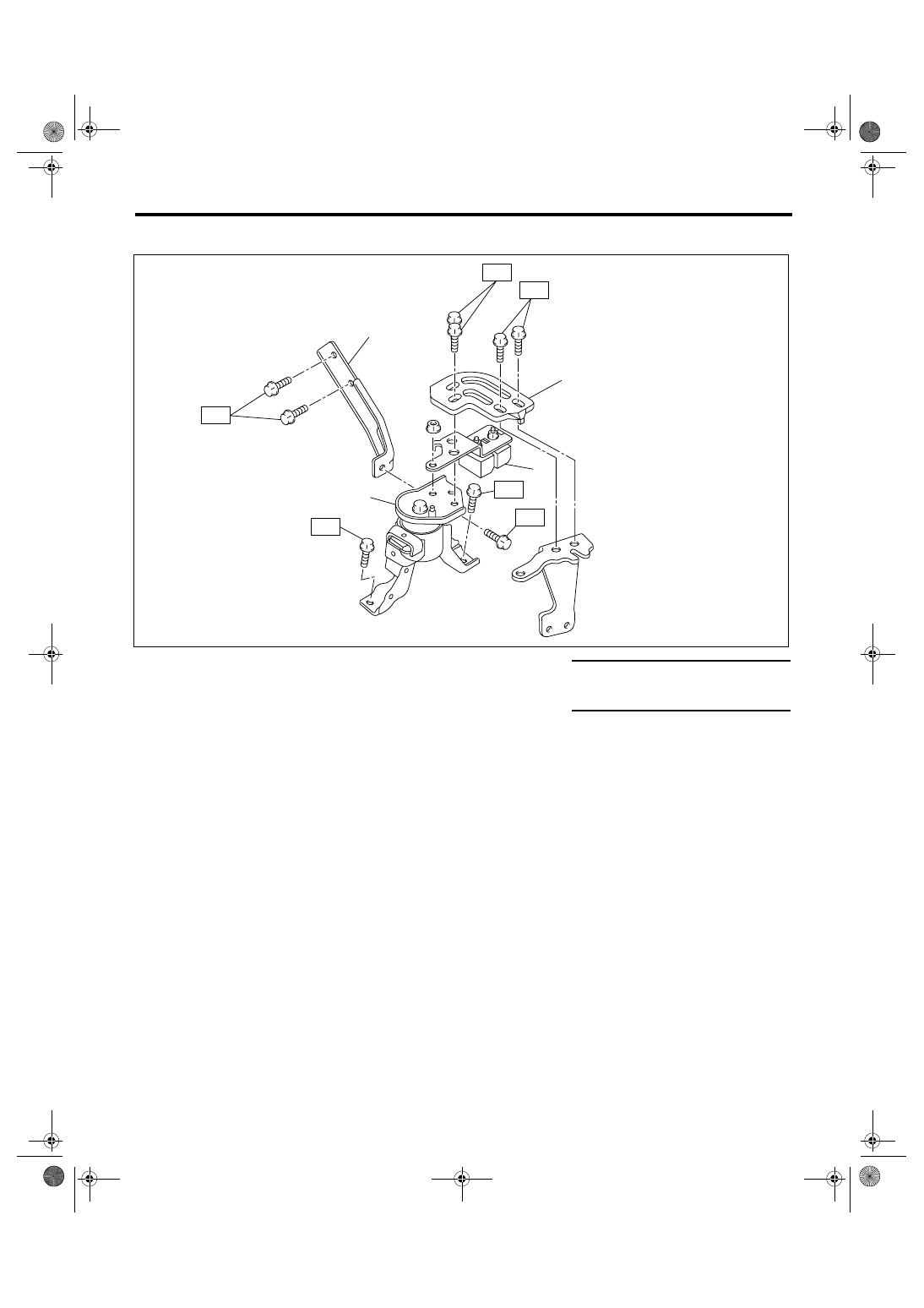

7. LINEAR MOTION MOUNTING

(1)

Linear motion mounting

(3)

Dynamic damper

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Linear motion mounting bracket

(4)

Bracket

T1: 33 (3.4, 24.3)

T2: 30 (3.1, 22.1)

ME-02091

T2

T2

T1

T1

T1

T1

(2)

(1)

(4)

(3)

ME(H4DOTC)-13

MECHANICAL

General Description

C: CAUTION

• Wear work clothing, including a cap, protective
goggles and protective shoes during operation.
• Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust and dirt.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly and replacement.
• Be careful not to burn yourself, because each
part on the vehicle is hot after running.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or rigid racks at the specified
points.
• Before disconnecting connectors of sensors or
units, be sure to disconnect the ground cable from
battery.
• All parts should be thoroughly cleaned, paying
special attention to engine oil passages, pistons
and bearings.
• Rotating parts and sliding parts such as piston,
bearing and gear should be coated with oil prior to
assembly.
• Be careful not to let oil, grease or coolant contact
the timing belt, clutch disc and flywheel.
• All removed parts, if to be reused, should be re-
installed in the original positions and directions.
• Bolts, nuts and washers should be replaced with
new ones as required.
• Even if necessary inspections have been made
in advance, proceed with assembly work while
making rechecks.
• Remove or install the engine in an area where
chain hoists, lifting devices, etc. are available for
ready use.
• Be sure not to damage coated surfaces of body
panels with tools, or not to stain seats and windows
with coolant or oil. Place a cover over fender, as re-
quired, for protection.
• Prior to starting work, prepare the following:
Service tools, clean cloth, containers to catch cool-
ant and oil, wire ropes, chain hoist, transmission
jacks, etc.
• Lift-up or lower the vehicle when necessary.
Make sure to support the correct positions.

ME(H4DOTC)-14

MECHANICAL

General Description

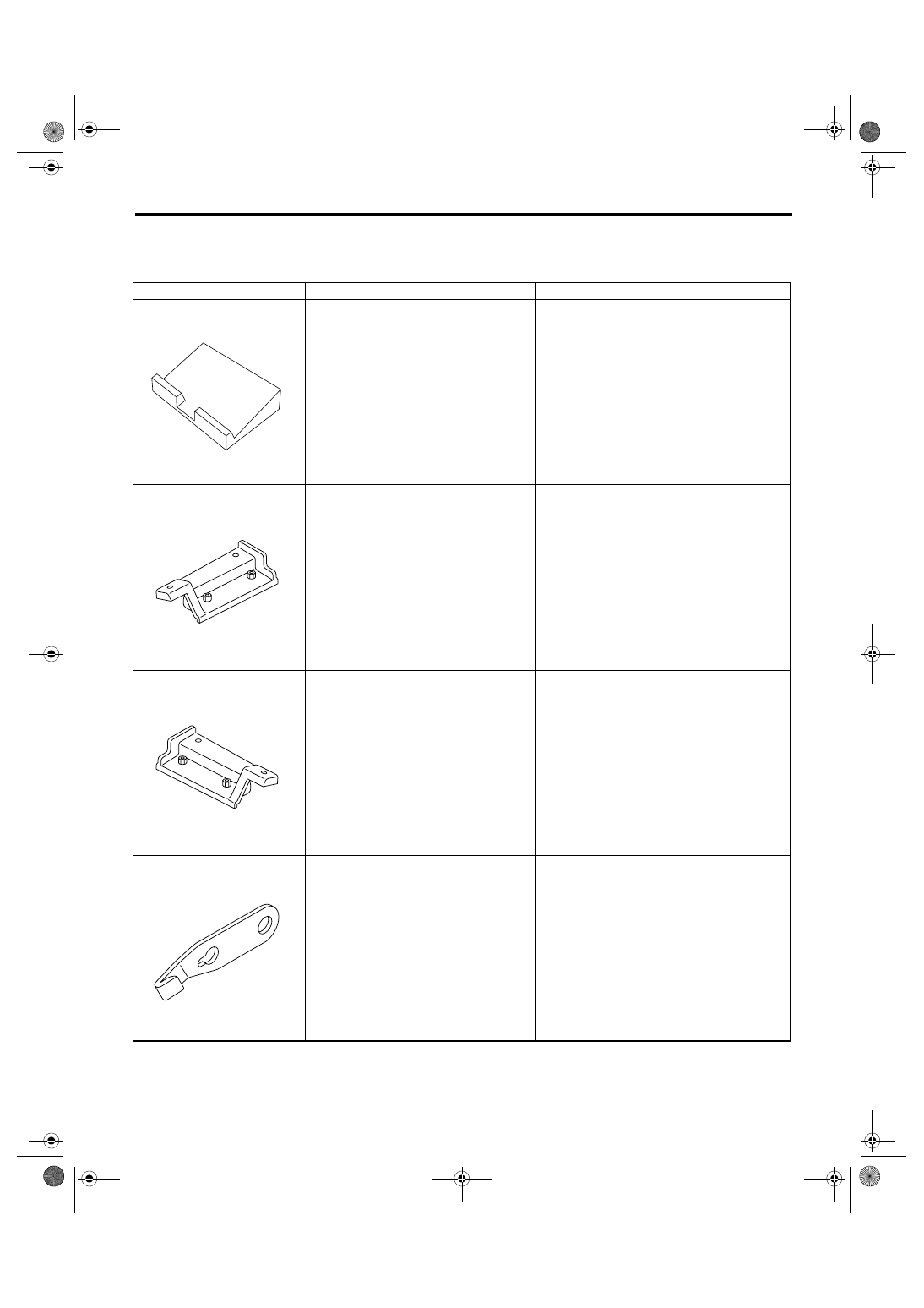

D: PREPARATION TOOL

1. SPECIAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

498267600

CYLINDER HEAD
TABLE

• Used for replacing valve guides.
• Used for removing and installing valve spring.

498457000

ENGINE STAND
ADAPTER RH

Used with ENGINE STAND (499817000).

498457100

ENGINE STAND
ADAPTER LH

Used with ENGINE STAND (499817000).

498497100

CRANKSHAFT
STOPPER

Used for stopping rotation of drive plate when
loosening/tightening crank pulley bolt.

ST-498267600

ST-498457000

ST-498457100

ST-498497100
