IN(H4DOTC)-15
INTAKE (INDUCTION)
Turbocharger

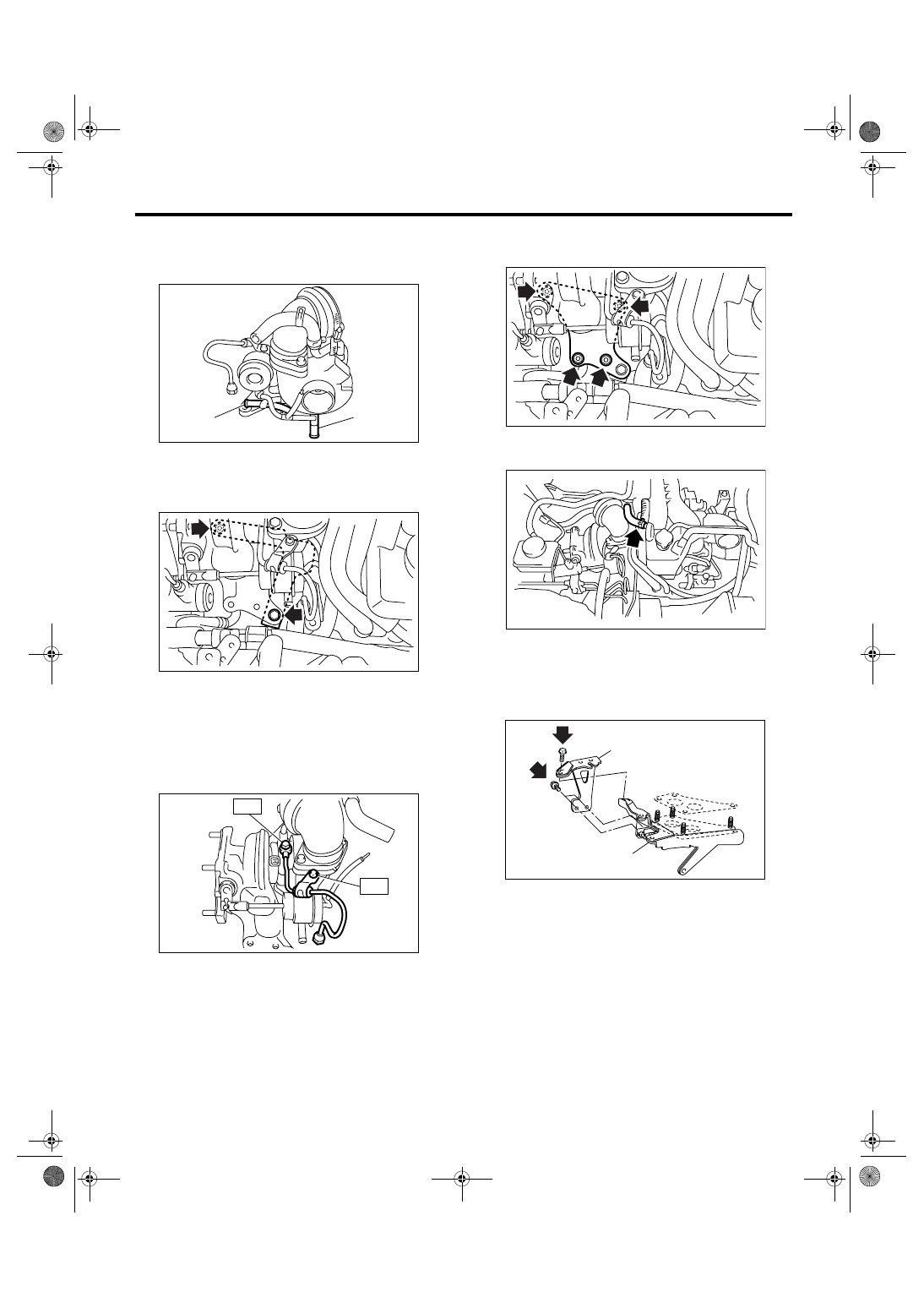

B: INSTALLATION
1) Connect the hoses to the oil outlet pipe (A) and
coolant pipe (B) located under the turbocharger.
2) Install the turbocharger to bracket.
Tightening torque:
33 N
⋅
m (3.4 kgf-m, 24.6 ft-lb)
3) Install the oil inlet pipe to turbocharger.
NOTE:
Use a new metal gasket.
Tightening torque:
T1: 5.0 N
⋅
m (0.51 kgf-m, 3.7 ft-lb)
T2: 16 N
⋅
m (1.6 kgf-m, 11.8 ft-lb)
4) Install the joint pipe to turbocharger.
NOTE:
Use a new gasket.
Tightening torque:
35 N
⋅
m (3.6 kgf-m, 25.8 ft-lb)
5) Connect the engine coolant hose which is con-
nected to the coolant filler tank.
6) Lift-up the vehicle.
7) Install the center exhaust pipe.
<Ref. to EX(H4DOTC)-7, INSTALLATION, Center
Exhaust Pipe.>
8) Install the linear motion mounting bracket.
Tightening torque:
40 N
⋅
m (4.1 kgf-m, 29.5 ft-lb)
9) Install the linear motion mounting.
<Ref. to ME(H4DOTC)-38, INSTALLATION, Linear
Motion Mounting.>

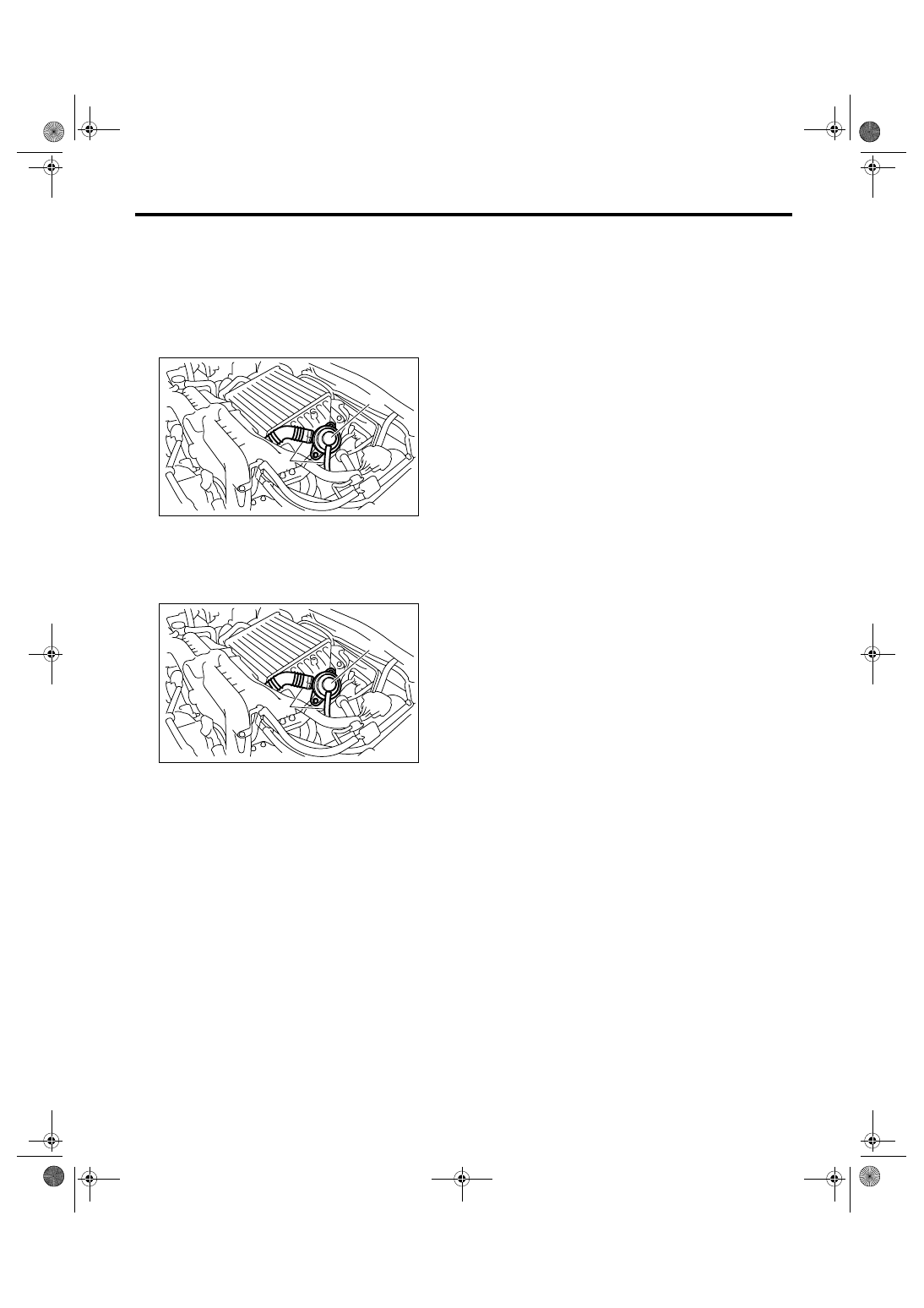

10) Install the intercooler bracket RH.
11) Install the intercooler. <Ref. to IN(H4DOTC)-
12, INSTALLATION, Intercooler.>
12) Install the collector cover.
IN-00230
(B)
(A)
IN-00229
IN-02018
T2
T1
(A) Linear motion mounting bracket
(B) Turbocharger bracket
IN-00227
IN-00226
IN-00252
(A)
(B)
