Subaru Legacy (2005 year). Manual - part 261

IN(H4DOTC)-3

INTAKE (INDUCTION)

General Description

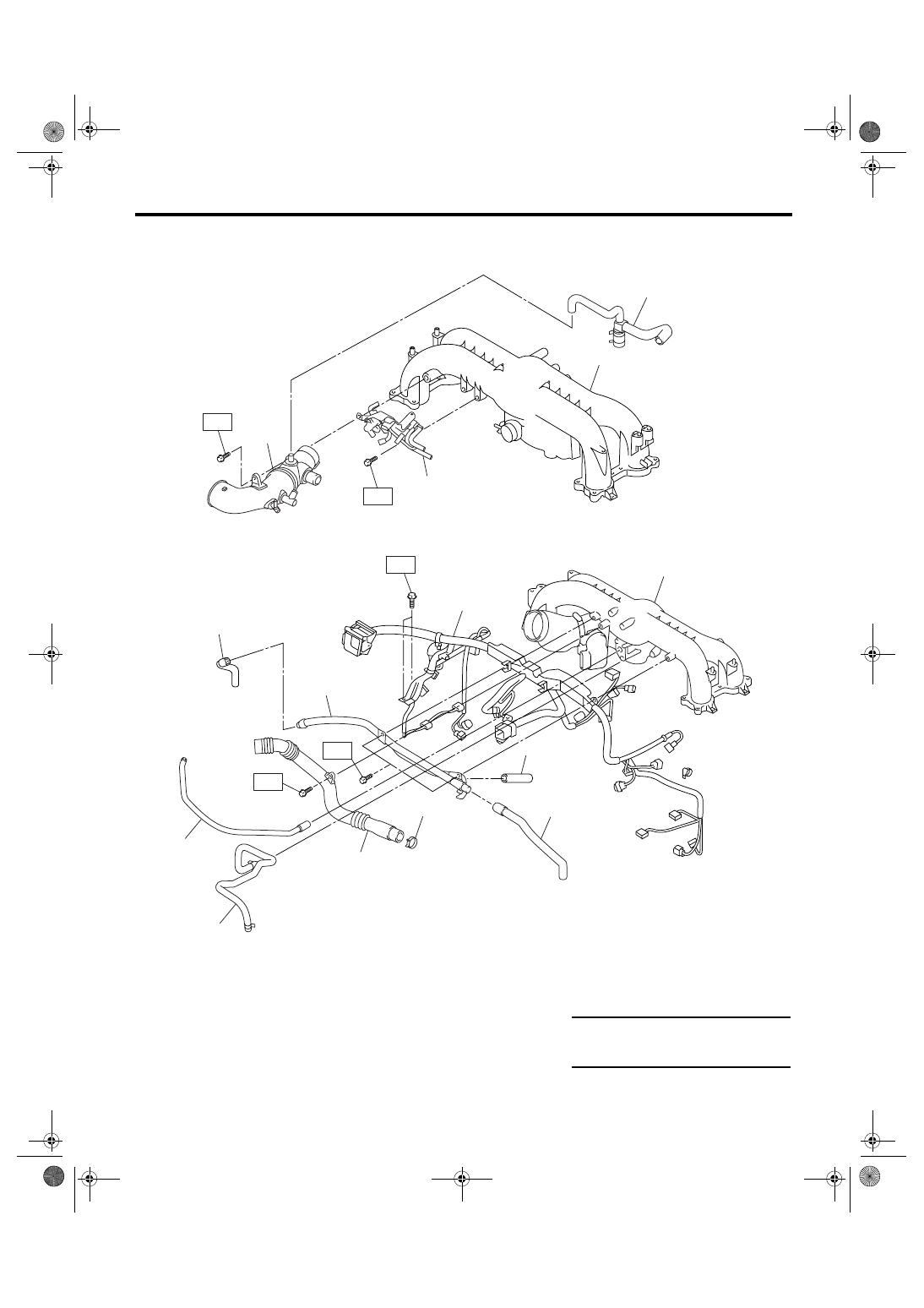

2. INTAKE DUCT

(1)

PCV hose ASSY

(7)

Vacuum hose

(13)

Brake booster hose

(2)

Intake manifold

(8)

PCV pipe

(3)

Solenoid valve bracket ASSY

(9)

Vacuum hose

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(4)

Intake duct

(10)

Air by-pass pipe

T1: 6.5 (0.66, 4.8)

(5)

Engine harness ASSY

(11)

Clamp

T2: 19 (1.9, 13.7)

(6)

Vacuum hose

(12)

Vacuum hose

IN-00214

T2

(1)

(2)

(2)

(9)

(8)

(6)

(10)

(12)

(11)

(13)

(7)

(5)

(3)

(4)

T2

T1

T1

T2

IN(H4DOTC)-4

Vehicle-id:
SIE-id:S144001a05:A:COMPONENT
∼

INTAKE (INDUCTION)

General Description

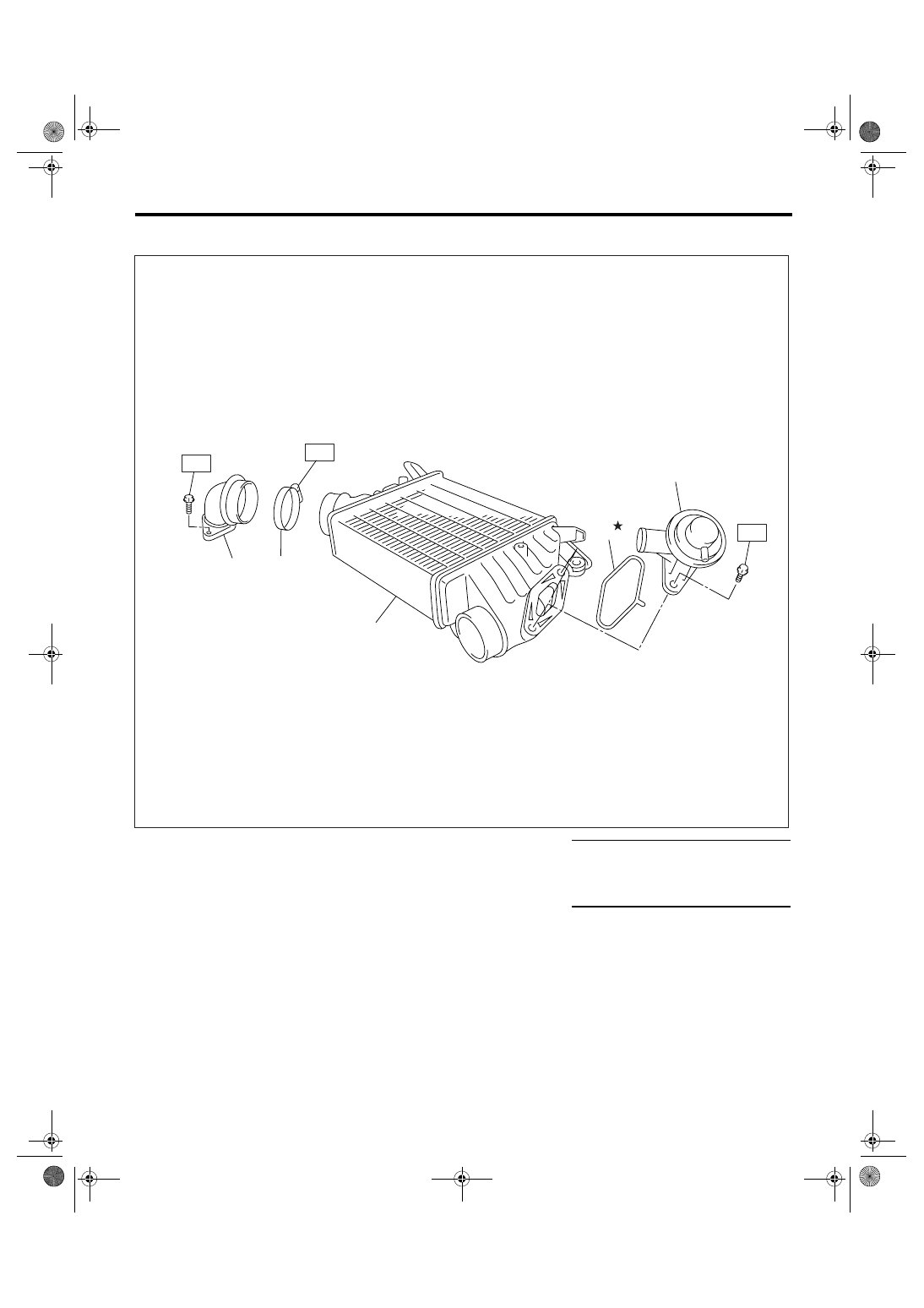

3. INTERCOOLER

(1)

Intercooler

(4)

Intake duct

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Gasket

(5)

Clamp

T1: 3.0 (0.3, 2.2)

(3)

Air by-pass valve

T2: 6.5 (0.66, 4.8)

T3: 16 (1.6, 11.8)

IN-00215

T3

(1)

(4)

(5)

(2)

(3)

T2

T1

IN(H4DOTC)-5

INTAKE (INDUCTION)

General Description

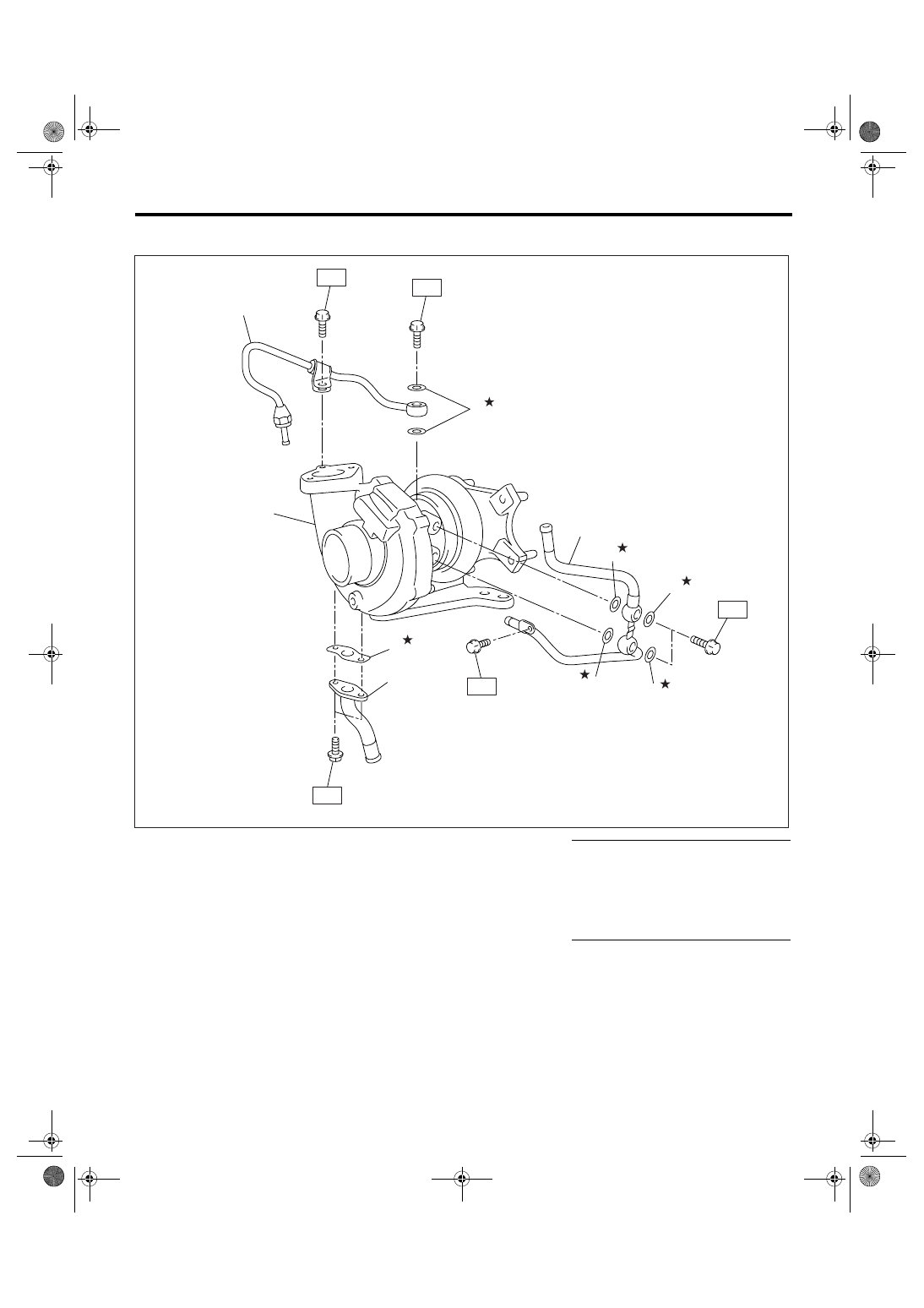

4. TURBOCHARGER

(1)

Oil inlet pipe

(4)

Water pipe

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Metal gasket

(5)

Gasket

T1: 4.7 (0.48, 3.5) (AT model)

6.5 (0.66, 4.8) (MT model)

(3)

Turbocharger

(6)

Oil outlet pipe

T2: 5.0 (0.51, 3.7)

T3: 23 (2.3, 17.0)

T4: 16 (1.6, 11.8)

T2

T1

T1

T3

(1)

(2)

(6)

(5)

(2)

(2)

(2)

(2)

T4

(4)

IN-00216

(3)

IN(H4DOTC)-6

Vehicle-id:
SIE-id:S144001a03:B:CAUTION
∼

INTAKE (INDUCTION)

General Description

B: CAUTION

• Wear work clothing, including a cap, protective
goggles, and protective shoes during operation.
• Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust and dirt.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly and replacement.
• Be careful not to burn yourself, because each
part on the vehicle is hot after running.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or rigid racks at the specified
points.
• Before disconnecting electrical connectors of
sensors or units, be sure to disconnect the ground
cable from battery.
