FU(H4DOTC)-57
FUEL INJECTION (FUEL SYSTEMS)
Fuel Delivery, Return and Evaporation Lines

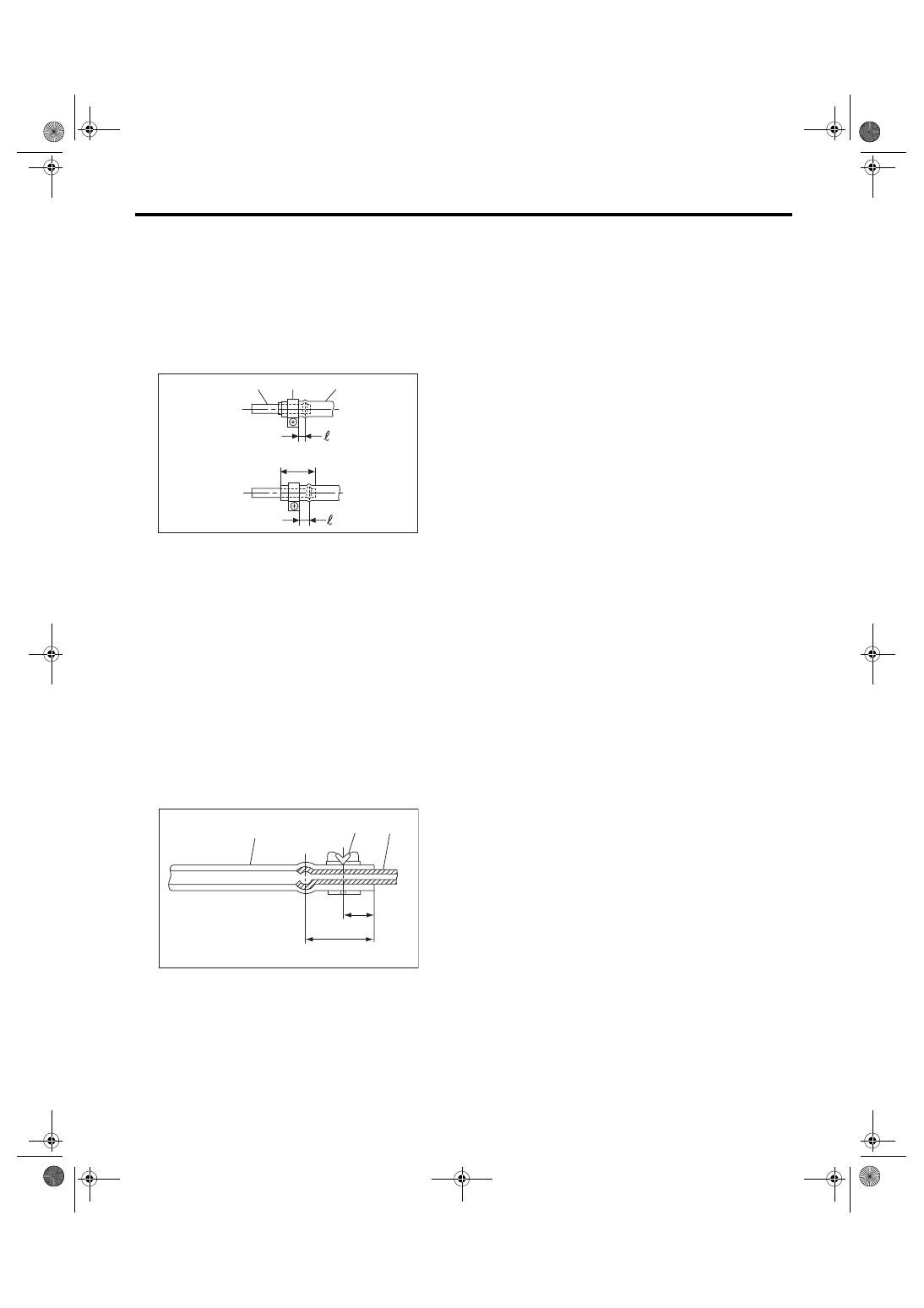

2) Connect the fuel delivery hose to the pipe with
an overlap of 20 to 25 mm (0.79 to 0.98 in).
Type A: When the amount to be inserted is speci-
fied.
Type B: When the amount to be inserted is not
specified.
2: 2.5
±
1.5 mm (0.098
±
0.059 in)
L: 22.5
±
2.5 mm (0.886
±
0.098 in)
3) Connect the return hose and evaporation hose
to the pipe by approx. 15 mm (0.59 in) from the
hose end.
Fuel return hose:
L = 22.5
±
2.5 mm (0.885
±
0.098 in)
Fuel evaporation hose:
L = 17.5
±
2.5 mm (0.689
±
0.098 in)
CAUTION:
Be sure to inspect the hoses and their connec-
tions for fuel leakage.
C: INSPECTION
1) Make sure that there are no cracks on the fuel
pipes and fuel hoses.
2) Make sure the fuel pipe and fuel hose connec-
tions are tightened firmly.
(1) Type A
(2) Type B
(3) Pipe
(4) Clamp
(5) Hose
(1) Hose
(2) Clip
(3) Pipe
(3)
(4)
(5)
L
(1)
(2)
FU-00128
FU-00129
(1)
(2)
L/2
L
(3)
