FU(H4DOTC)-5

FUEL INJECTION (FUEL SYSTEMS)

General Description

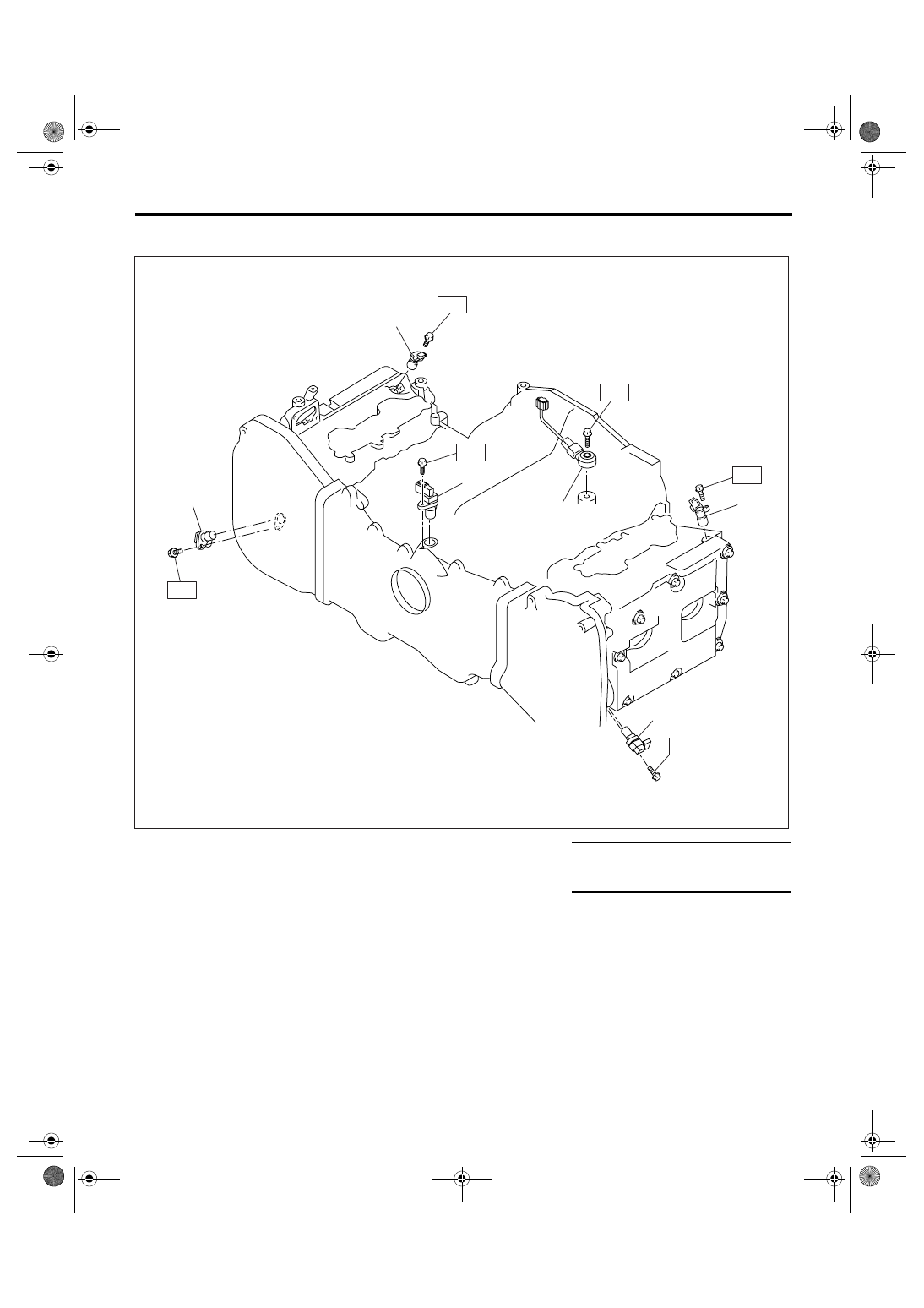

3. CRANKSHAFT POSITION, CAMSHAFT POSITION AND KNOCK SENSORS

(1)

Crankshaft position sensor

(5)

Exhaust camshaft position sensor
LH

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Knock sensor

T1: 6.4 (0.65, 4.7)

(3)

Intake camshaft position sensor
LH

(6)

Exhaust camshaft position sensor
RH

T2: 24 (2.4, 17.7)

(4)

Intake camshaft position sensor
RH

FU-01156

(4)

(3)

(2)

(5)

(6)

(1)

T1

T1

T2

T1

T1

T1

FU(H4DOTC)-6

FUEL INJECTION (FUEL SYSTEMS)

General Description

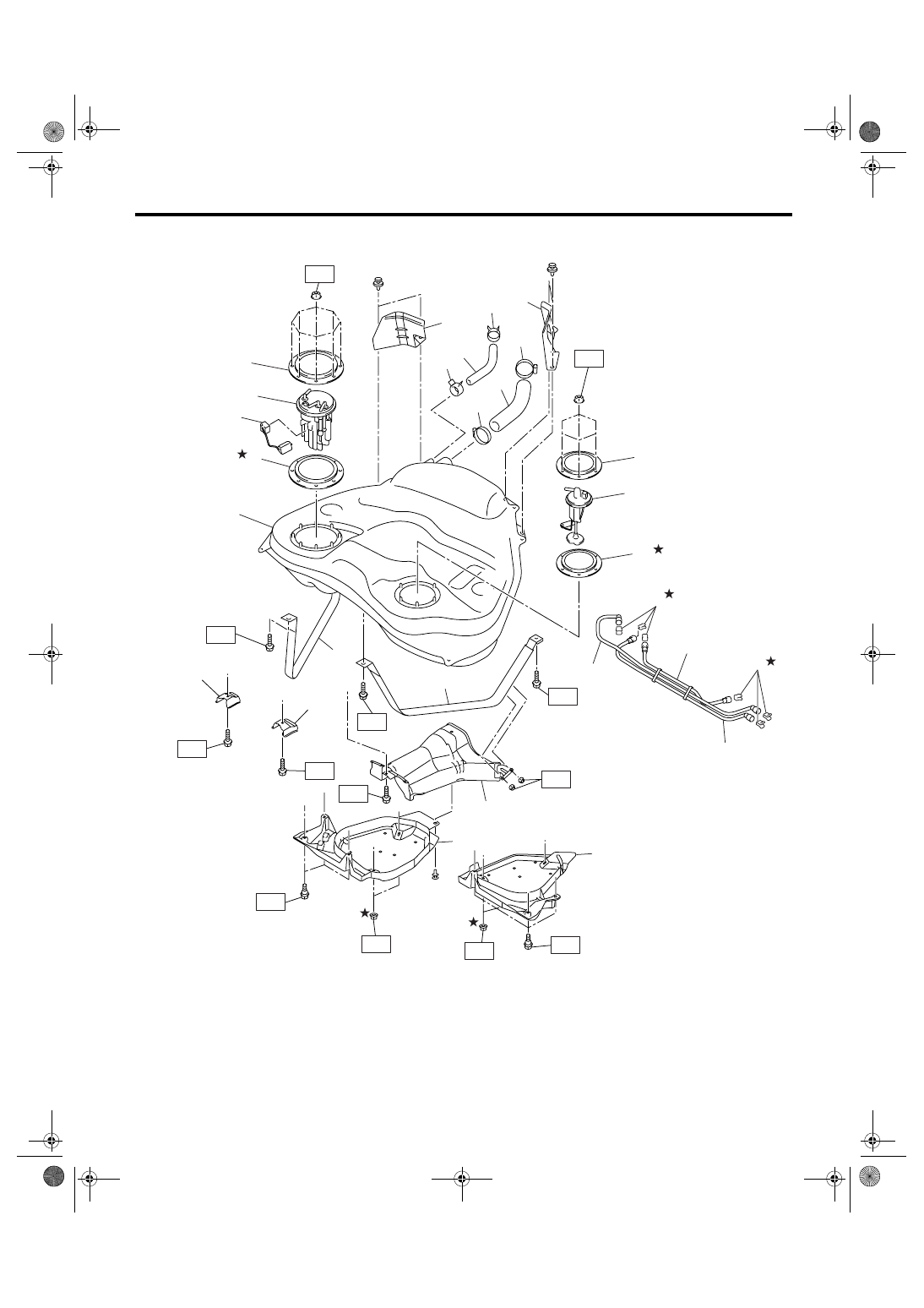

4. FUEL TANK

FU-01328

T4

T1

T4

T3

T3

T3

T2

T3

T3

T4

T1

(16)

(14)

(15)

(15)

(17)

(18)

(19)

(17)

(6)

(22)

(5)

(4)

(3)

(23)

(24)

(25)

(2)

(20)

(21)

(11)

(12)

(13)

(8)

(7)

(10)

(9)

(1)

T2

T3

(22)

FU(H4DOTC)-7

FUEL INJECTION (FUEL SYSTEMS)

General Description

(1)

Fuel tank

(12)

Fuel sub level sensor upper plate

(23)

Heat shield cover

(2)

Fuel tank band RH

(13)

Fuel sub level sensor gasket

(24)

Fuel tank protector RH (Front)

(3)

Fuel tank band LH

(14)

Fuel filler hose

(25)

Fuel tank protector LH (Front)

(4)

Delivery tube

(15)

Clamp

(5)

Return tube

(16)

Vent hose

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(6)

Jet pump tube

(17)

Clip

T1: 4.4 (0.45, 3.2)

(7)

Fuel pump ASSY

(18)

Protector RH (Rear)

T2: 9.0 (0.92, 6.6)

(8)

Fuel pump upper plate

(19)

Protector LH (Rear)

T3: 17.5 (1.78, 12.9)

(9)

Fuel pump gasket

(20)

Stopper RH

T4: 33 (3.4, 24.3)

(10)

Fuel level sensor

(21)

Stopper LH

(11)

Fuel sub level sensor

(22)

Retainer

FU(H4DOTC)-8

FUEL INJECTION (FUEL SYSTEMS)

General Description

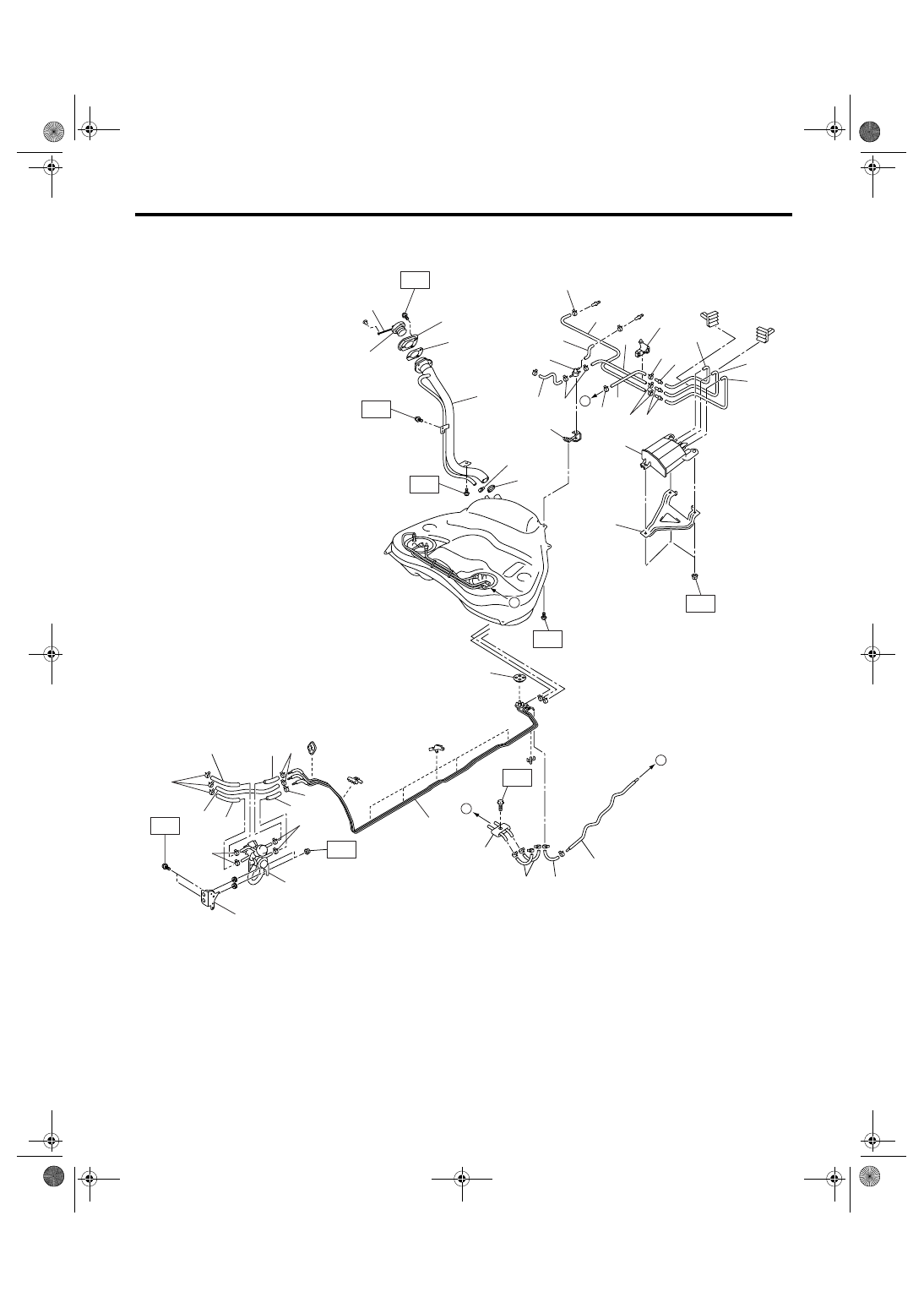

5. FUEL LINE

FU-01329

(1)

(1)

(1)

(8)

(9)

(32)

(30)

(31)

(6)

(11)

(15)

(1)

(1)

(16)

(1)

(20)

(19)

(14)

(13)

(12)

(1)

(22)

(22)

(10)

(29)

(17)

(26)

(25)

(24)

(18)

(23)

(1)

(21)

(34)

(28)

(27)

T2

T1

T3

T2

T2

T2

T2

T2

(33)

B

A

A

B

(1)

(3)

(2)

(4)

(5)

(6)

(7)

(1)
