EN(H4SO 2.5)(diag)-197

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK POWER SUPPLY TO EGR SOLE-
NOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from EGR sole-
noid valve.
3) Turn the ignition switch to ON.
4) Measure the voltage between EGR sole-
noid valve connector and engine ground.

Connector & terminal

(E18) No. 2 (+) — Engine ground (

−

):

(E18) No. 5 (+) — Engine ground (

−

):

Is the voltage more than 10 V? Go to step 2.

Repair the har-
ness and connec-
tor.

NOTE:
In this case, repair
the following:
• Open circuit of
harness between
EGR solenoid
valve and main
relay connector
• Poor contact in
coupling connector

2

CHECK HARNESS BETWEEN ECM AND
EGR SOLENOID VALVE CONNECTOR.
1) Turn the ignition switch to OFF.
2) Measure the resistance between ECM and
EGR solenoid valve connector.

Connector & terminal

DTC P1492; (B134) No. 11 — (E18) No. 3:
DTC P1494; (B134) No. 10 — (E18) No. 1:
DTC P1496; (B134) No. 9 — (E18) No. 4:
DTC P1498; (B134) No. 8 — (E18) No. 6:

Is the resistance less than 1
Ω?

Go to step 3.

Repair the har-
ness and connec-
tor.

NOTE:
In this case, repair
the following:
• Open circuit of
harness between
ECM and EGR
solenoid valve
connector
• Poor contact in
coupling connector

3

CHECK HARNESS BETWEEN ECM AND
EGR SOLENOID VALVE CONNECTOR.
1) Disconnect the connector from ECM.
2) Measure the resistance between ECM con-
nector and chassis ground.

Connector & terminal

DTC P1492; (B134) No. 11 — Chassis
ground:
DTC P1494; (B134) No. 10 — Chassis
ground:
DTC P1496; (B134) No. 9 — Chassis
ground:
DTC P1498; (B134) No. 8 — Chassis
ground:

Is the resistance more than 1
M

Ω?

Go to step 4.

Repair the ground
short circuit in har-
ness between
ECM and EGR
solenoid valve
connector.

4

CHECK POOR CONTACT.
Check poor contact in ECM connector and
EGR solenoid valve connector.

Is there poor contact in ECM
connector or EGR solenoid
valve connector?

Repair the poor
contact in ECM
connector or EGR
solenoid valve
connector.

Replace the EGR
solenoid valve.
<Ref. to FU(H4SO
2.5)-31, EGR
Valve.>

EN(H4SO 2.5)(diag)-198

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

BM:DTC P1499 EGR SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION

(HIGH INPUT)

DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
• Erroneous idling
• Poor driving performance
• Engine breathing

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H4SO 2.5)(diag)-
40, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4SO 2.5)(diag)-33, Inspection Mode.>.

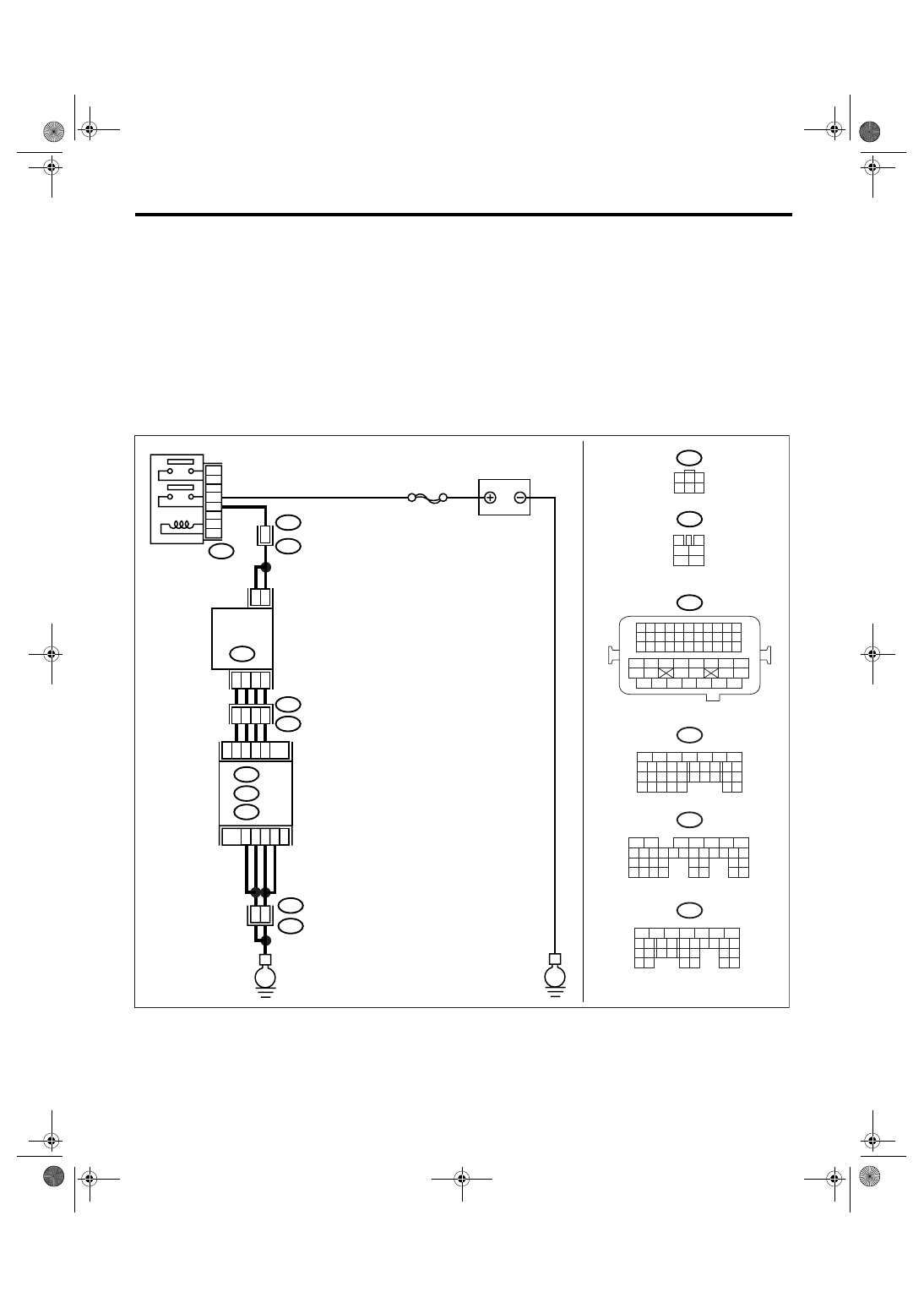

WIRING DIAGRAM:

EN-03464

E

E

B47

E18

2

5

1

4

3

6

B21

E2

B21

E2

B21

E2

5
3

6

2
1

48

26

A10

A9

A11

A8

D2

D1

B4

25

29

30

35

36

SBF-7

BATTERY

MAIN RELAY

EGR

VALVE

A: B134

B: B135

D: B137

ECM

B47

E18

3

4

1

2

5

6

1

3

4 5 6

2

B1

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

B137

5

6

7

8

2

1

9

4

3

10

22 23

11 12 13 14 15

24 25

26

16 17

18 19 20 21

27

28 29

30 31

B134

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

B135

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17 18 19

20 21

29 30 31

32 33

34 35

A:

B:

D:

4

EN(H4SO 2.5)(diag)-199

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

BN:DTC P1518 STARTER SWITCH CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
Detects when malfunction occurs in 2 continuous driving cycles.
TROUBLE SYMPTOM:
Failure of engine to start

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H4SO 2.5)(diag)-
40, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4SO 2.5)(diag)-33, Inspection Mode.>.

Step

Check

Yes

No

1

CHECK ANY OTHER DTC ON DISPLAY.

Is any other DTC displayed?

Check DTC using
“List of Diagnostic
Trouble Code
(DTC)”. <Ref. to
EN(H4SO
2.5)(diag)-69, List
of Diagnostic Trou-
ble Code (DTC).>

Go to step 2.

2

CHECK GROUND CIRCUIT FOR ECM.
1) Turn the ignition switch to OFF.
2) Measure the resistance between ECM con-
nector and chassis ground.

Connector & terminal

(B135) No. 1 — Chassis ground:
(B135) No. 4 — Chassis ground:
(B137) No. 1 — Chassis ground:
(B137) No. 2 — Chassis ground:

Is the resistance less than 5
Ω?

Go to step 3.

Repair the har-
ness and connec-
tor.

NOTE:
In this case, repair
the following:
• Open circuit of
harness between
ECM connector
and engine ground
terminal
• Poor contact in
ECM connector
• Poor contact in
coupling connector

3

CHECK HARNESS BETWEEN ECM AND
EGR SOLENOID VALVE CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from EGR sole-
noid valve.
3) Turn the ignition switch to ON.
4) Measure the voltage between ECM con-
nector and chassis ground.

Connector & terminal

DTC P1493; (B134) No. 11 (+) — Chassis
ground (

−

):

DTC P1495; (B134) No. 10 (+) — Chassis
ground (

−

):

DTC P1497; (B134) No. 9 (+) — Chassis
ground (

−

):

DTC P1499; (B134) No. 8 (+) — Chassis
ground (

−

):

Is the voltage more than 10 V? Repair the battery

short circuit in har-
ness between
ECM and EGR
solenoid valve
connector. After
repair, replace the
ECM. <Ref. to
FU(H4SO 2.5)-37,
Engine Control
Module (ECM).>

Replace the ECM.
<Ref. to FU(H4SO
2.5)-37, Engine
Control Module
(ECM).>

EN(H4SO 2.5)(diag)-200

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

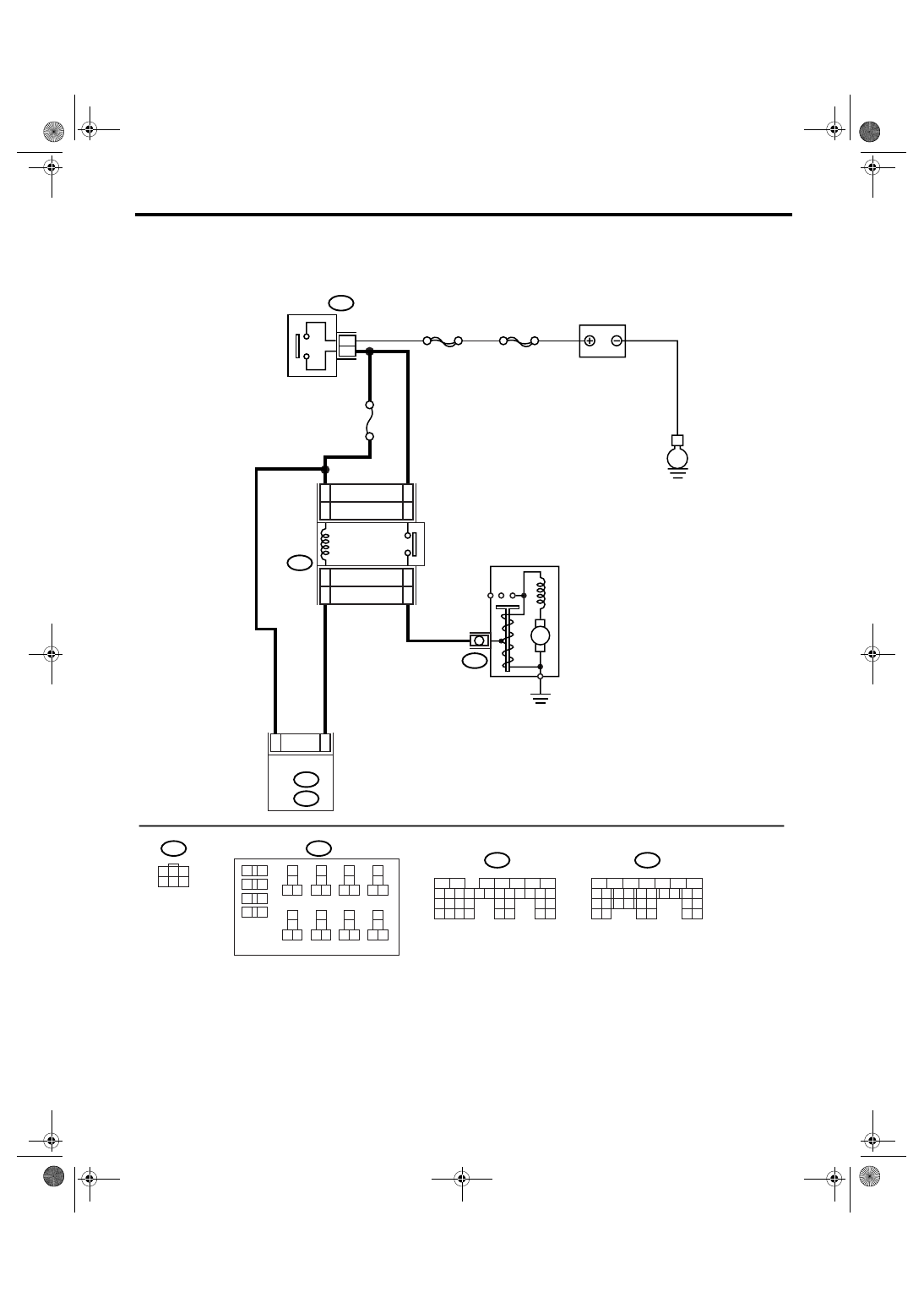

WIRING DIAGRAM:
• EC, EK, EH, ER and K4 model

• KA and KS model

NOTE:
Fuel injection system for KA and KS model is the same as 2.0 L model. Refer to EN(H4SO 2.0) section.

EN-03453

D8

B32

No.21

B225

MAIN SBF

SBF-6

E

ECM

B137

D:

B135

B:

B72

B14

M

2

3

B225

B137

B72

D:

B135

B:

10

11 12

13
14

15 16

17
18

19 20

21
22

23 24

25
26

27 28

29

30

31 32

33
34

35 36

39 40

37
38

1

2

9

3

4

5

6

7

8

1

2

7

8 9

5

6

3

4

10 11 12

19 20 21

29

30 31

13 14 15 16 17

27

28

18

22 23

24 25

26

1

2

7

8 9

5

6

3

4

10 11 12

19

20 21

29 30 31

13 14 15 16 17

27

28

18

22 23

24 25

26

32 33

34 35

1

3

4 5 6

2

BATTERY

IGNITION
SWITCH

STARTER
RELAY

STARTER MOTOR

LHD

LHD

RHD

RHD

16

14

15

13

15

13

16

14
