Subaru Legacy (2005 year). Manual - part 207

EN(H4SO 2.5)(diag)-113

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

O: DTC P0123 THROTTLE/PEDAL POSITION SENSOR/SWITCH “A” CIRCUIT

HIGH

DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
• Erroneous idling
• Engine stalls.
• Poor driving performance

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H4SO 2.5)(diag)-
40, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4SO 2.5)(diag)-33, Inspection Mode.>.

EN(H4SO 2.5)(diag)-114

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

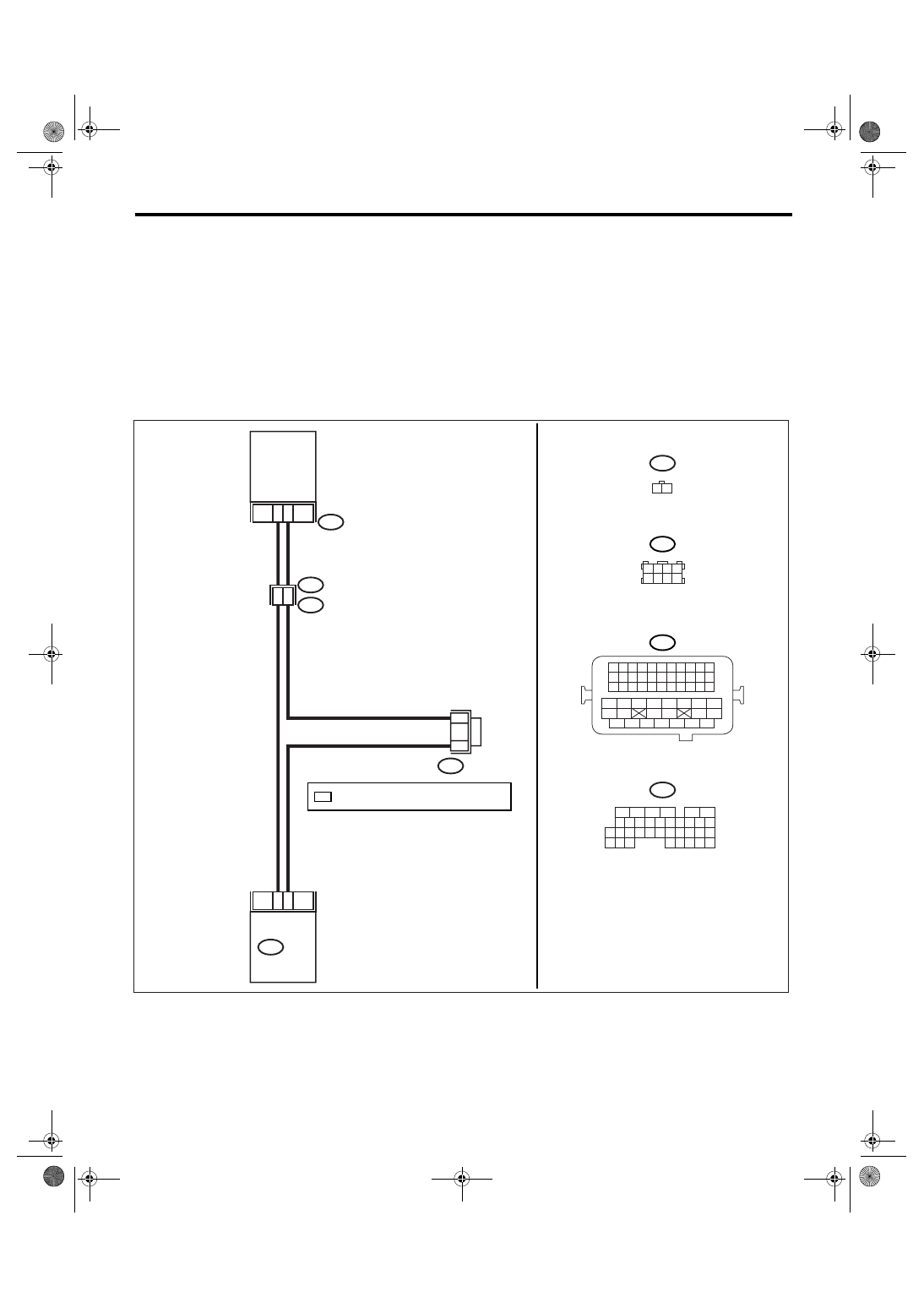

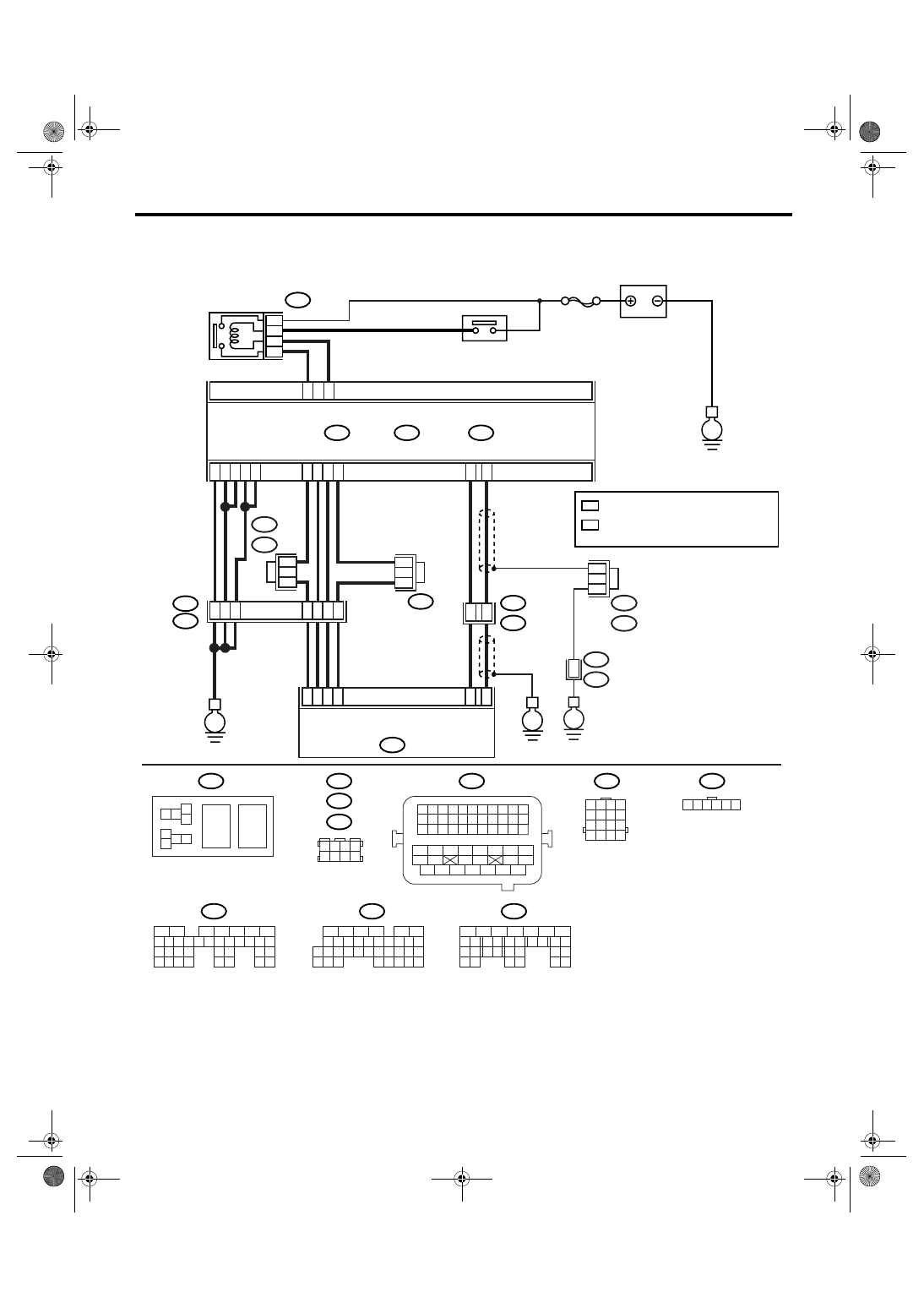

WIRING DIAGRAM:
• EC, EK, EH, ER and K4 model

• KA and KS model

NOTE:
Fuel injection system for KA and KS model is the same as 2.0 L model. Refer to EN(H4SO 2.0) section.

EN-03512

B362

E57

B362

B20

B21

E57

B122

B83

B138

1 2

7 8

3
4

5
6

1 2 3 4 5 6 7 8 9 10 11

12 13 14 15 16 17 18 19 20 21 22
23 24 25

34 35

36 37 38 39 40 41

48 49

50 51 52 53 54

42 43

44 45

46 47

26 27 28 29 30 31 32 33

1 2 3 4
5 6 7 8

1

2

7

8 9

5

6

3

4

10 11 12

19 20 21

29

30 31

13 14 15 16 17

27

28

18

22 23

24 25

26

1

2

7

8 9

5

6

3

4

10 11 12

19

20 21

29 30 31

13 14 15 16 17

27

28

18

22 23

24 25

26

32 33

34 35

1

2

8 9

5

6

3

4

10 11 12

19 20 21

29 30

31

13 14 15 16

17

27

28

18

22 23 24 25 26

7

32 33 34 35

B135

B:

B136

C:

B137

D:

BATTERY

MAIN RELAY

ELECTRONIC
THROTTLE
CONTROL RELAY

ELECTRONIC
THROTTLE CONTROL

SBF-7

B135

B:

B137

B136

D:

E1

B20

B83

C:

E

E

E

D6

B35

38

39

20

19

16

15

E2

B21

4

6

1

2

3

5

D4

D5

C35

C16

B1

B4

D1

D2

D3

36

35

37

C29

C18

ECM

5

8

7

6

36

B21

E2

E

B122 : RHD

B138 : LHD

1 2 3 4 5 6

B138 : RHD

B122 : LHD

1 2 3 4
5 6 7 8
9 10 11 12

14

13

15 16

*

: TERMINAL No. RANDOM ARRANGEMENT

1

*

: TERMINAL No. RANDOM ARRANGEMENT
  AMONG 1,2,5, AND 6

2

*

1

*

2

*

1

*

1

*

1

*

2

EN(H4SO 2.5)(diag)-115

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK OPTION CODE.

Is the option code EC, EK, EH,
ER or K4?

Go to step 2.

Refer to EN(H4SO
2.0) section. <Ref.
to EN(H4SO
2.0)(diag)-64, List
of Diagnostic Trou-
ble Code (DTC).>

NOTE:
Fuel injection sys-
tem for KA and KS
model is the same
as 2.0 L model.

2

CHECK SENSOR OUTPUT.
1) Turn the ignition switch to ON.
2) Read the data of main throttle sensor signal
using Subaru Select Monitor.

NOTE:

For detailed operation procedure, refer to
“READ CURRENT DATA FOR ENGINE”. <Ref.
to EN(H4SO 2.5)(diag)-25, Subaru Select Mon-
itor.>

Is the voltage less than 4.63
V?

Go to step 3.

Go to step 4.

3

CHECK POOR CONTACT.
Check poor contact in connector between
ECM and electronic throttle control.

Is there poor contact in con-
nector between ECM and elec-
tronic throttle control?

Repair the poor
contact.

Temporary poor
contact occurred,
but it is normal at
present.

4

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Disconnect the connectors from electronic
throttle control.
4) Measure the resistance between ECM con-
nector and electronic throttle control connector.

Connector & terminal

(B136) No. 18 — (E57) No. 6:
(B136) No. 35 — (E57) No. 3:

Is the resistance less than 1
Ω?

Go to step 5.

Repair the open
circuit of harness
connector.

5

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Connect the ECM connector.
2) Measure the resistance between electronic
throttle control connector and engine ground.

Connector & terminal

(E57) No. 3 — Engine ground:

Is the resistance less than 1
Ω?

Go to step 6.

Repair the poor
contact in ECM
connector.
Replace the ECM
if defective. <Ref.
to FU(H4SO 2.5)-
37, Engine Con-
trol Module
(ECM).>

6

CHECK SENSOR OUTPUT POWER SUP-
PLY.
Measure the voltage between electronic throt-
tle control connector and engine ground.

Connector & terminal

(E57) No. 6 (+) — Engine ground (

−

):

Is the voltage less than 10 V?

Go to step 7.

Repair the battery
short circuit of har-
ness between
ECM connector
and electronic
throttle control
connector.

7

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Measure the resistance between ECM con-
nectors.

Connector & terminal

(B136) No. 18 — (B136) No. 16:

Is the resistance more than 1
M

Ω?

Repair the poor
contact in harness.
Replace the elec-
tronic throttle con-
trol.

Repair the short
circuit to sensor
power supply.

EN(H4SO 2.5)(diag)-116

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

P: DTC P0125 INSUFFICIENT COOLANT TEMPERATURE FOR CLOSED LOOP

FUEL CONTROL

DTC DETECTING CONDITION:
Detects when malfunction occurs in 2 continuous driving cycles.
TROUBLE SYMPTOM:
Engine would not return to idling.

CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H4SO 2.5)(diag)-
40, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4SO 2.5)(diag)-33, Inspection Mode.>.
WIRING DIAGRAM:
• EC, EK, EH, ER and K4 model

• KA and KS model

NOTE:
Fuel injection system for KA and KS model is the same as 2.0 L model. Refer to EN(H4SO 2.0) section.

EN-03461

35

14

19

8

B136

ECM

1

2

E2

B21

E8

ENGINE

COOLANT

TEMPERATURE

SENSOR

E8

B21

1 2 3 4
5 6 7 8

B83

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

B136

5

6

7 8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16

17 18 19 20 21

33 34

29

32

30

31

35

*

: TERMINAL No. RANDOM ARRANGEMENT

B83

1 2

*

*
