Subaru Legacy (2005 year). Manual - part 139





EN(H4SO 2.0)(diag)-145

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

AH:DTC P0340 CAMSHAFT POSITION SENSOR “A” CIRCUIT (BANK 1 OR SIN-

GLE SENSOR)

DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
• Engine stalls.
• Failure of engine to start

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H4SO 2.0)(diag)-
38, OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4SO 2.0)(diag)-32, PRO-
CEDURE, Inspection Mode.>.

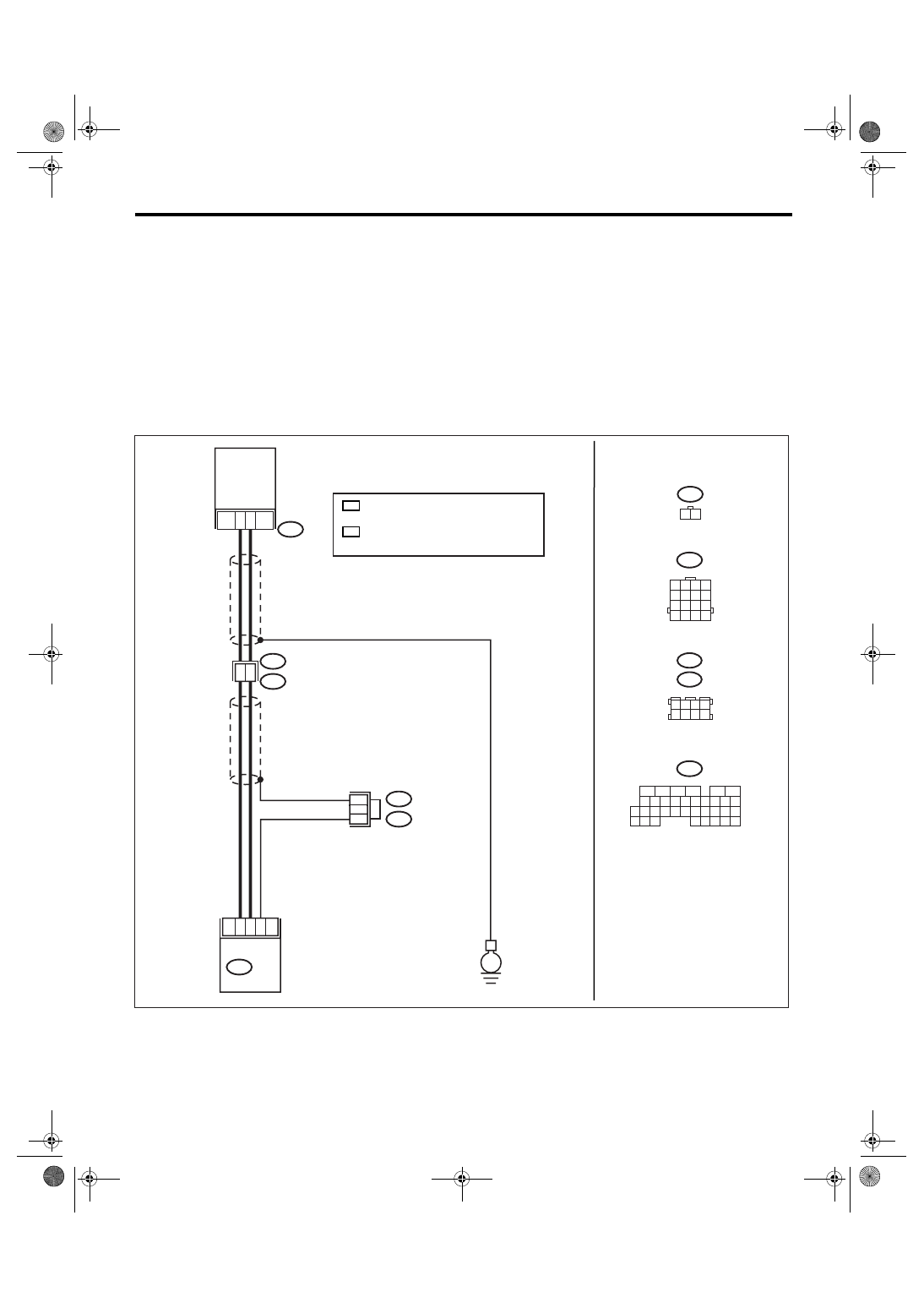

WIRING DIAGRAM:

EN-03482

E15

1 2

1

2

6

5

25

32

B20

E1

E15

B136

ECM

CAMSHAFT

POSITION

SENSOR

E

B20

1 2 3 4
5 6 7 8

2

2

*

B136

5

6

7 8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16

17 18 19 20 21

33 34

29

32

30

31

35

B138

B122

B138 :LHD

B122 :RHD

*
*

1

: TERMINAL No. RANDOM ARRANGEMENT
  AMONG 3,4,7, AND 8

*

 : WITH IMMOBILIZER: 26
   WITHOUT IMMOBILIZER: 27

1

2

*

1 2 3 4
5 6 7 8
9 10 11 12

14

13

15 16

EN(H4SO 2.0)(diag)-146

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR AND ECM CONNEC-
TOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from camshaft
position sensor.
3) Measure the resistance of harness
between camshaft position sensor connector
and engine ground.

Connector & terminal

(E15) No. 1 — Engine ground:

Is the resistance more than
100 k

Ω?

Repair the har-
ness and connec-
tor.

NOTE:
In this case, repair
the following item:
• Open circuit of
harness between
camshaft position
sensor and ECM
connector
• Poor contact in
ECM connector
• Poor contact in
coupling connector

Go to step 2.

2

CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR AND ECM CONNEC-
TOR.
Measure the resistance of harness between
camshaft position sensor connector and
engine ground.

Connector & terminal

(E15) No. 1 — Engine ground:

Is the resistance less than 10
Ω?

Repair the ground
short circuit of har-
ness between
camshaft position
sensor and ECM
connector.

NOTE:
The harness be-
tween both con-
nectors are
shielded. Repair
the ground short
circuit of harness
with shield.

Go to step 3.

3

CHECK HARNESS BETWEEN CAMSHAFT
POSITION SENSOR AND ECM CONNEC-
TOR.
Measure the resistance of harness between
camshaft position sensor connector and
engine ground.

Connector & terminal

(E15) No. 2 — Engine ground:

Is the resistance less than 5
Ω?

Go to step 4.

Repair the har-
ness and connec-
tor.

NOTE:
In this case, repair
the following item:
• Open circuit of
harness between
camshaft position
sensor and ECM
connector
• Poor contact in
ECM connector
• Poor contact in
coupling connector

4

CHECK CONDITION OF CAMSHAFT POSI-
TION SENSOR.

Is the camshaft position sensor
installation bolt tightened
securely?

Go to step 5.

Tighten the cam-
shaft position sen-
sor installation bolt
securely.

5

CHECK CAMSHAFT POSITION SENSOR.
1) Remove the camshaft position sensor.
2) Measure the resistance between connector
terminals of camshaft position sensor.

Terminals

No. 1 — No. 2:

Is the resistance 1 — 4 k

Ω?

Repair the poor
contact in cam-
shaft position sen-
sor connector.

Replace the cam-
shaft position sen-
sor. <Ref. to
FU(H4SO 2.0)-22,
Camshaft Position
Sensor.>

EN(H4SO 2.0)(diag)-147

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

AI: DTC P0400 EXHAUST GAS RECIRCULATION FLOW

DTC DETECTING CONDITION:
Detects when malfunction occurs in 2 continuous driving cycles.
TROUBLE SYMPTOM:
• Movement performance problem when engine is low speed.
• Erroneous idling
• Movement performance problem

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H4SO 2.0)(diag)-
38, OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4SO 2.0)(diag)-32, PRO-
CEDURE, Inspection Mode.>.

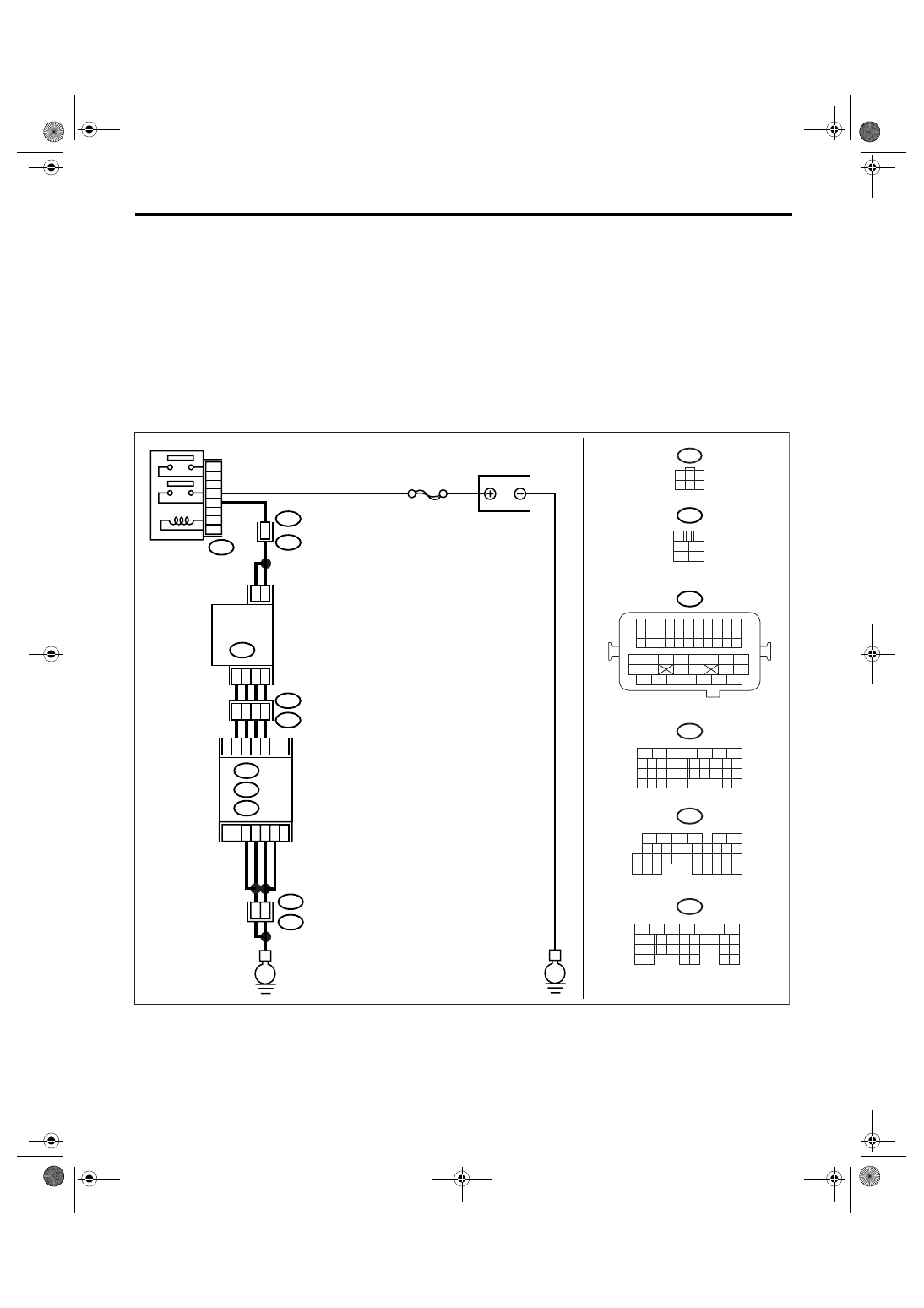

WIRING DIAGRAM:

EN-03483

E

E

B47

E18

2

5

1

4

3

6

B21

E2

B21

E2

B21

E2

5
3

6
4

2
1

48

26

A12

A3

A13

A4

C6

C5

D1

25

29

30

35

36

SBF-7

BATTERY

MAIN RELAY

EGR

VALVE

A: B134

C: B136

D: B137

ECM

B47

3

4

1

2

5

6

A2

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

B137

5

6

7

8

2

1

9

4

3

10

22 23

11 12 13 14 15

24 25

26

16 17

18 19 20 21

27

28 29

30 31

B134

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

A:

D:

B136

5

6

7 8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16

17 18 19 20 21

33 34

29

32

30

31

35

C:

1

3

4 5 6

2

E18

EN(H4SO 2.0)(diag)-148

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK ANY OTHER DTC ON DISPLAY.

Is any other DTC displayed?

Check DTC using
“List of Diagnostic
Trouble Code
(DTC)”. <Ref. to
EN(H4SO
2.0)(diag)-64, List
of Diagnostic Trou-
ble Code (DTC).>

Go to step 2.

2

CHECK CURRENT DATA.
1) Start the engine.
2) Read the data of intake manifold absolute
pressure signal using Subaru Select Monitor or
general scan tool.

NOTE:

• Subaru Select Monitor
For detailed operation procedure, refer to
“READ CURRENT DATA FOR ENGINE”. <Ref.
to EN(H4SO 2.0)(diag)-25, Subaru Select
Monitor.>
• General scan tool
For detailed operation procedure, refer to the
general scan tool operation manual.

Is the value more than 53.3
kPa (400 mmHg, 15.75 inHg)?

Make sure that the
EGR valve, mani-
fold absolute pres-
sure sensor and
throttle body are
installed securely.

Go to step 3.

3

CHECK POWER SUPPLY OF EGR SOLE-
NOID VALVE.
1) Detach the connector from EGR solenoid
valve.
2) Turn the ignition switch to ON.
3) Measure the voltage between EGR sole-
noid valve and engine ground.

Connector & terminal

(E18) No. 2 (+) — Engine ground (

−

):

(E18) No. 5 (+) — Engine ground (

−

):

Is the voltage more than 10 V? Go to step 4.

Repair the open
circuit of harness
between main
relay and EGR
solenoid valve
connector.

4

CHECK EGR SOLENOID VALVE.
Measure the resistance between EGR sole-
noid valve terminals.

NOTE:

Make sure there is no foreign material between
EGR solenoid valve and valve seat.

Terminals

No. 1 — No. 2:
No. 3 — No. 2:
No. 4 — No. 5:
No. 6 — No. 5:

Is the resistance 20 — 30

Ω?

Go to step 5.

Replace the EGR
solenoid valve.
<Ref. to FU(H4SO
2.0)-28, EGR
Valve.>

5

CHECK OUTPUT SIGNAL FROM ECM.
1) Turn the ignition switch to OFF.
2) Connect the connector to ECM and EGR
solenoid valve.
3) Turn the ignition switch to ON.
4) Measure the voltage between ECM and
chassis ground.

Connector & terminal

(B134) No. 4 (+) — Chassis ground (

−

):

(B134) No. 3 (+) — Chassis ground (

−

):

(B134) No. 12 (+) — Chassis ground (

−

):

(B134) No. 13 (+) — Chassis ground (

−

):

Is the voltage 0 — 10 V?

Repair the poor
contact portion in
ECM connector.

Go to step 6.
