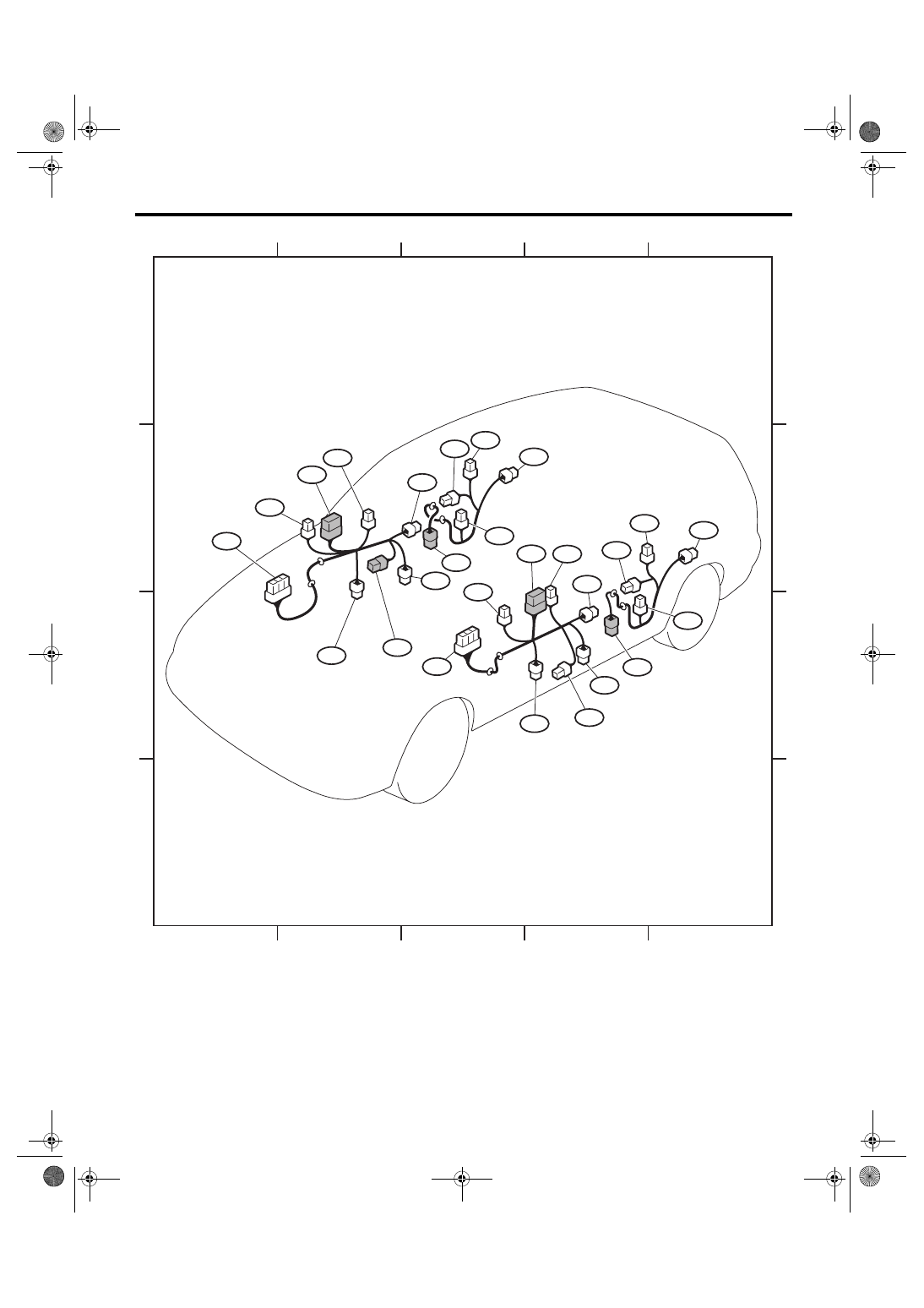

WI-373

WIRING SYSTEM

Door Cord

1

2

3

4

5

1

2

3

4

5

A

B

C

D

A

B

C

D

D97

D15

D17

D13

D22

D20

D23

D83

D84

D93

D5

D7

D72

D2

D3

D10

D28

D29

D30

D31

D32

D24

D18

D25

D26

D12

WI-04315

WI-374

WIRING SYSTEM

Door Cord

2. RHD MODEL

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

D2

2

★

B-2

Front door speaker RH

D3

2

Gray

B-2

Front power window motor RH

D4

2

Black

B-2

Front door tweeter (Gusset) RH

D5

8

★

B-2

Remote control mirror RH (Without mirror heater)

10

★

Remote control mirror RH (With mirror heater)

D7

14

★

B-2

Power window main switch

D10

2

★

B-3

Front step light RH

D12

2

★

C-4

Front door speaker LH

D13

2

Gray

C-4

Front power window motor LH

D14

2

Black

C-3

Front door tweeter (Gusset) LH

D15

8

★

C-4

Remote control mirror LH (Without mirror heater)

10

★

Remote control mirror LH (With mirror heater)

D17

5

★

C-4

Front power window sub switch

D18

2

Gray

C-4

Front door lock actuator LH (Without double lock)

6

Black

Front door lock actuator LH (With double lock)

D20

2

★

C-4

Front step light LH

D22

8

★

C-4

R10

Rear wiring harness

D23

2

Black

C-4

Rear door speaker LH

D24

2

Green

B-4

Rear power window motor LH

D25

5

★

B-4

Rear power window sub switch LH

D26

2

Gray

B-5

Rear door lock actuator LH (Without double lock)

6

Black

Rear door lock actuator LH (With double lock)

D28

8

★

B-3

R13

Rear wiring harness

D29

2

Black

B-3

Rear door speaker RH

D30

2

Green

B-3

Rear power window motor RH

D31

5

★

B-3

Rear power window sub switch RH

D32

2

Gray

B-3

Rear door lock actuator RH (Without double lock)

6

Black

Rear door lock actuator RH (With double lock)

D72

2

Gray

B-3

Front door lock actuator RH (Without double lock)

6

Black

Front door lock actuator RH (With double lock)

D82

3

Brown

B-3

Door key switch

D83

25

★

B-1

i76

Instrument panel wiring harness (Without double lock)

28

★

Instrument panel wiring harness (With double lock)

D84

25

★

C-3

i101

Instrument panel wiring harness

D92

2

★

B-2

Front squawker RH

D93

2

★

B-2

Front door tweeter RH

D94

10

Green

B-2

Joint connector RH (Model with McIntosh)

D96

2

★

C-3

Front squawker LH

D97

2

★

C-3

Front door tweeter LH

D98

10

Green

C-3

Joint connector LH (Model with McIntosh)

★: Non-colored

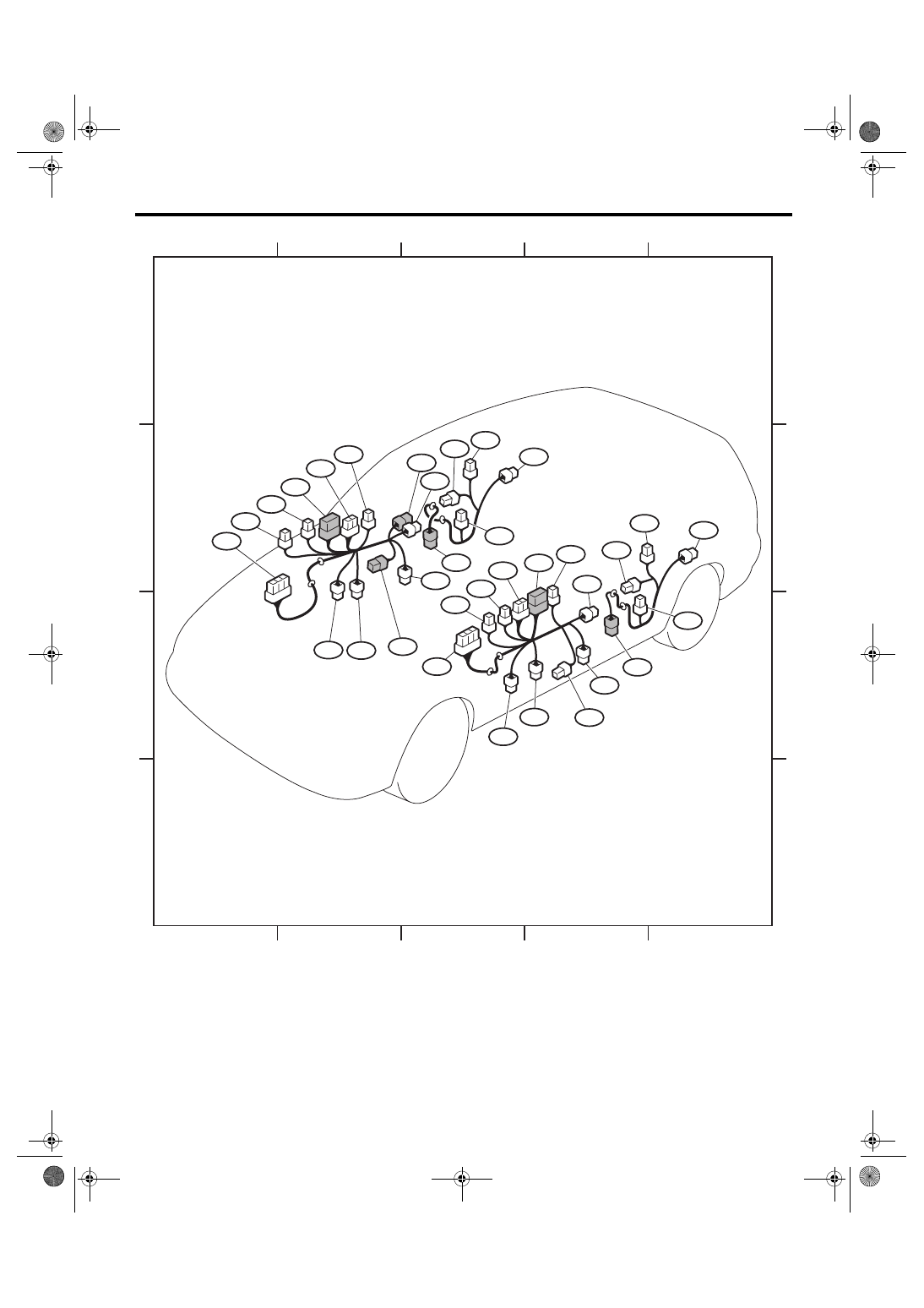

WI-375

WIRING SYSTEM

Door Cord

1

2

3

4

5

1

2

3

4

5

A

B

C

D

A

B

C

D

D93

D4

D5

D94

D7

D3

D28

D10

D29

D84

D83

D97

D98

D14

D17

D15

D18

D12

D96

D13

D20

D22

D23

D24

D25

D26

D30

D82

D72

D31

D32

D2

D92

WI-04316

WI-376

WIRING SYSTEM

Rear Wiring Harness and Trunk Lid Cord

60.Rear Wiring Harness and Trunk Lid Cord

A: LOCATION

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

R19

2

★

B-2

High-mounted stop light (Sedan)

R20

2

★

B-4

Trunk room light

R22

3

★

B-1

Rear door switch LH

R24

8

★

B-4

R60

Trunk lid cord

R26

6

★

B-5

Rear combination light RH

R28

6

★

C-3

Rear combination light LH

R58

6

Gray

C-3

Fuel gauge main module and fuel pump

R59

2

Gray

C-2

Fuel gauge sub module

R60

8

★

B-4

R24

Rear wiring harness

R65

1

Black

B-2

Rear defogger

R66

2

★

B-4

High-mounted stop light (Rear spoiler)

R76

2

★

C-4

License plate light LH

R77

2

★

C-4

License plate light RH

R79

10

★

B-2

Trailer connector

R97

1

★

B-2

Antenna amplifier

R112

2

★

B-4

TV antenna amplifier RH

R113

2

★

B-3

TV antenna amplifier LH

R117

2

★

B-3

Sub woofer (Model with McIntosh)

R122

10

Black

C-2

Fuel pump control module

R174

1

★

B-4

Rear defogger

R186

3

★

C-4

Trunk lock actuator

R189

2

★

C-3

Rear seat belt switch RH

R190

3

★

C-3

Rear seat belt switch center

R191

2

★

C-2

Rear seat belt switch LH

★: Non-colored

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

AB31

2

Yellow

B-2

AB39

Airbag module LH (Curtain)

AB32

4

Yellow

C-1

Curtain airbag sensor LH

AB33

2

Yellow

B-4

AB40

Airbag module RH (Curtain)

★: Non-colored
