Subaru Legacy (2005 year). Manual - part 94





SP(H4SO 2.0)-2

Vehicle-id:
SIE-id:S107001a22:
∼

SPEED CONTROL SYSTEMS

General Description

1. General Description

A: SPECIFICATION

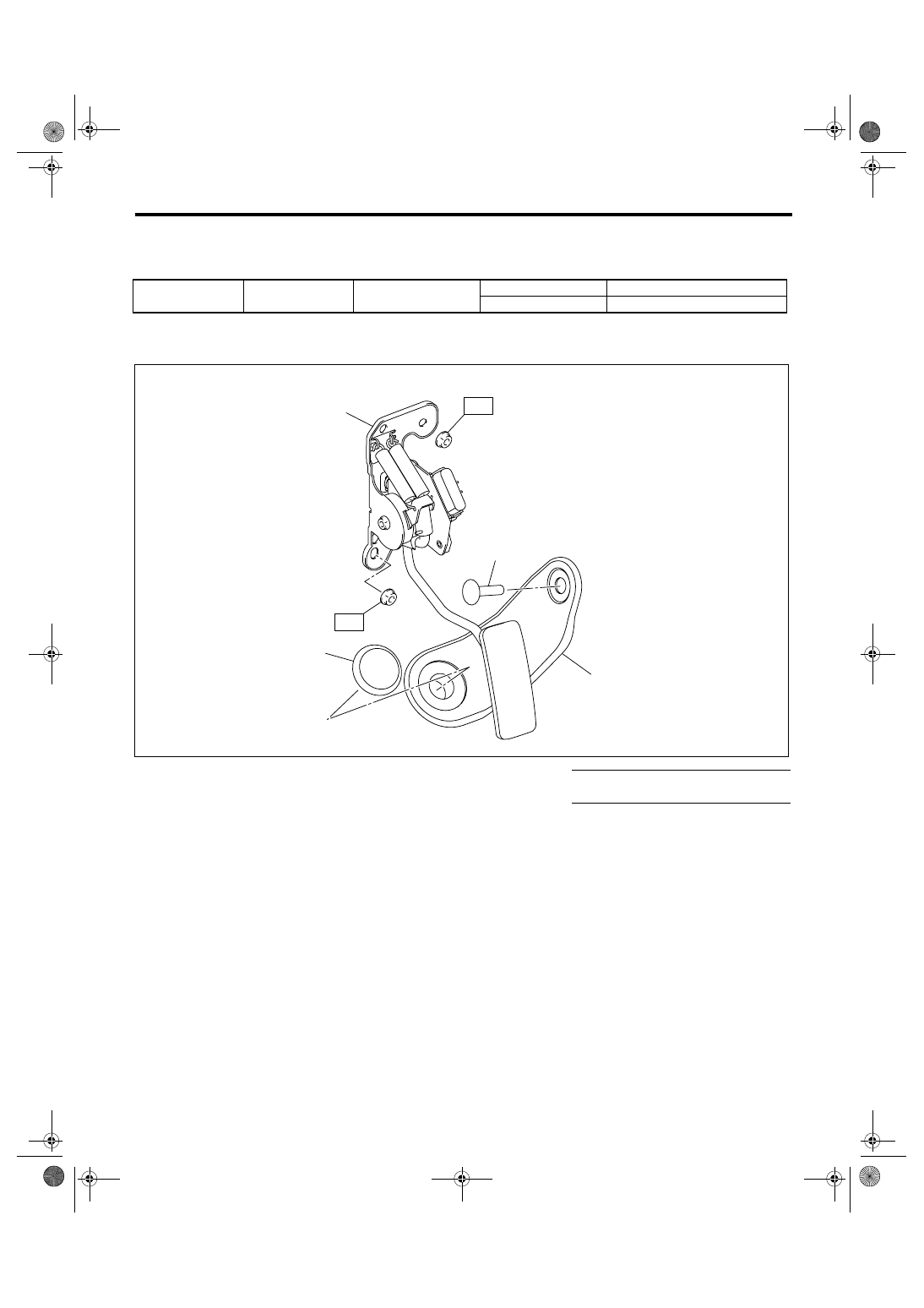

B: COMPONENT

• LHD model

Accelerator pedal

Stroke

At pedal pad

LHD model

50 — 63 mm (1.97 — 2.48 in)

RHD model

53 — 65 mm (2.09 — 2.56 in)

(1)

Accelerator pedal ASSY

(3)

Clip

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Accelerator plate

(4)

Stopper

T: 18 (1.8, 13.0)

T

(3)

(1)

(2)

(4)

T

SP-02002

SP(H4SO 2.0)-3

SPEED CONTROL SYSTEMS

General Description

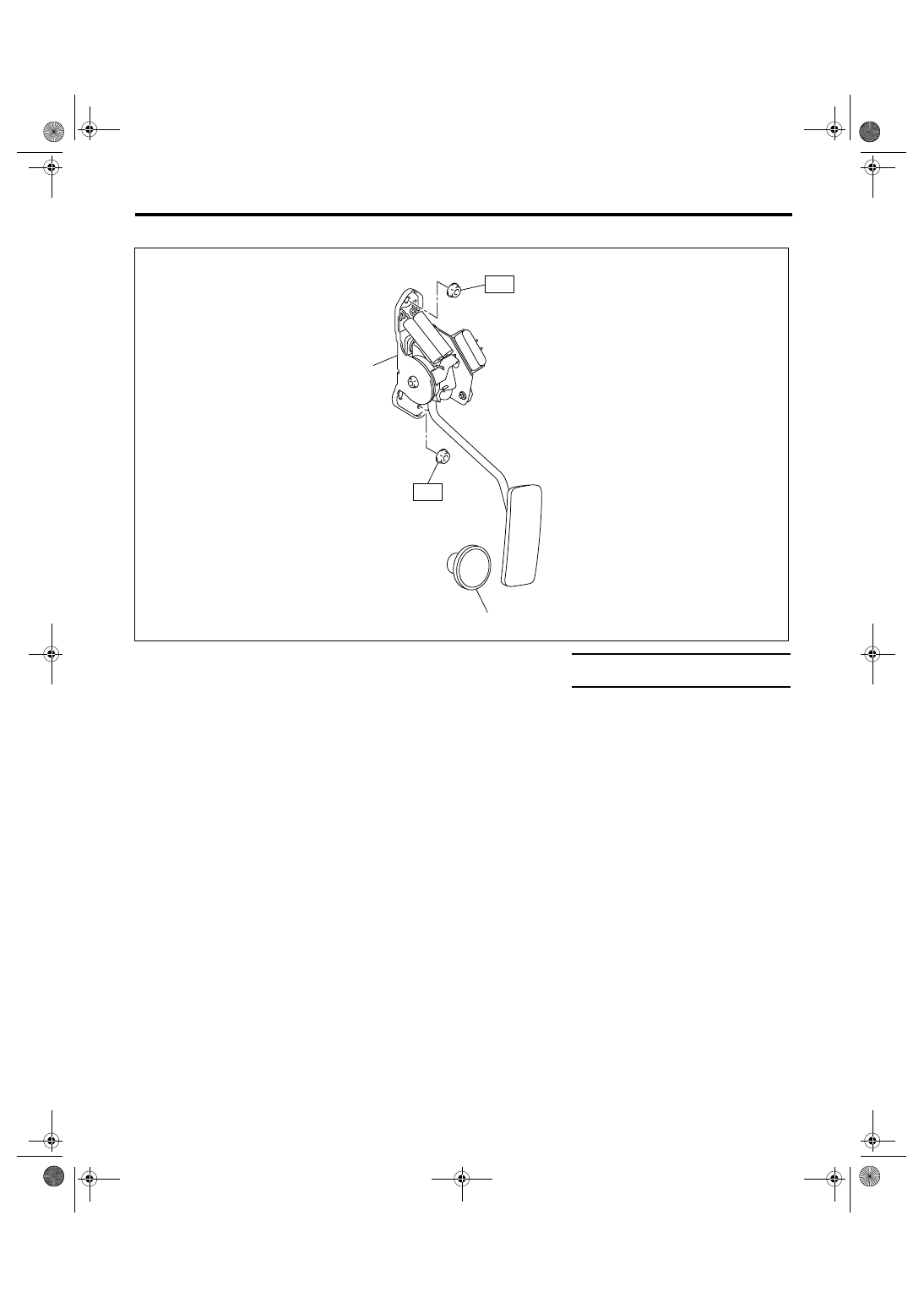

• RHD model

C: CAUTION

• Wear work clothing, including a cap, protective
goggles and protective shoes during operation.
• Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust and dirt.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly and replacement.
• Be careful not to burn yourself, because each
part on the vehicle is hot after running.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or rigid racks at the specified
points.
• Before disconnecting electrical connectors of
sensors or units, be sure to disconnect the ground
cable from battery.

(1)

Accelerator pedal ASSY

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Stopper

T: 18 (1.8, 13.0)

SP-02003

T

T

(2)

(1)

SP(H4SO 2.0)-4

Vehicle-id:
SIE-id:S107005a18:A:REMOVAL
∼

SPEED CONTROL SYSTEMS

Accelerator Pedal

2. Accelerator Pedal

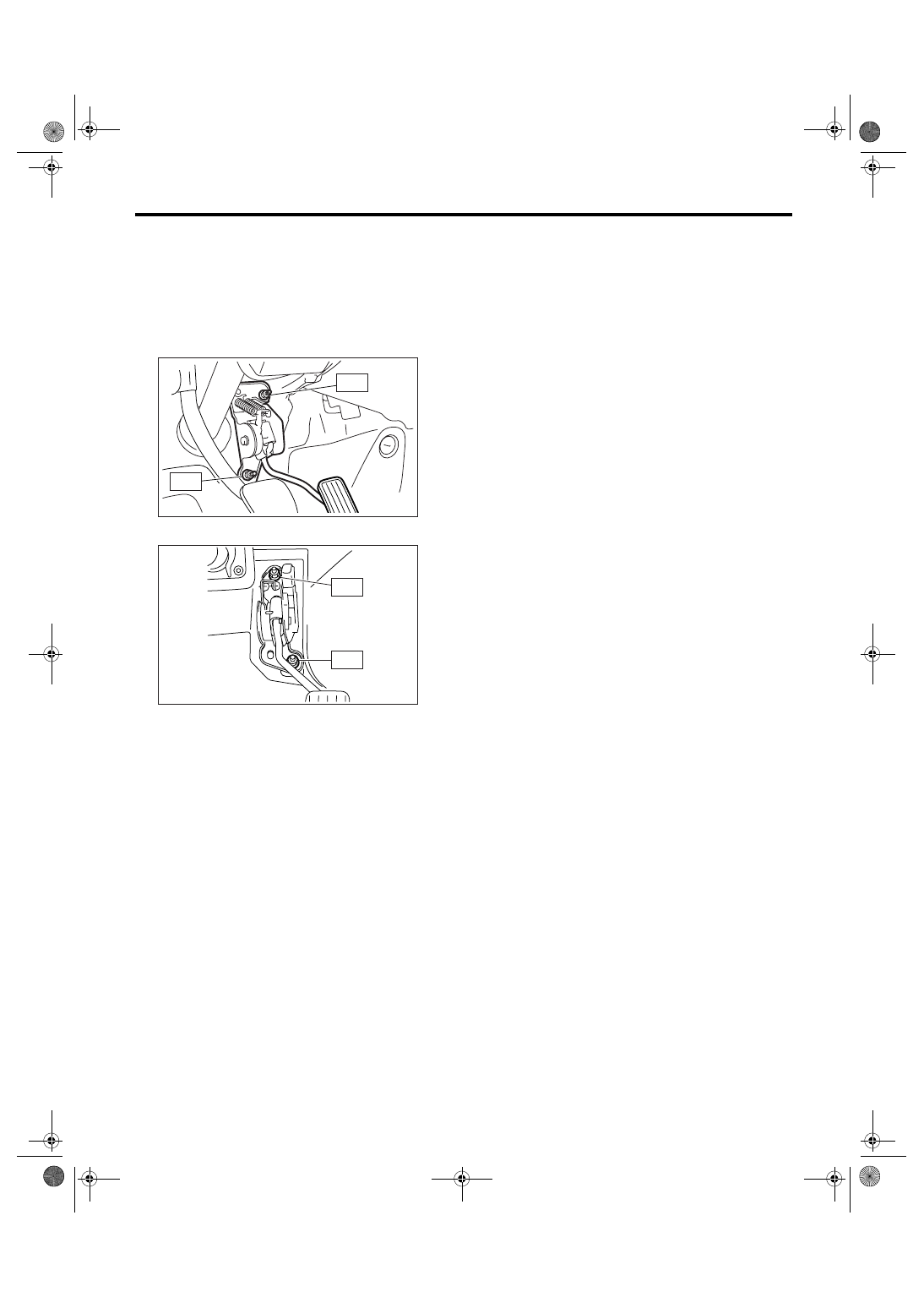

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Disconnect the connector.
3) Remove the nut securing accelerator pedal as-
sembly.
• LHD model

• RHD model

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

18 N

⋅

m (1.8 kgf-m, 13.0 ft-lb)

C: DISASSEMBLY

NOTE:
Accelerator pedal cannot be disassembled.

SP-02001

T

T

SP-00052

T

T
