Subaru Legacy (2005 year). Manual - part 40

FU(H4SO 2.0)-19

FUEL INJECTION (FUEL SYSTEM)

Intake Manifold

15) Install the EGR valve. (EC, EK, K4, ER model)
<Ref. to FU(H4SO 2.0)-28, INSTALLATION, EGR
Valve.>
16) Install the throttle body to intake manifold.
<Ref. to FU(H4SO 2.0)-10, INSTALLATION, Throt-
tle Body.>
17) Install the ignition coil and ignitor assembly.
<Ref. to IG(H4SO 2.0)-8, INSTALLATION, Ignition
Coil and Ignitor Assembly.>
18) Install the engine ground terminal to intake
manifold.

Tightening torque:

19 N

⋅

m (1.9 kgf-m, 14 ft-lb)

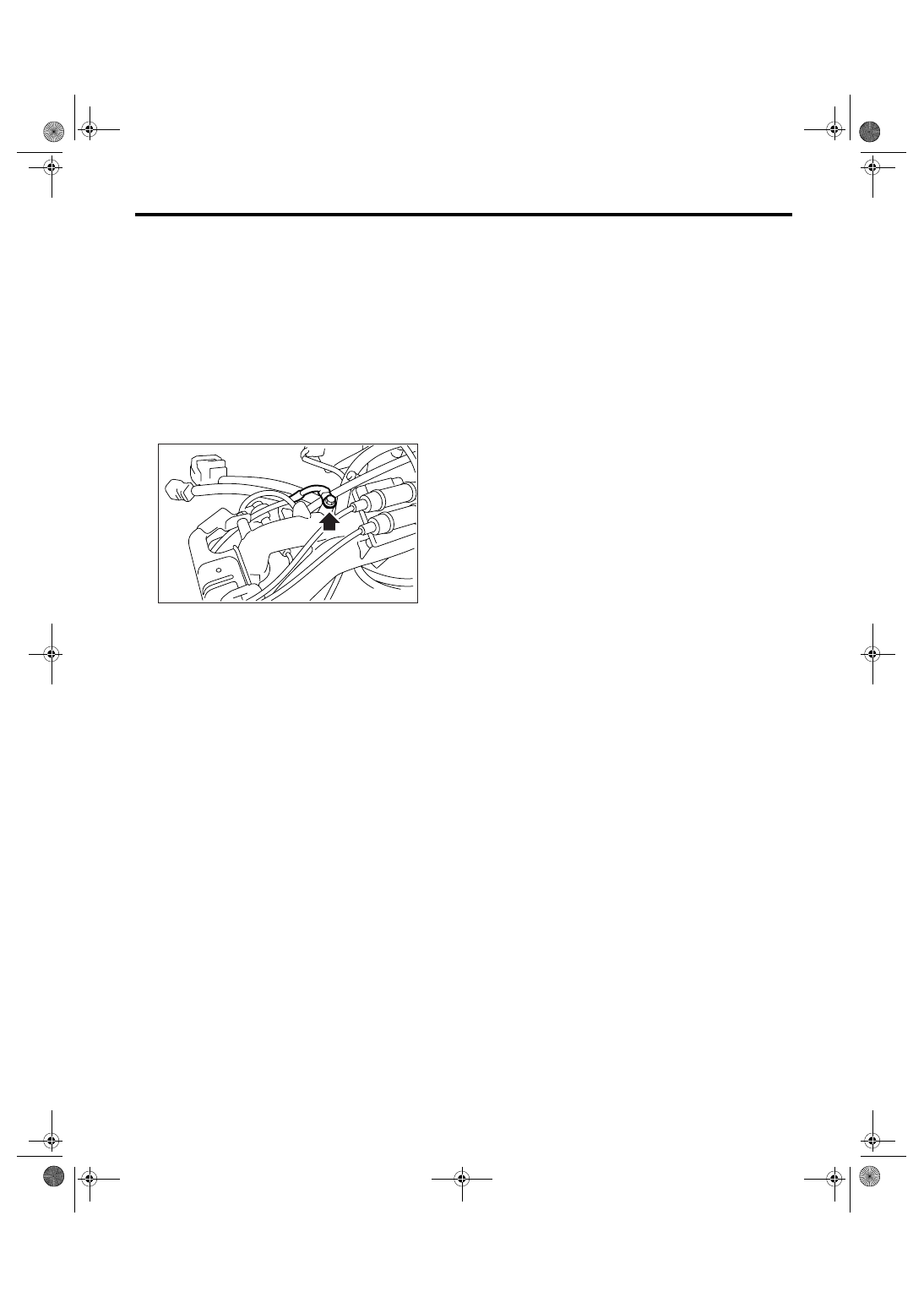

E: INSPECTION

Make sure the fuel pipe and fuel hoses are not
damaged and the connections are tightened firmly.

FU-02063

FU(H4SO 2.0)-20

FUEL INJECTION (FUEL SYSTEM)

Engine Coolant Temperature Sensor

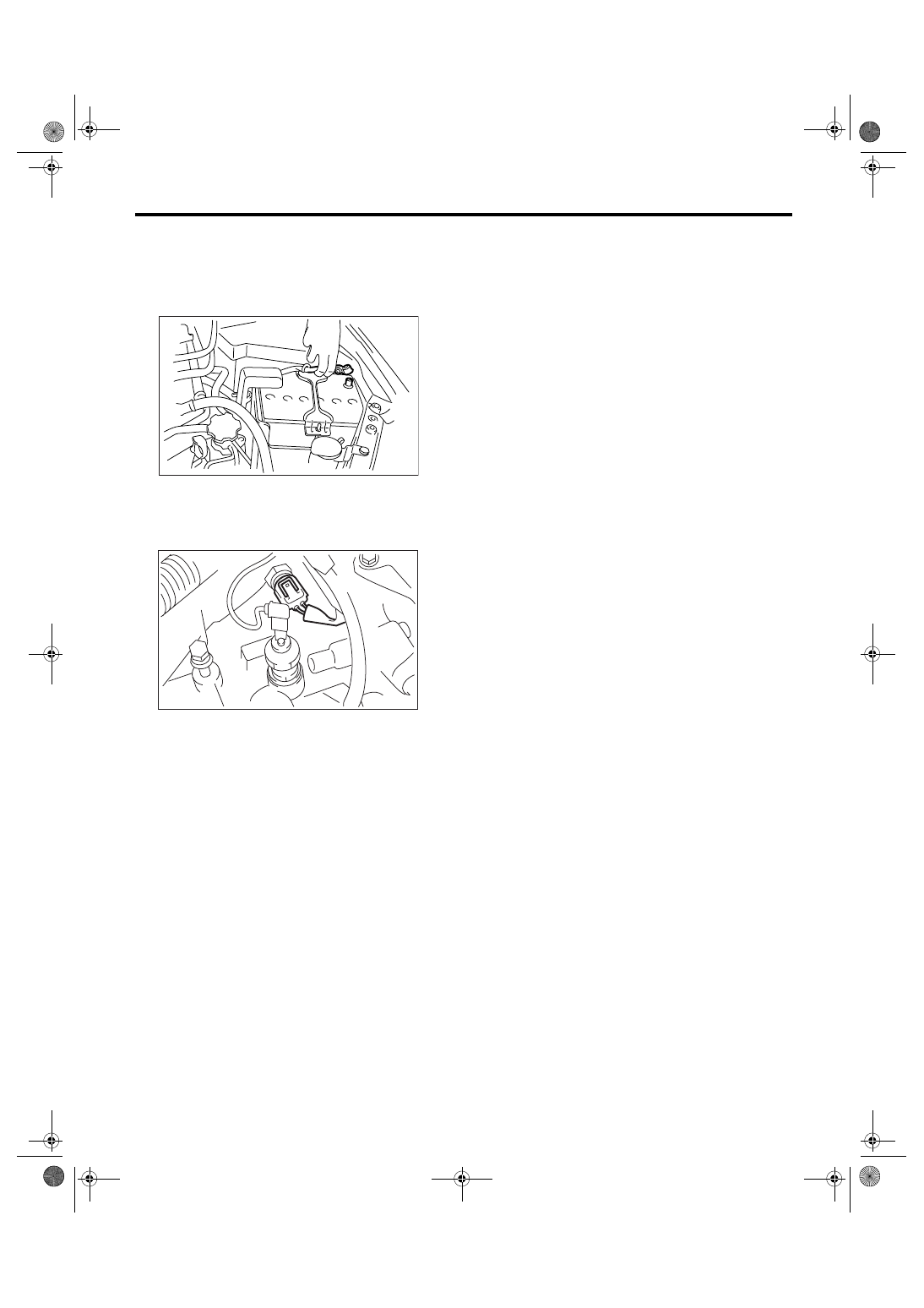

4. Engine Coolant Temperature

Sensor

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the generator. <Ref. to SC(H4SO 2.0)-
14, REMOVAL, Generator.>
3) Disconnect the connectors from engine coolant
temperature sensor.

4) Remove the engine coolant temperature sensor.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

18 N

⋅

m (1.8 kgf-m, 13 ft-lb)

IN-00203

FU-00055

FU(H4SO 2.0)-21

FUEL INJECTION (FUEL SYSTEM)

Crankshaft Position Sensor

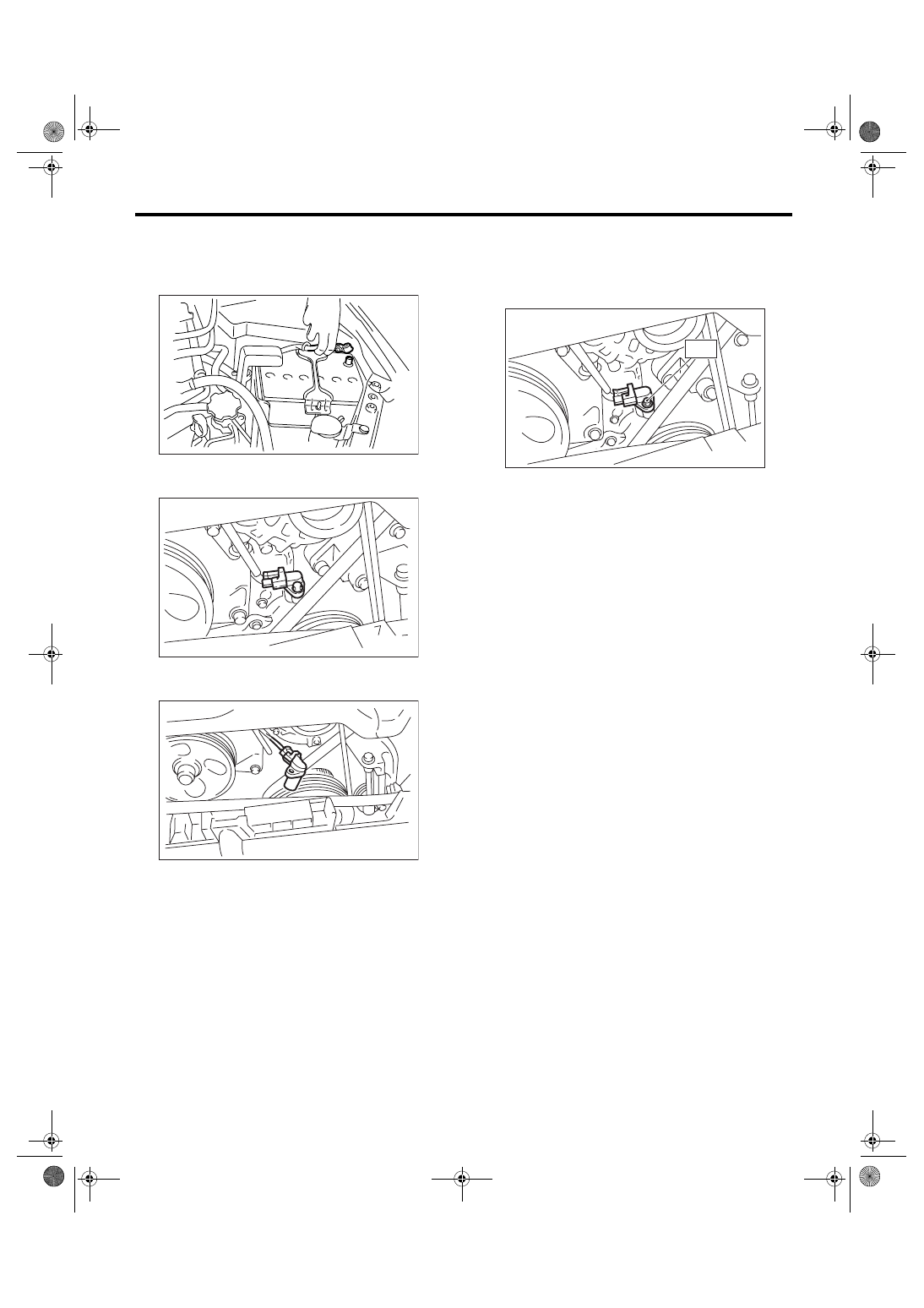

5. Crankshaft Position Sensor

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the bolt which installs crankshaft posi-
tion sensor to cylinder block.

3) Remove the crankshaft position sensor, and dis-
connect the connector from it.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

T: 6.4 N

⋅

m (0.65 kgf-m, 4.7 ft-lb)

IN-00203

FU-00056

FU-00057

FU-00058

T

FU(H4SO 2.0)-22

FUEL INJECTION (FUEL SYSTEM)

Camshaft Position Sensor

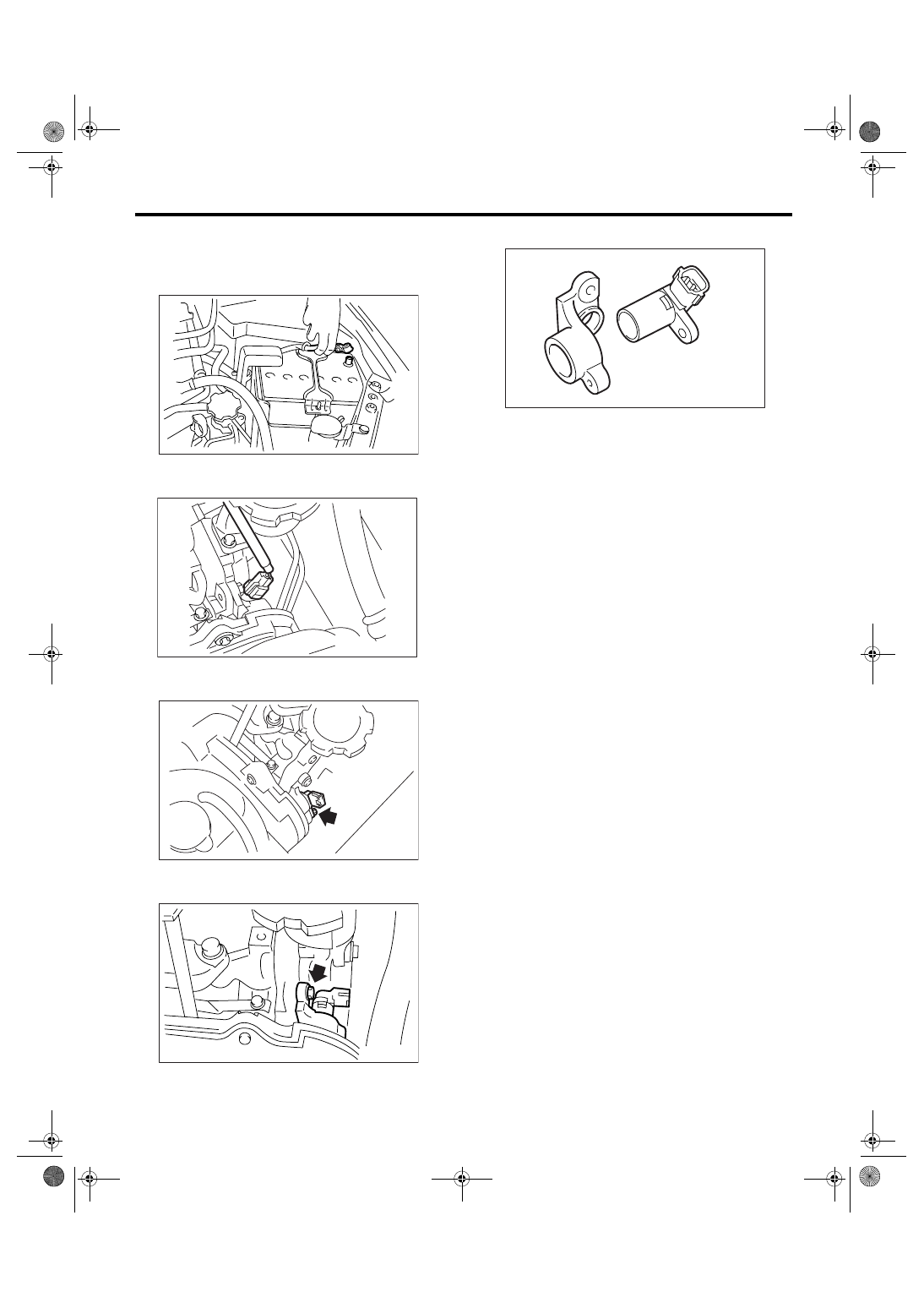

6. Camshaft Position Sensor

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Disconnect the connector from camshaft posi-
tion sensor.

3) Remove the bolt which installs camshaft position
sensor to the support.

4) Remove the bolt which installs camshaft position
sensor support to camshaft cap LH.

5) Remove the camshaft position sensor and the
support as a unit.

6) Remove the camshaft position sensor itself.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

Camshaft position sensor support

6.4 N

⋅

m (0.65 kgf-m, 4.7 ft-lb)

Camshaft position sensor

6.4 N

⋅

m (0.65 kgf-m, 4.7 ft-lb)

IN-00203

FU-01335

FU-00177

FU-00178

FU-00179
