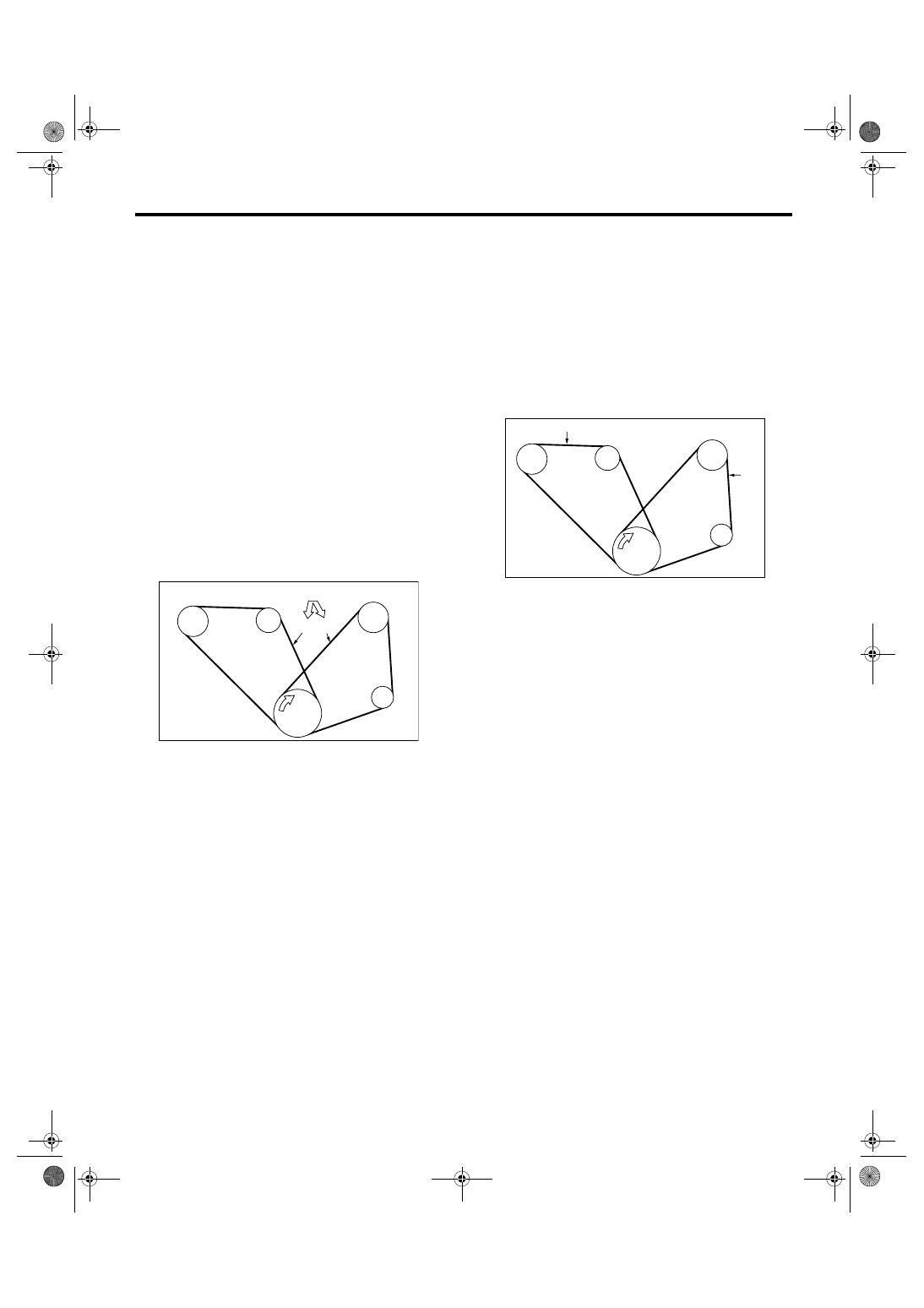

PM-11

PERIODIC MAINTENANCE SERVICES

V-belt

6. V-belt

A: INSPECTION

1. EXCEPT FOR 3.0 L MODEL

1) Replace the belts if crack, fraying or wear is
found.
2) Check the V-belt tension and adjust it if neces-
sary by changing the generator installing position
or idler pulley installing position. <Ref. to PM-12,
REPLACEMENT, V-belt.>

Belt tension (without belt tension gauge):

(A)

When installing new one: 7 — 9 mm (0.276 —
0.354 in)
At inspection: 9 — 11 mm (0.354 — 0.433 in)

(B)

When installing new one: 7.5 — 8.5 mm (0.295
— 0.335 in)
At inspection: 9.0 — 10.0 mm (0.354 — 0.394
in)

Belt tension (with belt tension gauge):

(A)

When installing new one: 640 — 785 N (65.3
— 80.0 kgf, 144 — 176 lbf)
At inspection: 490 — 640 N (50 — 65 kgf, 110
— 144 lbf)

(B)

When installing new one: 620 — 760 N (63 —
77 kgf, 140 — 170 lbf)
At inspection: 350 — 450 N (36 — 46 kgf, 79 —
101 lbf)

(A) Front side belt

(B) Rear side belt

C/P Crank pulley

GEN Generator

P/S Power steering oil pump pulley

A/C A/C compressor pulley

I/P Idler pulley

C/P

P/S

A/C

GEN

(A) (B)

(C)

I/P

PM-00272

(A) Front side belt

(B) Rear side belt

C/P Crank pulley

GEN Generator

P/S Power steering oil pump pulley

A/C A/C compressor pulley

I/P Idler pulley

C/P

P/S

A/C

GEN

(A)

(B)

I/P

PM-00154

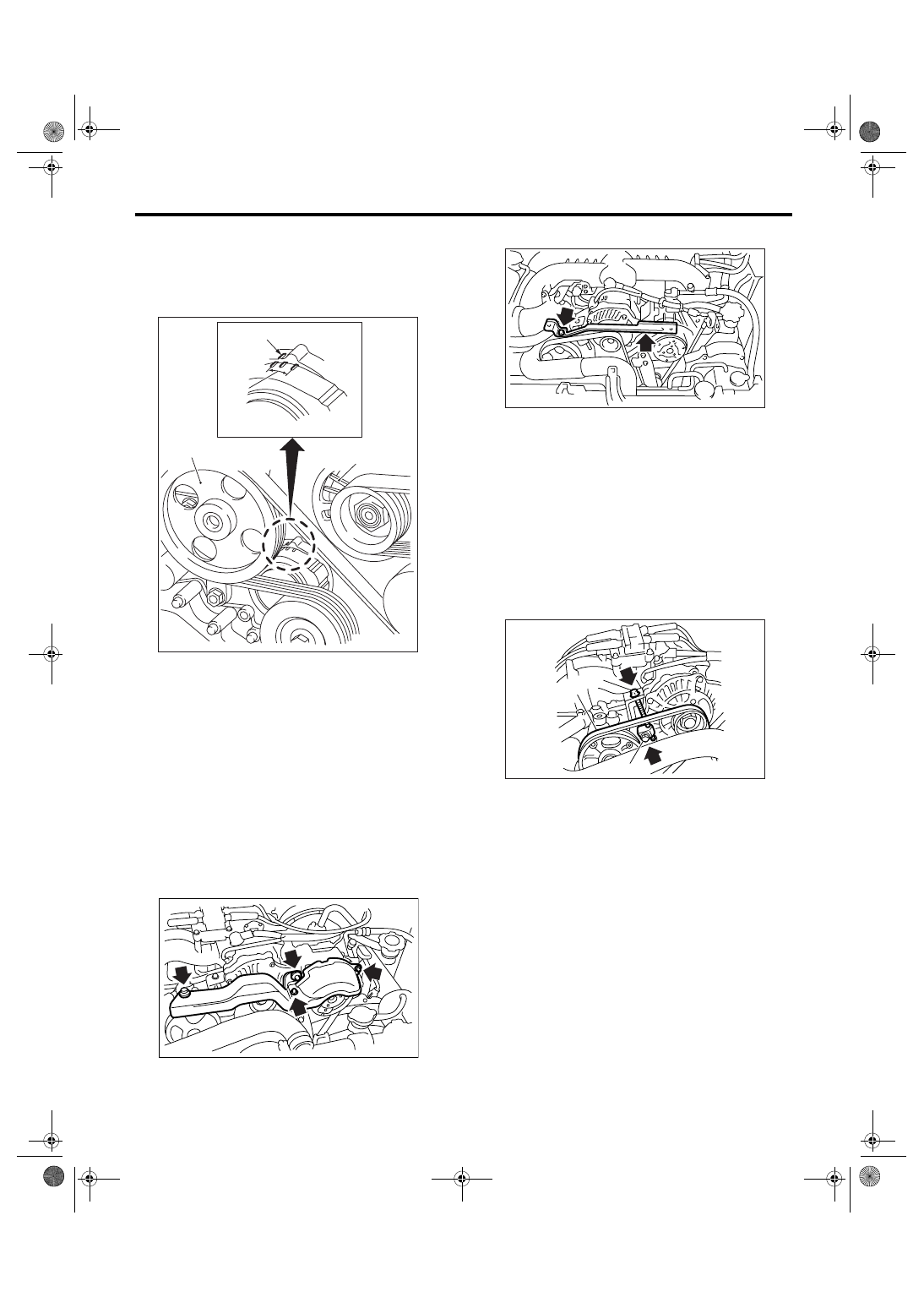

PM-12

PERIODIC MAINTENANCE SERVICES

V-belt

2. 3.0 L MODEL

1) Replace the belts if crack, fraying or wear is
found.
2) Check that the V-belt automatic tensioner indica-
tor (A) is within the range (D).

B: REPLACEMENT

1. FRONT SIDE BELT (FOR POWER
STEERING OIL PUMP AND GENERATOR)

NOTE:
Wipe off any oil and water on the belt and pulley.
1) Remove the collector cover. (If equipped)
2) Remove the V-belt covers.
• Non-turbo model

• Turbo model

3) Loosen the lock bolt (A).
4) Loosen the slider bolt (B).
5) Remove the front side belt (C).
6) Install a new V-belt, and tighten the slider bolt so
as to obtain the specified belt tension.
7) Tighten the lock bolt (A).
8) Tighten the slider bolt (B).

Tightening torque:

Lock bolt

25 N

⋅

m (2.5 kgf-m, 18.4 ft-lb)

Slider bolt

8 N

⋅

m (0.8 kgf-m, 5.8 ft-lb)

2. REAR SIDE BELT (FOR A/C)

NOTE:
Wipe off any oil and water on the belt and pulley.
1) Remove the front side belt.
2) Loosen the lock nut (A).
3) Loosen the slider bolt (B).
4) Remove the rear side belt.
5) Install a new V-belt, and tighten the slider bolt so
as to obtain the specified belt tension.
6) Tighten the lock nut (A).

(A) Indicator

(B) Generator

(D) Service limit

(B)

(A)

(D)

(C)

ME-00475

PM-00003

ME-00807

PM-00004

(B)

(C)

(A)

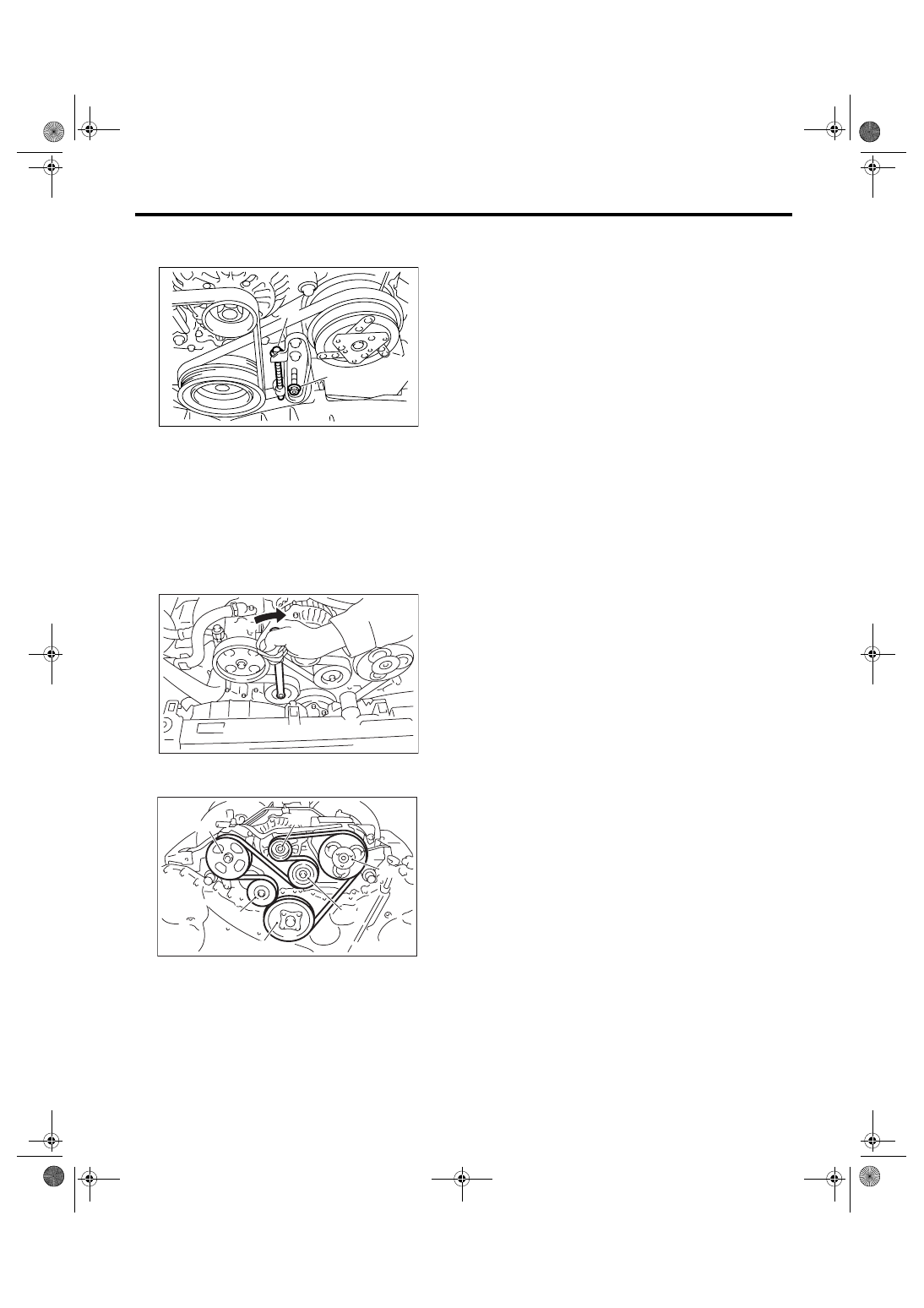

PM-13

PERIODIC MAINTENANCE SERVICES

V-belt

Tightening torque:

23 N

⋅

m (2.3 kgf-m, 17.0 ft-lb)

7) Install the front side belt.
• Non-turbo model <Ref. to ME(H4SO 2.0)-37,
FRONT SIDE BELT, INSTALLATION, V-belt.>
• Turbo model <Ref. to ME(H4DOTC)-40, FRONT
SIDE BELT, INSTALLATION, V-belt.>

3. 3.0 L MODEL

1) Fit the tool to the belt tensioner mounting bolt.
2) Turn the tool clockwise, and loosen the V-belt to
remove.

3) Remove the V-belt cover.
4) Install in the reverse order of removal.

(1) Power steering oil pump

(2) Belt tension adjuster

(3) Crankshaft pulley

(4) A/C compressor

(5) Belt idler

(6) Generator

(A)

(B)

PM-00005

ME-00473

(1)

(6)

(4)

(5)

(2)

(3)

ME-00474

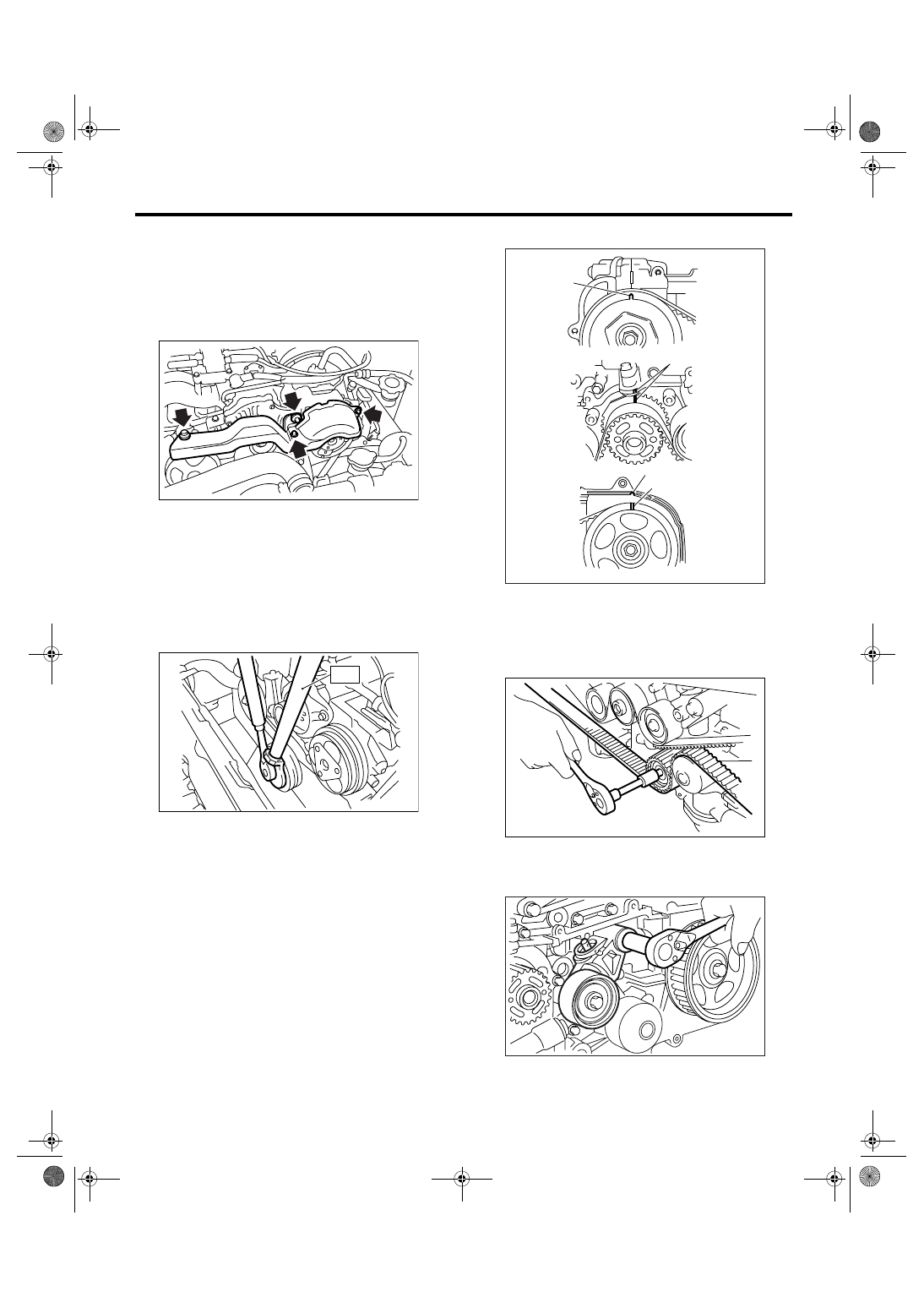

PM-14

PERIODIC MAINTENANCE SERVICES

Timing Belt

7. Timing Belt

A: REPLACEMENT

1. SOHC MODEL

1) Protect the radiator with cardboard and blanket.
2) Remove the V-belt covers.

3) Remove the V-belts. <Ref. to ME(H4SO 2.0)-37,
V-belt.>
4) Remove the A/C compressor V-belt tensioner.
5) Use the ST to lock the crankshaft, and remove
the pulley bolt.
ST

499977400

CRANK PULLEY WRENCH
(2.0 L MODEL)

499977100

CRANK PULLEY WRENCH
(2.5 L MODEL)

6) Remove the crank pulley.
7) Remove the belt cover (LH).
8) Remove the front timing belt cover.
9) Remove the timing belt guide. (MT model)
10) Turn the crankshaft and align the alignment
marks on crankshaft, and left and right cam sprock-
ets with notches of belt cover and cylinder block.

499987500

CRANKSHAFT SOCKET

11) Remove the belt idler.
12) Remove the belt idler (No. 2).

13) Remove the timing belt.
14) Remove the automatic belt tension adjuster as-
sembly.

15) Install in the reverse order of removal. <Ref. to
ME(H4SO 2.0)-44, INSTALLATION, Timing Belt.>

PM-00003

PM-00007

(A) Notch

(B) Alignment mark

PM-00009

(B)

(A)

PM-00010

PM-00011
