SSANGYONG  Y200

9D-26  BODY ELECTRICAL

YAD9D490

YAD9D500

YAD9D510

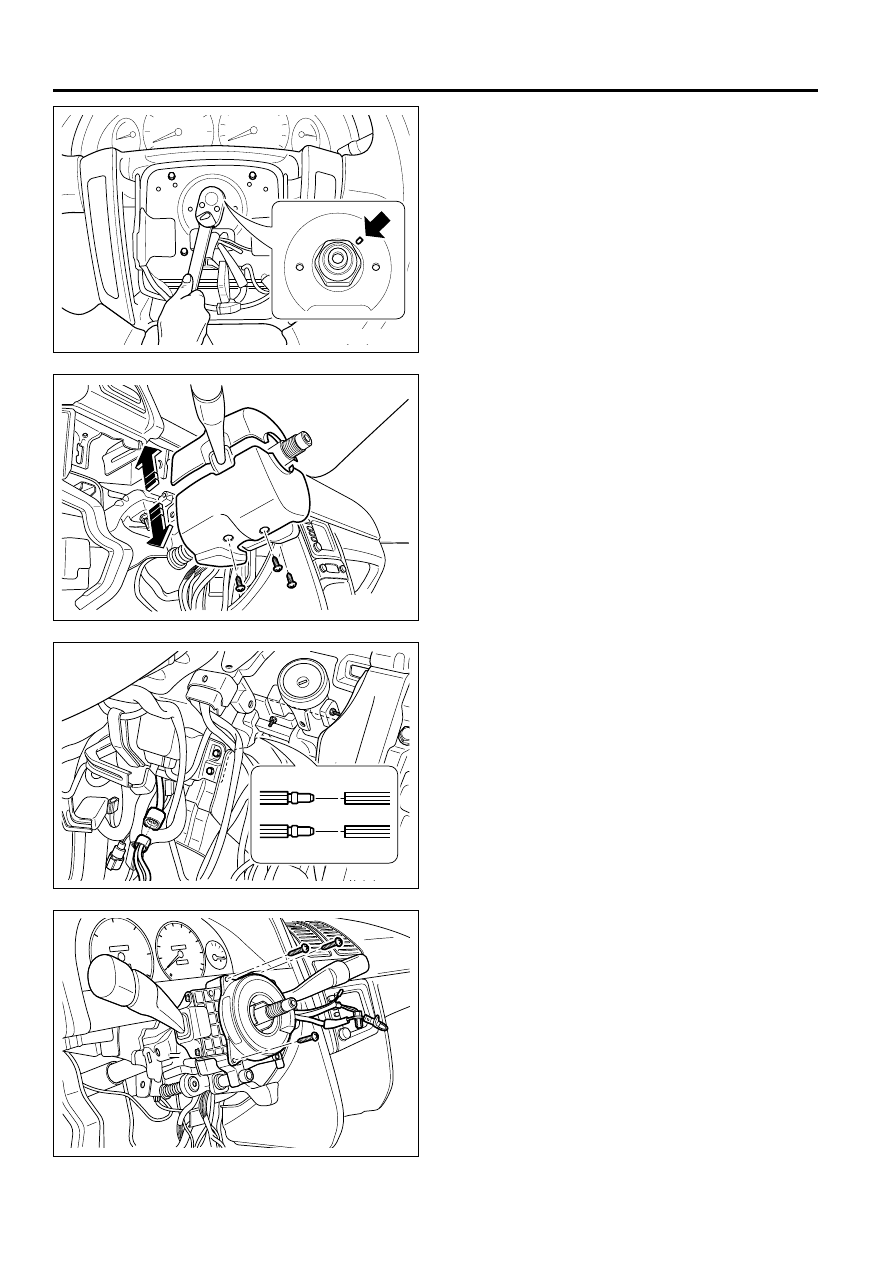

3. Mark installing mark on the wheel nut, release

wheel nut.

4. Using the special tool, remove steering wheel.

Notice: Separate all the connector.

8. Remove switch of multi- function.

9. Install reverse order of removal.

6. Separate vacuum hose of fuel cut and connector

which is linked to switch of multi- function.

7. After separating coil connector of air bag contact,

remove contact coil.

5. Separate cover equipped in the steering column

shaft.

YAD9D520

BODY ELECTRICAL  9D-27

SSANGYONG  Y200

COMPONENTS OF LIGHTING

General Description

Head lamp

Head lamp is controlled by light switch which is located
in the left of steering column. If light switch is set on
first stage, position lamp, lamp of license plate and
lamp of instrument panel illumination is turned on, if
light switch is set on two stage, head lamp is turned
on.

If light switch is off, all the lamp are turned off.

High beam and low beam is controlled by operation of
light switch.

As light switch is pushed and pulled, is switched to
high beam and low beam, if head lamp is turned on by
high beam, high beam is displayed on the instrument
panel.

Aiming of head lamp is adjusted properly.

If new head lamp is replaced, aiming of head lamp
should be inspected.

Front turn signal lamp / position lamp

If light switch is set on the first stage, lamp of position
is turned on, if light switch is off, lamp of position is
turned off.

Turn signal lamp is controlled by light switch which is
located in the left of steering column, as light switch
is operated by moving up and down, and then turn
signal lamp is turned on and off.

Change of vehicle direction is finished completely, light
switch back to original position, turn signal lamp is
turned off, operating of steering wheel is small in the
narrow road or in the narrow turn signal lamp so, light
switch does not turn back to original position
automatically, at this time, as light  switch is operated
by hand, and then light switch back to normal position,
and turn signal lamp is turned off.

Fog lamp

Switch of fog lamp is located on the instrument panel
of left gauge panel of audio system, after position lamp
and head lamp are turned on, in the result of this, turn
switch of fog lamp on, so fog lamp is “on”, if switch of
fog lamp is turned on, fog  lamp is “on”, indicated
lamp also is turned on,in the instrument panel, instead
of head lamp, fog lamp should not be used, in case
new fog lamp is replaced, adjustment of aiming to the
fog lamp should be inspected.

Tail lamp

Tail lamp consists of rear back lamp, tail lamp, back
up lamp and turn signal lamp in the assembling part.
If position lamp or head lamp are turned, rear back
lamp is turned on. As rear back lamp and brake lamp
consist of double lamp, if technician is put foot on the
brake pedal, brake lamp is turned brighter. If lever of
transmission is operated to backwards, back up lamp
is turned on.

Assistant brake lamp

Assistant brake lamp is located on the upper section
of back glass, if pedal of brake is operated, assistant
brake lamp is turned on.

Lamp of license plate

If position lamp or head lamp is turned on, lamp of
license is turned on, this lamp is attached rear deck
lid of license plate.

Lamp for reading and room lamp

Lamp for reading and room lamp is attached on the
head lining, if switch of lamp for reading is turned on,
lamp for reading is “on” in the driver seat and
passenger seat, if switch is touched one, lamp is “on”,
if switch is touched twice, lamp is “off”. Switch of
room lamp is the type of three point, if open door, in
the state of pushing switch of door, room lamp is turned
on, if door is closed, room lamp is gradually turned
off.

In the state of switch “ off “, though door is opened,
yet room lamp is not turned.

SSANGYONG  Y200

9D-28  BODY ELECTRICAL

Auto Light System

Summary

Controlling of auto light cause tail lamp or position
lamp to turn on or off, sensor unit of auto light is
attached on the upper panel of instrument, this unit is
sensing change of illumination to atmosphere, though
driver does not operate light switch, yet if mode is set
on AUTO, head lamp and tail lamp is automatically
turned on and off, during the vehicle is driven on the
time of day through tunnel area, foggy area, rainy day,
or snowy day, due to the low of illumination around
atmosphere, this system is operating.

Specification

Name of part

Description

Sensor unit of auto light

Voltage of load

Load

Temp available

Room temp for keeping

Position of attaching

9 -16 V

MAX 200 mA

- 30 ~ +85 ° C

 - 40 ~ +120 °C

Upper right section of instrument panel

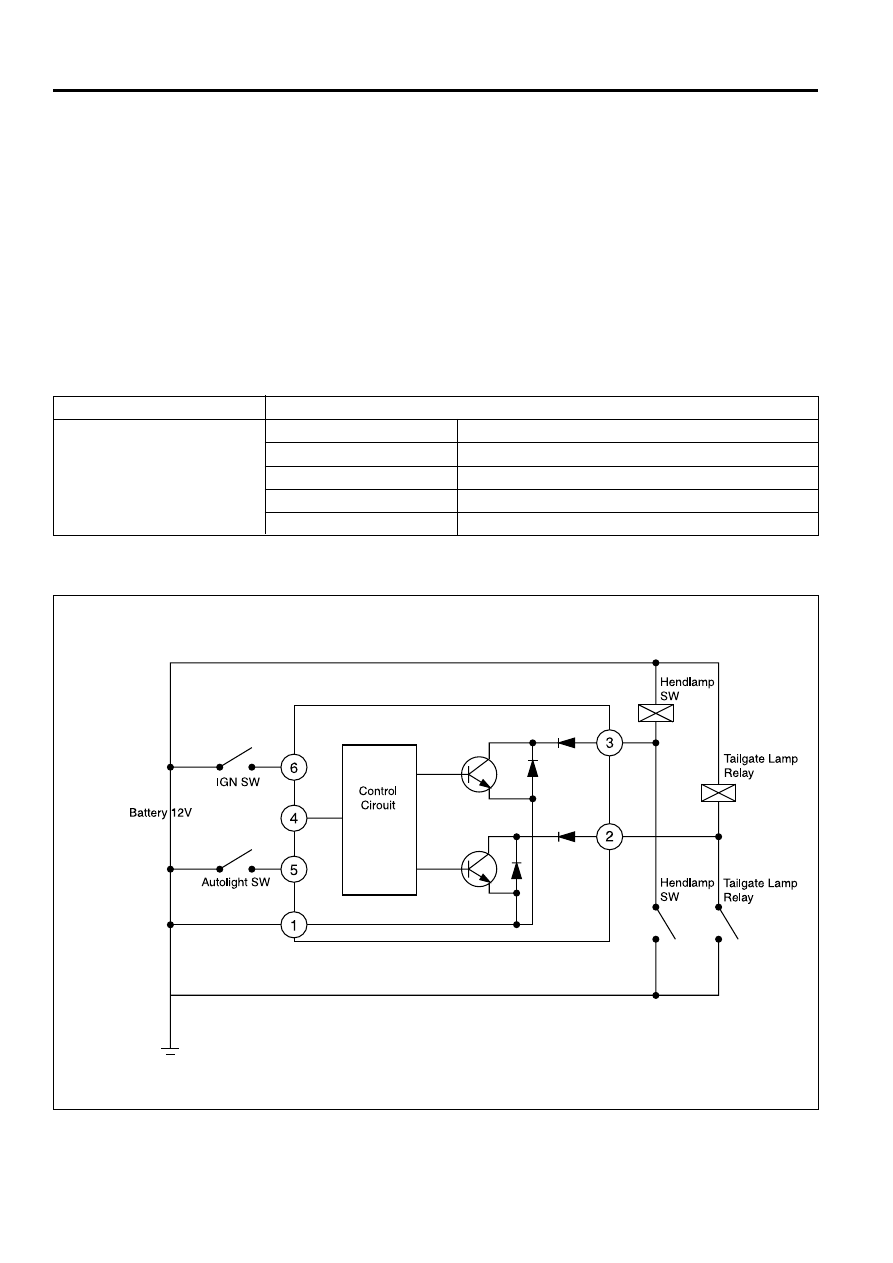

Input and Output of Diagram

YAD9D530

BODY ELECTRICAL  9D-29

SSANGYONG  Y200

Illumination intensity of light on

Illumination intensity of light off

Condition of tail lamp

30.5 ±¾5 (LUX)

60.5 ±¾5 (LUX)

Condition of head lamp

8.9 ± 3 (LUX)

17.2 ± 3 (LUX)

Time of delaying

0.5 ± 0.1

3 ± 1

Sensor Unit Terminal of Auto Light

1 Power Supply For System
2 Auto Light Switch
3 Non-Use
4 Relay of Head Lamp
5 Relay of Tail Lamp
6 System Grounding

YAD9D540

Operation of Auto Light and Operating
Condition

Operation of switch function

1. After turning ignition on, operate multi-function

switch, OFF

→

 TAIL LAMP

→

 HEAD LAMP

→

AUTO switch.

2. Turn tail lamp, head lamp “on and off”

3. Turn switch of AUTO ON, While sensor is sensing

illumination of light, which is set on the diode of
photo. As quantity of illumination of light is
equivalent to voltage which is set on the internal
CPU, tail lamp and head lamp is turned on and off
automatically.

4. Switch of tail lamp and head lamp is operated by

hand, tail lamp and head lamp are not turned, on
and off by sensor.

5. If switch of ignition is turned off, tail lamp and

head lamp is turned off.

Operation Condition

Lamp

Illumination intensity
