BODY EXTERIOR 9C-53

SSANGYONG Y200

YAD9C2U0

YAD9C2V0

YAD9C2W0

YAD9C2X0

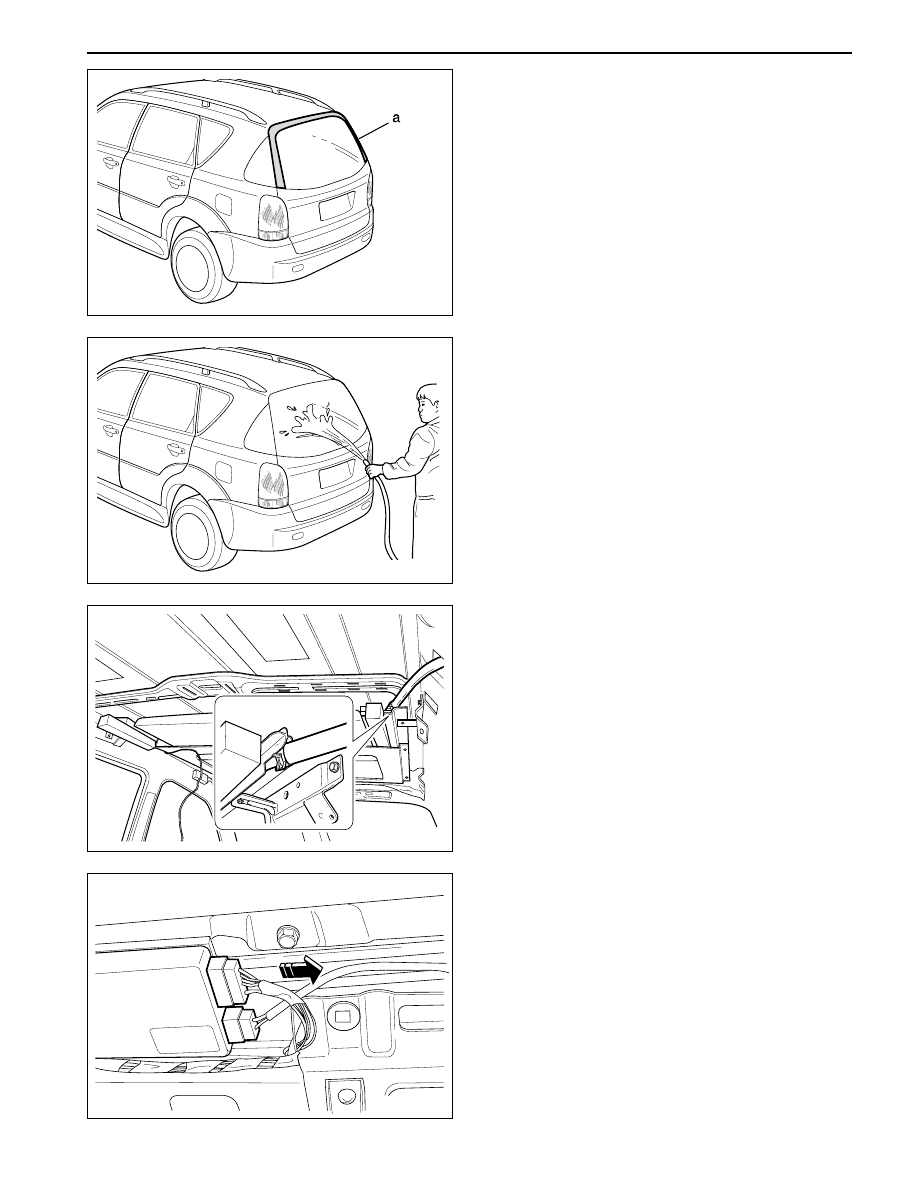

8. After installing, check leaking of water as following

procedure.

•

In order to fix glass of back door, in the right
position of installing, tape glass and frame of
door glass.

•

To keep sealant dry, wait for 24 hours.

•

Remove taping(a).

•

After spread water on the door of tail gate, check
leaking of water. If leaking of water occur,
keeping door glass of tail gate dry, fill sealant
in the section of leaking. Leaking of water goes
on, remove door glass of tail gate, and then
proceed to repair above procedure.

•

Connect connector of heating line to the door
glass of tail gate.

•

Connect negative cable of battery.

SUN ROOF

Removal and Installation

1. Remove headlining, room lamp, and sun visor.

2. Separate hose clip of drain hose of sun roof

(4 ea), pull hose slow, turning hoses to the left
direction and to the right direction slow.

3. Remove the power connector in the relay box.

SSANGYONG Y200

9C-54 BODY EXTERIOR

YAD9C2Y0

YAD9C2Z0

YAD9C3A0

YAD9C3B0

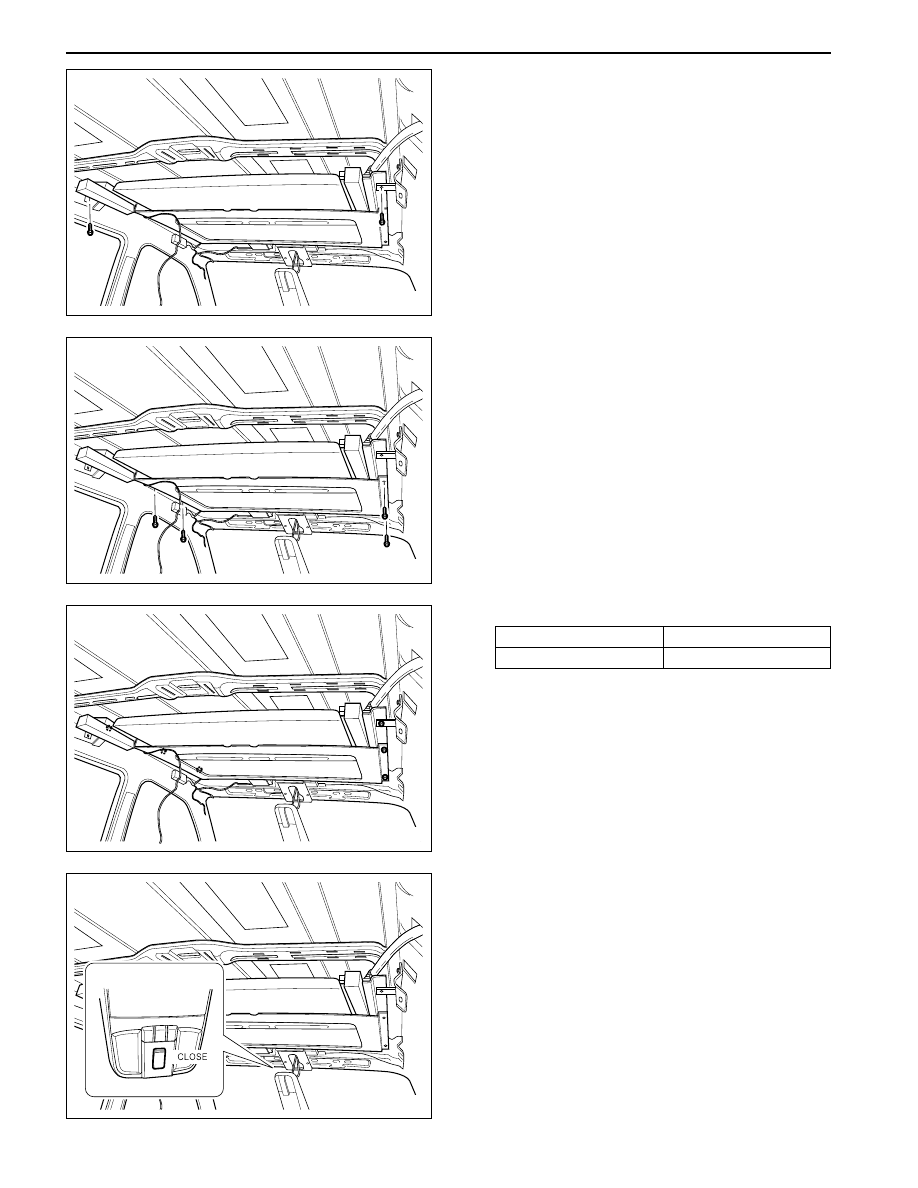

4. Remove fixing bracket of sun roof.

5. After releasing mounting bolt of sun, remove sun

roof assembly.

6. Install reverse order of removal.

Bracket Bolt of Sun Roof

Fixing Bolt of Sun Roof

25 - 35 N•m
25 - 35 N•m

MOTOR AND RELAY BOX

Removal and Installation

1. Close sun roof.

2. Remove head lining, room lamp, and sun visor.

3. Cut tie –wrap of relay box.

BODY EXTERIOR 9C-55

SSANGYONG Y200

YAD9C3C0

YAD9C3D0

YAD9C3E0

YAD9C3F0

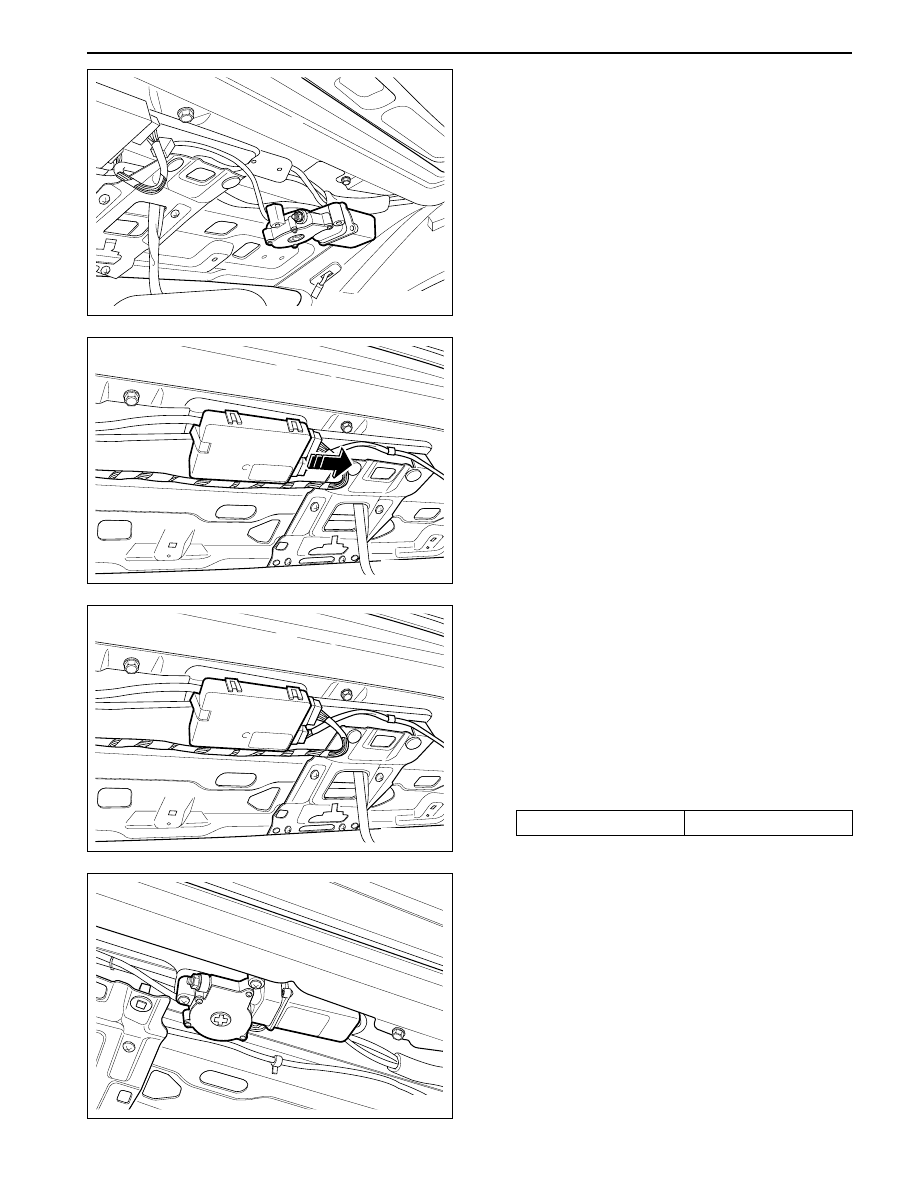

4. After releasing fixing bolt of motor, remove motor

connector in the relay box, and then separate
motor assembly.

7. Install reverse order of removal.

1) Assemble the closing state in the position of

glass panel

2) Check the position of normal close:

•

NORMAL CLOSE POSITION : After connecting
between relay box and motor, connect the
power and then touch on switch and then the
motor stop.

3) Install the motor.

4) Tighten the fixing bolt of motor.

5. Separate power connector in the relay box.

6. After releasing fixing bolt of relay box, separate

relay box from front beam (pushing hook of relay
box of front beam by hand, remove it).

Tightening Torque

3 N•m (26 lb-ft)

5) Insert hook of relay box into beam of front.

6) Fix relay box with tie wrap.

7) Check operation of sunroof.

SSANGYONG Y200

9C-56 BODY EXTERIOR

YAD9C3G0

YAD9C3H0

YAD9C3J0

YAD9C3K0

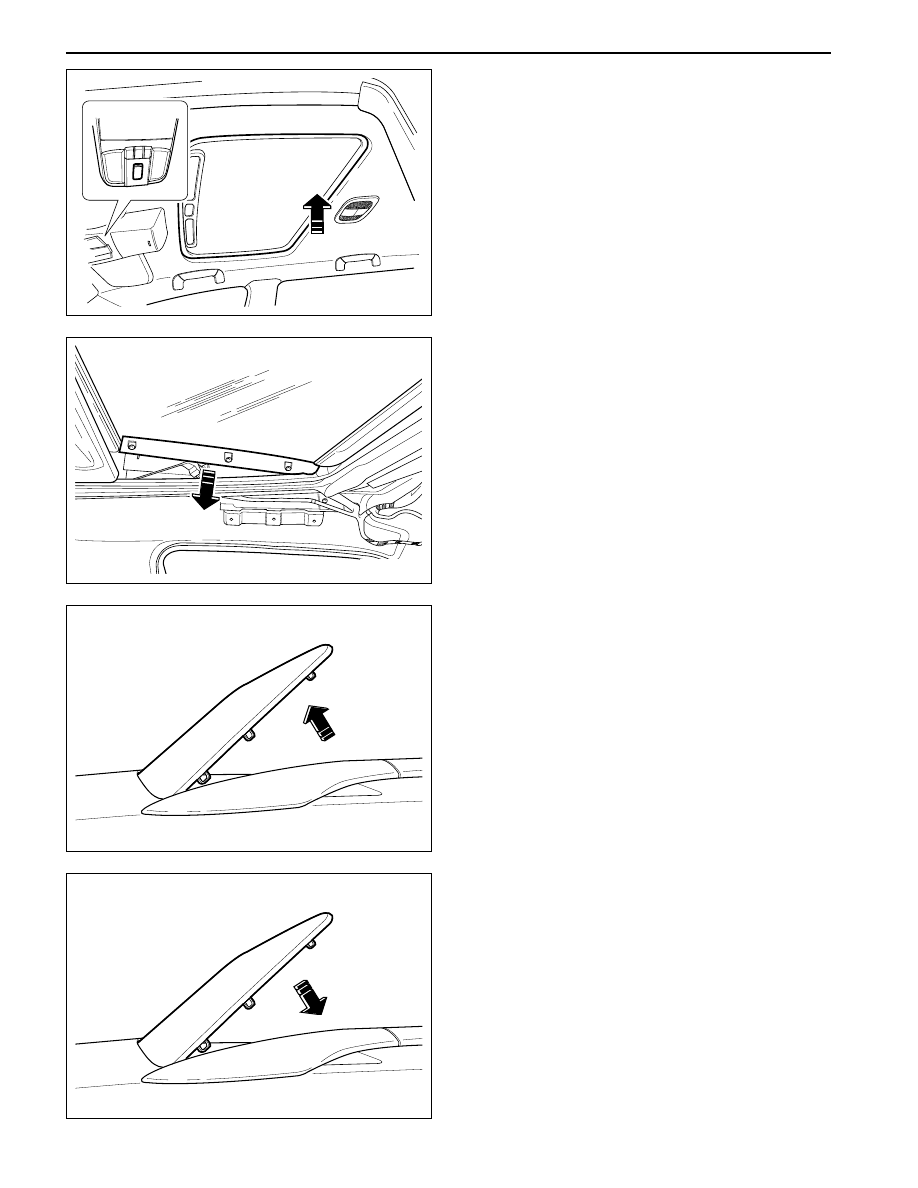

GLASS PANEL

Removal

1. Turn on the switch, tilt glass.

2. Remove side inner cover.

3. Separate fixing bolt (6 ea) glass.

4. Extract panel of glass.

Installstion

1. Install glass panel on internal panel of cover

(check the tightening position in the vehicle).

Notice: Install for marking glass indicator to put
rear direction.
