4. Remove glass channel.

1) Remove internal (1) panel of rear door.

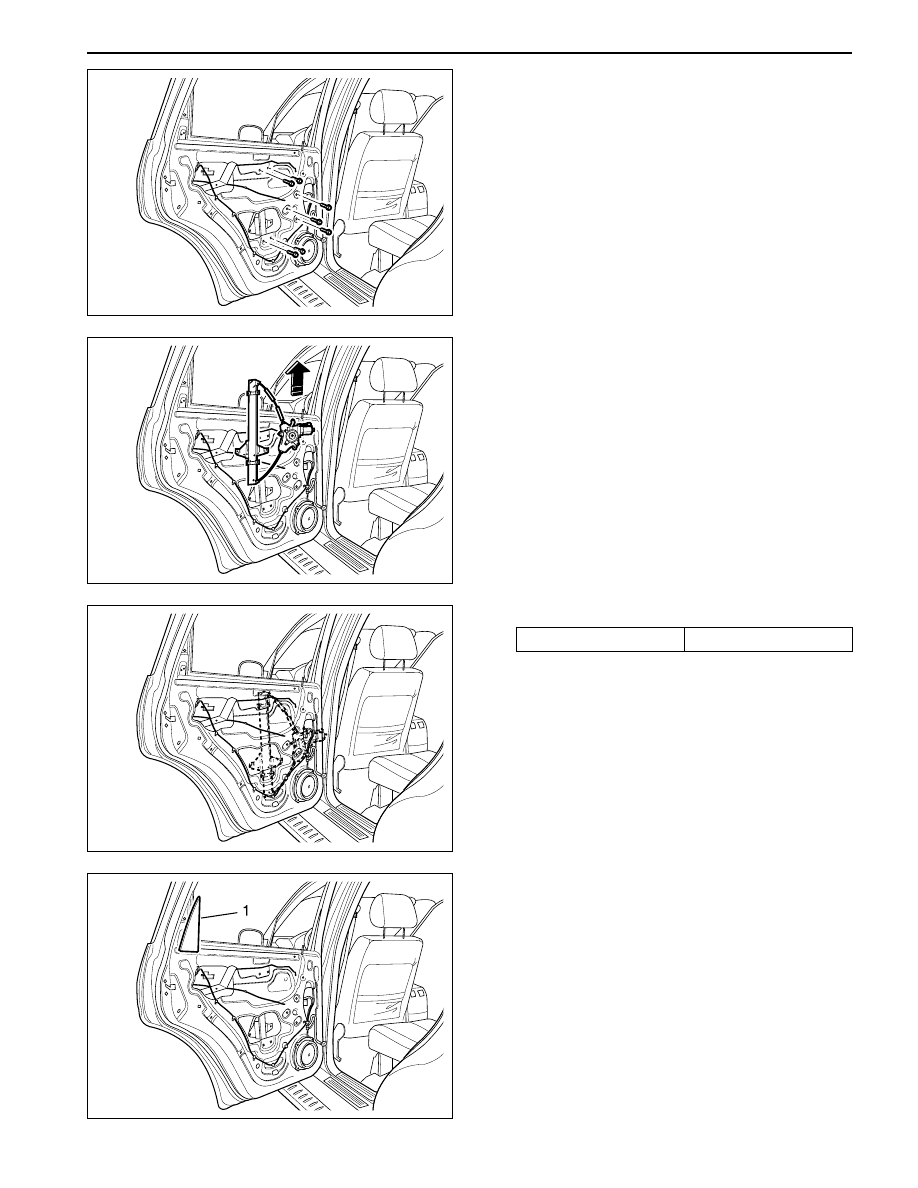

3. Remove door regulator assembly.

1) Separate connector of window motor.

2) After separating fixing nut (7 ea) of window

regulator, remove regulator assembly.

3) Remove regulator assembly.

Installation

Fixing Nut of Regulator

8 N•m (26 lb-ft)

SSANGYONG Y200

9C-42 BODY EXTERIOR

YAD9C1K0

YAD9C1L0

YAD9C1M0

YAD9C1N0

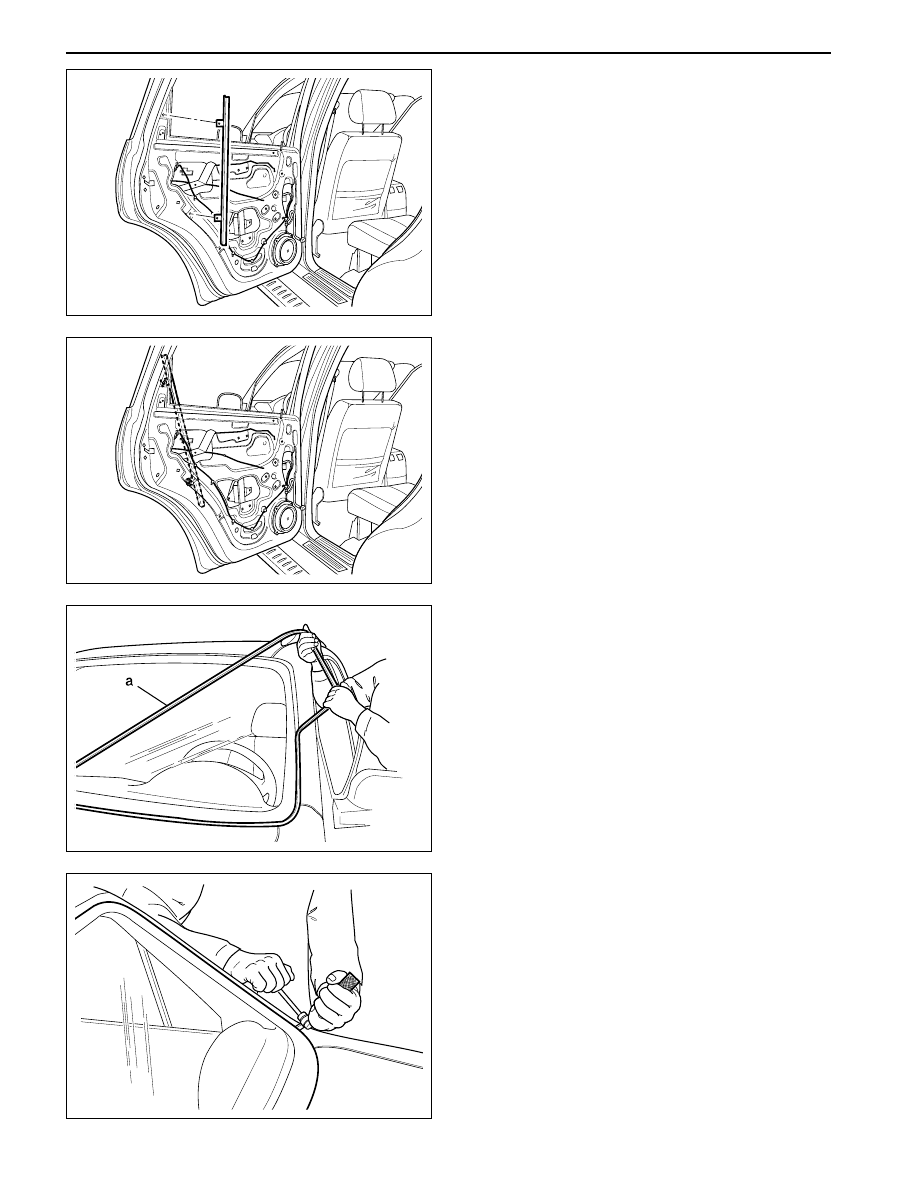

2) After releasing fixing nut of glass channel,

remove glass channel.

3) As glass channel is installed, in order for glass

channel not to change up and down, should be
installed right position, tighten fixing bolt.

WIND SHIELD GLASS

Removal

1. Remove cowl grill.

2. Remove room back mirror.

3. Remove moulding (a) of wind shield glass.

4. Using special tool, cut sealant of wind shield glass.

BODY EXTERIOR 9C-43

SSANGYONG Y200

;;;;;;

;;;;;;

;;;;;;

;;;;;;

;;;;;;

YAD9C1P0

YAD9C1Q0

YAD9C1S0

3. Spread sealant on the wind shield.

Notice:

1) If shape of spreading is not uniform, thickness

of spreading is not uniform after installing
wind shield, leaking of water may occur.

2) As sealant is spreading, due to interfering of

nozzle, keep eye on for glass moulding, glass
dam not to drop.

5. Remove wind shield glass

6. Using knife, remove sealant of wind shield glass

and frame.

Notice:  In order to prevent damage of painting,
approximately 1mm of sealant should not be
removed from body.

Installation

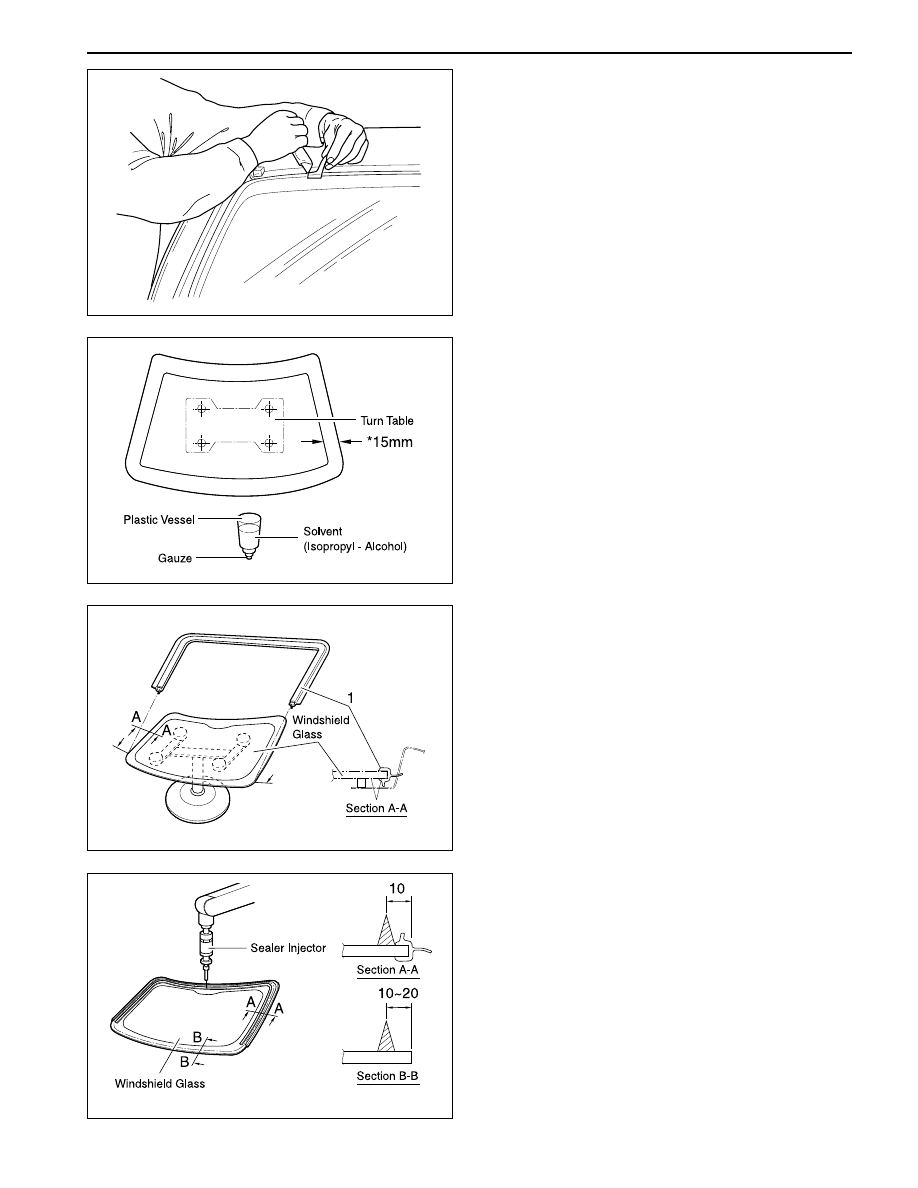

1. Clean up section to spread primer of wind shield

glass by washing.

1) Section of washing keep distance 15 mm from

the end of glass.

2) After using gauze 20 times, gauze is thrown

away.

3) Gauze is a solvent (isopropyl alcohol), gauze

keep wet completely.

4) Keep an eye on the washed section of glass

not to be touched by any thing polluted.

5) After washed glass, spread primer on the glass

section of wet state.

2. Install new wind shield moulding on wind shield

glass.

Notice:  After spreading sealant on the glass,
glass should be installed within 5 minutes.

YAD9C1R0

SSANGYONG Y200

9C-44 BODY EXTERIOR

;;

;;

YAD9C1T0

YAD9C1U0

YAD9C1V0

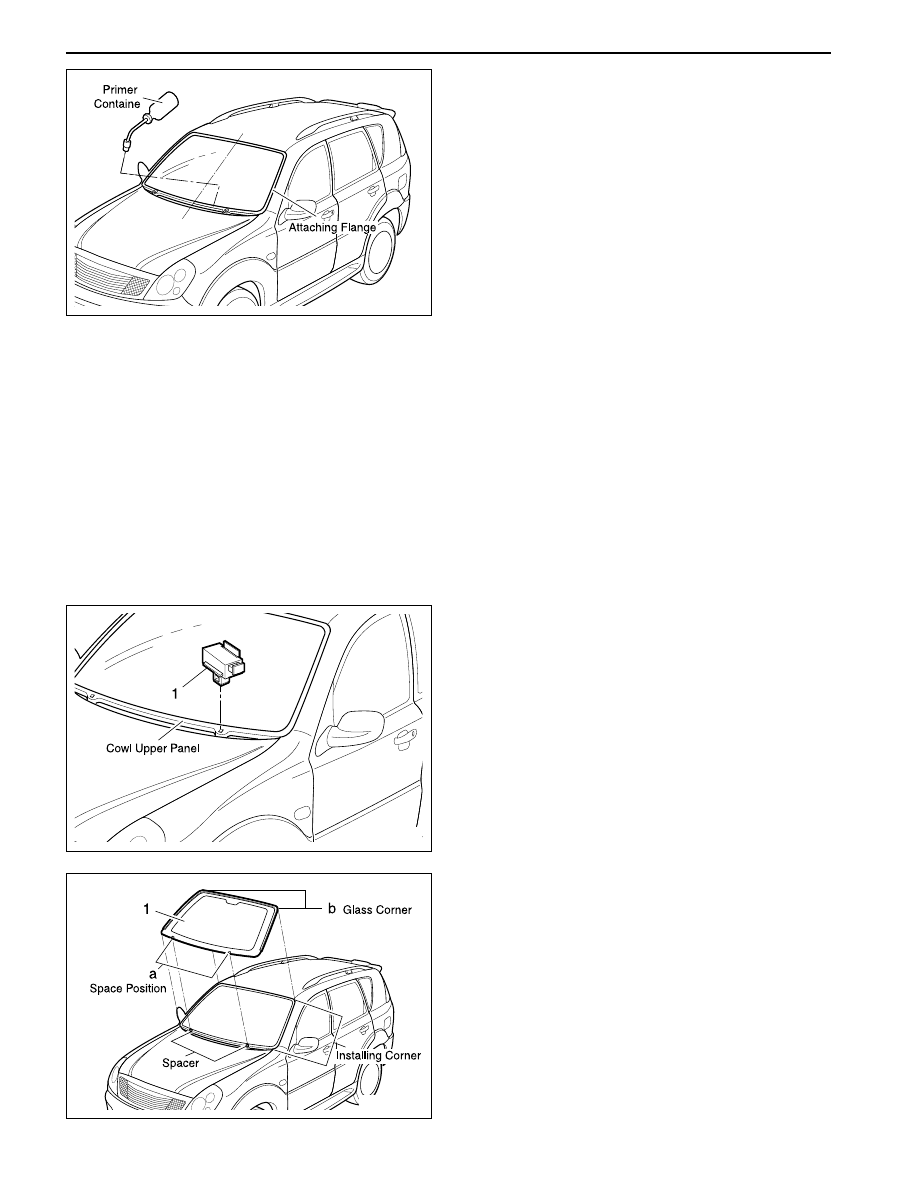

6. After install glass of wind shield, check the

following description.

Notice: If the section (b) of glass corner happen
clearance between moulding and body, spacer
can adjust this clearance.

4. Wash up flange of wind shield glass.

•

After using gauze 20 times, gauze is thrown
away

•

Gauze is a solvent (isopropyl alcohol), gauze
keep wet completely

•

Keep an eye on the washed section of glass
not to be touched by any thing polluted.

•

After washed body flange, spread primer on the
glass section of wet state.

•

If oil is stuck on the body flange, primer does
not spread on the body flange.

•

After spreading, is available time for use : from
3 hours to 8 hours

•

As the body is polluted by  primer, as soon as
possible mixing with ethil alcohol and ethil
asetate (as a volume 50 : 50) and with this wet
cloth is wiping solvent.

•

Term of validity of primer (90 days) which is
passed is thrown away.

•

As spreading primer, flowing into other sections,
pay attention not to pollute other sections.

5. Insert spacer of wind shield.

•

Insert spacer until kind of sound occur.

•

After spacer insert body, no clearance.
