SSANGYONG  Y200

9B-18  BODY INTERIOR

YAD9B490

YAD9B500

YAD9B510

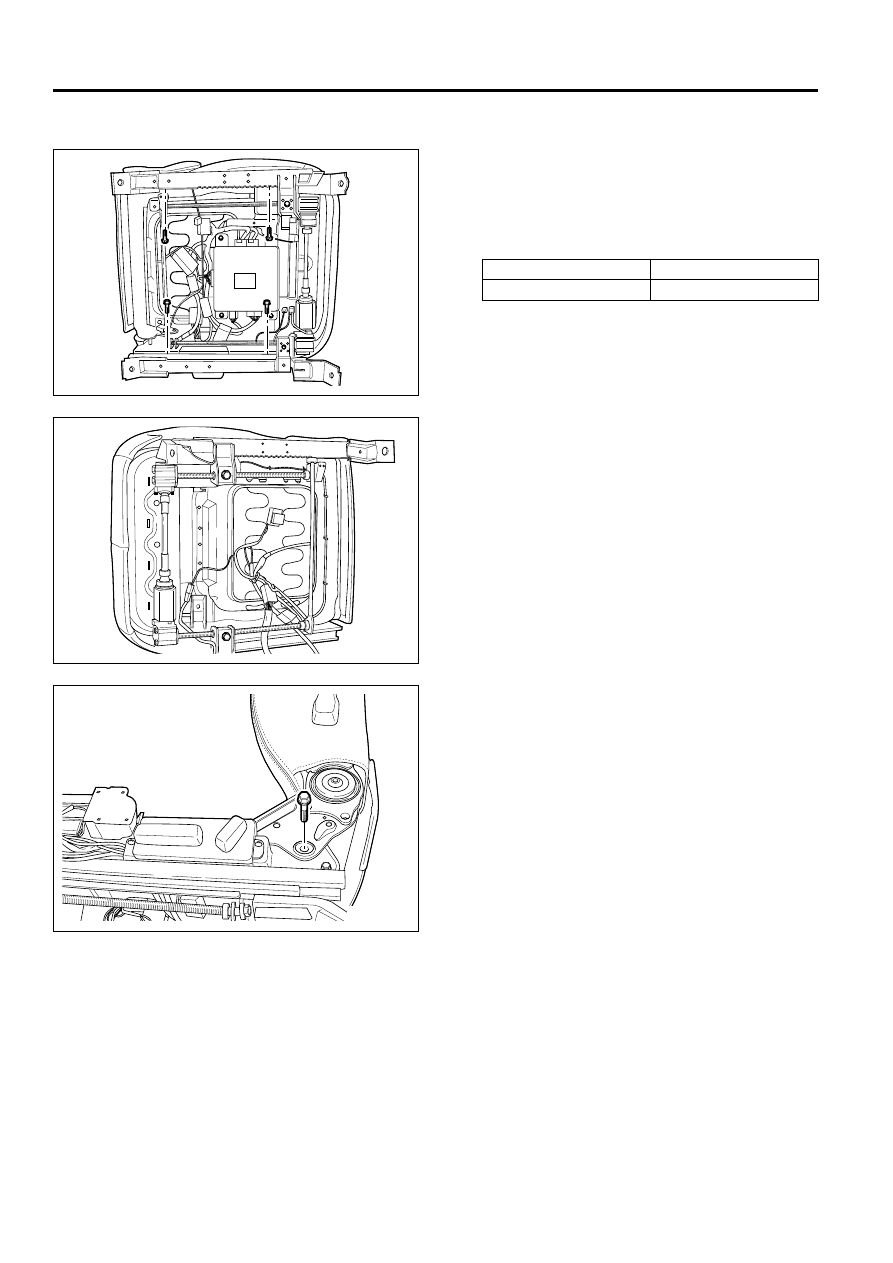

REMOVAL AND INSTALLATION

FRONT SEAT

1. Release fixing bolt ( 4 each ) of seat cushion from

the separated seat.

While the seat is installed, technician should
tight the fixing bolt, as following

Torque fo front fixing bolt

Torque fo front fixing bolt

41.2 - 49 N•m
41.2 - 49 N•m

2. Separate seat cushion from the seat rail, at this

time, if seat warmer is equipped , separate
connector.

3. After separating connector of adjusting switch,

remove external cover of seat.

4. Remove fixing bolt of seat rail ( M10 x P1.25.

2each ).

BODY INTERIOR  9B-19

SSANGYONG  Y200

YAD9B520

YAD9B530

YAD9B540

YAD9B550

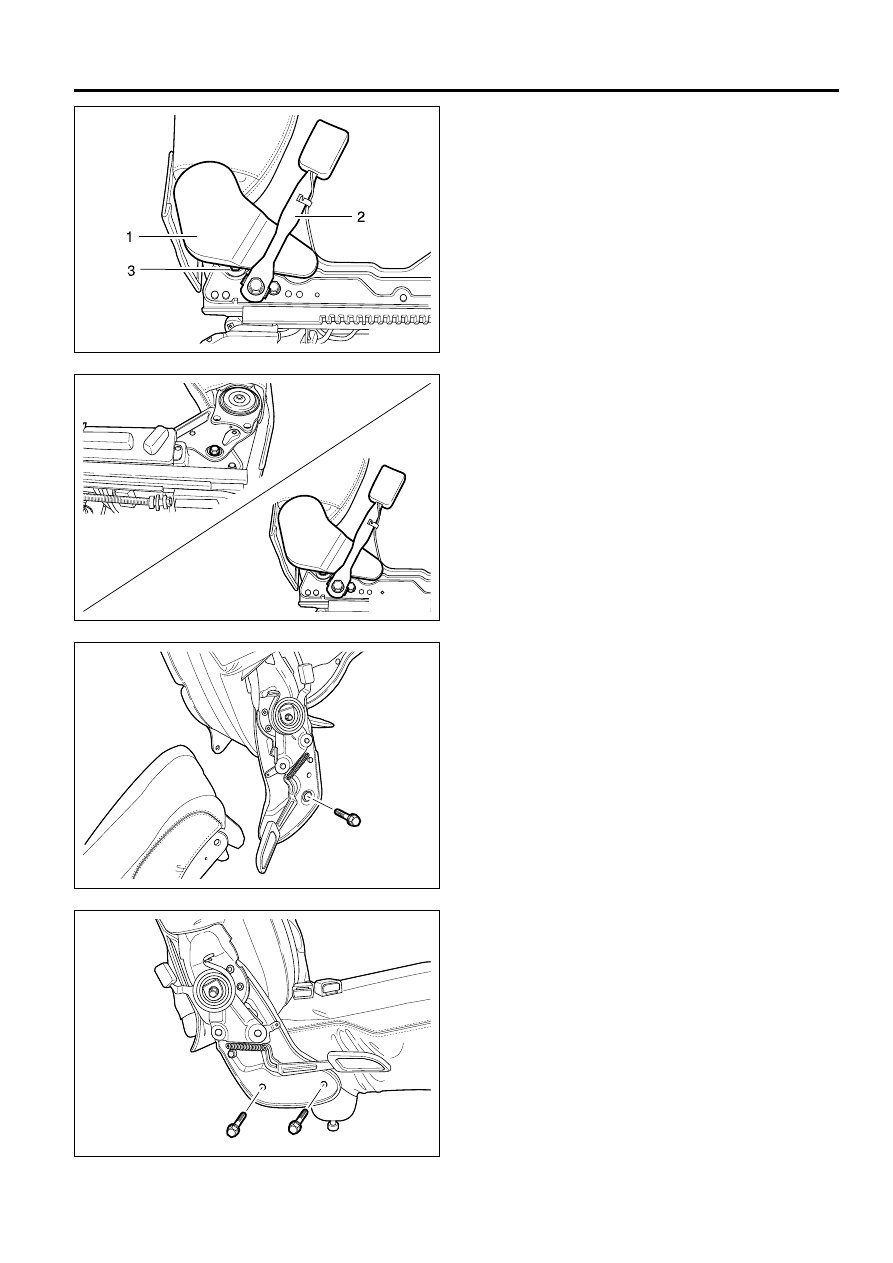

5. After separating external cover(1) of seat and

buckle assembly(2) the other side, separate fixing
bolt of seat rail.

1) Remove the cover : screw, 2 each

2) Remove buckle assembly (7-16

11

-20)

    : After separate the connector.

3) Separate fixing bolt of seat rail

    : 2 each (M10 x P1.25)

6. Install reverse order of removal.

TWO ROW SEAT

1. After releasing fixing bolt of bracket in the two

row seat of two person, separate seat cushion.

1) Remove nob of recliner

2) Remove cover of recliner

( External cover of seat ) : screw : one )

3) Separate fixing bolt of seat and remove cable

( M10 x P 1.25 : 2 each )

2. Position of fixing bolt differs in the left and right

each other in the seat of one person ( see picture
), after checking the position, remove seat cushion.

1) seat of two person : after removing external

cover ( screw : one ), separate fixing bolt and
remove cable(M10Xp1.25)

2) seat of one person : after removing external

cover ( screw : one ), remove bolt of hinge.

SSANGYONG  Y200

9B-20  BODY INTERIOR

YAD9B560

YAD9B570

YAD9B580

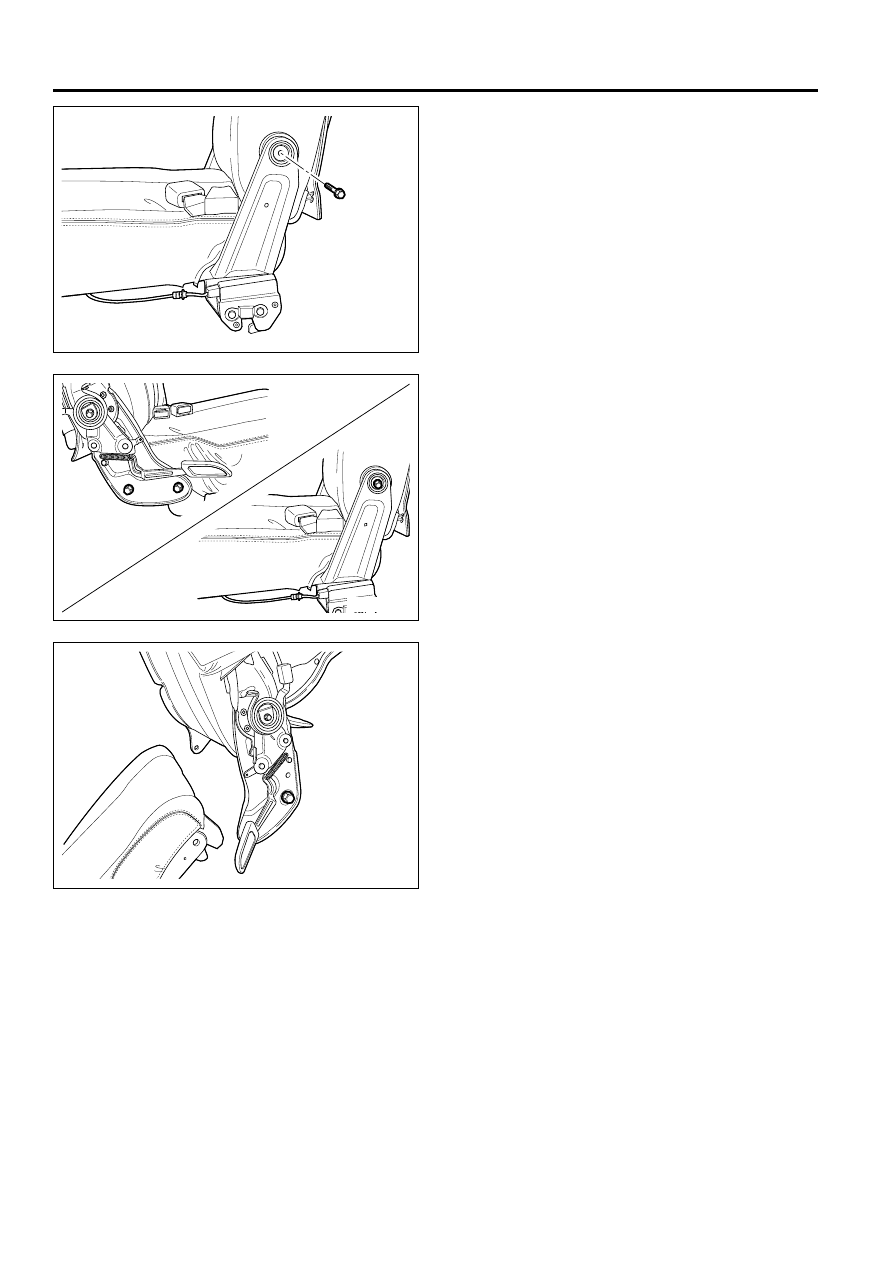

3. Install reverse order of removal.

BODY INTERIOR  9B-21

SSANGYONG  Y200

YAD9B590

YAD9B600

YAD9B610

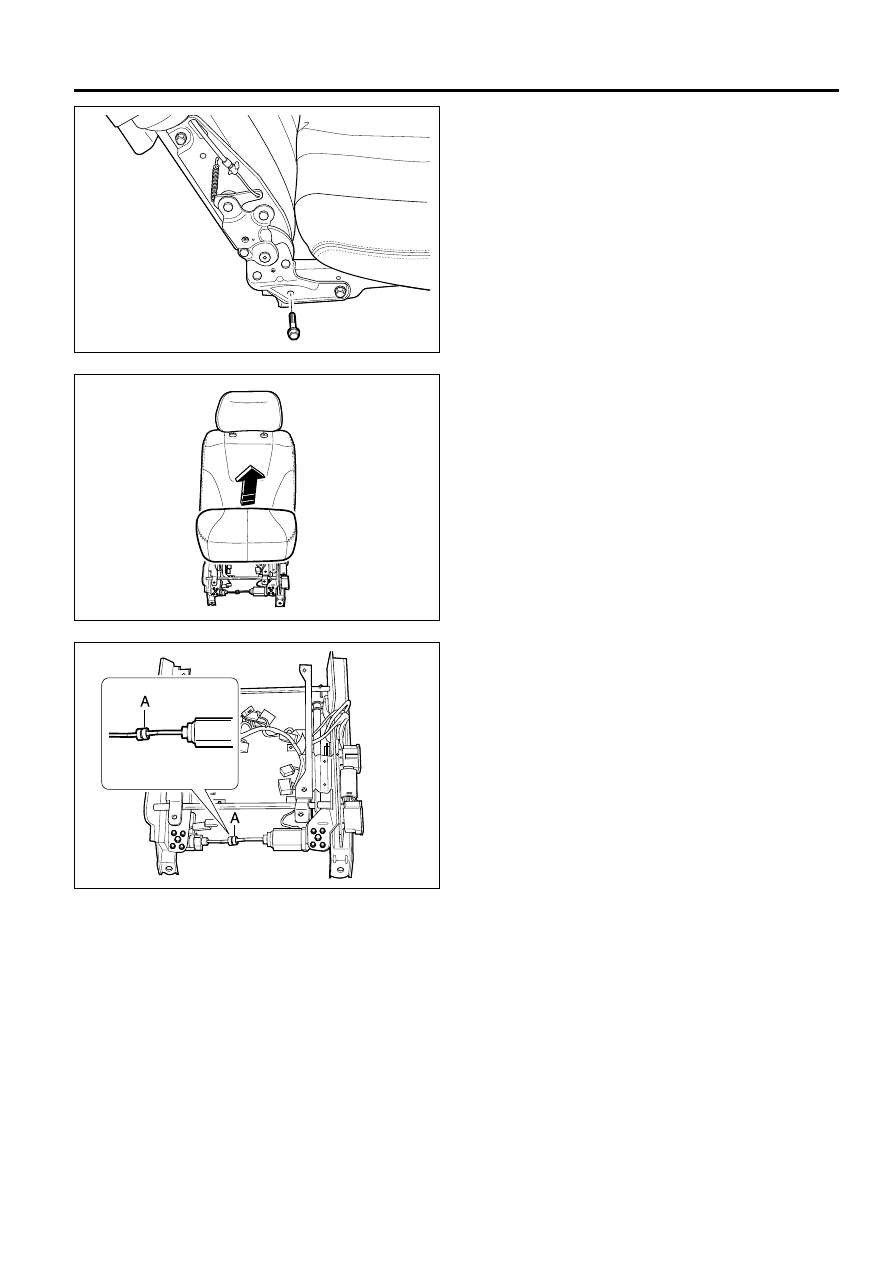

SEAT OF  THREE ROW

1. After releasing bolt of seat socket at the bracket

of the seat right and left, remove seat.

Replacing Seat Motor In The Guide Rail Of
Seat

1. Separate seat cushion.

2. After releasing A of part of seat motor, separate

wire.

3. After releasing fixing nut of seat motor, separate

motor assembly.
