RESTRAINTS  8B-19

SSANGYONG  Y200

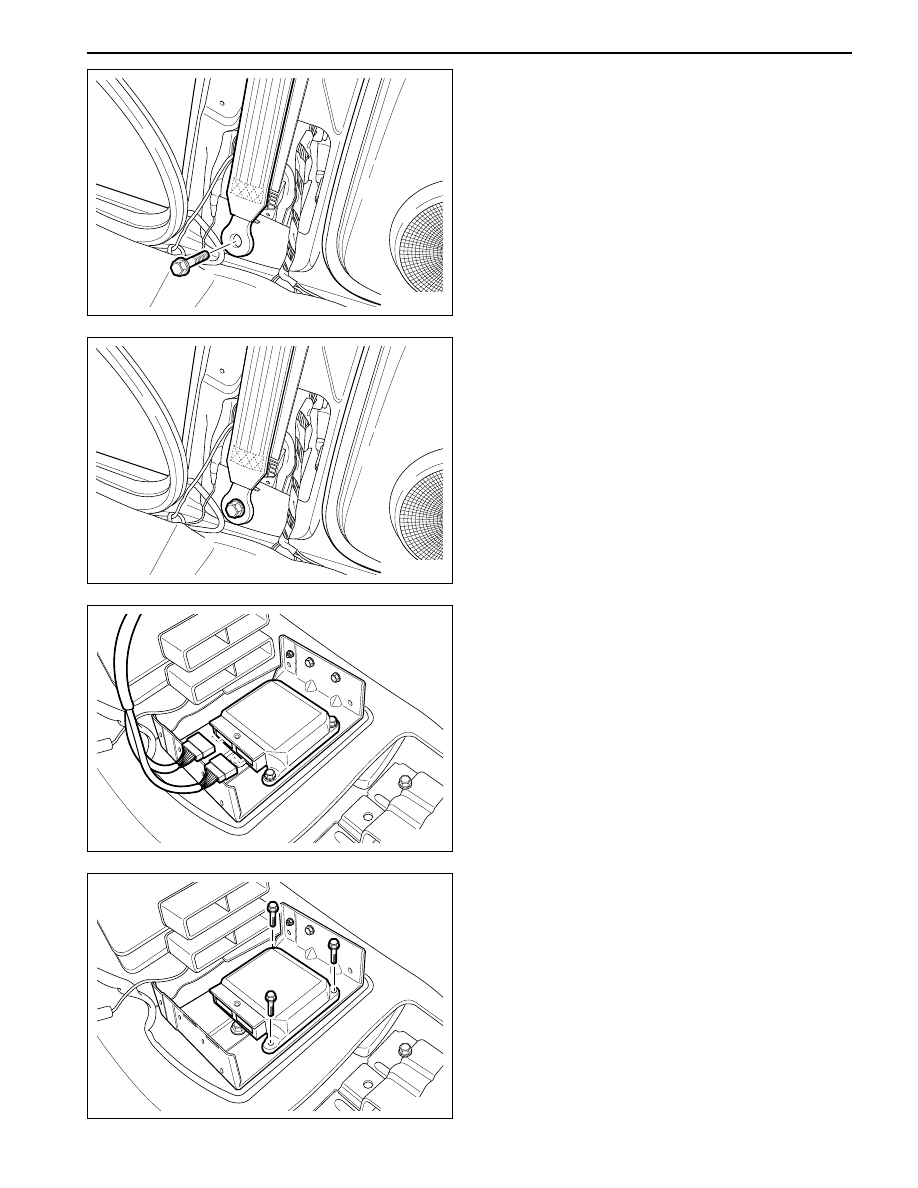

BELT PRETENSIONER

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the upper belt bolt and disconnect the

panel.

3. Disconnect the airbag wiring connector.

4. Remove the mounting bolt of the belt pretensioner

and remove the belt assembly.

4. Remove the SDM mounting bolt and remove the

SDM assembly.

5. Installation should follow the removal procedure

in the reverse order.

YAD8B210

YAD8B220

YAD8B230

5. Tighten the pretensioner mounting bolt as the

specified torque.

Installation should follow the removal procedure
in the reverse order.

SENSING AND DIAGNOSTIC
MODULE (SDM)

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the I/P center panel and the console

panel.

3. Remove the SDM connector.

YAD8B240

SSANGYONG  Y200

8B-20  RESTRAINTS

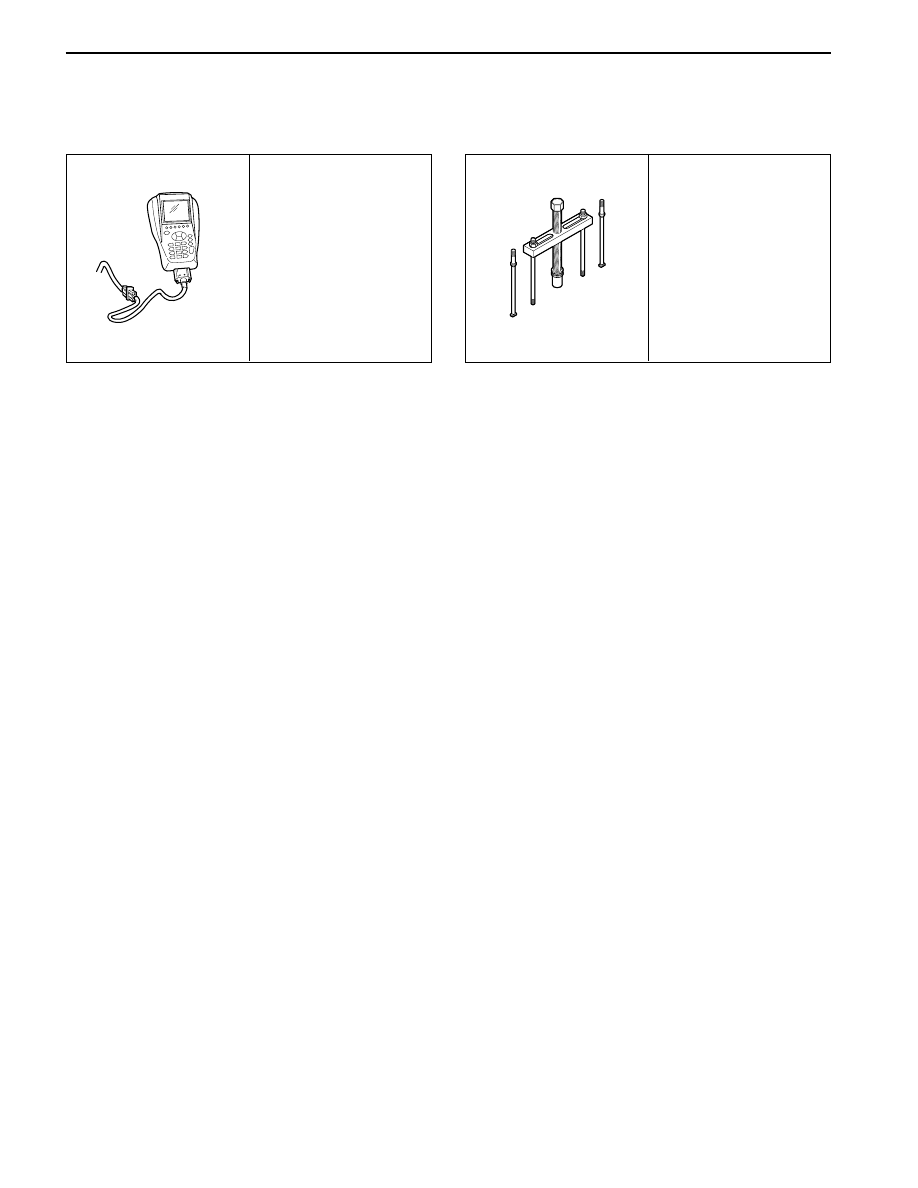

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS TABLE

Scan Tool

Wheel Wrench

YAD8B250

YAD8B260

SECTION 9A

GENERAL BODY

TABLE OF CONTENTS

Specification ........................................................ 9A-2

Dignosis and Action Taken ................................... 9A-3

Diagnosis for Leaking Water ................................ 9A-3

Check and Repair ................................................. 9A-4

Check ................................................................. 9A-4

Repair ................................................................. 9A-7

Special Tool and Equipment ................................ 9A-9

Special Tools Table .............................................. 9A-9

SSANGYONG  Y200

9A-2  GENERAL BODY

SPECIFICATION

Rear Hinge and Type of Front Opening, Gas Lifter

Front Hinge and Frame Door

Wire and Drum

Pin and Fork

Front Hinge and Frame Door

Wire and Drum

Pin and Fork

Internal Hinge, Gas Lifter

5 mm

4.0 mm

4.0 mm

4.0 mm

4.0 mm

5.0 mm

Spray Nozzle of #1/2 GG-25 or Nozzle with Sloping

Angle 60° Equivalent

Keep Distance 1,600 mm from Ground

14L Per Mir

155kPa(22.5 psi): Checking Pressure from nozzle

Keep Injecting Water, 30° of Lower Direction and 45°

of Backwards, Approximately at the corner of Wind-

shield

Keep Injecting Water, 30° of Lower Direction and 45°

of Backwards, Approximately at the corner Line of

Rear Door.

Keep Injecting Water, 30° of Lower Direction and 45°

of Forwards, Approximately at Distance of 60mm to

the Corner of Rear Door

Type

Structure

Type of Regulator

Lock System

Structure

Type of Regulator

Lock System

Type

Wind Shield

Front Door Glass

Rear Door Glass

Rear Fix Glass

Glass of Tail Gate

Type of Nozzle

Height of Nozzle

Quantity of Injecting

Pressure

Position of a Piller Test Stand and

Wing Shield

Position of “B” Piller Test Stand

Position of Rear Decklid Test and Tail

Gate Glass

Application

Specification

Hood

Front Door

Rear Door

Tail Gate

Thickness of

Glass

Specification

of Test Water

Leaking

Fixing Type

Opening Type
