RESTRAINTS  8B-7

SSANGYONG  Y200

FRONT AIRBAG

General Description

•

The frontal airbag system is a safety device used
in conjunction with the seat belts.

The airbag does not replace the function of the seat
belt. The driver and the passengers must always
fasten their seat belts and adjust them for a proper
fit.

The front seat airbag is designed to protect the driver
and the front seat passenger in the event of a
significant frontal impact to the vehicle.

•

The driver airbag is installed on the steering wheel
and the passenger airbag is in the instrument panel.

Airbag Component

Cover

It is a part of the airbag steering section and is made
by injection molding.

Door Assembly

It is a part of the airbag steering and is made by
vacuum bubble, PSM, injection.

Cushion

•

Cushion is made mainly of nylon 66 material.

•

It is made by assembling various panel pieces and
sometimes, some surfaces of these panel pieces
handled by coating. The coating material is used
as silicon rubber generally.

Inflator

•

The inflator generates gas to fill the cushion with it.
There are two type of ALL-PYRO TECHNIC TYPE
and HYBRID TYPE according to gas generated type.

•

Now, the driver airbag uses the “all-pyro technic
type” and the passenger airbag uses both “all-pyro
technic type” and “hybrid type”.

•

The inflator has the ignitor at one side of the inflator.

The ignitor receives a electrical signal from the
sensor and ignites powders continuously.

Housing

It is a part of airbag steel plate structure.

SSANGYONG  Y200

8B-8  RESTRAINTS

SIDE AIRBAG

The side airbag receives each of the side airbag sensor
signal to deploy the airbag when the vehicle crashes
at side impact. The side airbag module is installed
inside the seat. When the airbag is deployed, replace
the deployed front seat assembly.

System Structure

Related System

1 Vehicle Structure and B/W

2 Seat System

3 Seat Belt System

4 Door Trim and Door Structure

5 B - Pillar Trim and Structure

6 Airbag Wiring Harness

Component

1 Side Airbag Module (LH/RH)

2 Side Airbag Sensor (LH/RH)

3 SDM (Common use the SDM for frontal airbag)

Side Airbag Module (SAB)

•

Chest, Head and Gas Airbag

•

Installed on door or seatback

Side Airbag Module (SAB)

•

Chest, Head and Gas Airbag

•

Installed on door or seatback

SDM

Side Airbag Sensor

•

Side Impact Detection

•

Deployment Decision

•

Self-Diagnosis

•

Installed on Inner B - Pillar or Side
underbody

Side Airbag Sensor

•

Side Impact Detection

•

Deployment Decision

•

Self-Diagnosis

•

Installed on Inner B - Pillar or Side
underbody

•

Operation Circuit

•

Safety Sensor

•

External Diagnosis

RESTRAINTS  8B-9

SSANGYONG  Y200

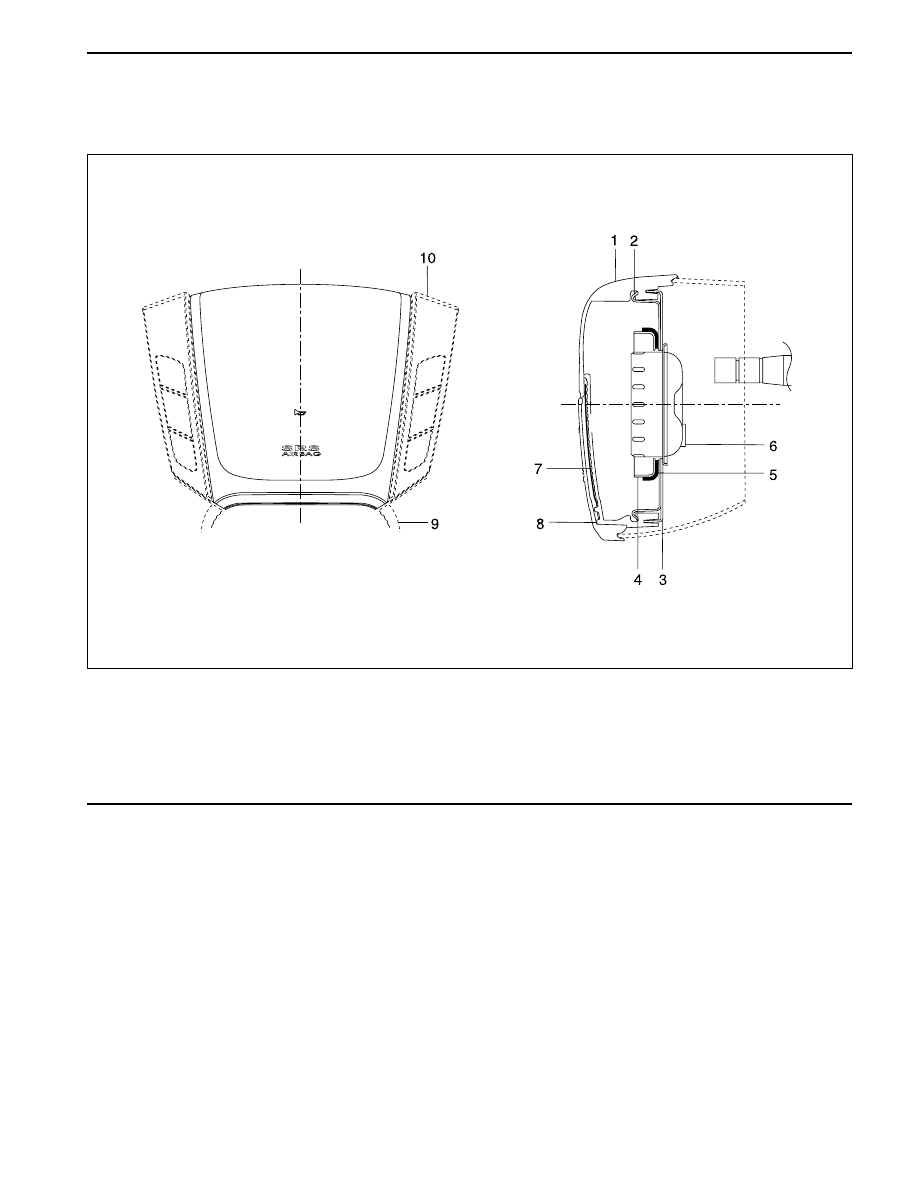

FRONTAL AIRBAG CROSS SECTIONAL VIEW

DRIVER AIRBAG ASSEMBLY

1 Cover
2 Carrier
3 Retainer cover assembly
4 Retainer cushion assembly
5 Cushion assembly

6 Inflator assembly
7 Membrane switch assembly
8 Reaction plate
9 Steering wheel

10 Remote control switch

YAD8B090

SSANGYONG  Y200

8B-10  RESTRAINTS

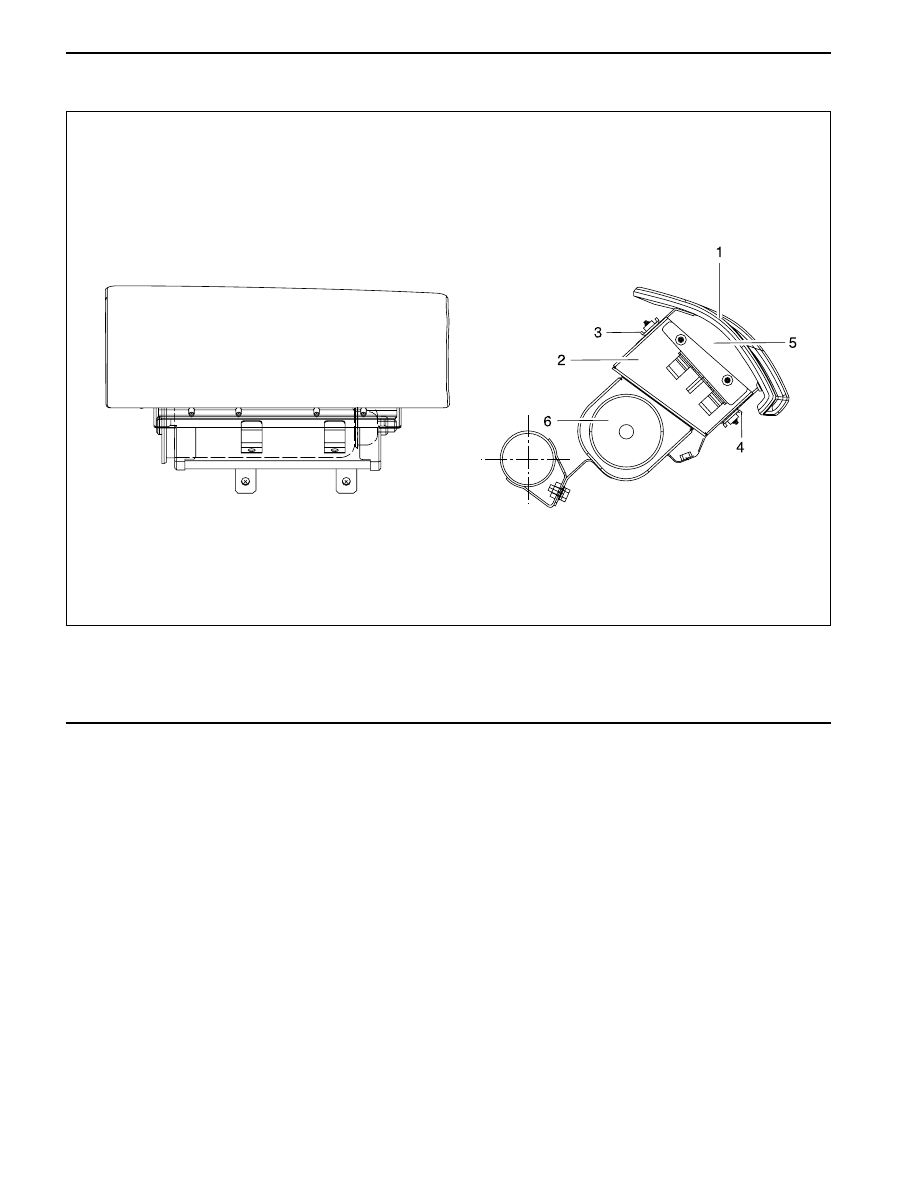

PASSENGER AIRBAG ASSEMBLY

1 Cover assembly
2 Housing assembly
3 Upper Door Retainer

YAD8B100

4 Lower Door Retainer
5 Cushion assembly
6 Inflator assembly
