SSANGYONG Y200

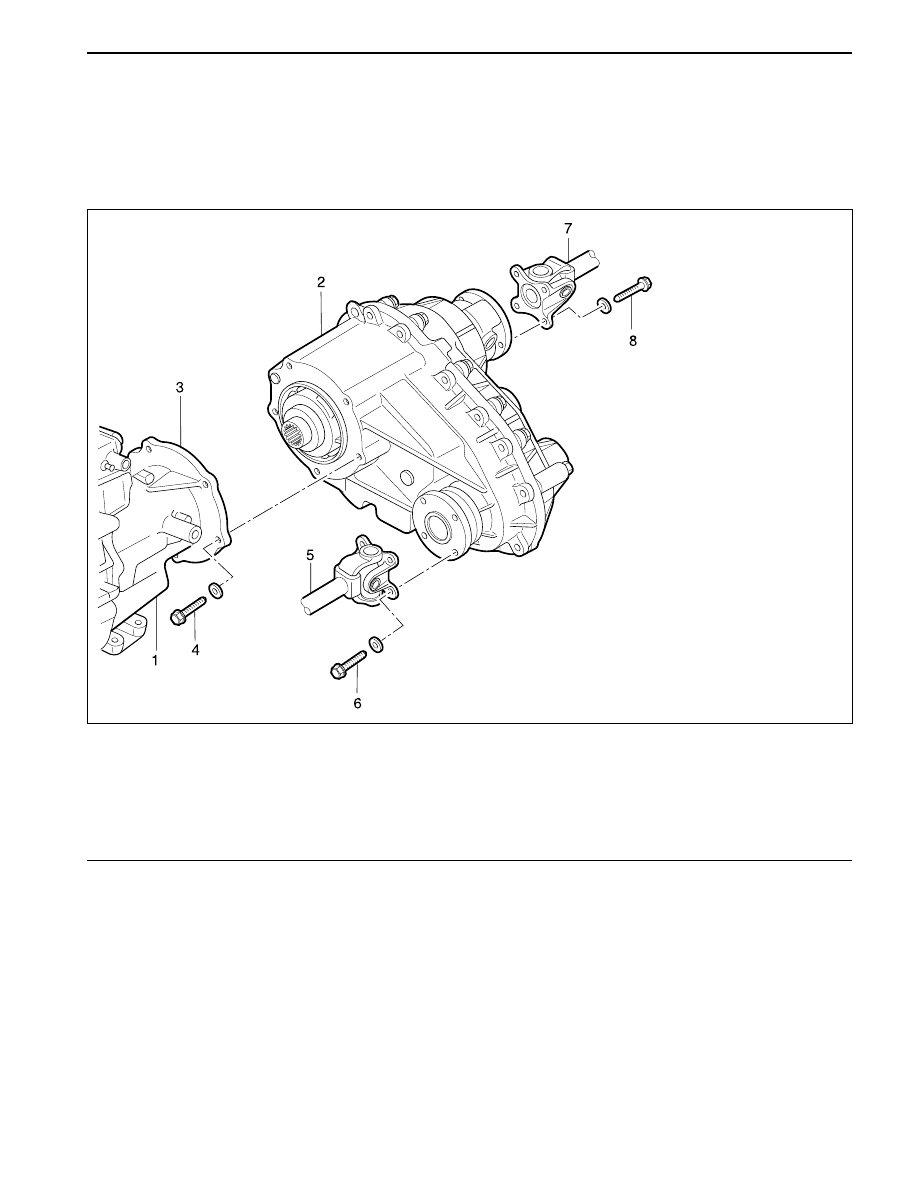

5D2-64 TRANSFER CASE - TOD
DIAGNOSTIC TROUBLE CODE (DTC) 1752
Position 2 Shorted to Ground
Circuit Description
The transfer case control unit (TOD) receives position
encoder signals from position encoder.
Conditions for Setting the DTC
•
Position 2 code does not correspond to the specific
codes.
•
A short to ground on any of the encoder lines.
Diagnostic Aids
•
Check for short to ground circuit.
Test Description
The number(s) below refer to step(s) on the diagnostic
table.
3. This step checks the continuity of the position
encoder line.
5. This step checks the connector and connection
status.
Step
1
2
3
4
5
6
7
No
Go to “TOD
Diagnostic
System
Check”
Go to “DTC
1750 General
Position
Encoder Fault
(Invalid
Code)”
Go to Step 5
-
System OK
Go to Step 7
-
Yes
Go to Step 2
Go to Step 3
Go to Step 4
System OK
Go to Step 6
System OK
System OK
Action
Was the TOD Diagnostic System Check performed?
1. Turn the ignition switch to OFF.
2. Connect a scan tool to the data link connector (DLC)
and follow the directions given in the scan tool
manual.
3. Turn the ignition switch to ON.
4. Request DTC with scan tool.
Is the DTC 1752 only current trouble code?
1. Turn the ignition switch to OFF.
2. Disconnect 18-pin connector from the transfer case
control unit (TOD).
3. Measure the resistance between terminal A10 of TOD
connector and ground.
Is the resistance equal to specified value?
Repair short to ground circuit.
Is the repair complete?
1. Turn the ignition switch to OFF.
2. Disconnect two connectors of the TOD and black
7-pin connector under the body.
3. Inspect the terminals for damage or improper connection.
4. Repair any damaged pins or terminals on the wiring
harness and TOD.
5. Reconnect the connectors and make sure it is seated
properly.
6. Connect a scan tool to the data link connector (DLC).
7. Turn the ignition ON.
8. Request the DTC with scan tool.
Is the DTC still current?
Replace the shift motor.
Is the repair complete?
Replace the TOD.
Is the repair complete?
Value
-
-
0
Ω
-
-
-
-
