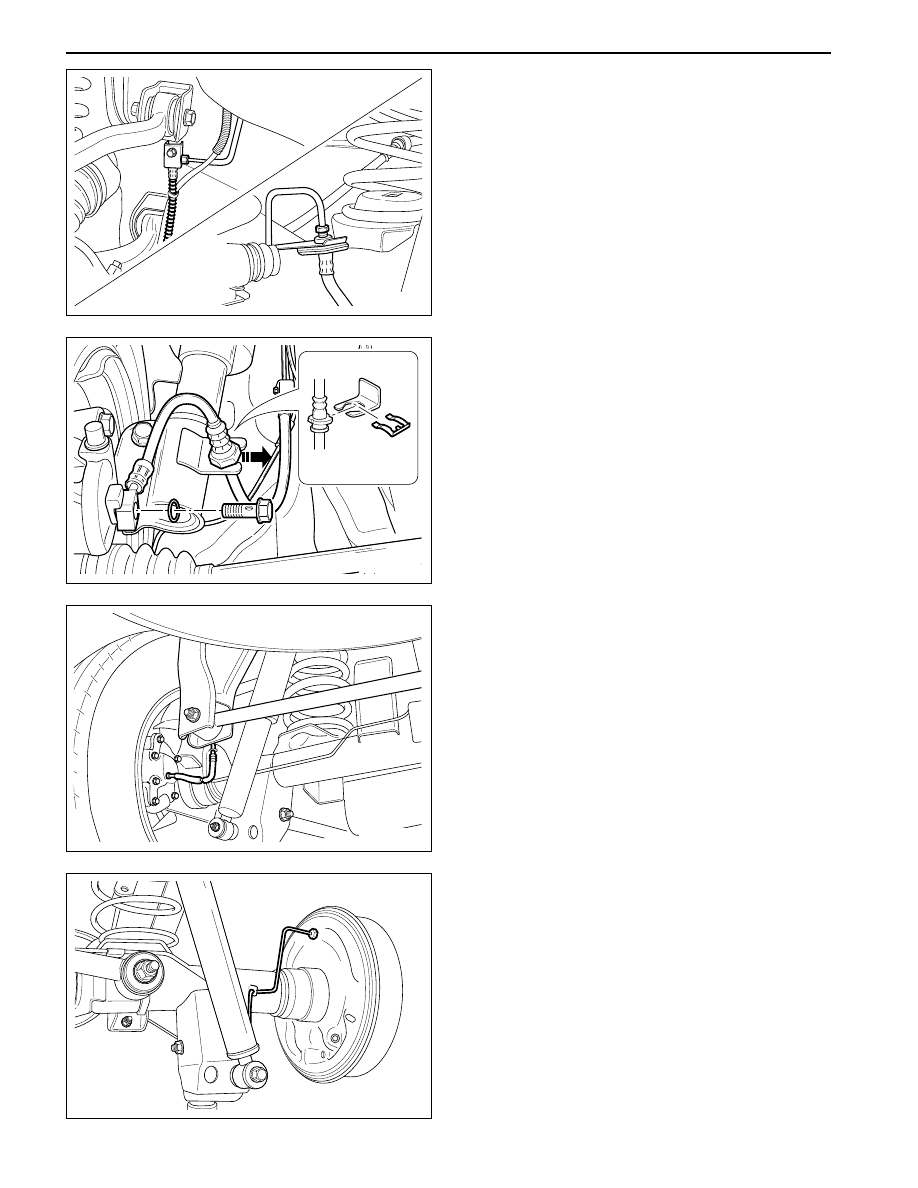

SSANGYONG  Y200

4A-22  BRAKE SYSTEM

YAD4A540

YAD4A550

YAD4A560

YAD4A570

•

Remove the bracket of the connecting pipe from
the 3-way connector.

2. Remove the front brake hose.

•

Remove the brake pipe nut.

•

Remove the E-ring.

•

Disconnect the strut from the brake mounting.

•

Remove the union bolt from the caliper and
remove the brake hose.

3. Remove the rear brake hose.

•

Remove the brake pipe nut.

•

Remove the E-ring.

•

Disconnect the strut from the brake mounting.

•

Remove the union bolt from the caliper and
remove the brake hose.

- For disc type : from the caliper

- For drum type : from the cylinder

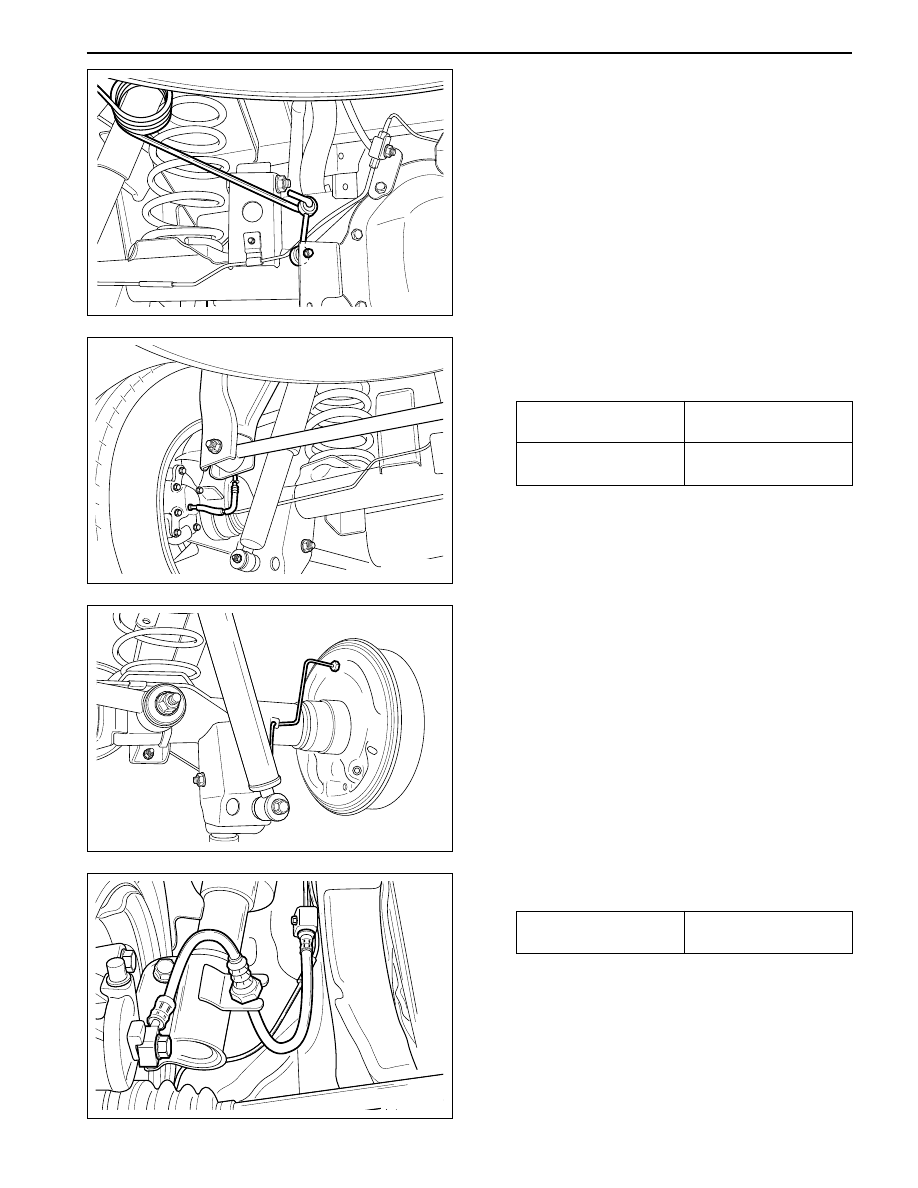

BRAKE SYSTEM  4A-23

SSANGYONG  Y200

YAD4A580

YAD4A590

YAD4A600

YAD4A610

4. For non-ABS/ABD, remove the brake pipe to the

rear brake at LCRV side.

Tightening Torque

at the caliper

Tightening Torque

at the wheel cylinder

15 - 18 N•m

(11 - 13 lb-ft)

15 - 19 N•m

(11 - 13 lb-ft)

Installation Procedure

1. Install the rear brake hose and tighten the union

bolts.

Tightening Torque

15 - 18 N•m

(11 - 13 lb-ft)

2. Install the front brake hose and tighten the union

bolts.

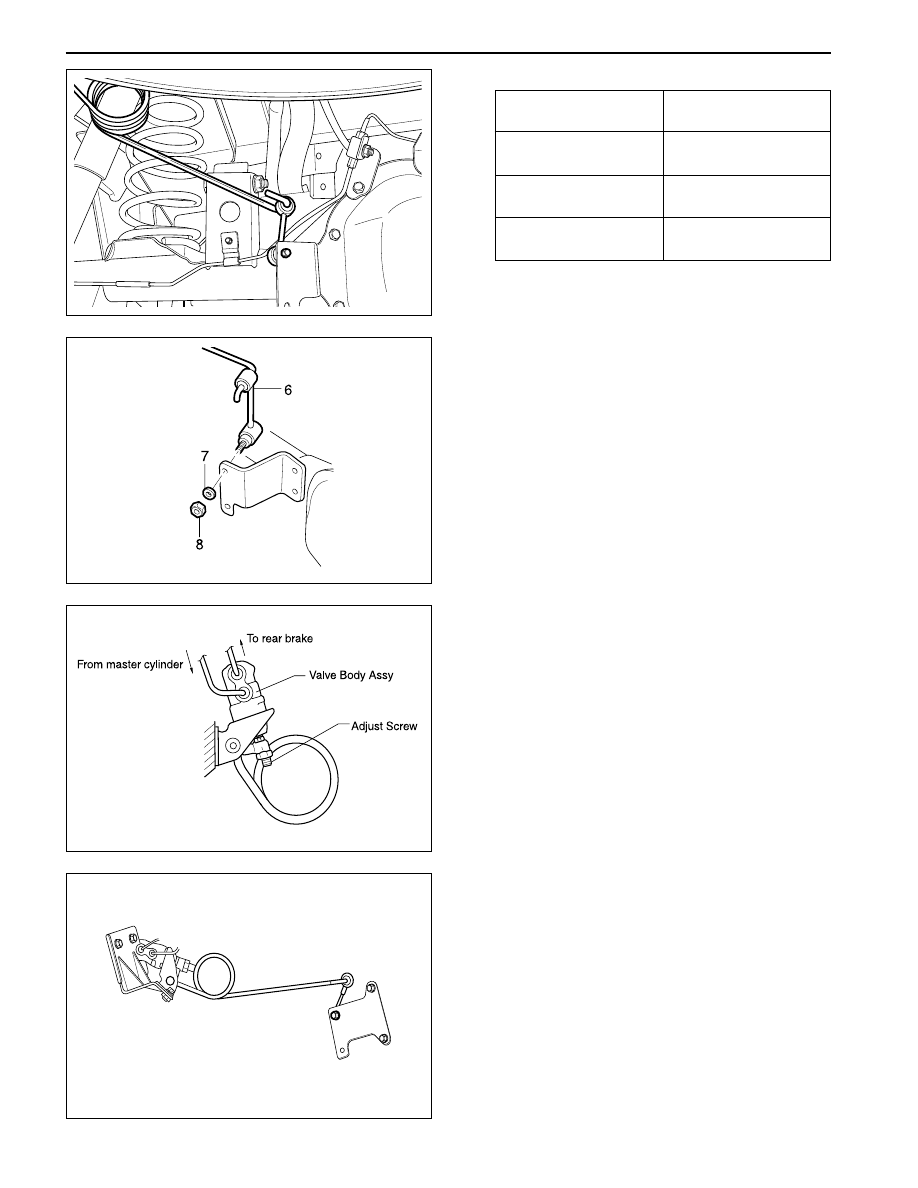

SSANGYONG  Y200

4A-24  BRAKE SYSTEM

YAD4A630

YAD4A640

YAD4A650

LCRV (LOAD CONSCIOUS
REDUCING VALVE)

1. Remove the nut mounting the stud from the LCRV

connecting rod.

2. Remove the brake pipe retaining the LCRV.

3. Remove the LCRV mounting bolt from the LCRV

bracket and remove the LCRV.

YAD4A620

3. Install the brake pipe to the correct position.

4. Bleed the brake system after replacement of the

pipes/hoses.

3-way Connector

LCRV System

ABS/ABD Control

 Unit

Port (M12)

15 - 19 N•m

(11 - 14 lb-ft)

15 - 19 N•m

(11 - 14 lb-ft)

15 - 19 N•m

(11 - 14 lb-ft)

20 - 24 N•m

(15 - 18 lb-ft)

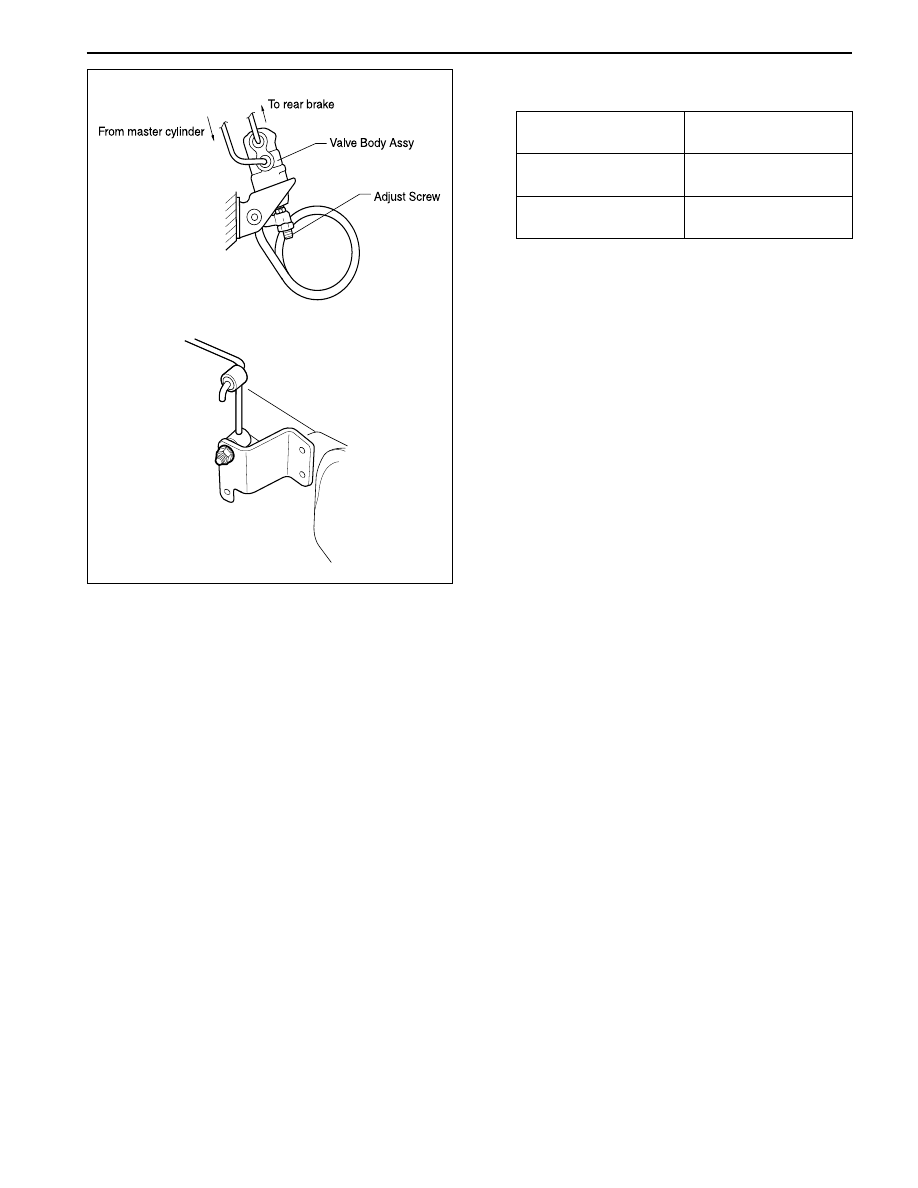

BRAKE SYSTEM  4A-25

SSANGYONG  Y200

YAD4A660

Notice: Bleed the brake system.

4. Installation should follow the removal procedure

in the reverse order.

Valve Body

Mounting nut

Bracket Mounting

Bolt

Stud Mounting

Nut

14 - 18 N•m

(10 - 13 lb-ft)

10 - 13 N•m

(89 - 115 lb-in)

14 - 18 N•m

(10 - 13 lb-ft)
