FRONT AXLE  3A-11

SSANGYONG  Y200

ON-VEHICLE SERVICE

FRONT AXLE SHAFT

Removal

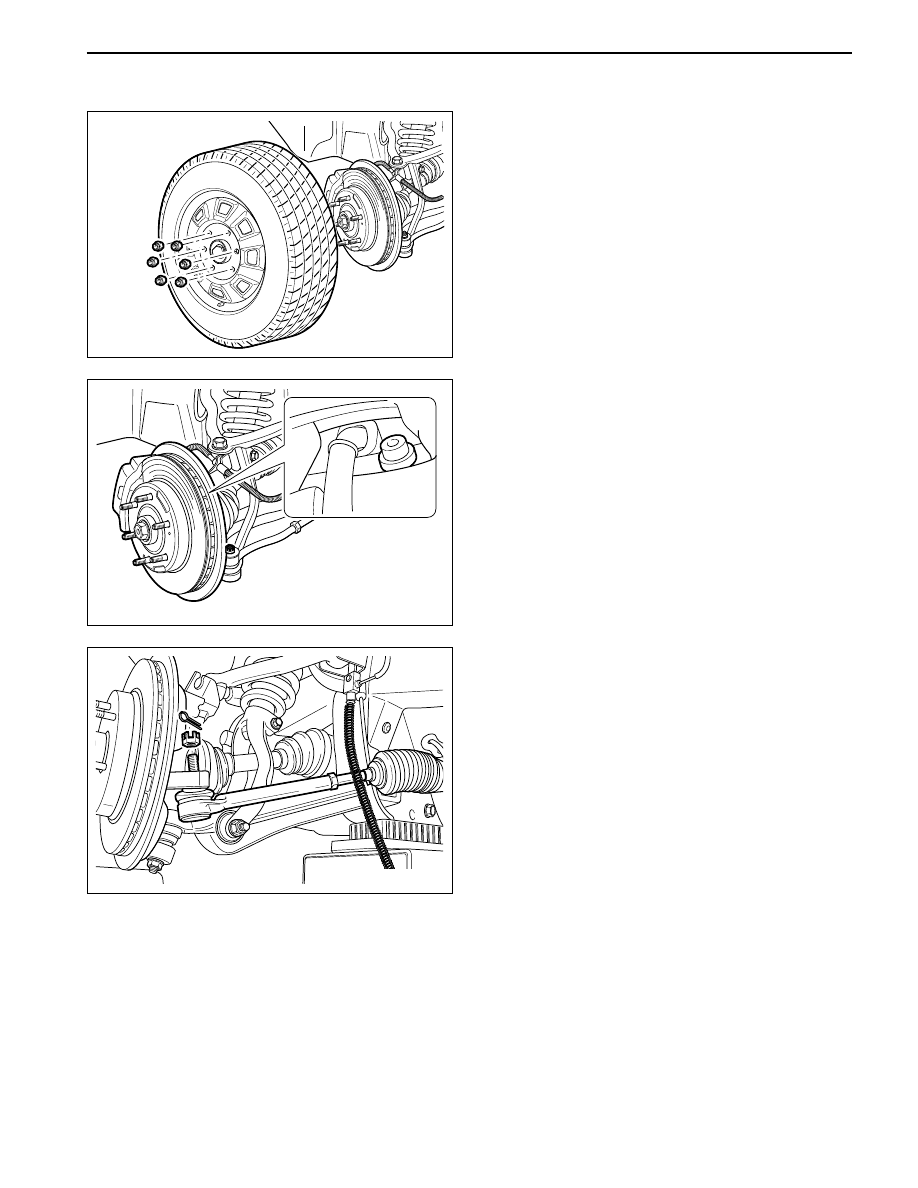

1. Remove the tire.

YAD3A050

YAD3A070

YAD3A060

2. with ABS (Only part time vehicle)

Remove the wheel speed sensor from the steering
knuckle and pull off the cable.

3. Remove the split pin from steering linkage link-

knuckle mounting and pull off the slot nut and
detach the link from knuckle arm.

Notice: Replace the split pin with new one when
it is installed again.

MAINTENANCE AND REPAIR

SSANGYONG  Y200

3A-12  FRONT AXLE

5. Vehicle with pant time transfer case only

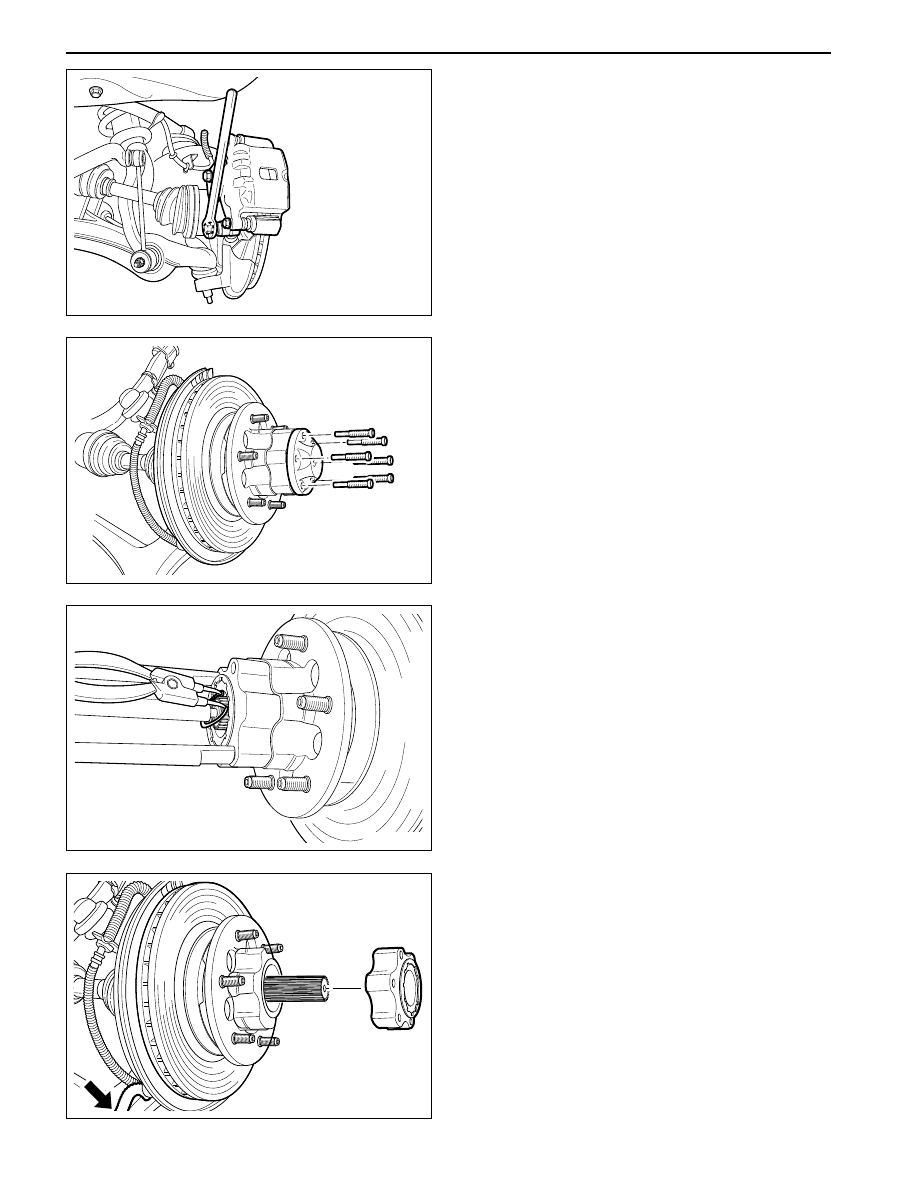

Remove the hub mounting bolt & washer and
pull off the hub cover.

YAD3A100

YAD3A110

Remove the retainer ring & outer shin in the
drive shaft and pull off the lock.

Notice: For assembly, adjust the clearance
between the snap ring & hub not to exceed 0.2mm.
(Shim thickness : 0.2, 0.3, 0.5, 1.0mm)

Notice: For assembly, be careful not to damage
O-ring of the locking hub.

Detach the vacuum hose of locking hub from
steering knuckle.

YAD3A090

4. Remove the two knuckle-brake caliper assembly

mounting blots and pull off the caliper assembly.

Notice: Be careful not to damage the brake oil hose.

YAD3A080

FRONT AXLE  3A-13

SSANGYONG  Y200

YAD3A140

YAD3A150

YAD3A130

6. With full time transfer case only

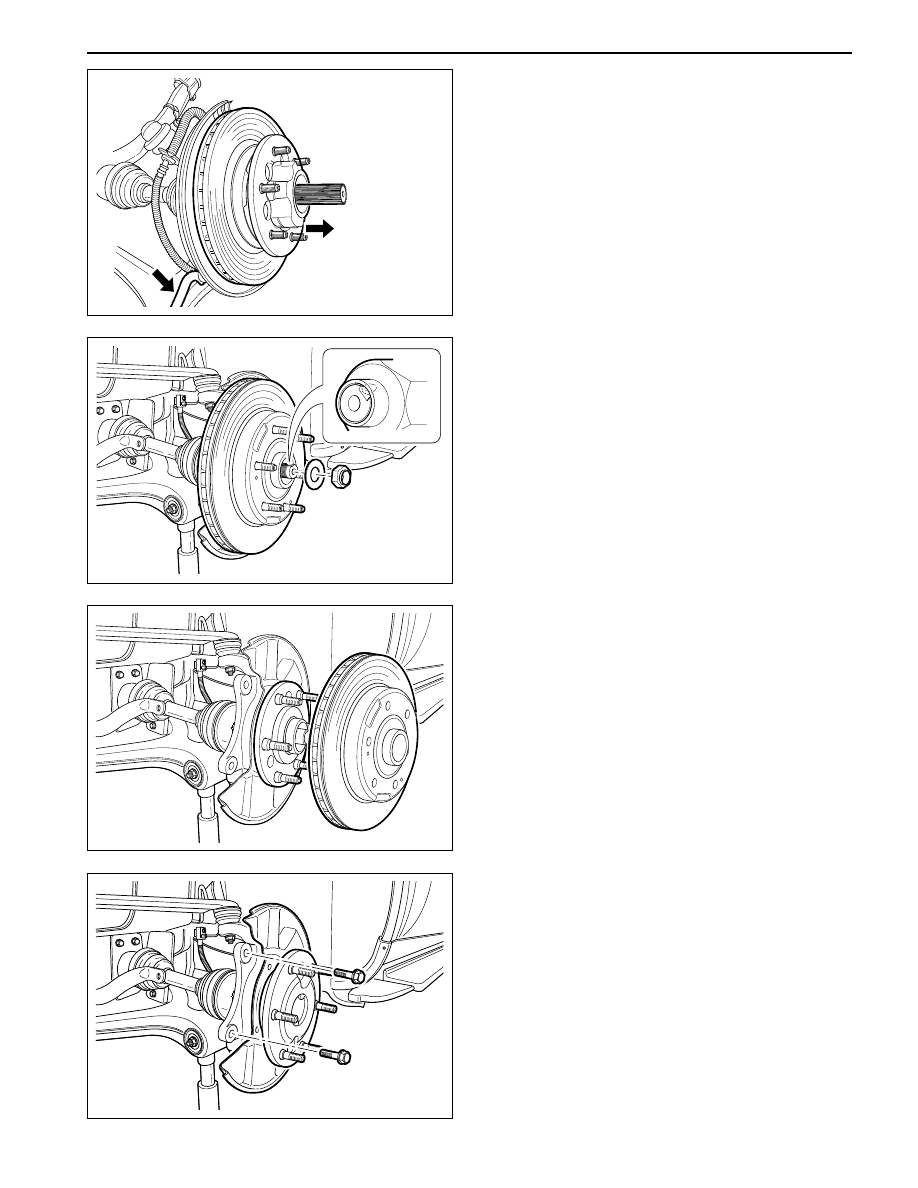

Remove the hub nut & washer.

Notice: For assembly, after you coincide the
groove of drive shaft tip with the hub tip and cork,
apply the paint and grease to the corking part.

Remove the front disc assembly from the axle
shaft.

Remove three wheel bearing bolts (M12) and
pull off hub assembly by using the special tool.

Notice: For reassembly, replace the wheel bearing
bolt with new one which applied the lock tight (blue
color).

YAD3A120

Remove the hub & brake disc assembly.

SSANGYONG  Y200

3A-14  FRONT AXLE

YAD3A180

YAD3A190

YAD3A170

8. Remove the split pin and nut from the steering

knuckle arm and upper arm ball joint connection.

Notice: For assembly, replace the split pin with
new one.

9. Remove the split pin and nut from the steering

knuckle arm and lower arm ball joint connection.

Notice: For assembly, replace the split pin with
new one.

10. Carefully remove the steering knuckle assembly.

11. Remove the drive shaft using the special tool.

YAD3A160

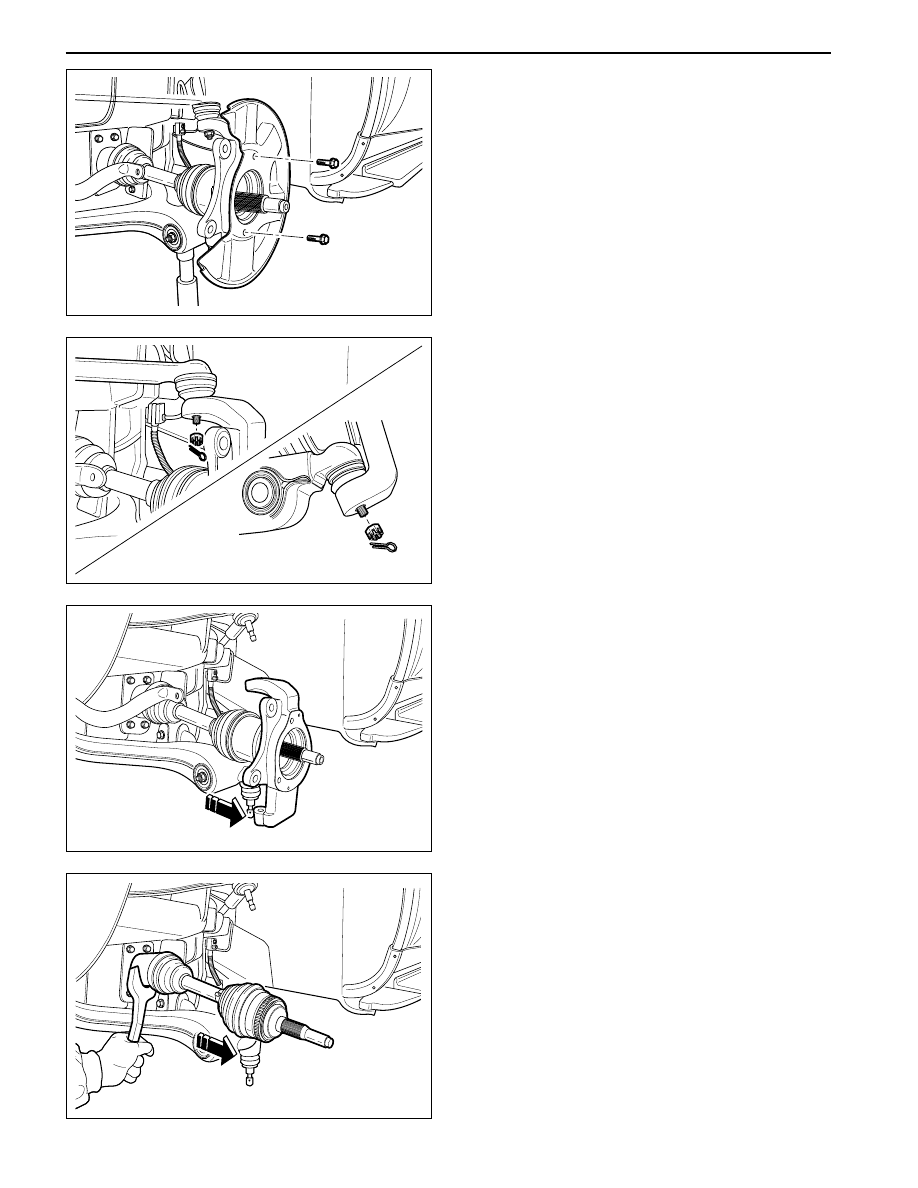

7. Remove two dust shield mounting bolts (M6) and

pull off the dust shield.
