TIRES AND WHEELS  2E-17

SSANGYONG  Y200

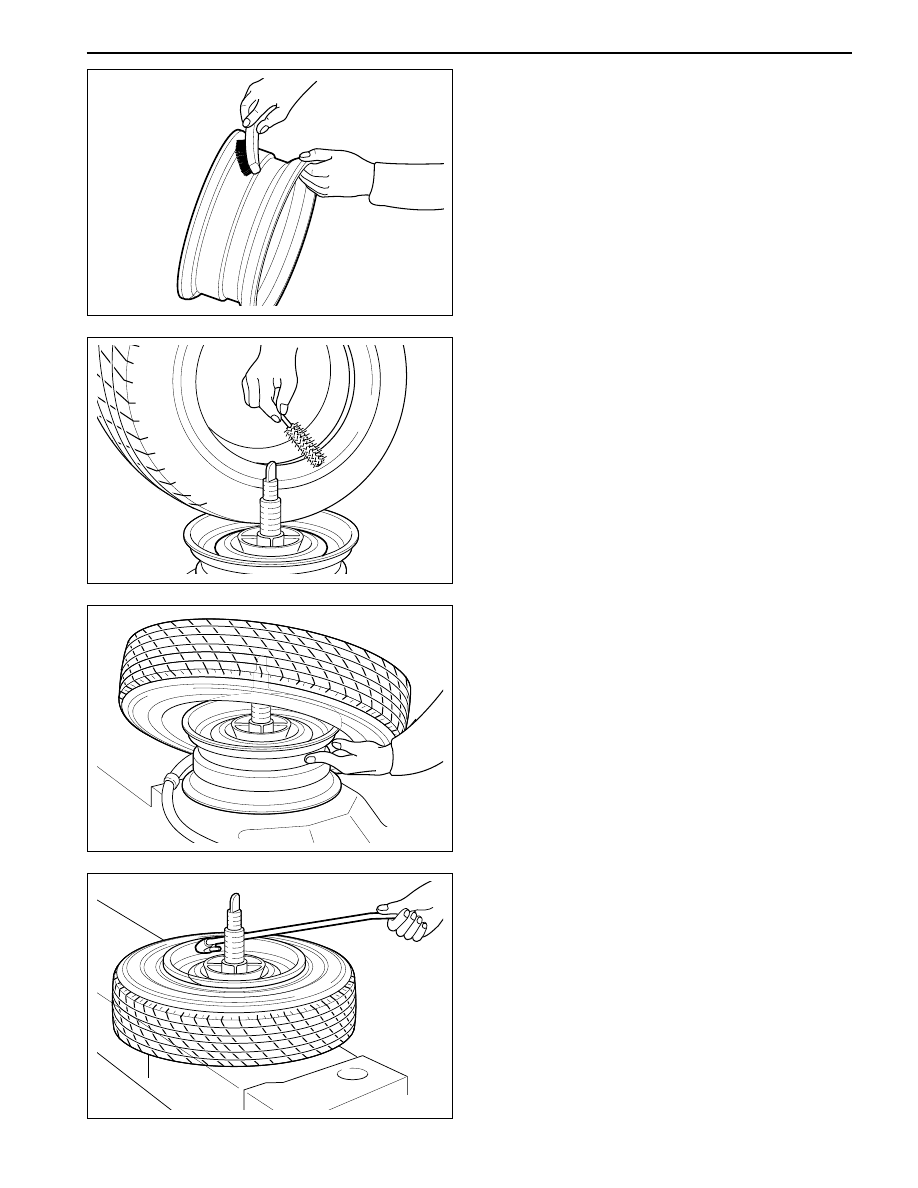

INSTALLATION

1. Clean the rust, damaged rubber and dust, etc on

the rim’s surface with the brush.

5. Check any foreign material or liquid for the tire

inside and then install to push down the tire.

YAD2E420

YAD2E430

YAD2E440

YAD2E450

2. Install the rim to the equipment with the valve

upward.

3. Tighten the locker in the center of the equipment

to assemble the rim to the equipment.

4. Apply the lubricant at the both bead portions and

both rim’s flange of the tire.

SSANGYONG  Y200

2E-18  TIRES AND WHEELS

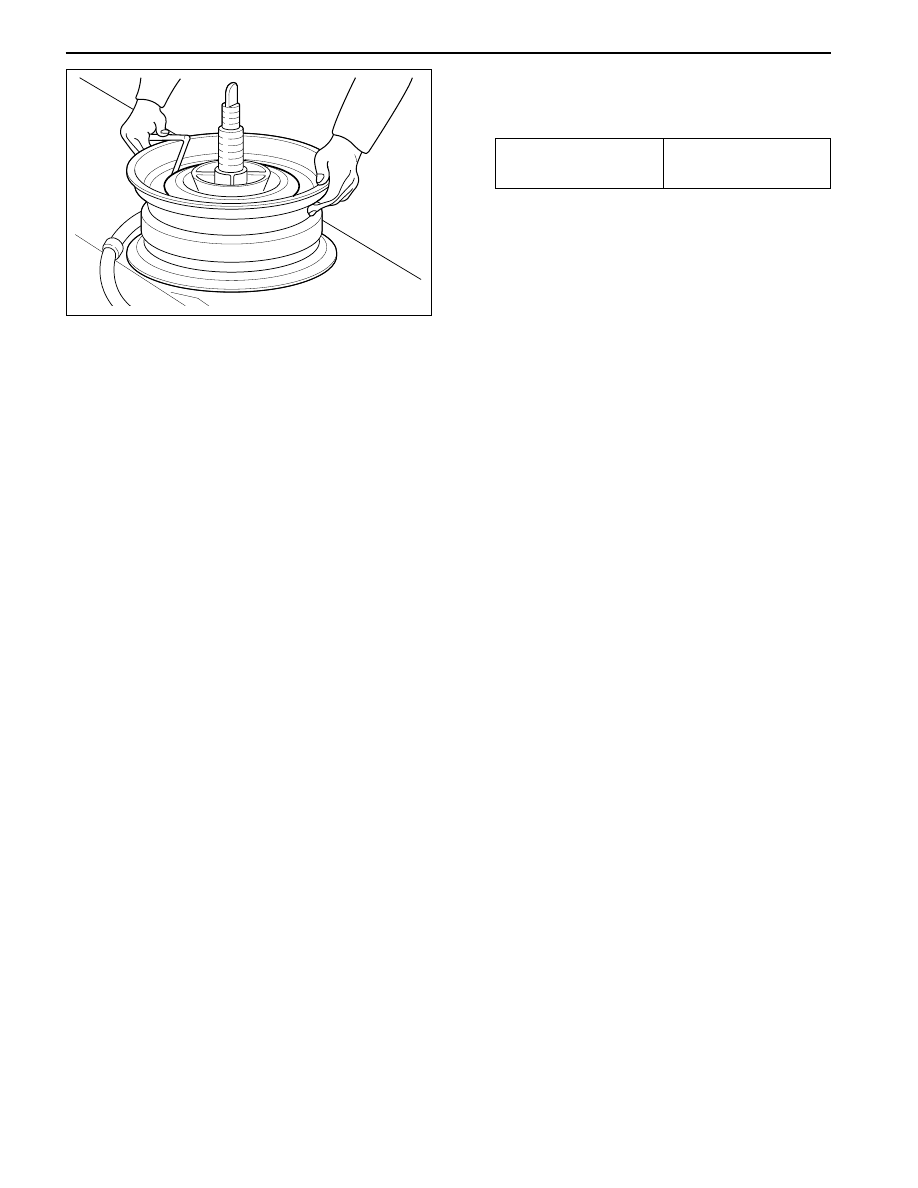

6. Set the tire pressure to the specifications.

Notice: Do not remove the tire from the equipment
before setting the tire pressure.

YAD2E460

Specification of the

tire pressure

2.1 kg•cm

2

(30 psi)

SECTION 3A

FRONT AXLE

TABLE OF CONTENTS

General Description and Operation ............... 3A-2

Front Axle Housing Assembly ......................... 3A-2

Axle Shaft Assembly ........................................ 3A-3

Specifications ................................................... 3A-4

Diagnosis Information and Procedures .......... 3A-5

Component  Locator ......................................... 3A-6

Front Axle Shaft ................................................ 3A-6

Front Axle Housing ........................................... 3A-7

Vacuum Line ................................................... 3A-10

Maintenance and Repair ................................. 3A-11

On-Vehicle Service ............................................ 3A-11

Front Axle Shaft .............................................. 3A-11

Vacuum Line ................................................... 3A-18

Axle Housing .................................................. 3A-19

Unit Repair ....................................................... 3A-20

Axle Housing Assembly ................................. 3A-20

Differential Joint Assembly ............................ 3A-26

Wheel Joint Assembly ................................... 3A-28

Special Tools And Equipment ....................... 3A-30

Special Tools Table ........................................ 3A-30

SSANGYONG  Y200

3A-2  FRONT AXLE

GENERAL DESCRIPTION AND OPERATION

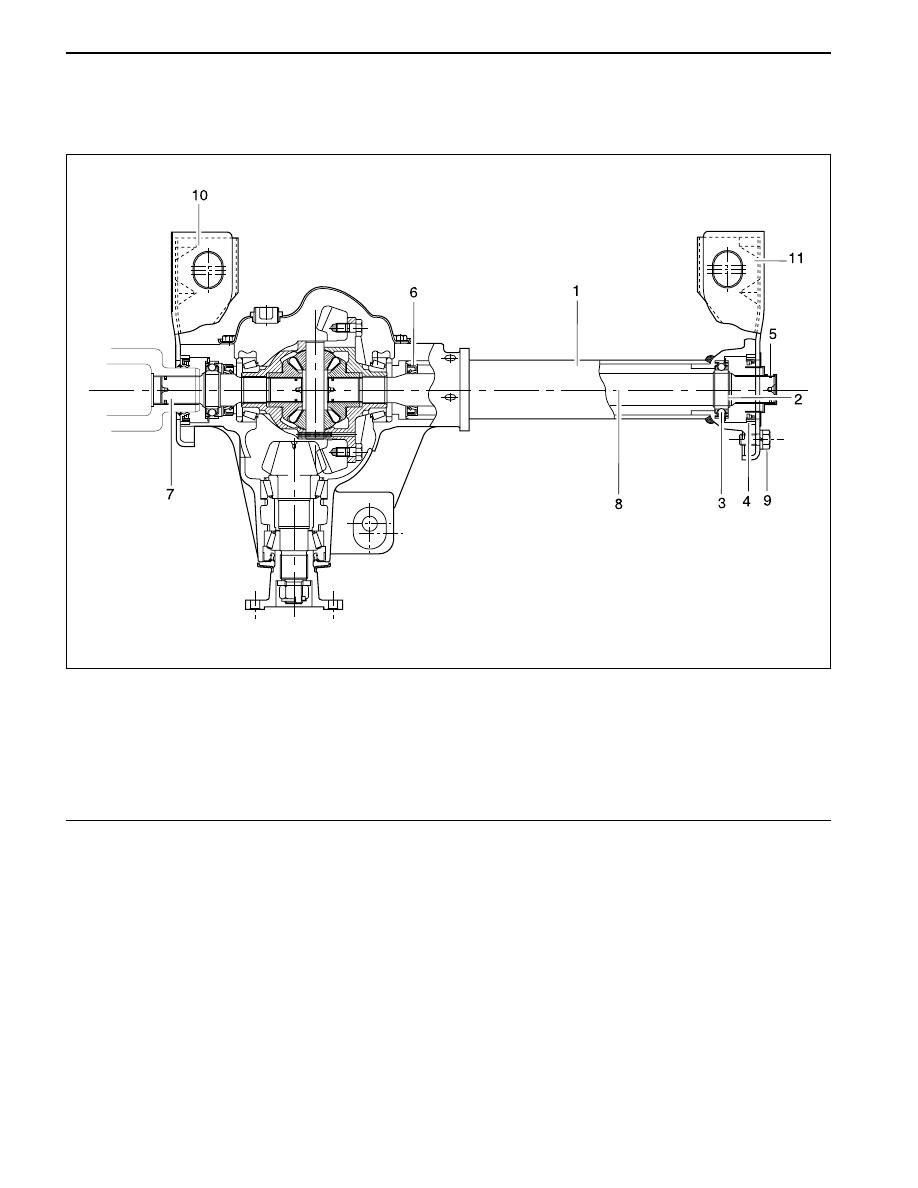

FRONT AXLE HOUSING ASSEMBLY

YAD3A020

1 Axle Tube Assembly
2 Snap Ring
3 Ball Bearing
4 Oil Seal
5 Protector
6 Retainer

7 Inner Shaft (LH)
8 Inner Shaft (RH)
9 Bolt

10 Front Axle Bracket (LH)
11 Front Axle Bracket (RH)

The front axle is installed between the left and right
wheel. It have the function which transfers the power
of engine to the wheels. Especially, it transfers the
high power to the front wheels when driving 4-wheel.

The axle shaft connected with CV joint in left/right of
axle and differential carrier in center is installed. The
length of left/right axle shaft is different and the
structure is independent. Both ends part of shaft is
fixed with the spline.
