FRONT SUSPENSION  2C-17

SSANGYONG  Y200

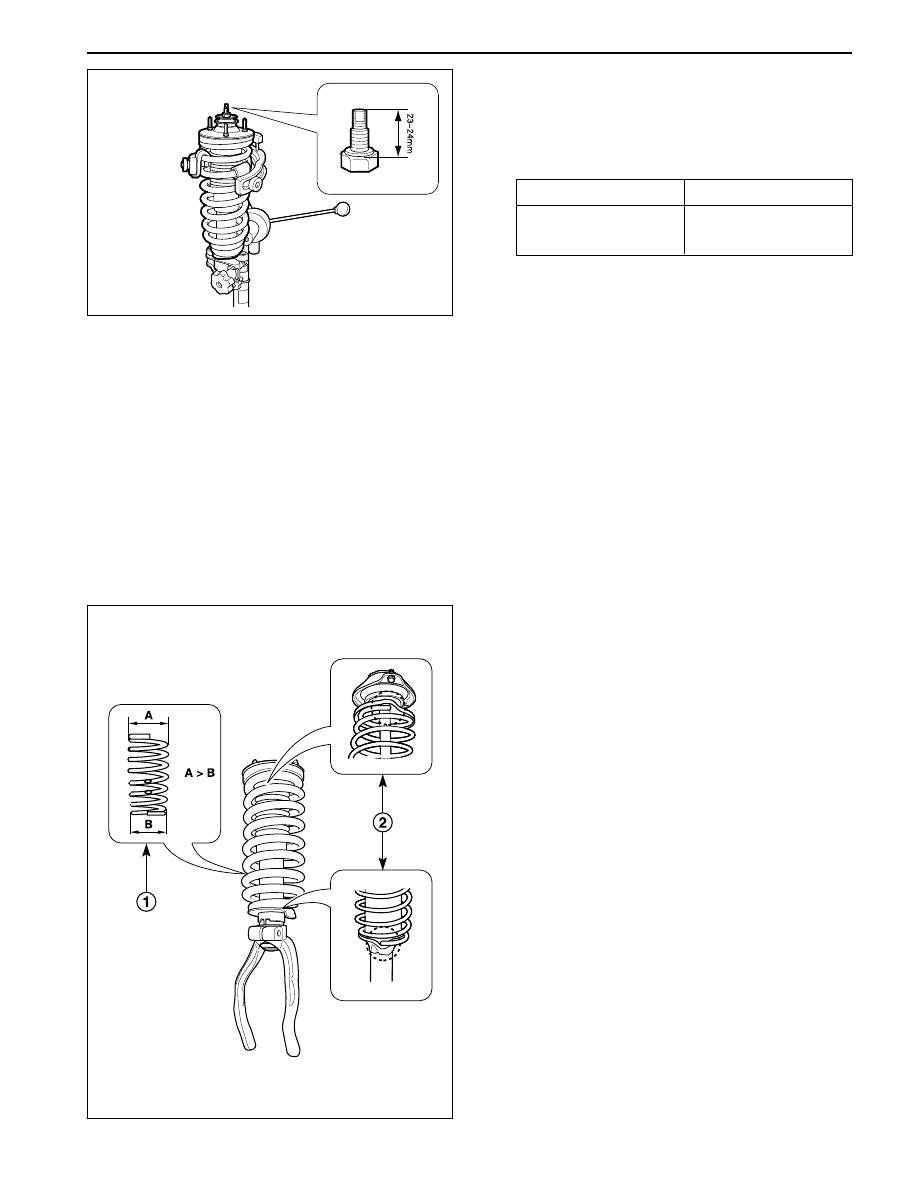

Installation Procedure

1. Compress the coil spring as the specified torque

and install the related components. And then
tighten the lock nut.

Installation Notice

YAD2C320

Length at compression

Tightening torque of

lock nut

334 N•m

25 - 40 N•m

(18 - 30 lb-ft)

Notice: Be careful to the installation direction for
installing the coil spring.

Note:  When it’s difficult to tighten the nut as
specified torque, fix the length from upper lock
nut to bolt end to 23 ~ 24 mm.

YAD2C330

2. Check the coil spring installation.

•

Check the installation direction of the coil
spring.

•

Verify that the coil spring is installed onto the
spring sheet correctly.

SSANGYONG  Y200

2C-18  FRONT SUSPENSION

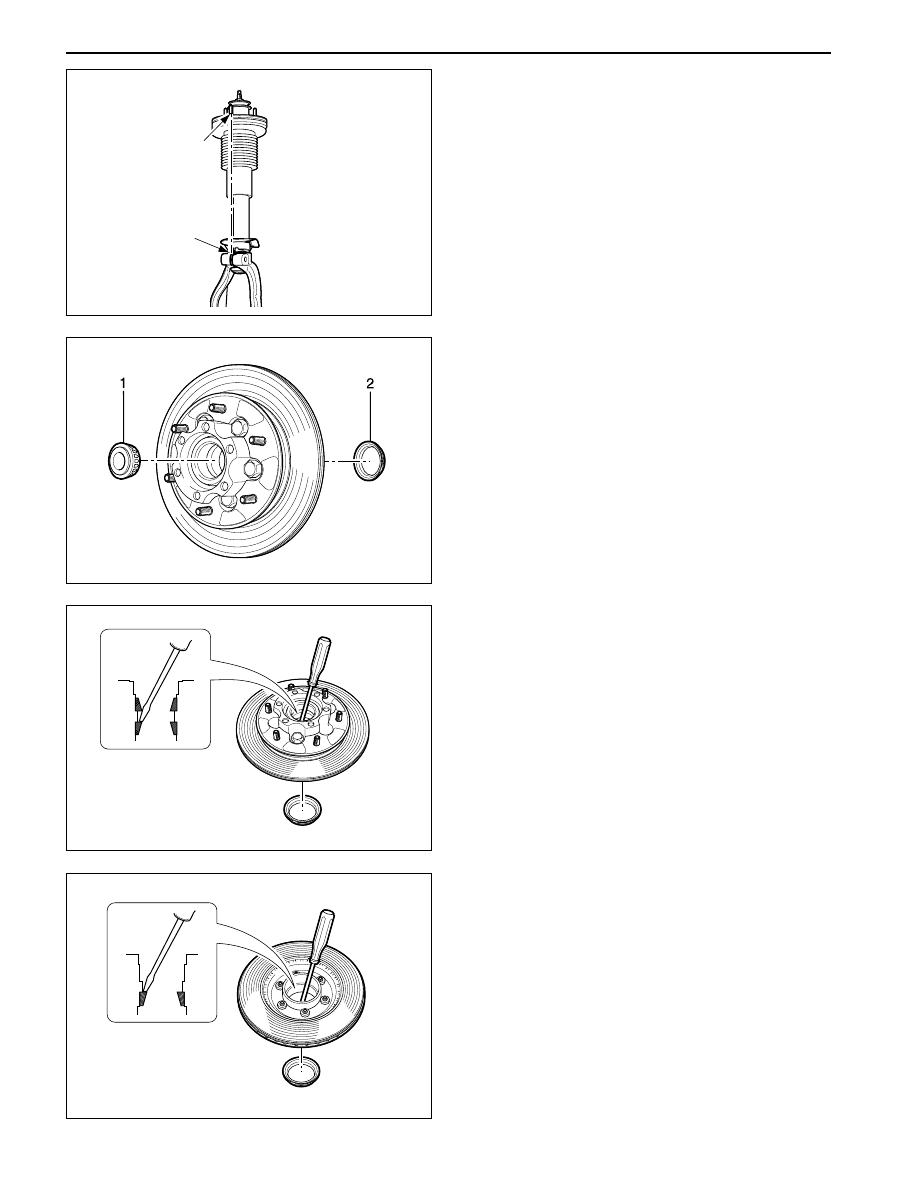

4. Remove the inner bearing race.

YAD2C360

YAD2C370

5. Remove the outer bearing race.

Notice: One of the upper bracket bolts should
coincide with the lower yoke insert projection as
shown.

YAD2C340

HUB AND BEARING

Disassembly/Assembly (Part time)

1. Remove the front hub and bearing assembly.

2. Remove the outer bearing (1) and inner seal.

Notice: Always use a new part as replacing inner
seal.

3. Remove the inner bearing (2).

YAD2C350

FRONT SUSPENSION  2C-19

SSANGYONG  Y200

YAD2C380

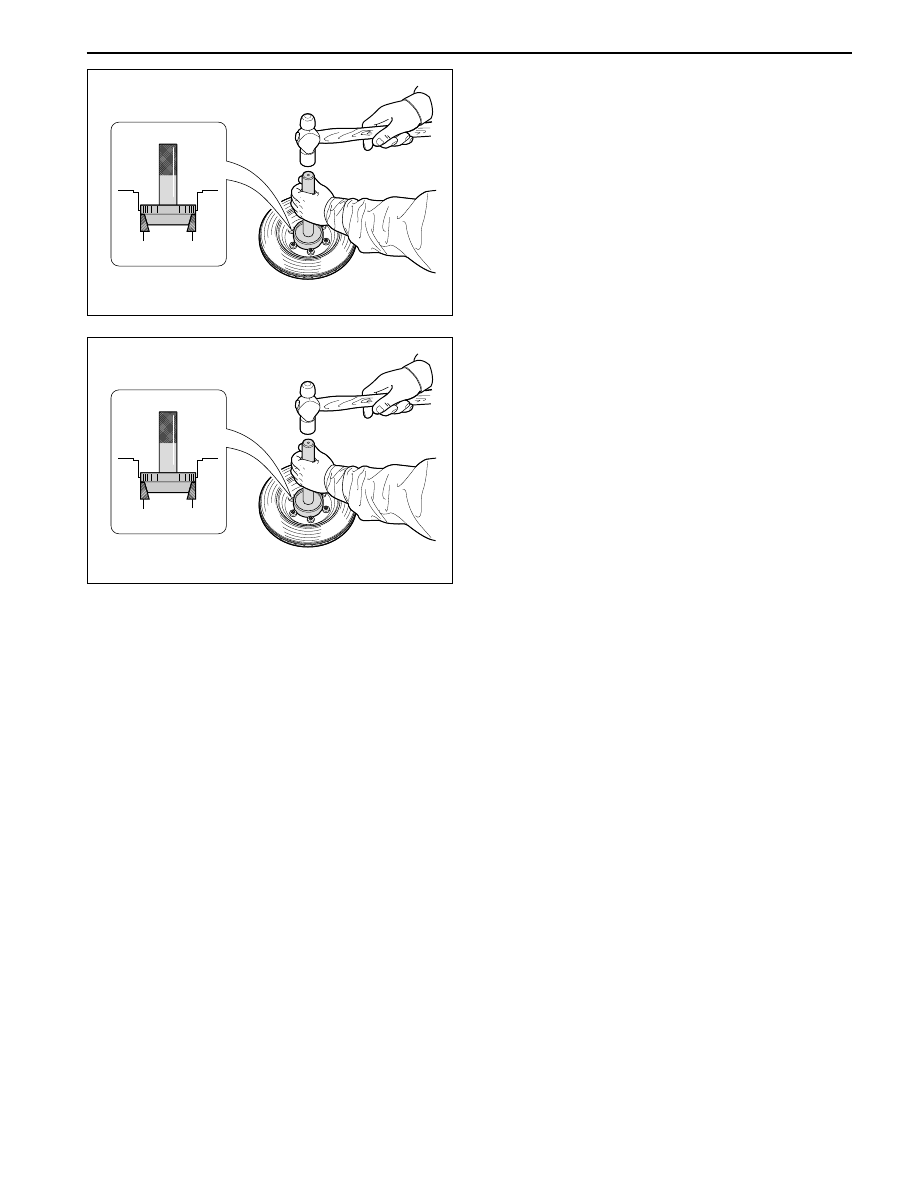

Notice:

•

Install the outer bearing race using the front
outer bearing race installer and handle.

YAD2C390

•

Install the inner bearing race using the front
inner bearing race installer and handle

6. Installation should follow the removal procedure

in the reverse order

SSANGYONG  Y200

2C-20  FRONT SUSPENSION

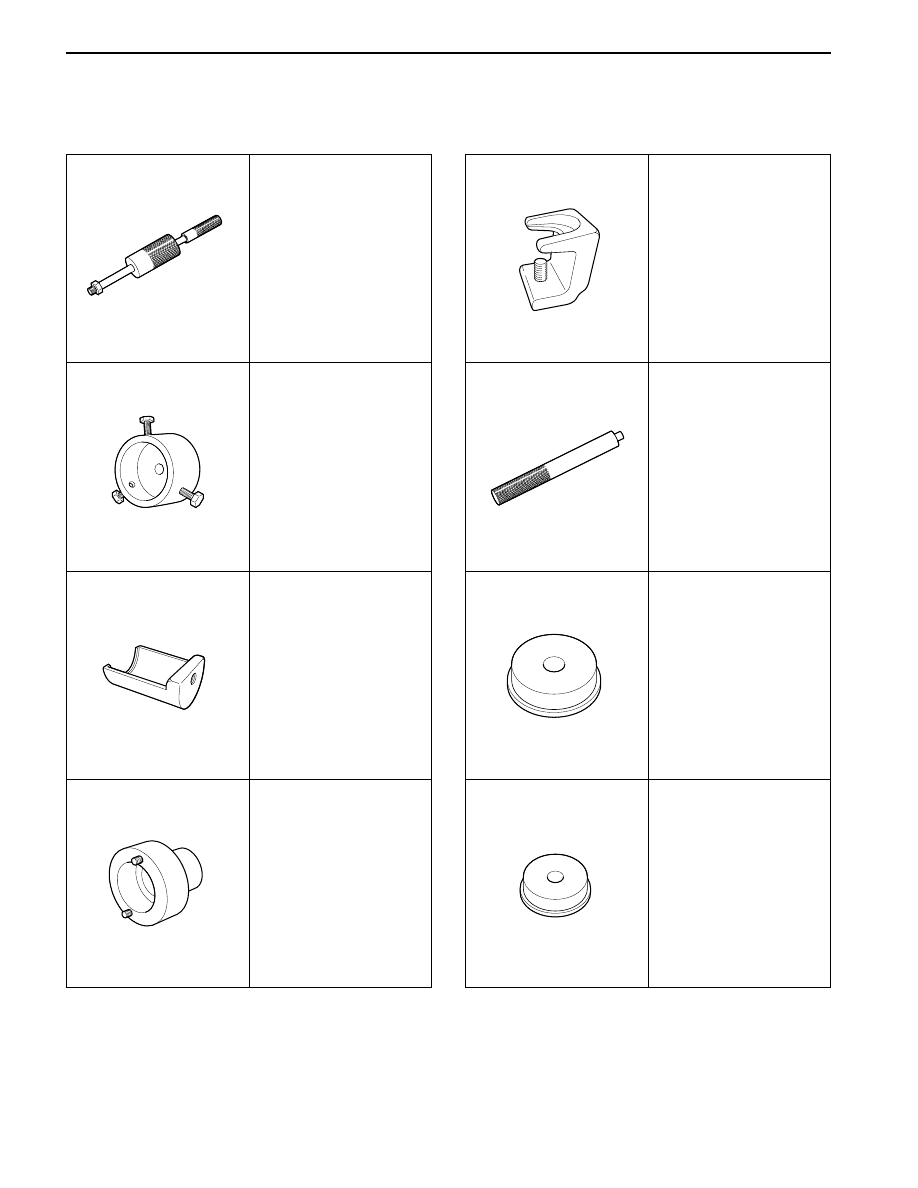

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS TABLE

DW340 - 070

Front hub flange

remover

661 589 01 07 00

Front hub adjust nut

remover/installer

DW340 - 050

Sliding Hammer

DW 340 - 060

Front hub cap remover/

installer

DW 340 - 021 - 02

Front inner bearing race

installer

DW 340 - 021 - 03

Front outer bearing race

installer

661 589 13 33 00

Ball joint remover

DW 340 - 021 - 01

Handle

YAD2C400

YAD2C440

YAD2C410

YAD2C450

YAD2C420

YAD2C460

YAD2C430

YAD2C470
