FRONT SUSPENSION  2C-5

SSANGYONG  Y200

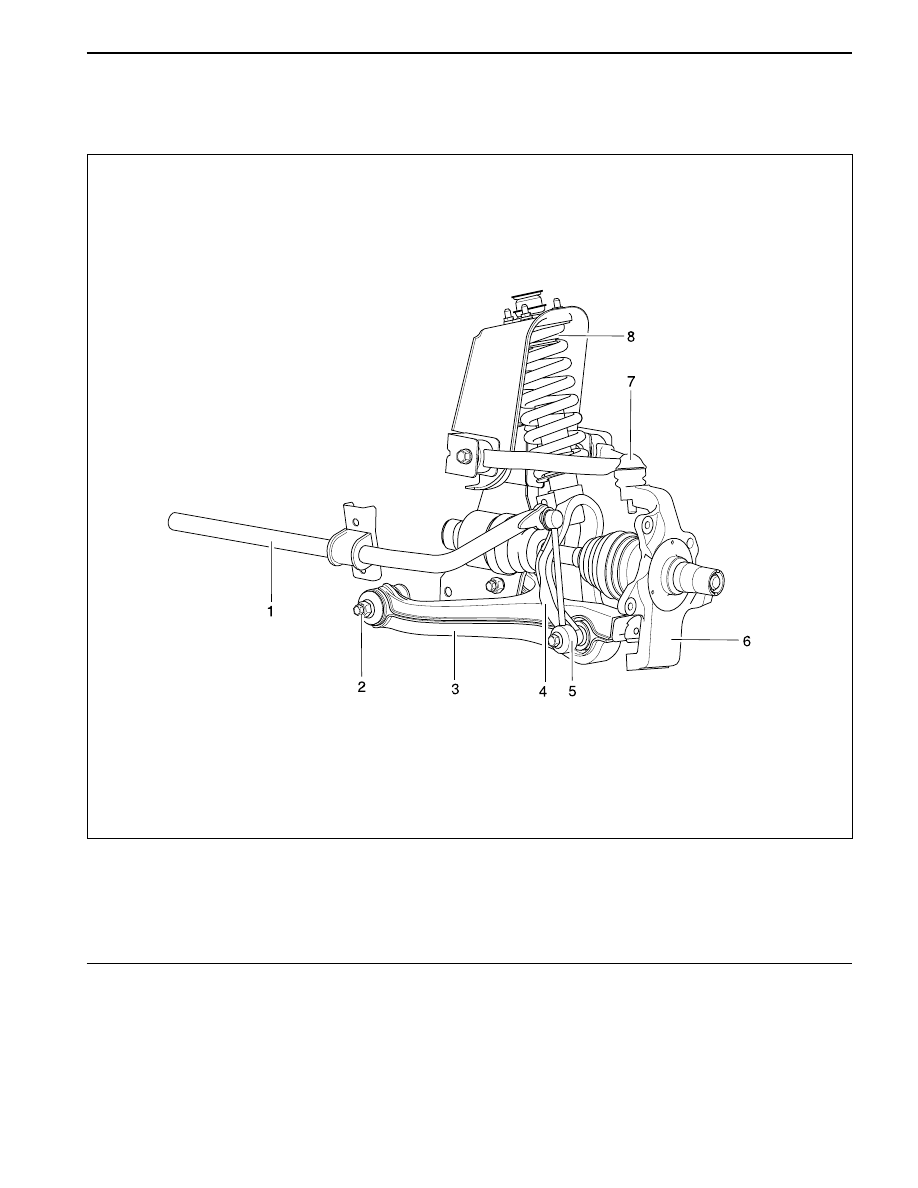

COMPONENT LOCATOR

FRONT SUSPENSION ASSEMBLY

1 Stabilizer Bar
2 Cam bolt
3 Lower arm
4 Yoke

5 Stabilizer Bar Link
6 Knuckle
7 Upper arm
8 Shock Absorber Assembly

(Including coil spring)

YAD2E050

SSANGYONG  Y200

2C-6  FRONT SUSPENSION

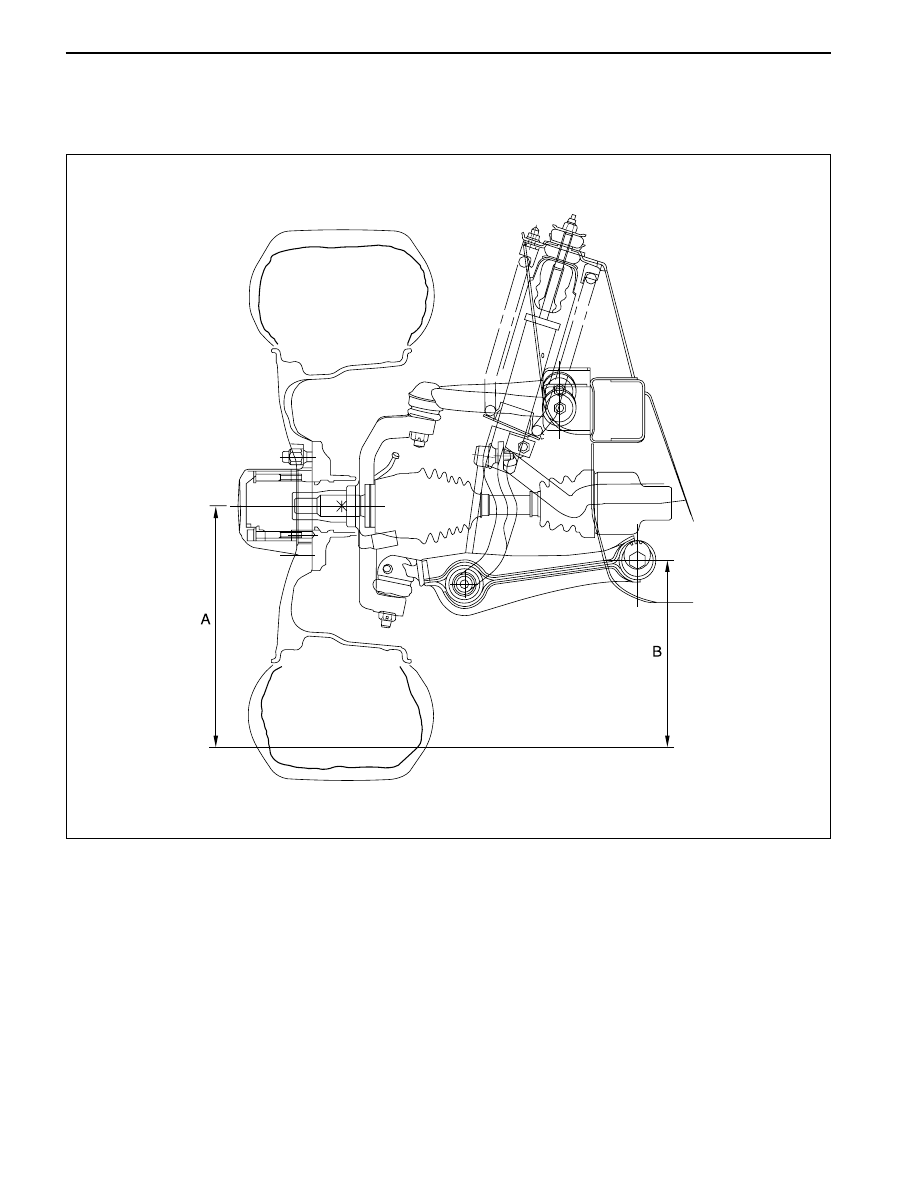

CROSS-SECTIONAL VIEW

SUSPENSION ASSEMBLY

YAD2C060

FRONT SUSPENSION  2C-7

SSANGYONG  Y200

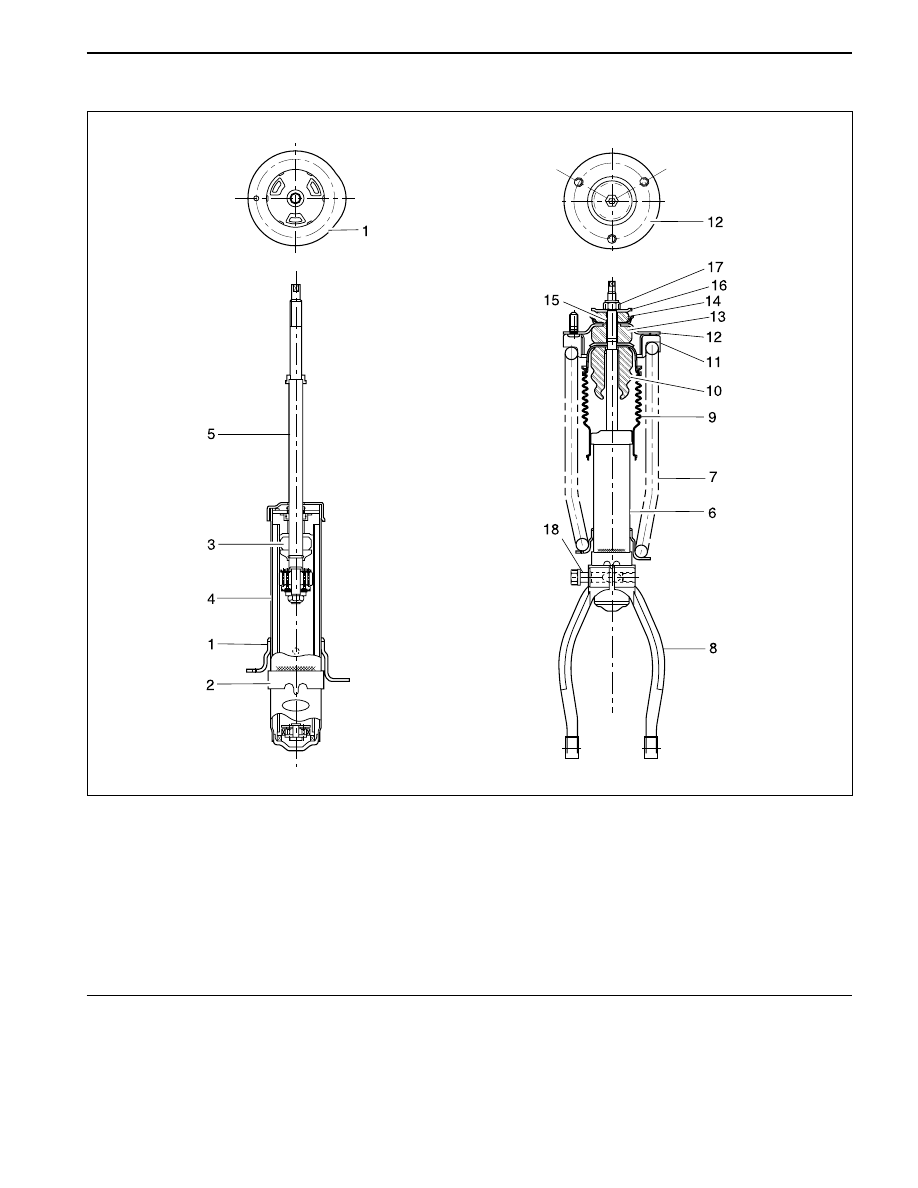

SHOCK ABSORBER

1 Lower Spring Sheet
2 Yoke Bracket
3 Rebound Stopper
4 Cylinder
5 Piston
6 Shock-Absorber assembly
7 Spring
8 Yoke
9 Boot

10 Bump Stopper
11 Spring Sheet Rubber
12 Upper Spring Sheet
13 Rubber
14 Rubber
15 Spacer
16 Washer
17 Nut
18 Bolt

YAD2C070

SSANGYONG  Y200

2C-8  FRONT SUSPENSION

Action

Replace

Replace

Re-Tighten

Replace

Replace

Replace

Pressure Adjust

Replace

Tighten as specified torque

Replace

Replace

Replace

Replace

Replace

Replace

Repair

Replace

Adjust

Repair or Replace

Repair

Re-Tighten or Replace

Replace

DIAGNOSTIC INFORMATION AND PROCEDURES

Symptom

Vehicle Rolling

Possible Cause

Broken Stabilizer Bar

Faulty Shock Absorber

Loosening Mountings

Damaged or Worn Wheel Bearing

Damaged Shock Absorber

Damaged Tire

Over Inflated Tire

Faulty Shock Absorber

Loosened Wheel Nut

Bent or Broken Coil Spring

Damaged Tire

Worn Bushing

Deformed Arm Assembly

Worn Bushing

Bent or Broken Coil Spring

Incorrect Front Wheel Alignment

Excessive Resistance of Lower

Arm Ball Joint

Insufficient Tire Pressure

Faulty Power Steering

Incorrect Front Wheel Alignment

Worn or Loosened Lower Arm

Bushing

Worn or Broken Coil Spring

Vehicle Bottoming

Abnormal Noises

Poor Riding

Vehicle Pulls to Right or Left

Hard Steering

Steering Instability
