11. The distance ‘x’ (camshaft basic bore - valve

stem).

‘ x ’   =   ‘ z ’   -   ‘ y ’ .

Determine the valve to use according to this
measurement (See ‘matching valves’)

Example) Measured value ‘w’ = 38.2 mm

Measured value  ‘z’= 36.5 mm

V a l u e  ‘ y ’

= 15.5 mm

‘x’ = 36.5 - 15.5 = 21.0 mm

In this case according to ‘Matching valves’ table,
the installed valve may be used.

SSANGYONG  Y200

1B3-144  DIESEL ENGINE MECHANICAL

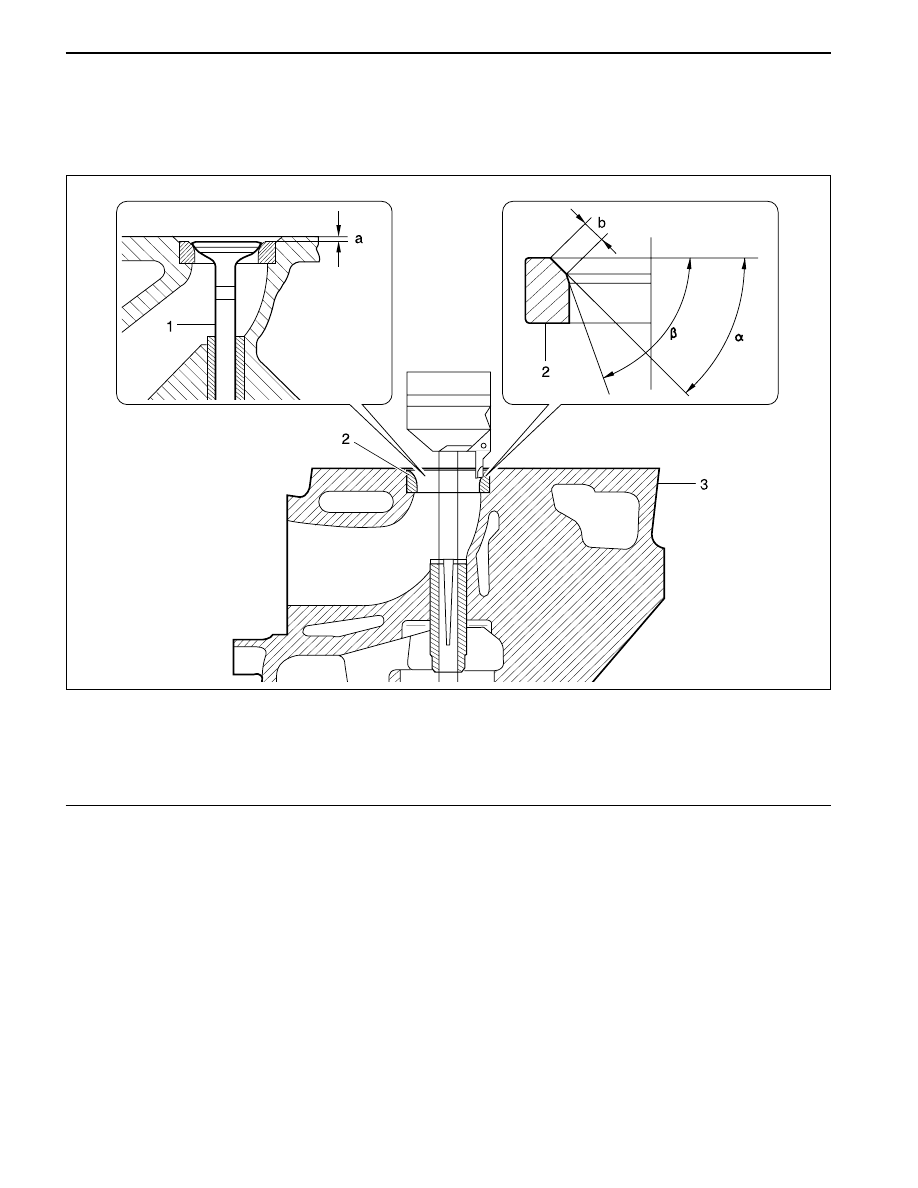

MACHINING OF VALVE SEAT

Preceding Work:

Removal of prechamber

Removal and inspection of valve, replace if necessary

Inspection of valve guide, replace if necessary

1 Valve
2 Valve Seat Ring
3 Cylinder Head
4 Valve Guide

a Valve Arreare

b Valve Seat Width

α

Valve Seat Angle

β

Valve Seat Free Angle

YAD1BJV0

DIESEL ENGINE MECHANICAL  1B3-145

SSANGYONG  Y200

Service Data

Matching Valves

Commercial Tools

Camshaft Cam Basic Dia.

w = 38.0 ± 0.2 mm

19.5 - 20.3 mm

20.4 - 21.4 mm

21.4 - 21.97 mm

Valve to be Used

Use machined valve,

if needed

use pair valve

1 = 105.5 ± 0.2 mm

Reuse valve

Use standard size

valve

I = 106.4 ± 0.2 mm

Camshaft Cam Basic Dia.

w = 37.6 ± 0.2 mm

19.5 - 20.1 mm

20.2 - 21.2 mm

21.2 - 21.97 mm

Hunger

D-8000 München 70

Type Ventilknecht K2000

Order No. 221 00 100

Hunger

D-8000 München 70

Type VDS 1A

Order No. 236 03 308

Hunger

D-8000 München 70

Order No. 217 93 601

Cylinder Head Clamping Devie

Valve Seat Turning Tool

Test Sat for Valves

Size (x)

Size (x)

Size (x)

Exhaust

0.1 - 0.7 mm

1.5 - 2.0 mm

45°

65°

0.03 mm

106.20 - 106.60 mm

105.30 - 105.70 mm

Item

Valve Arrears ‘a’

Valve Seat Width ‘b’

Valve Seat Angle ‘

α

’

Valve Seat Free Angle ‘

β

’

Permissible Radial Runout

Valve Length ‘I’

Intake

0.1 - 0.7 mm

1.2 - 1.7 mm

45°

65°

0.03 mm

106.20 - 106.60 mm

105.30 - 105.70 mm

Standard

Repair

SSANGYONG  Y200

1B3-146  DIESEL ENGINE MECHANICAL

YAD1BJW0

YAD1BJX0

YAD1BJY0

YAD1BJZ0

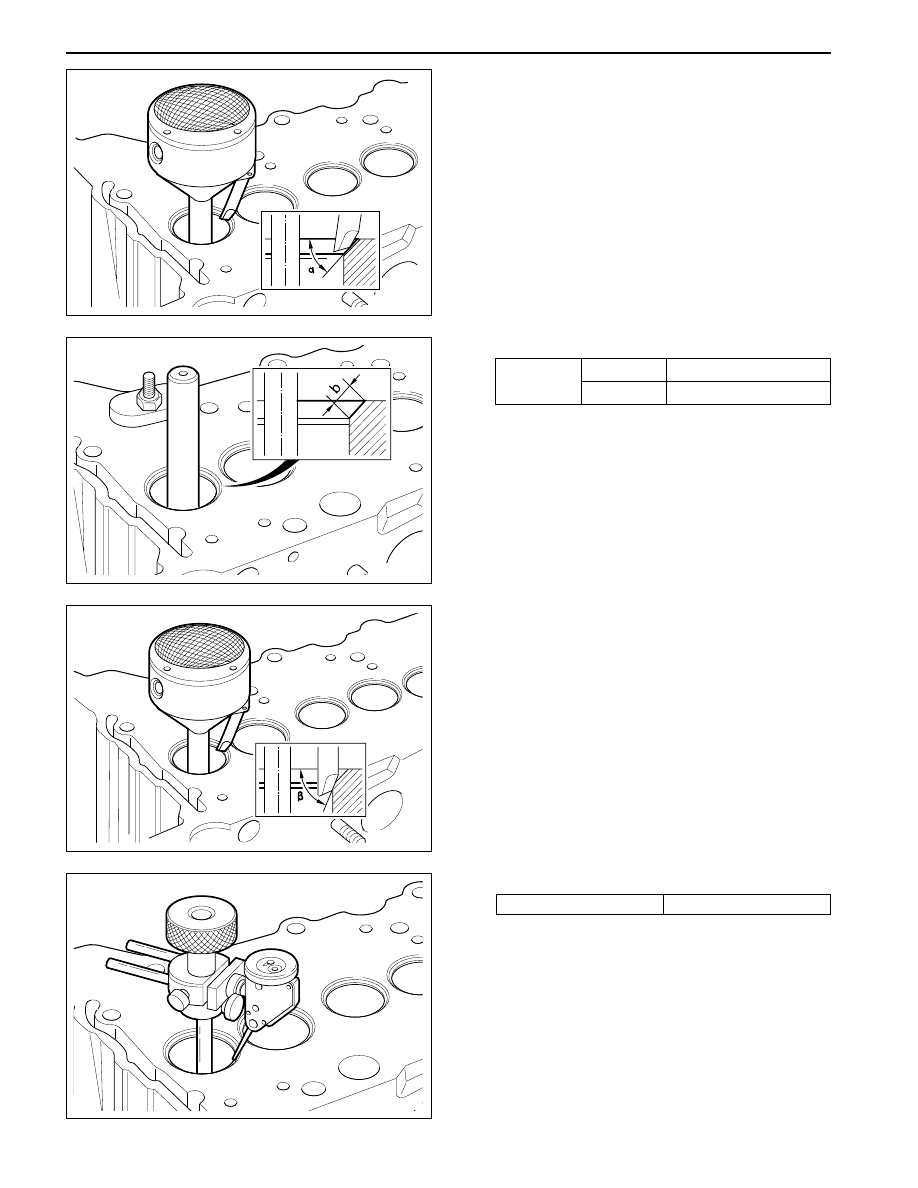

Machining Procedure

Valve machining is required :

-

When the valve is leaking.

-

When replacing the valve.

-

When replacing the valve guide.

-

When replacing the valve seat or valve seatring.

1. Machine the valve seat (

α

=45°).

4. Measure radial runout.

2. Measure valve seat width ‘b’.

Valve seat

w i d t h   ‘ b ’

1.2 - 1.7 mm

1.5 - 2.0 mm

Intake

Exhaust

Runout

 Max. 0.03 mm

3. If the specification is exceeded, the valve seat

width has to be corrected at the lower free angle
of  ‘

β

’ =65°.
