M161 ENGINE MECHANICAL  1B2-19

SSANGYONG  Y200

YAD1B5T0

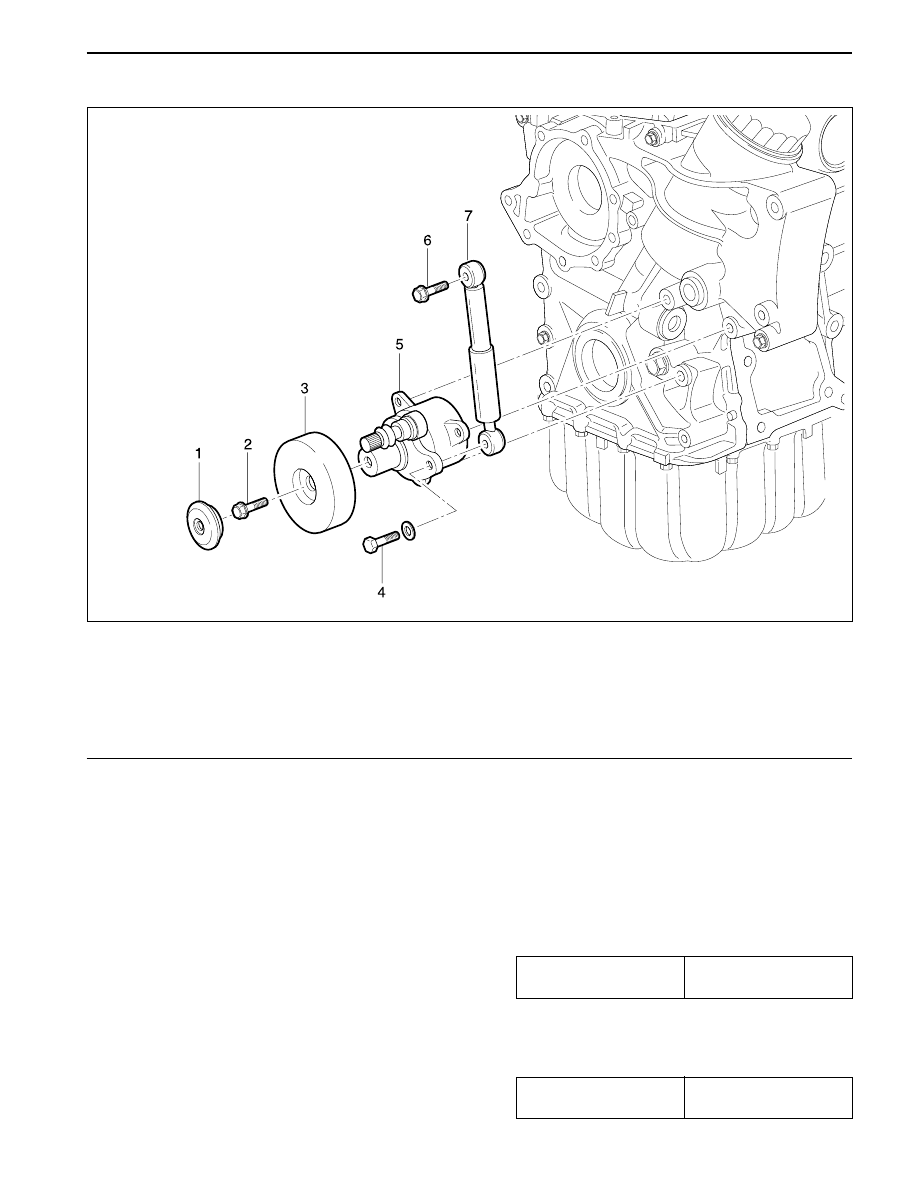

TENSIONING DEVICE SHOCK ABSORBER

1 End Cover
2 Bolt .................... 40.5 - 9.5 N•m (29.9 - 6.5 lb-ft)
3 Tensioning Pulley
4 Bolt (M8 X 25) + Washer

.......................... 22.5 - 7.5 N•m (16.6 - 0.3 lb-ft)

Removal & Installation Procedure

1. Remove the end cover (1).

2. Remove the bolt (2) and remove the tensioning

pulley (3).

Installation Notice

5 Tensioning Device
6 Bolt (M8 X 35) + Washer

.......................... 22.5 - 7.5 N•m (16.6 - 0.3 lb-ft)

7 Shock Absorber

Tightening Torque

22.5 - 27.5 N•m

(16.6 - 20.3 lb-ft)

Tightening Torque

40.5 - 49.5 N•m

(29.9 - 36.5 lb-ft)

3. Unscrew the bolts (4,6) and remove the shock ab-

sorber (7).

Installation Notice

SSANGYONG  Y200

1B2-20  M161 ENGINE MECHANICAL

YAD1B5U0

YAD1B380

YAD1B390

YAD1B400

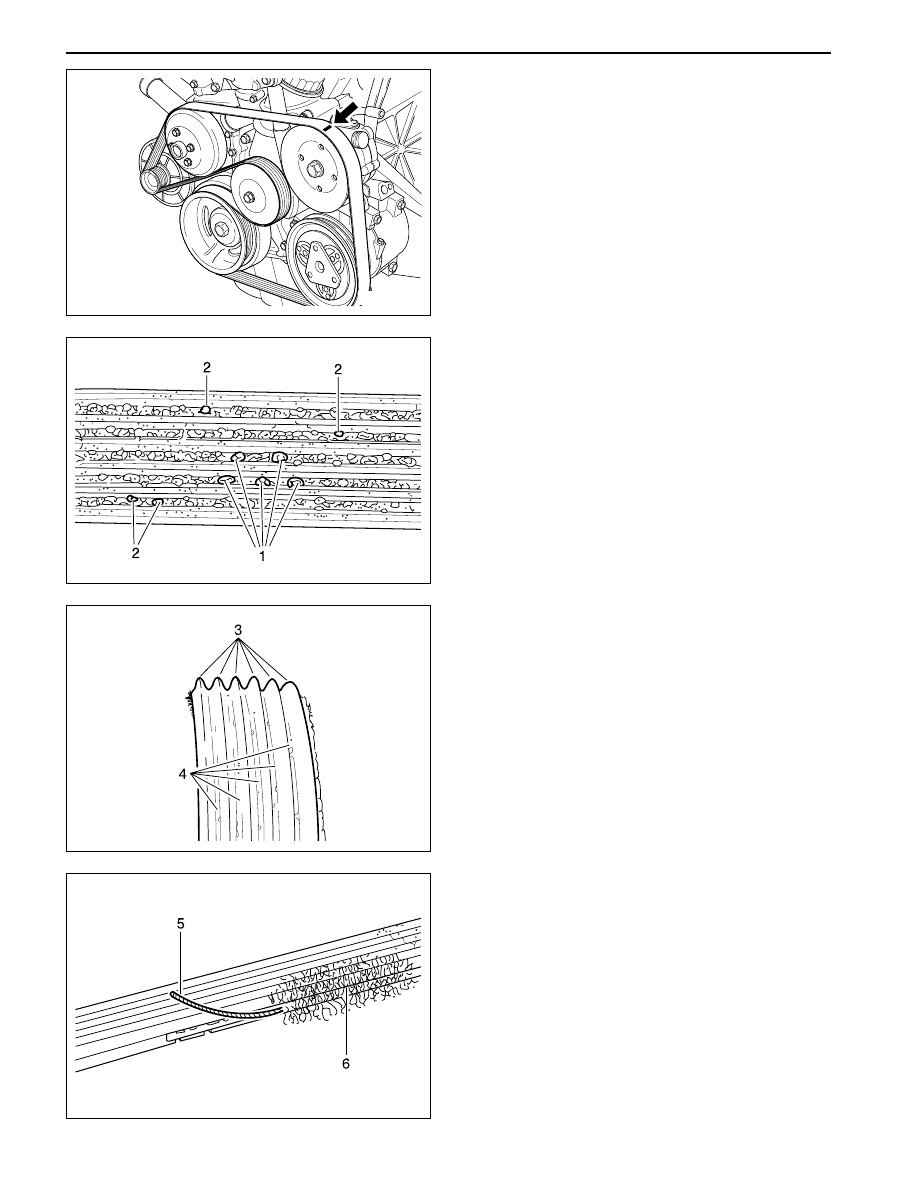

POLY  V - BELT INSPECTION

•

Make marks on the belt with chalk.

•

Rotate the engine and check the belt for damage.

Notice: If one of the following types of damages is
found, replace the belt.

1. Rubber lumps in the base of rib.

2. Dirt or grit ingrained.

3. Pointed rib.

4. Belt cord visible in the base of rib.

5. Cord torn out at the side.

6. Outer cords frayed.

M161 ENGINE MECHANICAL  1B2-21

SSANGYONG  Y200

YAD1B410

YAD1B420

YAD1B430

YAD1B440

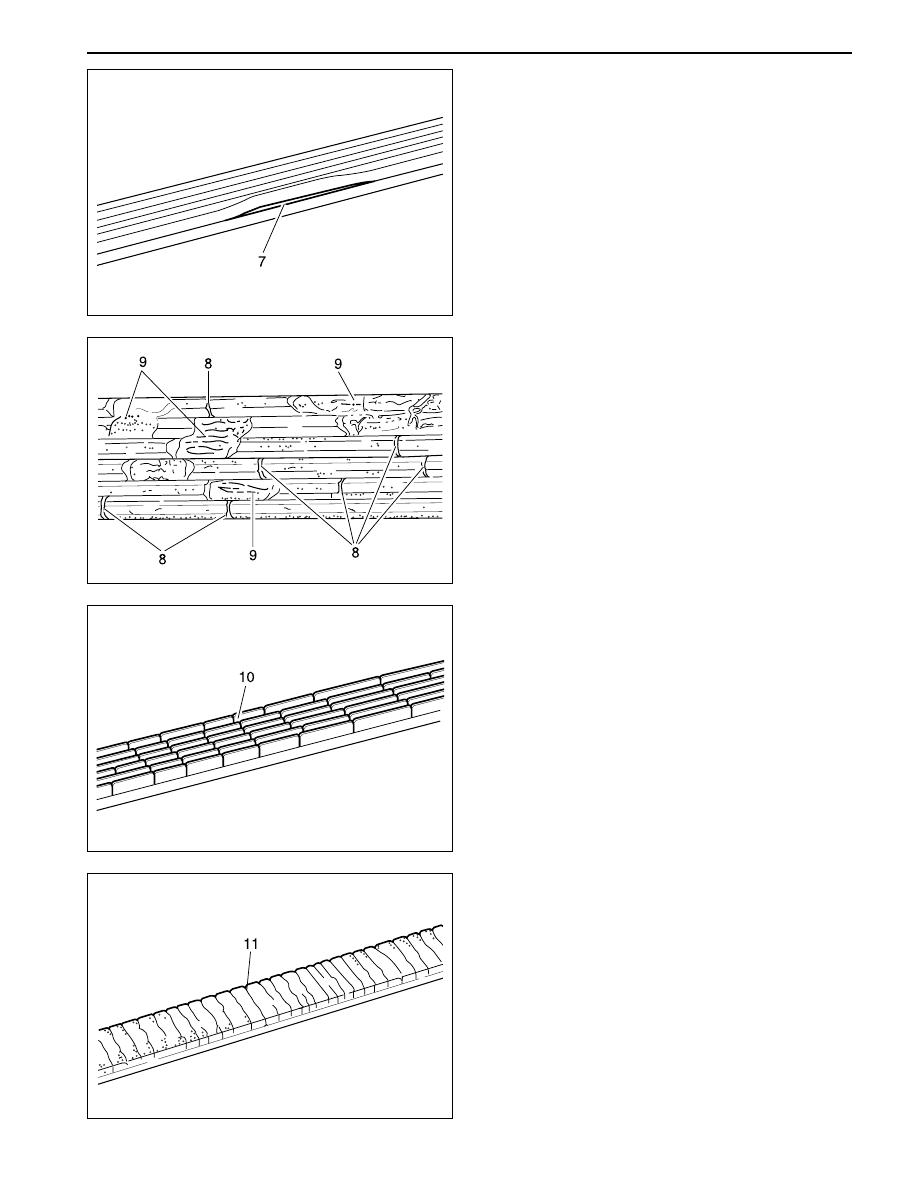

7. Rib detached from the base of belt.

11. Splits across the back of the belt.

10. Splits across several ribs.

8. Splits across the rib.

9. Sections of rib torn out.

SSANGYONG  Y200

1B2-22  M161 ENGINE MECHANICAL

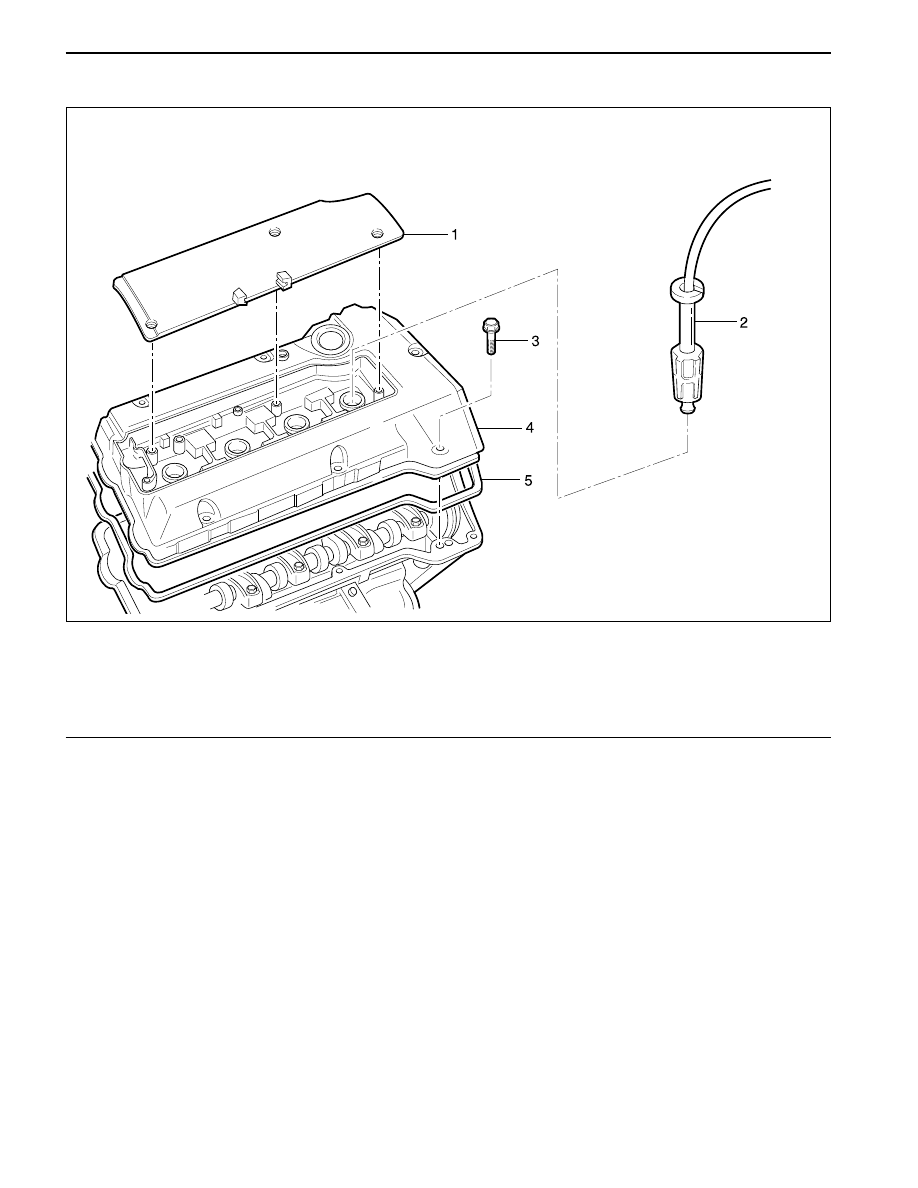

CYLINDER HEAD COVER

YAD1B5V0

1 Spark Plug Cover
2 Spark Plug Connector
3 Bolt (M6 X 45 : 4 pieces, M6 X 60 : 6 pieces)

.................................... 9 - 11 N•m (80 - 97 lb-in)

4 Cylinder Head Cover
5 Gasket .................................................... Replace
