ELECTRICAL WIRING DIAGRAMS  5-149

SSANGYONG  REXTON XDi (LHD)

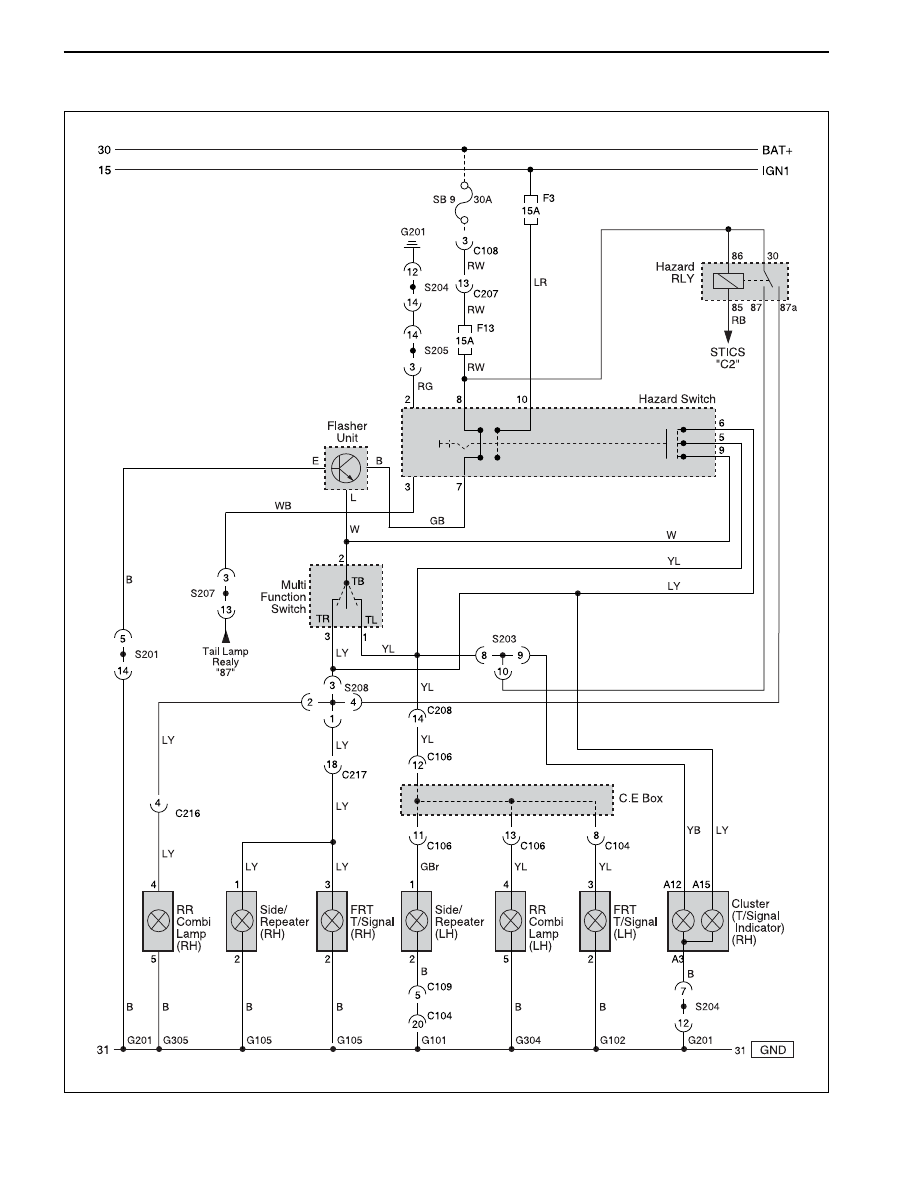

2) 2003 MODEL

SSANGYONG  REXTON XDi (LHD)

5-150  ELECTRICAL WIRING DIAGRAMS

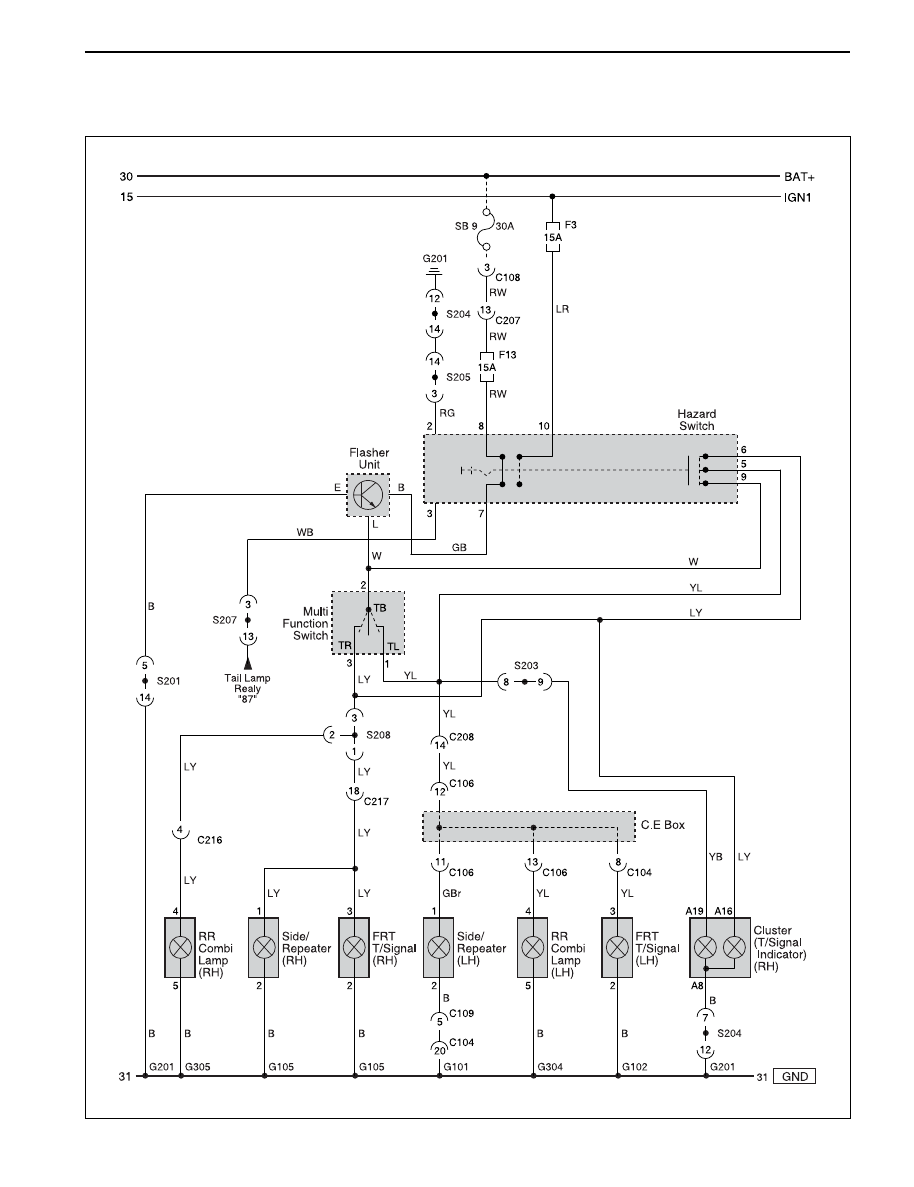

3) XDi

ELECTRICAL WIRING DIAGRAMS  5-151

SSANGYONG  REXTON XDi (LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (F) - Engine

Engine Room Fuse Box (M) - Engine

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (RH)

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Engine

W/H Main

W/H Floor

W/H Floor

C104 (20Pin, White)

C106 (18Pin, White)

C109 (16Pin, White)

C203 (13Pin, Green)

C210 (13Pin, Green)

C216 (18Pin, White)

S201 (14Pin, Black)

S203 (14Pin, Black)

S204 (14Pin, Black)

S205 (14Pin, Black)

S207 (14Pin, Black)

S208 (14Pin, Black)

G101

G102

G105

G201

G304

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the I/P Relay Box

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Behind the Right the FATC

Center the Engine Room Fuse Box

Center BATT

Behine the Right Gead Lamp

Inside Driver Side Cowl PNL

Behind the Quarter Grass #1

Behind the Quarter Grass #1

GND

GND

GND

Tail Lamp

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-152  ELECTRICAL WIRING DIAGRAMS

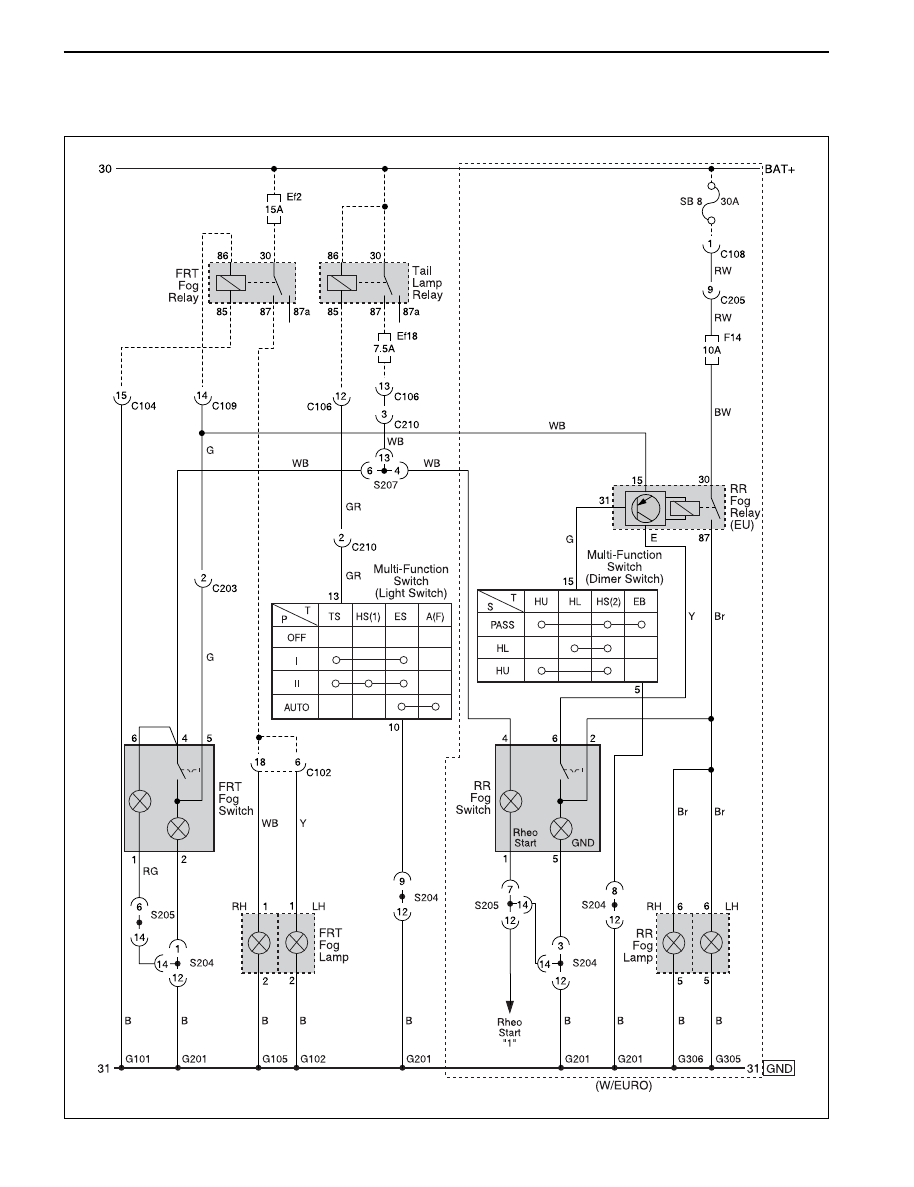

38. FOG LAMP CIRCUIT

1)  ~ 2002 MODEL
